ASSEMBLY AND OPERATING INSTRUCTIONS

3491 Mission Oaks Blvd., Camarillo, CA 93011

Visit our Web site at: http://www.harborfreight.com

manual or any artwork contained herein may be reproduced in any shape or form

without the express written consent of Harbor Freight Tools.

For technical questions, please call 1-800-444-3353.

18 VOLT CORDLESS

HAMMER DRILL KIT

PRODUCT SPECIFICATIONS

SAVE THIS MANUAL

You will need this manual for the safety warnings and precautions, assembly,

operating, inspection, maintenance and cleaning procedures, parts list and as-

sembly diagram. Keep your invoice with this manual. Write the invoice number

on the inside of the front cover. Keep this manual and invoice in a safe and dry

place for future reference.

GENERAL SAFETY RULES

WARNING!

READ AND UNDERSTAND ALL INSTRUCTIONS

Failure to follow all instructions listed below may result in

electric shock, fire, and/or serious injury.

SAVE THESE INSTRUCTIONS

WORK AREA

1. Keep your work area clean and well lit. Cluttered benches and dark areas

invite accidents.

2. Do not operate power tools in explosive atmospheres, such as in the

presence of flammable liquids, gases, or dust. Power tools create sparks

which may ignite the dust or fumes.

3. Keep bystanders, children, and visitors away while operating a power tool.

Distractions can cause you to lose control. Protect others in the work area from

debris such as chips and sparks. Provide barriers or shields as needed.

SKU 91176 PAGE 2 REV 10/04

Chuck Type 1/2” - Keyless Chuck

Revolutions Per Minute 0-500 RPM (low), 0-1600 RPM (high)

Torque Settings 7 (from 4.4 to 70.7 in.-Lbs.)

Refer to

Torque Settings

chart on page 12.

Battery 18 VDC, Rechargeable NiCd

Weight (Drill Only) 5 Lbs.

Kit includes: Case, 5 drill bits, 5 driver bits, 2” Long Extender

Adapter/Charger.

ELECTRICAL SAFETY

4. Grounded adapters/chargers must be plugged into an outlet properly in

stalled and grounded in accordance with all codes and ordinances. Never

remove the grounding prong or modify the plug in any way. Do not use any

adapter plugs. Check with a qualified electrician if you are in doubt as to

whether the outlet is properly grounded. If the Adapter/Charger should

electrically malfunction or break down, grounding provides a low resistance path

to carry electricity away from the user.

5. Double insulated tools are equipped with a polarized plug (one blade is

wider than the other). This plug will fit in a polarized outlet only one way. If

the plug does not fit fully in the outlet, reverse the plug. If it still does not

fit, contact a qualified electrician to install a polarized outlet. Do not

change the plug in any way. Double insulation eliminates the need for the

three wire grounded power cord and grounded power supply system.

6. Avoid body contact with grounded surfaces such as pipes, radiators,

ranges, and refrigerators. There is an increased risk of electric shock if your

body is grounded.

7. Do not expose power tools to rain or wet conditions. Water entering a power

tool will increase the risk of electric shock.

8. Do not abuse the Power Cord. Never use the Power Cord to carry the tools

or pull the Plug from an outlet. Keep the Power Cord away from heat, oil,

sharp edges, or moving parts. Replace damaged Power Cords immedi-

ately. Damaged Power Cords increase the risk of electric shock.

9. When operating a power tool outside, use an outdoor extension cord

marked “W-A” or “W”. These extension cords are rated for outdoor use, and

reduce the risk of electric shock.

PERSONAL SAFETY

10. Stay alert. Watch what you are doing, and use common sense when oper-

ating a power tool. Do not use a power tool while tired or under the influ-

ence of drugs, alcohol, or medication. A moment of inattention while operat-

ing power tools may result in serious personal injury.

11. Dress properly. Do not wear loose clothing or jewelry. Contain long hair.

Keep your hair, clothing, and gloves away from moving parts. Loose

clothes, jewelry, or long hair can be caught in moving parts.

SKU 91176 PAGE 3

12. Avoid accidental starting. Be sure the Trigger is off before plugging

in. Carrying power tools with your finger on the Trigger, or adding a battery

with the Trigger depressed, invites accidents.

13. Remove adjusting keys or wrenches before turning the power tool on. A

wrench or a key that is left attached to a rotating part of the power tool may result

in personal injury.

14. Do not overreach. Keep proper footing and balance at all times. Proper

footing and balance enables better control of the power tool in unexpected

situations.

15. Use safety equipment. Always wear eye protection. Dust mask, non-skid

safety shoes, hard hat, or hearing protection must be used for appropriate

conditions.

TOOL USE AND CARE

16. Use clamps (not included) or other practical ways to secure and support

the workpiece to a stable platform. Holding the work by hand or against your

body is unstable and may lead to loss of control.

17. Do not force the tool. Use the correct tool for your application. The correct

tool will do the job better and safer at the rate for which it is designed.

18. Do not use the power tool if the Trigger does not turn it on or off.

Any tool that cannot be controlled with the Trigger is dangerous and must

be replaced.

19. Disconnect the Power Cord Plug from the power source before making any

adjustments, changing batteries, or storing the Charger.

20. Store idle tools out of reach of children and other untrained persons. Tools

are dangerous in the hands of untrained users.

21. Maintain tools with care. Keep tools clean and bits sharp. Properly

maintained tools and sharp bits are less likely to bind and are easier

to control. Do not use a damaged tool. Tag damaged tools “Do not use” until

repaired.

22. Check for misalignment or binding of moving parts, breakage of parts, and

any other condition that may affect the tool’s operation. If damaged, have

the tool serviced before using. Many accidents are caused by poorly main-

tained tools.

SKU 91176 PAGE 4

23. Use only accessories that are recommended by the manufacturer for your

model. Accessories that may be suitable for one tool may become hazardous

when used on another tool.

SERVICE

24. Tool service must be performed only by qualified repair personnel. Service

or maintenance performed by unqualified personnel could result in a risk of injury.

25. When servicing a tool, use only identical replacement parts. Follow

instructions in the

“Inspection, Maintenance, And Cleaning”

section of this

manual. Use of unauthorized parts or failure to follow maintenance instructions

may create a risk of electric shock or injury.

SPECIFIC SAFETY RULES

1. Maintain labels and nameplates on the Hammer Drill. These carry impor-

tant information. If unreadable or missing, contact Harbor Freight Tools for a

replacement.

2. Always wear safety impact eye goggles and heavy work gloves when using

the Hammer Drill. Using personal safety devices reduce the risk for injury.

Safety impact eye goggles and heavy work gloves are available from Harbor

Freight Tools.

3. Maintain a safe working environment. Keep the work area well lit. Make sure

there is adequate surrounding workspace. Always keep the work area free of

obstructions, grease, oil, trash, and other debris. Do not use a power tool in areas

near flammable chemicals, dusts, and vapors. Do not use this product in a damp

or wet location.

4. When using a handheld power tool, always maintain a firm grip on the tool

with both hands to resist starting torque.

5. Avoid unintentional starting. Make sure you are prepared to begin work

before turning on the Hammer Drill.

6. Do not force the Hammer Drill. This tool will do the work better and safer at

the speed and capacity for which it was designed.

SKU 91176 PAGE 5

SKU 91176 PAGE 6

7. Always remove the Battery Pack (14) before operation, inspection,

maintenance, or cleaning procedures.

8. Know what you are drilling into. When drilling into a structure, make sure no

electrical wires, cables, or plumbing is behind the surface.

9. WARNING! Some dust created by power sanding, sawing, grinding, drilling,

and other construction activities, contain chemicals known (to the State of Cali-

fornia) to cause cancer, birth defects or other reproductive harm. Some ex-

amples of these chemicals are: lead from lead-based paints, crystalline silica

from bricks and cement or other masonry products, arsenic and chromium from

chemically treated lumber. Your risk from these exposures varies, depending on

how often you do this type of work. To reduce your exposure to these chemicals:

work in a well ventilated area, and work with approved safety equipment, such as

those dust masks that are specially designed to filter out microscopic particles.

(California Health & Safety Code 25249.5, et seq.)

10. WARNING! People with pacemakers should consult their physician(s)

before using this product. Electromagnetic fields in close proximity to a heart

pacemaker could cause interference to or failure of the pacemaker.

- Avoid operating power tools alone.

- Don’t use a power tool with the power switch locked on.

- If powered via a power cord be certain that the tool is properly grounded. A ground

fault interrupt (GFCI) system is also a good precaution. This inexpensive device is

a good safety measure because it prevents a sustained electrical shock.

- Properly maintain and inspect all tools before use to avoid electrical shock.

In addition, people with pacemakers should adhere to the following:

GROUNDING

WARNING!

Improperly connecting the grounding wire can result in the risk of electric

shock. Check with a qualified electrician if you are in doubt as to whether the

outlet is properly grounded. Do not modify the power cord plug provided with

the tool. Never remove the grounding prong from the plug. Do not use the

tool if the power cord or plug is damaged. If damaged, have it repaired by

a service facility before use. If the plug will not fit the outlet, have a proper

outlet installed by a qualified electrician.

GROUNDED TOOLS: TOOLS WITH THREE PRONG PLUGS

1. Tools marked with “Grounding Required” have a three wire cord and three prong

grounding plug. The plug must be connected to a properly grounded outlet. If

the tool should electrically malfunction or break down, grounding provides a low

resistance path to carry electricity away from the user, reducing the risk of elec-

tric shock. (See Figure A.)

2. The grounding prong in the plug is connected through the green wire inside the

cord to the grounding system in the tool. The green wire in the cord must be the

only wire connected to the tool’s grounding system and must never be attached

to an electrically “live” terminal. (See Figure A.)

3. Your tool must be plugged into an appropriate outlet, properly installed and

grounded in accordance with all codes and ordinances. The plug and outlet

should look like those in the following illustration. (See Figure A.)

FIGURE A

SKU 91176 PAGE 7

FIGURE B

SKU 91176 PAGE 8

DOUBLE INSULATED TOOLS: TOOLS WITH TWO PRONG PLUGS

4. Tools marked “Double Insulated” do not require grounding. They have a special

double insulation system which satisfies OSHA requirements and complies with

the applicable standards of Underwriters Laboratories, Inc., the Canadian

Standard Association, and the National Electrical Code. (See Figure B.)

5. Double insulated tools may be used in either of the 120 volt outlets shown in the

following illustration. (See Figure B.)

EXTENSION CORDS

Grounded

tools require a three wire extension cord.

Double Insulated

tools

can use either a two or three wire extension cord.

2. As the distance from the supply outlet increases, you must use a heavier gauge

extension cord. Using extension cords with inadequately sized wire causes a

serious drop in voltage, resulting in loss of power and possible tool damage.

(See Figure C, next page.)

3. The smaller the gauge number of the wire, the greater the capacity of the cord.

For example, a 14 gauge cord can carry a higher current than a 16 gauge cord.

(See Figure C.)

4. When using more than one extension cord to make up the total length, make

sure each cord contains at least the minimum wire size required.

(See Figure C.)

5. If you are using one extension cord for more than one tool, add the nameplate

amperes and use the sum to determine the required minimum cord size.

(See Figure C.)

6. If you are using an extension cord outdoors, make sure it is marked with the

suffix “W-A” (“W” in Canada) to indicate it is acceptable for outdoor use.

7. Make sure your extension cord is properly wired and in good electrical condition.

Always replace a damaged extension cord or have it repaired by a qualified

electrician before using it.

8. Protect your extension cords from sharp objects, excessive heat, and damp or

wet areas.

SKU 91176 PAGE 9

SYMBOLOGY

Double Insulated

Canadian Standards

Association

Underwriters

Laboratories, Inc.

Volts Alternating Current

Amperes

No Load Revolutions

per Minute (RPM)

noxxxx/min.

V ~

RECOMMENDED MINIMUM WIRE GAUGE FOR EXTENSION CORDS*

(120 VOLT)

NAMEPLATE

AMPERES

(At Full Load)

EXTENSION CORD LENGTH

25 FEET 50 FEET 75 FEET 100 FEET 150 FEET

0 - 2.0 18 18 16 16 16

2.1 - 3.4 18 18 16 14 14

3.5 - 5.0 18 18 16 14 12

5.1 - 7.0 18 16 14 12 12

7.1 - 12.0 18 14 12 10 -

12.1 - 16.0 14 12 10 - -

16.1 - 20.0 12 10 - - -

FIGURE C *Based on limiting the line voltage drop

to five volts at 150% of the rated amperes.

When unpacking, check to make sure all the parts shown on the Parts List on page 14

are included. If any parts are missing or broken, please call Harbor Freight Tools at the

number shown on the cover of this manual as soon as possible.

SKU 91176 PAGE 10 REV 12/04 REV 11/05

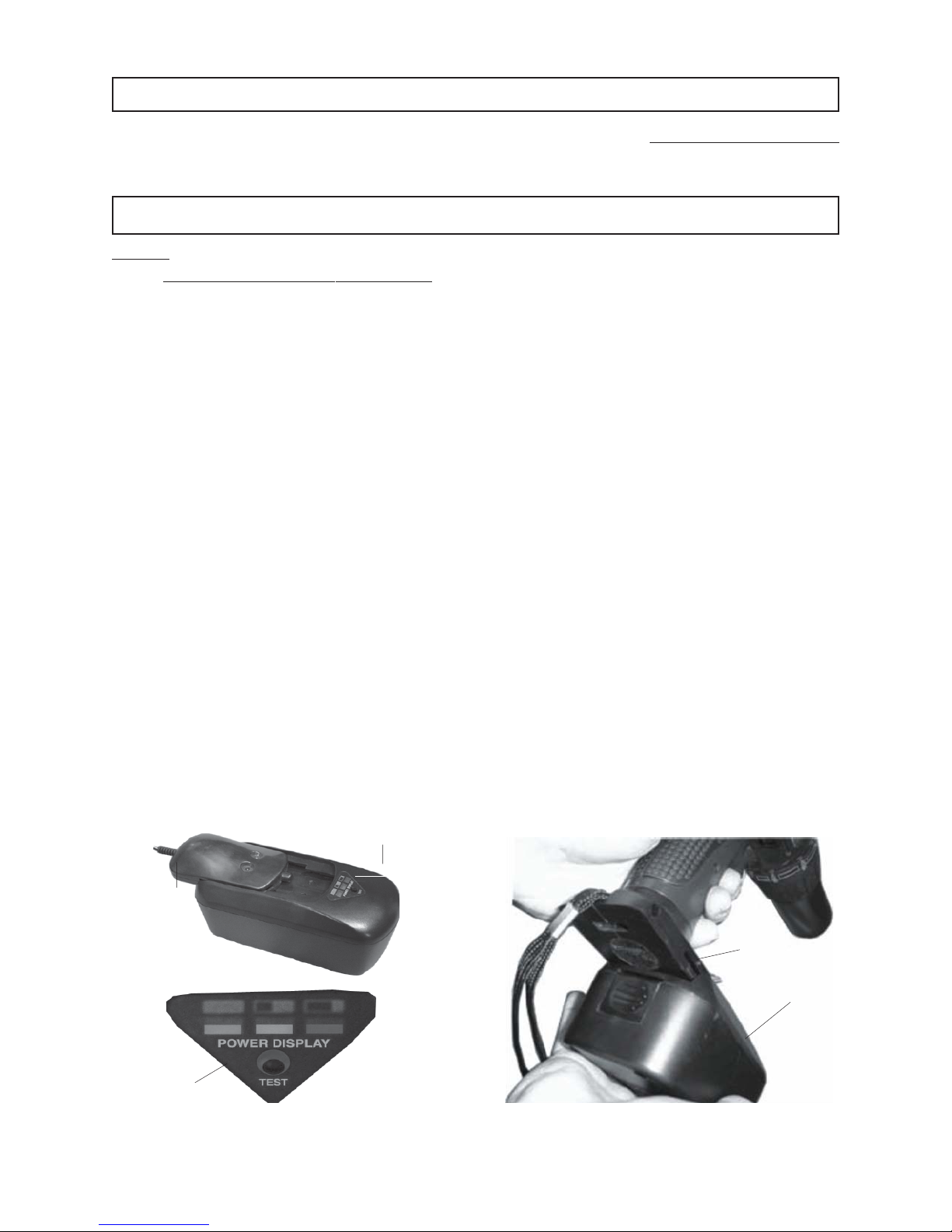

2. Slide the Adapter into the slot on the top of the Battery Pack (14) until it clicks into

place. To remove the Adapter, press the release button on the Battery Pack (14) and

slide the Adapter (20) out. The Battery Pack (14) needs an initial charge of

approximately 5 hours. After the initial charge, recharge the unit for approximately 3

to 5 hours. Never charge the battery more than 5 hours. See FIGURES 1 and 3.

3. To check the power level on the Battery Pack (14), press the TEST button on the

Battery Pack (14). See FIGURE 2. Always after charging, use the TEST button to

make sure a fully lit green light is on, showing a fully charged battery. When pushing

the TEST button, if the lights are partially lit, that indicates a partial charge. When

fully lit, Red = low charge, Yellow = 1/2 charge, Green = Full Charge. Test the Battery

Pack periodically during operation and charge as needed.

Note: These lights show the approximate level of charge.

4. To load the Battery Pack (14) onto the Hammer Drill, just slide it along the bottom of

the Base (13/17) until it clicks into place. Press the release button to remove the

Battery Pack (14). See FIGURE 3.

UNPACKING

OPERATING INSTRUCTIONS

FIGURE 2

FIGURE 1

Green Yellow Red

FIGURE 3

Adapter (20)

Battery Pack (14)

State of

Charge LEDs

Close-up of

State of Charge LEDs

Base (13/17)

Battery

Pack (14)

NOTE: For additional information regarding the parts listed in the following pages, refer

to the Assembly Diagram on page 15.

Battery Pack (14) and Adapter (20) Use

1. Plug the Adapter power cord into an outlet. When the Adapter (20) is plugged in, but

not connected to the battery, both lights should be lit (if this is not happening

exchange the adapter). When the battery is connected only the red light should be

lit. When the battery is fully charged the red light should go out and the green light

should come on. This may take up to 5 hours

Table des matières

Autres manuels Drill Master Percer

Drill Master

Drill Master 68239 Manuel utilisateur

Drill Master

Drill Master 40209 Manuel utilisateur

Drill Master

Drill Master 69652 Instructions de montage

Drill Master

Drill Master 69947 Manuel utilisateur

Drill Master

Drill Master DrillMaster 68287 Manuel utilisateur

Drill Master

Drill Master 69652 Instructions de montage

Drill Master

Drill Master 92383 Manuel utilisateur

Drill Master

Drill Master 67025 Manuel utilisateur

Drill Master

Drill Master 93440 Manuel utilisateur

Drill Master

Drill Master 66965 Manuel d'installation

Drill Master

Drill Master 45935 Manuel utilisateur

Drill Master

Drill Master DRILL MASTER 96526 Manuel d'installation

Drill Master

Drill Master 3670 Manuel d'installation

Drill Master

Drill Master 94436 Manuel d'installation

Drill Master

Drill Master 91396 Manuel d'installation

Drill Master

Drill Master 92956 Manuel d'installation

Drill Master

Drill Master 3670 Manuel d'installation

Drill Master

Drill Master Drill Master 18V 3/8" 67024 Manuel d'installation

Drill Master

Drill Master 95622 Manuel utilisateur

Drill Master

Drill Master HEAVY-DUTY 1/2" VSR DRILL 3273 Manuel d'installation

Drill Master

Drill Master 90374 Manuel utilisateur

Drill Master

Drill Master 90120 Manuel utilisateur

Drill Master

Drill Master 4285 Manuel utilisateur

Manuels Percer populaires d'autres marques

Makita

Makita BDF456 Manuel utilisateur

Black & Decker

Black & Decker LDX220 Manuel utilisateur

Hitachi

Hitachi DH 40MA Manuel utilisateur

Challenge

Challenge JO Manuel de référence technique

Makita

Makita LXFD01 Manuel utilisateur

Festool

Festool T18+3 Manuel utilisateur

Milwaukee

Milwaukee M12 FPDX-202X Manuel utilisateur

EINHELL

EINHELL TE-RH 32 E Manuel utilisateur

Makita

Makita DHP484 Manuel utilisateur

Makita

Makita FD05 Manuel utilisateur

Bosch

Bosch PSB 530 RA Manuel utilisateur

Maximum

Maximum 054-1359-4 Manuel utilisateur

Makita

Makita HP332D Manuel utilisateur

Raider

Raider RDP-HD31H Manuel utilisateur

Bort

Bort BPM-1400x2 Manuel utilisateur

Black & Decker

Black & Decker 7266 Manuel utilisateur

KENT USA

KENT USA TRD1230 Manuel utilisateur

Bosch

Bosch GSB 19-2 RE Manuel utilisateur
