DreamScreen 635-0-100 Manuel utilisateur
INSTALLATION
INSTRUCTIONS
DREAMSCREEN
TAB INCEILING
v7
with
2
GENERAL INFORMATION
Format Model Size View Area
(WxH)
Border
Height
H1
Length
L1
Bottom
Shaft
Length
L2
Assem-
ble
Distance
L3
Casing
Length
L4
Package Volume
GW
(Kg)
B1 B2 B3 T1 PL PW PH
635-0-100 100” 2214x1245 600 60 60 60 2030 2714 2524 2734 2844 2964 220 180 25,5
635-0-120 120” 2657x1495 400 60 60 60 2080 3157 2967 3177 3287 3407 220 180 34,3
PRESSURE MARKS IN THE FABRIC
The fabric might endure some pressure during transport and storage. Most of any visible pressure marks on
the fabric will straighten out after a while, but if some remain please carefully use a hand-held steamer to
straightening them out.
Please make sure the fabric is never exposed to heat from ovens, sunlight etc. as this may damage the
screen-fabric.
3
REMOVING THE TRANSPORTATION SECURITY VELCRO WARNING!
If these velcros are not removed upon use, the screen will be severely damaged! However, please leave
the velcros in place until installation has been completed.
Parts list
INSTALLATION
Do not remove these two VELCROS until the installation has been completed.
Remove the VELCROS after installation completed and the screen at horizontal status.
PREPARING THE CEILING FOR INSTALLATION
Please follow these instructions when preparing the ceiling for installation.
4
ASSEMBLING THE COMPONENTS
After the ceiling has been prepared, please continue by assembling the components.
5
ATTACH THE CASSETTE
Now you are ready to attach the cassette to the brackets.
6
ATTACH THE CASSETTE
Now you are ready to attach the cassette to the brackets.
7
BASIC CONTROLS: IR REMOTE & WALL CONTROL
The V6 Tab includes both a manual wall control (wired) and a regular IR remote. The IR remote can be used for
learning your universal remote or control system the codes for easy system integration. The remote is setup
from factory and does not require additional pairing.
CONTROLS
ADVANCED CONTROLS: RS232 & CORDLESS 12V TRIGGER
For the more integrated setups, RS232 is included. Also, a cordless 12V trigger is included that allows you to
automatically pull the screen down and up when for example the projector is turned on and o (requires a 12V
trigger output on your projector). If reset is needed, first hold the “STOP” on the wall control for 3 seconds,
then press the learning button on top of the 12V trigger. Same is the case for using the RS232, press the same
“STOP” button on the wall control for 3s and then send the RS232 signal to have the unit paired.
Push and hold stop
on wall control for 3s
1. 2.
Push the learning
button on the 12V
trigger
8
Stop Button
RS232 serial port settings
Baud rate 2400
Data bit 8
Parity N
Stop bit 1
Default HEX code RS232
FF 10 11 00 DD UP
FF 10 11 00 EE DOWN
FF 10 11 00 CC STOP
9

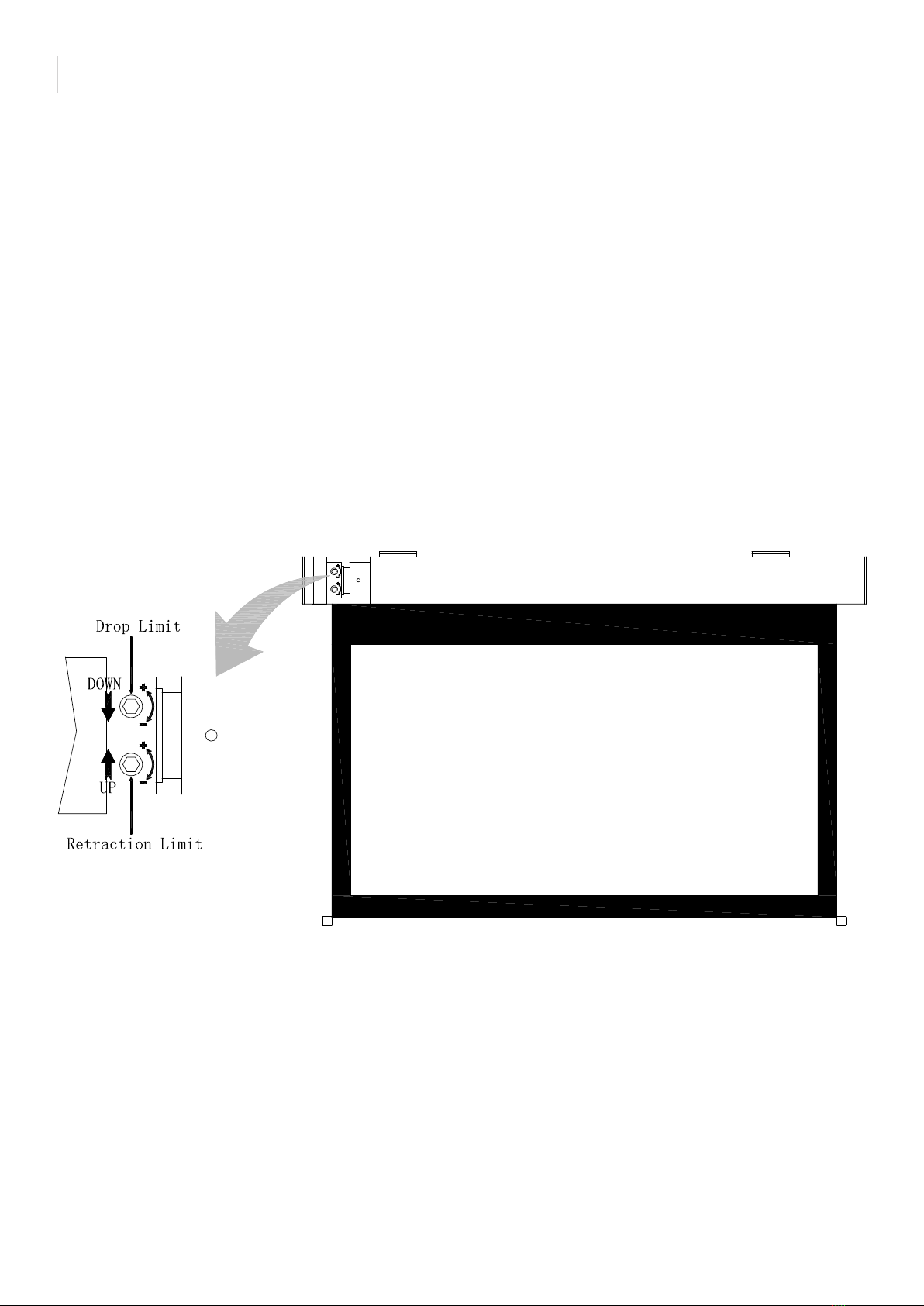

ADJUSTING THE DROP
WARNING! Adjusting the drop may damage your screen if not done correctly. Please use MICRO steps when
adjusting and TEST the adjusted screen-drop by pushing the UP and DOWN remote-buttons frequently to
make sure the adjustments have been made correctly. If you see no movement, please reset the dial back to
the exact same location as originally and call your dealer. Please use ONLY the DOWN dial, the UP dial is only
used for setting the upper stop which is already adjusted correctly at the factory. If the UP dial is adjusted, the
tensionbar might be retracted into the cassette and thus damaging the entire screen beyond repair.
To adjust the lower drop, first push the “DOWN” button on your remote to have the screen fully extended.
To increase drop -> turn the DOWN dial counter in the “+” direction (counter clockwise)
To reduce drop -> turn the DOWN dial in the “-” direction (clockwise)
INSTALLATION
10
