Dreamline FLEX Manuel utilisateur
FLEX
SHOWER ENCLOSURE INSTALLATION INSTRUCTIONS
IMPORTANT
DreamLineTM reserves the right to alter, modify or redesign products at any time without prior
notice. For the latest up-to-date technical drawings, manuals or any other details please refer
to the support.BathAuthority.com web page.
Please read these instructions carefully before installing. If you have any questions regarding
installation, please call our technical support specialists Monday through Friday 9:00 AM – 5:00
PM EST at Phone: 1-866-731-2244, Fax:1-866-227-1533 or e-mail our technical support group
at
For more information on DreamLineTM Shower Enclosure please visit www.BathAuthority.com
“FLEX” Enclosure Rev.1, Ver.3 03/2014 2
Preparation
1. After opening all boxes and packages, read this introduction carefully. Check that all of the needed
parts are included in the package by marking all the components on the “Detailed Diagram of
Shower Door Components”. Examine boxes and packages for shipping damage. If the unit has
been damaged, has a finishing defect, or is missing parts, please contact our customer support
department within 5 business days of the delivery date. Please note that DreamLineTM will not
replace any damaged products or missing parts free of charge after 5 business days or if the
product has been installed. Feel free to contact DreamLineTM if you have any questions.
2. Please note that you should consult your local building codes with questions on installation
compliance standards. Building and plumbing codes may vary by location, and DreamLine is
not responsible for code compliance standards for your project and will not accept any
returns.
3. If this unit is going to be installed in a new construction, please, install all of the required plumbing
and drainage before installing the shower. Use a competent and licensed (if required by local
code) plumber for all plumbing installation period.
4. Prior to installation, please ensure that the installation surface is level and solid and will be able to
support the total weight of the unit. Also, make sure that the walls are plumb. Depending on the
type of unit you are installing, some adjustments in leveling may be possible. However, irregular
installation, surface level or out of square conditions can result in serious problems for your
installation. Please note that some adjustments and drilling may be necessary. Please protect all
primary surfaces of the product during installation. Never set your glass down directly onto a
tile floor. Always use a piece of wood or cardboard to protect the bottom edge and corners of
the glass.
Tools Required
Caulk Tape
Measure Pencil Screwdriver
Phillips
Level Gun
Caulk Drill
Electric Hammer
Drill bit
Drill bit
(Ø=5/16")
(Ø=1/8")
“FLEX” Enclosure Rev.1, Ver.3 03/2014 3
Detailed Diagram of Shower Enclosure Components
3
4
5
6
7
8
2
13
9
110 11
Door packing List
01 Wall profile 2pcs* 06 Decorative cover 8pcs
02 Door assembly 1set 07 Flanged anti-water strip 1pc
03 Wall anchor 8pcs 08 Bottom anti-water strip 1pc
04 Round head screws ST4.2×10 8pcs 13 Handle 1pc
05 Round head screws ST4.2×40 8pcs
Return panel packing List
04 Round head screw ST4.2x10 4pcs 10 Corner profile 1pc
06 Decorative cover 2pcs 11 Return wall profile 1pc
09 Return glass panel 1pc
* - For shower enclosure please use only one wall profile.
NOTE: Unpack your unit carefully and inspect it. Lay it out and identify all parts using parts diagram
and part list in your manual as a reference. Before discarding the carton, check for small hardware
bags that tend to fall to the bottom of the box. If any parts are damaged or missing, please contact
DreamLineTM for replacement.
NOTE: Retain these installation instructions for future reference.
“FLEX” Enclosure Rev.1, Ver.3 03/2014 4
Door Assembly Diagram
Alluminum profile
Expandable rail
Expandable rail
Glass door
Stationary glass
Alluminum profile
Corner profile
Glass panel
Return
Return
Wall profile
“FLEX” Enclosure Rev.1, Ver.3 03/2014 5
Shower Enclosure Installation
NOTE: The installation of this shower enclosure
requires two installers.
NOTE: The shower enclosure can be installed on the
shower base or custom threshold.
1. Prior to the Shower door installation, Shower base
installation and plumbing must be completed.
See Fig. 1 for details.
2. The width of the shower enclosure is adjustable
and can be adjusted to the size of your shower
base or custom threshold.
Mark position of the Wall profile (01) and the
Return wall profile (11) on the wall according
to the model size and dimensions provided in
the size table.
Place the Wall profile and the Return wall
profile onto the Shower base or threshold
against the finished wall and level it vertically.
See Fig. 2 and table below for details.
Model No. W1 W2
SHDR-2230300-RT-01
SHDR-2234340-RT-01 30 1/2"
34 1/2" 28 1/2" - 32 1/2"
32 1/2" - 36 1/2"
Fig. 2
Fig. 1
2
1
W1 W2
“FLEX” Enclosure Rev.1, Ver.3 03/2014 6

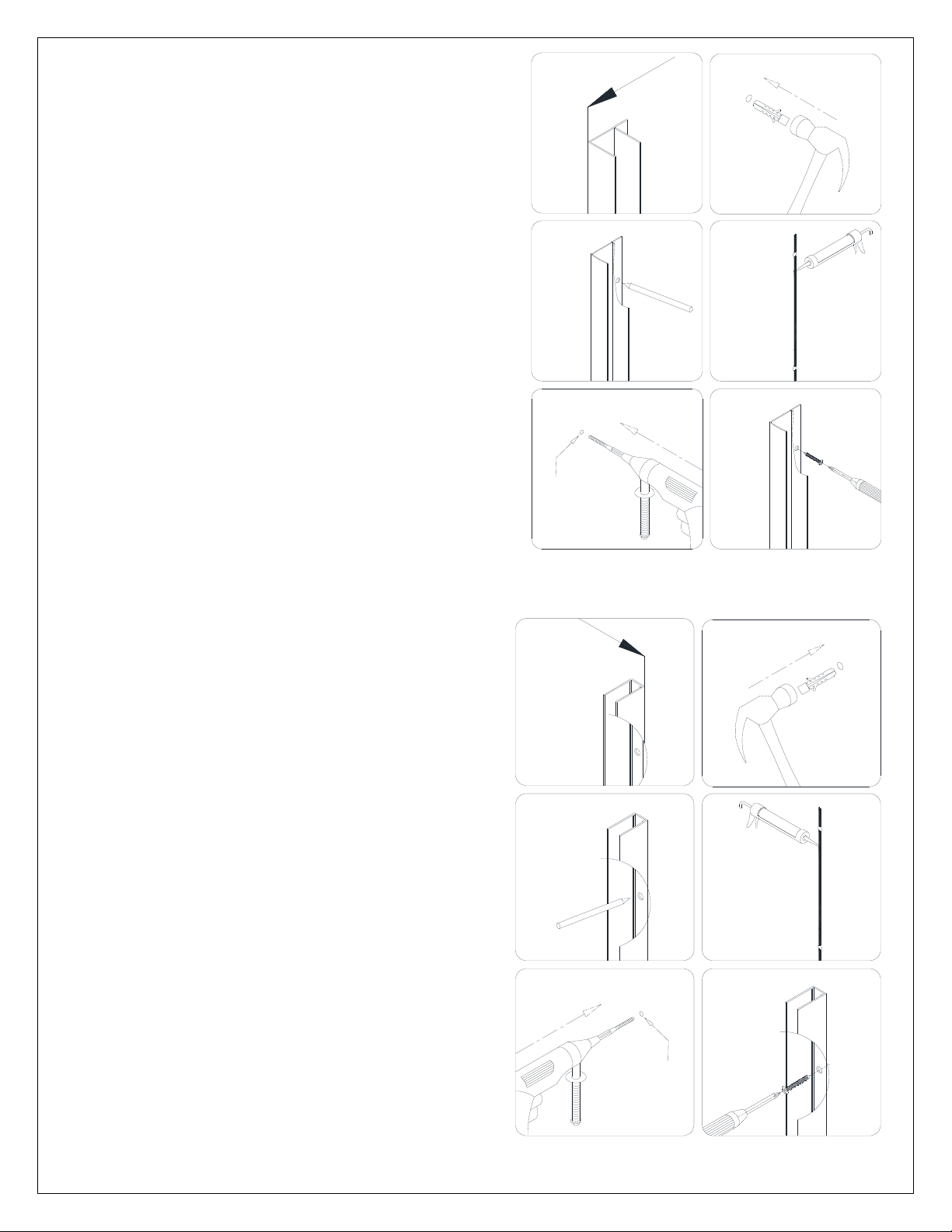

3. Trace the drilling holes on the wall through the
predrilled holes in the Wall profile (01).
Drill the holes on the wall using a Ø 5/16 drill bit
and insert the Wall anchors (03).
Apply a bead of silicone to the wall along the
drilled holes and around the holes.
Attach the Wall profile to the wall with the Round
head screws ST4.2×40 (05).
See Fig. 3 and Fig. 5 for details.
4. Trace the drilling holes on the wall through the
predrilled hole in the Return wall profile (11).
Drill the holes on the wall using a Ø 5/16 drill
bit and insert the Wall anchors (03).
Apply a bead of silicone to the wall along the
drilled holes and around the holes.
Attach the Return wall profile to the wall with
the Round head screws ST4.2×40 (05).
See Fig. 4 and Fig. 5 for details.
Fig. 4
Fig. 3
1
2
3
4
5
6
Ø 5/16"
Ø 5/16"
1
2
3
4
5
6
“FLEX” Enclosure Rev.1, Ver.3 03/2014 7
5. Slide the Corner profile (10) over the aluminum vertical edge of
the Return glass panel (09). Drill the holes into the aluminum
profile on the Return glass panel using an Ø 1/8 drill bit through
the predrilled holes in the Corner profile.
Secure the Corner profile to the Return glass panel with the
Round head screws ST4.2×10 (04). Set this Return glass panel
assembly aside.
See fig. 6 and Fig. 7 for details.
1
2
3
Ø 1/8"
Fig.
6
Fig. 5
“FLEX” Enclosure Rev.1, Ver.3 03/2014 8
6. Install the Handle (13) onto the Door assembly (02). Move
the Door assembly onto the Shower base and slide the
Stationary glass side into the Wall profile (01).
See Fig. 8 and Fig. 9 for details.
1
2
Fig. 8
Fig. 7
“FLEX” Enclosure Rev.1, Ver.3 03/2014 9
7. Slide the Return glass panel (09) assembly into the
groove of the Return wall profile (11).
See Fig. 10 for details.
Fig. 10
Fig. 9
“FLEX” Enclosure Rev.1, Ver.3 03/2014 10
8. Extend width of the Door assembly (02) by
stretching the top and bottom Expanding rails
toward the Corner profile (10). Insert Glass door
side into the Corner profile.
NOTICE:
The maximum adjustable length of the Expanding
rails is: 4 1/2"
See Fig. 11 and Fig. 12 for details.
Fig. 12
Fig. 11
