Dream Vision DreamWeaver Plus Manuel utilisateur

ENGLISH

Declaration of Conformity

Manufacturer: TEC SA DreamVision, 7 Rue La Caille, 75017 Paris, France

Local distributor: Contact details available on www.dreamvision.net

We declare under our sole responsibility that the DreamWeaver Plus projector con-

forms to the following directives and norms:

EMC Directive 89/336/EEC, Amended by 93/68/EEC

EMC: EN 55022

EN 55024

EN 61000-3-2

EN 61000-3-3

Low Voltage Directive 73/23/EEC, Amended by 93/68/EEC

Safety: EN 60950: 2000

February, 2004

Trademarks

Apple, Macintosh, and PowerBook are trademarks or registered trademarks of Apple

Computer, Inc. IBM is a trademark or registered trademark of International Business

Machines, Inc. Microsoft, PowerPoint, and Windows are trademarks or registered

trademarks of Microsoft Corporation. Digital Light Processing is a trademark or reg-

istered trademark of Texas Instruments. Faroudja, DCDi, and TrueLife are trade-

marks or registered trademarks of Faroudja. DreamVision and DreamWeaver Plus

are trademarks or registered trademarks of TEC SA.

FCC Warning

Note: This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

--Consult the dealer or an experienced radio/TV technician for help.

Changes or modiﬁcations not expressly approved by DreamVision can void the user's

authority to operate the equipment.

Safety Certiﬁcations

UL, CE

Important Note:

Be aware that:

The lamp of a projector is never covered by the warranty, except as listed in the War-

ranty conditions (page 43)

The DreamWeaver Plus uses a DMD

chip from TI

. This micromirror device is the

main component of the DLP

system. Although DreamVision produces the Dream-

Weaver Plus with the maximum percentage of active micro-mirrors, there may be

some micro mirrors that do not produce light. To know more about that, you can con-

tact DreamVision at [email protected]

Ta b le of Contents

Introduction 3

Positioning the projector 5

Video connections 6

Connecting a video device 7

Displaying a video image 8

Connecting a computer 10

Shutting down the projector 11

Troubleshooting your setup 11

Using the keypad buttons 18

Using the remote control 19

Optimizing video images 20

Customizing the projector 20

Using the menus 21

Picture menu 22

Settings menu 27

Maintenance 29

Cleaning the lens 29

Replacing the projection lamp 30

Appendix 32

Specifications 32

Accessories 32

Red LED behavior and projector errors 33

Projected image size 33

Source compatibility 34

Projector dimensions for ceiling mount installations 35

RS-232 terminal specifications 36

For complete details on connecting and operating the projector, refer to this

User’s Guide.

Important Operating Considerations

Place the projector in a horizontal position no greater than 15 degrees.

Locate the projector at least 4 inches (1.2 m.) away from any heating or cool-

ing vents. Do not place the projector on a tablecloth or other soft covering

that may block the vents.Vents are placed along the left and right sides of

the projector. Do not use a non-approved ceiling mount or power cord. In

the unlikely event of the lamp rupturing, discard any edible items placed in

the surrounding area and thoroughly clean the area along the sides and in

the front of the projector. Wash hands after cleaning the area. This product

has a lamp which contains a very small amount of mercury. Dispose of it as

required by local, state or federal ordinances and regulations. For more

information see www.eiae.org

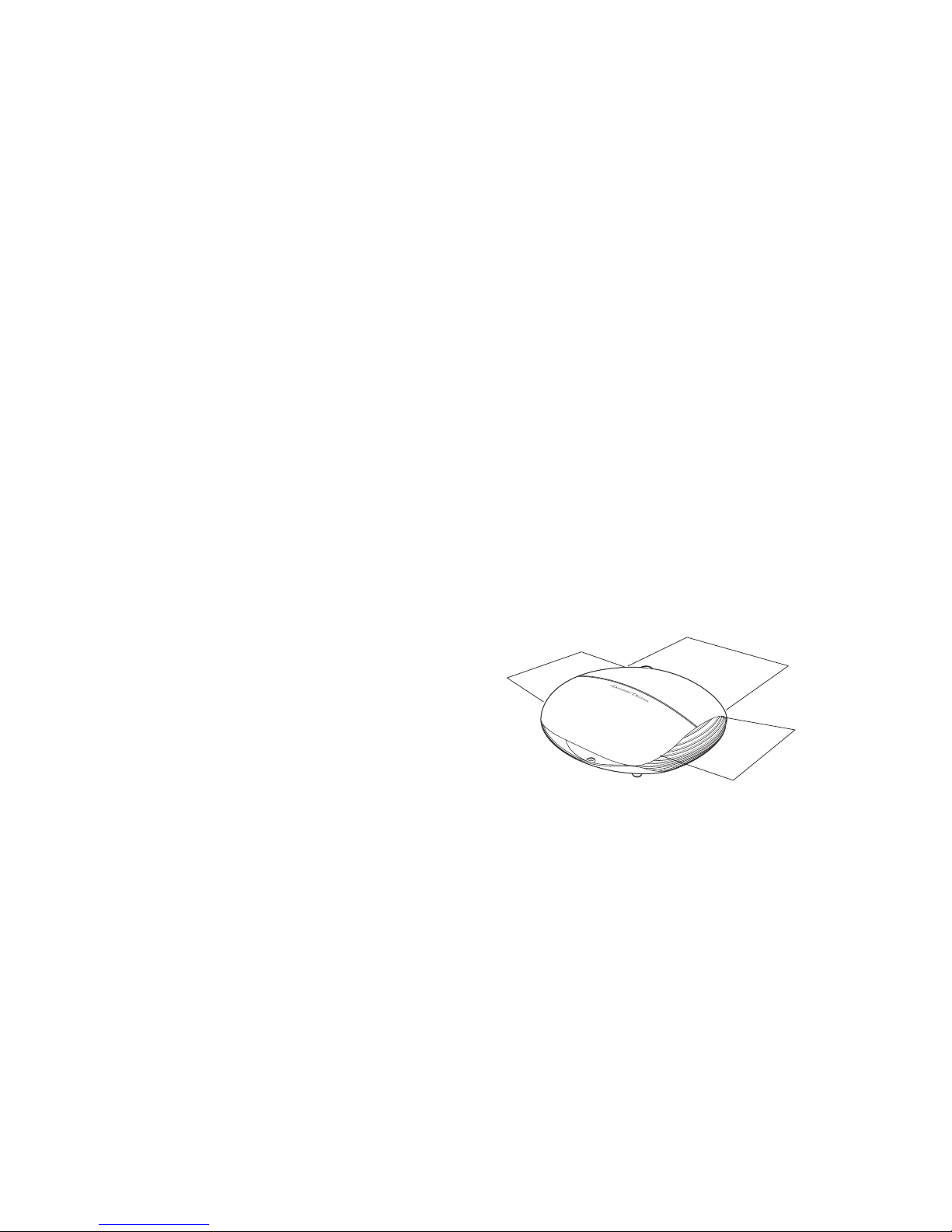

2 ft (.6m)

Do not place objects in the areas along the side and in the front of the projector

Do not place objects or people in the 2 feet area (0.6 m) along the front of the

projector. For ceiling mount installationi this area should be 5 feet (1.5 m)

Introduction

First of all, we would like to thank you for chosing a DreamVision

Home

Cinema Projector. Your new DreamWeaver Plus projector from DreamVi-

sion

is speciﬁcally designed for home cinema applications. The Dream-

Weaver Plus sets the standard for high-deﬁnition digital perfection,

featuring true High Deﬁnition 1280x720 resolution using the latest DLP™

technology and new DCDi video processing from Faroudja™. Calibrated to

D65 color mastering standards, the DreamWeaver Plus reproduces colors

and details the way the director intended. Whether you are watching mov-

ies or High Deﬁnition broadcasts, you will enjoy breathtaking image qual-

ity.

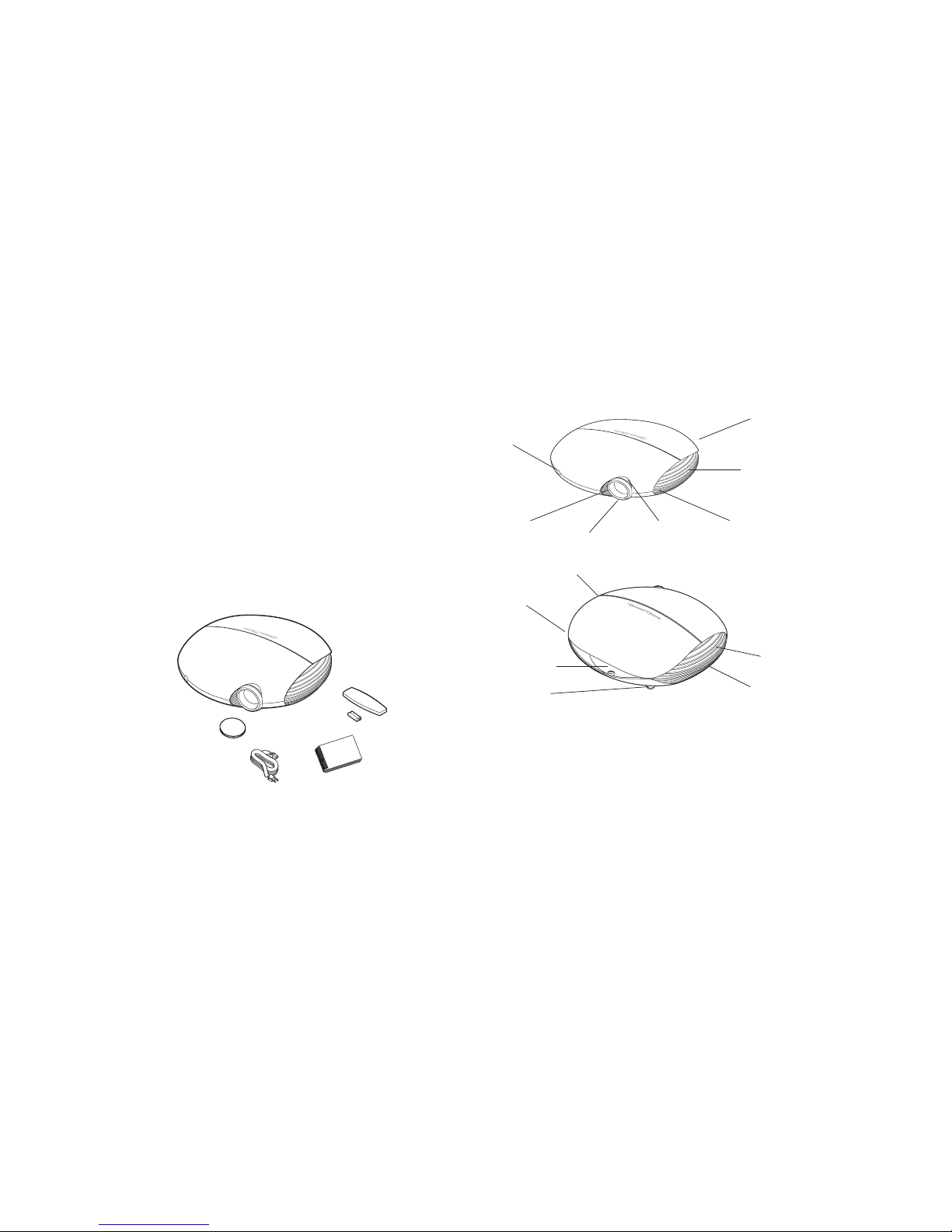

Included items

Projector components and features

user’s guide

programable remote

projector

lens cap

power

cable

and baterries

keypad

zoom

focus

elevator foot release

remote

control

receiver (IR)

air intake

(under the top

cabinet)

vent

I/O panel

leveling

foot exhaust

heat vent

Remote Receiver

under the top cabinet

Under the top cabinet

Connector Panel

The projector provides eight discreet video connectors, located under the

top cover of the top cabinet:

• two red-green-blue RCA (SD/ED/HD component)

• two S-video

• one composite RCA

• one M1-DA (HD, RGBHV, HD Component, DVI, and computer)

• one VESA (HD, RGBHV, HD component, and computer)

• one component D5 (SD/ED/HD component, RGB SCART)

It also has a mini-jack input for a Niles or Xantech-compatible IR repeater

and an RS-232 connector for serial control. The Command Line Interface

(CLI) speciﬁcations and commands are listed in the Appendix starting on

page 36.

Two 3.5 mm mini-jack triggers provide 12 volt current. Trigger 1 provides a

constant output while the projector is on. If you connect your projection

screen to Trigger 1, when you turn on the projector the screen will move

down; when you turn the projector off, the screen will return to the storage

position. Trigger 2 provides a 4:3 aspect trigger. When you select 4:3 in the

Aspect Ratio menu or from the

Resize

button on the remote, a 12v signal

will be sent after a ﬁve second delay. Use this trigger for screens with 4:3

aspect curtains. When you switch back to 16:9 format, the curtains open to

reveal the entire screen.

For details on each connector type and their inputs, see page 34.

IRin

Pr Pr

Pb Pb

serialcontrol

M1-DA vesa trigger1

trigger2

component

s-video

video

component

lock

remote control

receiver (IR)

power

connector

s-video video

component

video

video/computer

1 & 2

serial

connector

video

IR input

12v triggers

screen trigger connection

3.5mm mono plug

+12v

ground

to screen relay (see screen manufacturer

for details)

Positioning the projector

There are a number a factors to consider when determining where to set up

the projector, including the size and shape of your screen, the location of

your power outlets, and the distance between the projector and the rest of

your equipment. Here are some general guidelines.

Position the projector on a ﬂat surface at a right angle to the screen.

The projector must be within 10 feet (3 m) of your power source. To

ensure adequate cable access, place the projector at least 6 inches

(0.15m) from a wall or other objects. Place the projector at least 5.6 feet

(1.7 m) from the projection screen.

If you install the projector on the ceiling, refer to the installation guide

that comes with the Ceiling Mount Kit for more information. To turn

the image upside down, see page 27. DreamVision recommends use of

an authorized DreamVision ceiling mount. The Ceiling Mount Kit is

sold separately, see page 32.

Position the projector the desired distance from the screen.

The distance from the lens of the projector to the screen, the zoom set-

ting, and the video format determine the size of the projected image.

For more information about projected image sizes, see page 33.

The image exits the projector at a given angle. This image offset is 116%.

This means that if you have an image 10’ high, the bottom of the image will

be 1.6’ above the center of the lens.

Check Page 33 for further help or check our web page.

lens center

bottom of image

1.6’ above lens

10’ high


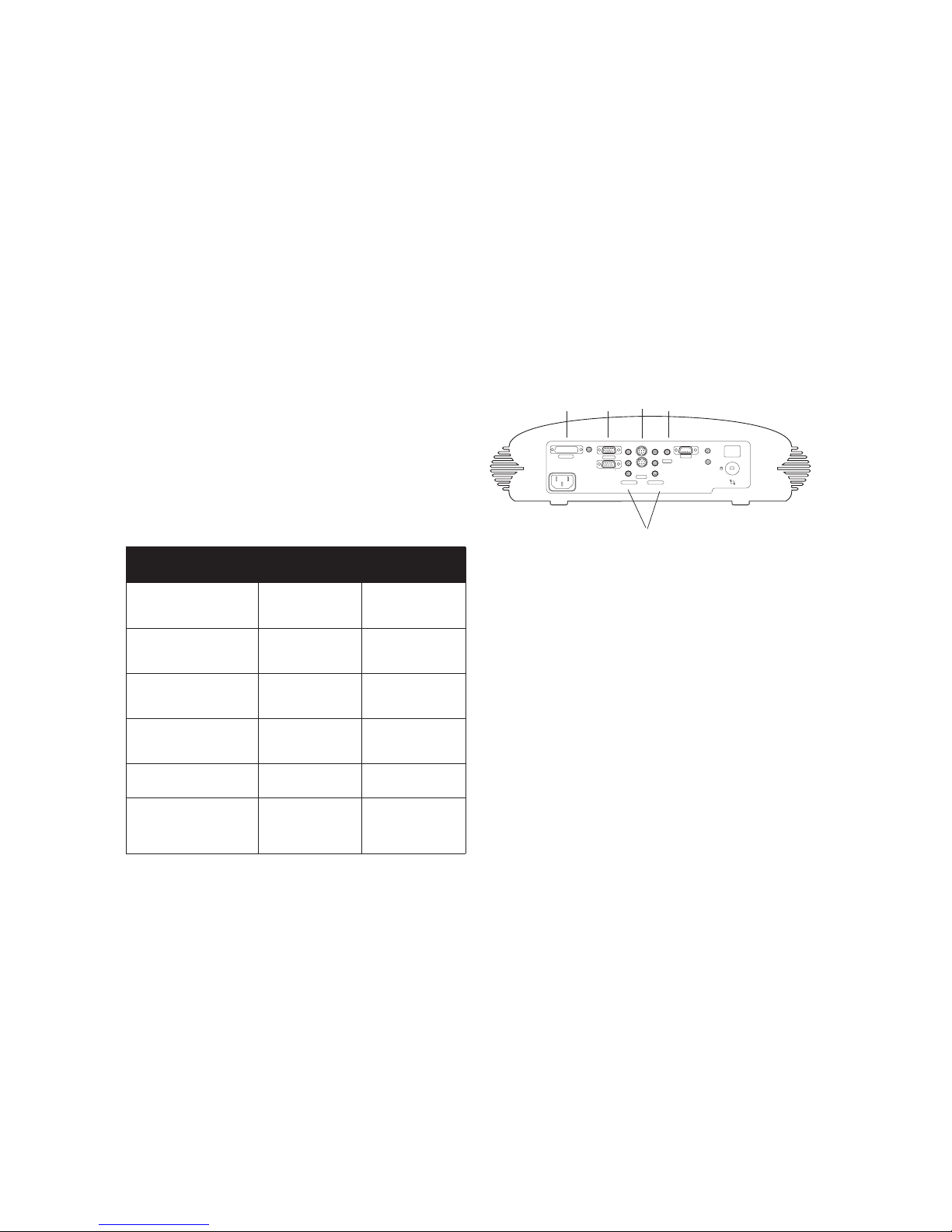

Video connections

You can connect VCRs, DVD players, camcorders, digital cameras, video

games, HDTV receivers, and TV tuners to the projector. (You cannot directly

connect the coaxial cable that enters your house from a cable or satellite

company; the signal must pass through a tuner ﬁrst. Examples of tuners are

digital cable boxes, VCRs, digital video recorders, and satellite TV boxes.

Basically, any device that can change channels is considered a tuner.) Audio

must be provided by your own speakers, as the projector has no separate

audio controls. If there is more than one output, select the highest quality

one. DVI, Component video and RGB (M1, HD15) have the best quality, fol-

lowed by S-video, and then composite video

For a complete list of compatible sources, see page 34 of the Appendix.

Ta b le 1:Video connections

Input signal Connector

Connector label

on projector

Standard Broadcast TV (not

HDTV), via cable, digital

cable, satellite TV, DirectTV

Component video

S-video

Composite video

Component 3, 6

S-video 4, 5

Video 7

HDTV Component video

VESA

DVI

Component 3, 6

VESA 2

M1-DA 1

DVD Component video

S-video

Composite video

Component 3, 6

S-video 4, 5

Video 7

VCR Composite video

S-video

Component video

Video 7

S-video 4, 5

Component 3, 6

Video Camera Composite video

S-video

Video 7

S-video 4, 5

Video Game VESA

Composite video

S-video

Component video

VESA 2

Video 7

S-video 4, 5

Component 3, 6

IRin

Pr Pr

Pb Pb

serialcontrol

M1-DA vesa trigger1

trigger2

component

s-video

video

component

s-video video

component

video

M1-DA VESA

Connecting a video device

If your video device has more than one output, select the highest quality

one. DVI video has the best quality, followed by Component video, S-video,

and then composite video.

If the video device uses component cable connectors, plug the cable’s green

connectors into the green component-out connector on the video device and

into the green component connector (labeled “

”) on the projector. Plug the

component cable’s blue connectors into the blue component-out connector

on the video device and into the blue component connector (labeled “

”)

on the projector. Plug the component cable’s red connectors into the red

component-out connector on the video device and into the red component

connector (labeled “

”) on the projector.

If the video device uses a round, four-prong S-video connector, plug an

S-video cable into the S-video connector on the video device and into the

S-

video

connector on the projector.

If the video device uses a yellow composite video connector, plug a com-

posite video cable’s yellow connector into the video-out connector on the

video device. Plug the other yellow connector into the yellow

Video

con-

nector

on the projector.

If the video device uses a DVI connector, plug an M1-D cable into the video-

out connector on the video device. Plug the other connector into the

M1-DA

connector

on the projector.

If the video device uses a VESA connector, plug a VESA cable into the

video-out connector on the video device. Plug the other connector into the

VESA

connector

on the projector.

Connecting the power cable

Connect the power cable to the connector on the back of the projector and to

your electrical outlet. The Power LED on the keypad turns solid green.

NOTE

: Always use the power cable that shipped with the projector.

connect component cable

IRin

Pr Pr

Pb Pb

serialcontrol

M1-DA vesa trigger1

trigger2

component

s-video

video

component

connect S-video cable

IRin

Pr Pr

Pb Pb

serialcontrol

M1-DA vesa trigger1

trigger2

component

s-video

video

component

connect composite video cable

IRin

Pr Pr

Pb Pb

serialcontrol

M1-DA vesa trigger1

trigger2

component

s-video

video

component

connect M1-D cable

IRin

1

2

YY

Pr Pr

Pb Pb

serialcontrol

M1-DA vesa trigger1

8

2

1

3

4

6

5

7

trigger2

component

s-video

video

D5

component

connect VESA cable

IRin

Pr Pr

Pb Pb

serialcontrol

M1-DA vesa trigger1

trigger2

component

s-video

video

component

onnect power cable

IRin

Pr Pr

Pb Pb

serialcontrol

M1-DA vesa trigger1

trigger2

component

s-video

video

component

Displaying a video image

Remove the lens cap.

Press the

Power

button on the top of the projector.

The LED ﬂashes green and the fans start to run. When the lamp comes on,

the startup screen displays and the LED is steady green. It can take a minute

for the image to achieve full brightness.

? No startup screen?

Get help on page 11.

Plug in and turn on the video device.

An image from the video device should appear on the projection screen. If it

doesn’t, press the

Source

button on the keypad.

Adjust the height of the projector by pressing the release button to extend

the elevator foot. Rotate the leveling foot, if necessary.

Position the projector the desired distance from the screen at a 90 degree

angle to the screen. See page 33 for a table listing screen projected image

sizes and distances to the screen.

press Power

turn on video device

adjust height rotate

leveling

foot

elevator

foot

adjust distance

Adjust the zoom or focus rings by rotating them until the desired image size

and sharpness are produced.

If the image is not square, adjust the keystone using the buttons on the key-

pad. Press the upper

Keystone

button to reduce the width of the upper por-

tion of the image, and press the lower

Keystone

button to reduce the width

of the lower portion.

You can also adjust the horizontal and vertical keystone via the Picture

menu (See page 22)

The

Contrast

Brightness

Color

, and

Tint

are factory calibrated to D65 col-

ors, but you can adjust these settings in the Picture menu if necessary.

See page 22 for help with the menus.

The focus ring is threaded, similar to a 35 mm camera lens. To put a ﬁlter on

your lens, simply screw it onto the threadedd focus ring

adjust zoom and focus

focus

zoom

adjust keystone

adjust Picture menu

Add a lense filter

Connecting a computer

Connect either a VESA cable or M1 cable into the appropriate connector on

the projector. Connect the other end to the video port on your computer. If

you are using a desktop computer, you ﬁrst need to disconnect the monitor

cable from the computer’s video port.

Connect the power cable to the connector on the back of the projector and to

your electrical outlet.

The Power LED on the projector’s keypad turns solid green.

NOTE

: Always use the power cable that shipped with the projector.

Turn on the projector, then your computer.

You can control the projector from an LCD control panel or computer by

connecting an RS-232 cable to the projector’s

Serial

connector. Speciﬁc

RS-232 commands can be found in the Appendix starting on page 36

connect computer cable

IRin

Pr Pr

Pb Pb

serialcontrol

M1-DA vesa trigger1

trigger2

component

s-video

video

component

IRin

Pr Pr

Pb Pb

serialcontrol

M1-DA vesa trigger1

trigger2

component

s-video

video

component

connect power cable

IRin

Pr Pr

Pb Pb

serialcontrol

M1-DA vesa trigger1

trigger2

component

s-video

video

component

IRin

Pr Pr

Pb Pb

serialcontrol

M1-DA vesa trigger1

trigger2

component

s-video

video

component

connect RS-232 cable

Table des matières

Autres manuels Dream Vision Projecteur

Dream Vision

Dream Vision Vunzi Manuel utilisateur

Dream Vision

Dream Vision Dream'E R69976 Manuel utilisateur

Dream Vision

Dream Vision R699848 Dreamy Cinema Manuel utilisateur

Dream Vision

Dream Vision CinemaTenPRO Manuel utilisateur

Dream Vision

Dream Vision Star Light R699780 Manuel utilisateur

Dream Vision

Dream Vision Very BEST Manuel utilisateur

Dream Vision

Dream Vision Yunzi Family Manuel utilisateur

Dream Vision

Dream Vision StarLight 3 Manuel utilisateur

Dream Vision

Dream Vision Dreamy geek Manuel utilisateur

Dream Vision

Dream Vision YUNZI Manuel utilisateur

Dream Vision

Dream Vision Eos Series Manuel utilisateur

Dream Vision

Dream Vision Inti+ Manuel utilisateur

Dream Vision

Dream Vision DL500 Manuel utilisateur

Dream Vision

Dream Vision Dreamy geek II Manuel utilisateur

Dream Vision

Dream Vision DL500 Manuel utilisateur

Dream Vision

Dream Vision projector Manuel utilisateur

Dream Vision

Dream Vision Dreamy Manuel utilisateur

Dream Vision

Dream Vision Yunzi+ Manuel utilisateur

Dream Vision

Dream Vision T9006000 Manuel d'utilisation et d'entretien

Dream Vision

Dream Vision DreamWeaver II Manuel utilisateur

Dream Vision

Dream Vision X3 Manuel d'utilisation

Dream Vision

Dream Vision Inti+ Manuel utilisateur

Dream Vision

Dream Vision R699740 Manuel utilisateur

Dream Vision

Dream Vision Siglos 1 Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
