Quick Start Guide

Version: 1.0

F/W: V1.3.1.1

Date: October 30, 2019

Warranty

We warrant to the original end user (purchaser) that the access point will be free from any defects in workmanship or materials for a period of one

(1) year from the date of purchase from the dealer. Please keep your purchase receipt in a safe place as it serves as proof of date of purchase.

During the warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials,

we will, at our discretion, repair or replace the defective products or components, without charge for either parts or labor, to whatever extent we

deem necessary tore-store the product to proper operating condition. Any replacement will consist of a new or re-manufactured functionally

equivalent product of equal value, and will be offered solely at our discretion. This warranty will not apply if the product is modified, misused,

tampered with, damaged by an act of God, or subjected to abnormal working conditions. The warranty does not cover the bundled or licensed

software of other vendors. Defects which do not significantly affect the usability of the product will not be covered by the warranty. We reserve the

right to revise the manual and online documentation and to make changes from time to time in the contents hereof without obligation to notify any

person of such revision or changes.

Declaration of Conformity

Hereby, DrayTek Corporation declares that the radio equipment type VigorAP 802 is in compliance with Directive 2014/53/EU.

The full text of the EU Declaration of Conformity is available at the following internet address:

http://www.draytek.com.tw/ftp/VigorAP 802/Document/CE/

Manufacturer: DrayTek Corp.

Address: No. 26, Fu Shing Road, HuKou Township, HsinChu Industrial Park, Hsin-Chu, Taiwan 303

Product: VigorAP 802

Frequency Information for Europe area:

2.4G WLAN 2412MHz - 2472 MHz, max. TX power: 19.86 dBm

5G WLAN 5160MHz - 5340 MHz, max. TX power: 22 dBm ;

5480MHz - 5720 MHz, max. TX power: 29 dBm

This product is designed for 2.4GHz/5GHz WLAN network throughout the EC region.

Package Content

VigorAP 802 can be used to bridge any Ethernet device to a network. It is not

necessary for you to spend time and money installing expensive Ethernet cable to

share your Internet connection or HD / SD video stream at home. Just plug VigorAP

802 to the power outlet on the wall. You can get stable and fast speed for data

transmission at any site in your house.

Wall Plug Access Point Quick Start Guide and RJ-45 Cable

(Ethernet)

The type of the power prong depends on the country that the AP will be installed.

UK-type EU-type

USA/Taiwan-type AU/NZ-type

Note Remove the protective film from the access point before use to

ensure ventilation.

The antenna/transmitter should be kept at least 20 cm away from

human body.

Descriptions of Components

LED Status Explanation

Off The system is not ready or is failed.

ACT

Blinking Slowly: The system is ready and can work

normally.

Quickly: The system is booting up or resetting to

the Factory Default value.

On Wireless function (2.4G) is ready.

Off Wireless function (2.4G) is not ready.

2.4G

Blinking Data is transmitting (sending/receiving).

On Wireless function (5G) is ready.

Off Wireless function (5G) is not ready.

Blinking Data is transmitting (sending/receiving).

On The LAN port is connected.

Off The LAN port is disconnected.

LAN

Blinking Data is transmitting (sending/receiving).

On AP mode: The Ethernet cable is connected.

Mesh mode: Connect to Mesh network.

Extender mode: Connect to other AP.

Uplink

Off AP mode: The Ethernet cable is not connected.

Mesh mode: Disconnect to Mesh network.

Extender mode: Disconnect to other AP.

Blinking AP mode: The system is scanning the surrounding

network. Or WPS is enabled and the system is

waiting for response from the wireless client.

Mesh mode: trying to connect to mesh network

Extender mode: trying to connect to other AP.

On VigorAP is configured as AP mode.

Flash one time VigorAP is configured as Mesh Node mode.

Mode

Flash twice VigorAP is configured as Range Extender mode.

Factory Reset Press it for more than 15 seconds. When the ACT

LED flashes rapidly, release the button.

Button

LED On/Off Press it and release it within 2 seconds.

Interface Explanation

LAN Connector for Ethernet device.

You can connect any Ethernet network devices, such as a PC, TV,

camera and anything else you want to put on your networks.

Installation

This section will guide you to install the AP and make configuration for VigorAP.

3.1 Connected As a Mesh Node (in Mesh Network)

Plug VigorAP into a power outlet.

As a mesh node, settings related to VigorAP 802 must be configured by a

remote Mesh Root (e.g., VigorAP 903) within the mesh network. The user

must detect VigorAP 802 via a Mesh Root to add it as a mesh node.

3.2 Connected As an Access Point

As an access point, VigorAP 802 must be connected to a router and configured in AP

(Access Point) / Range Extender mode.

Plug VigorAP into a power outlet.

Use a twisted-pair cable with RJ-45 plugs at both ends, and plug into

Ethernet device (e.g., Vigor router) and Ethernet port of VigorAP.

There are two methods to configure VigorAP.

Method 1:

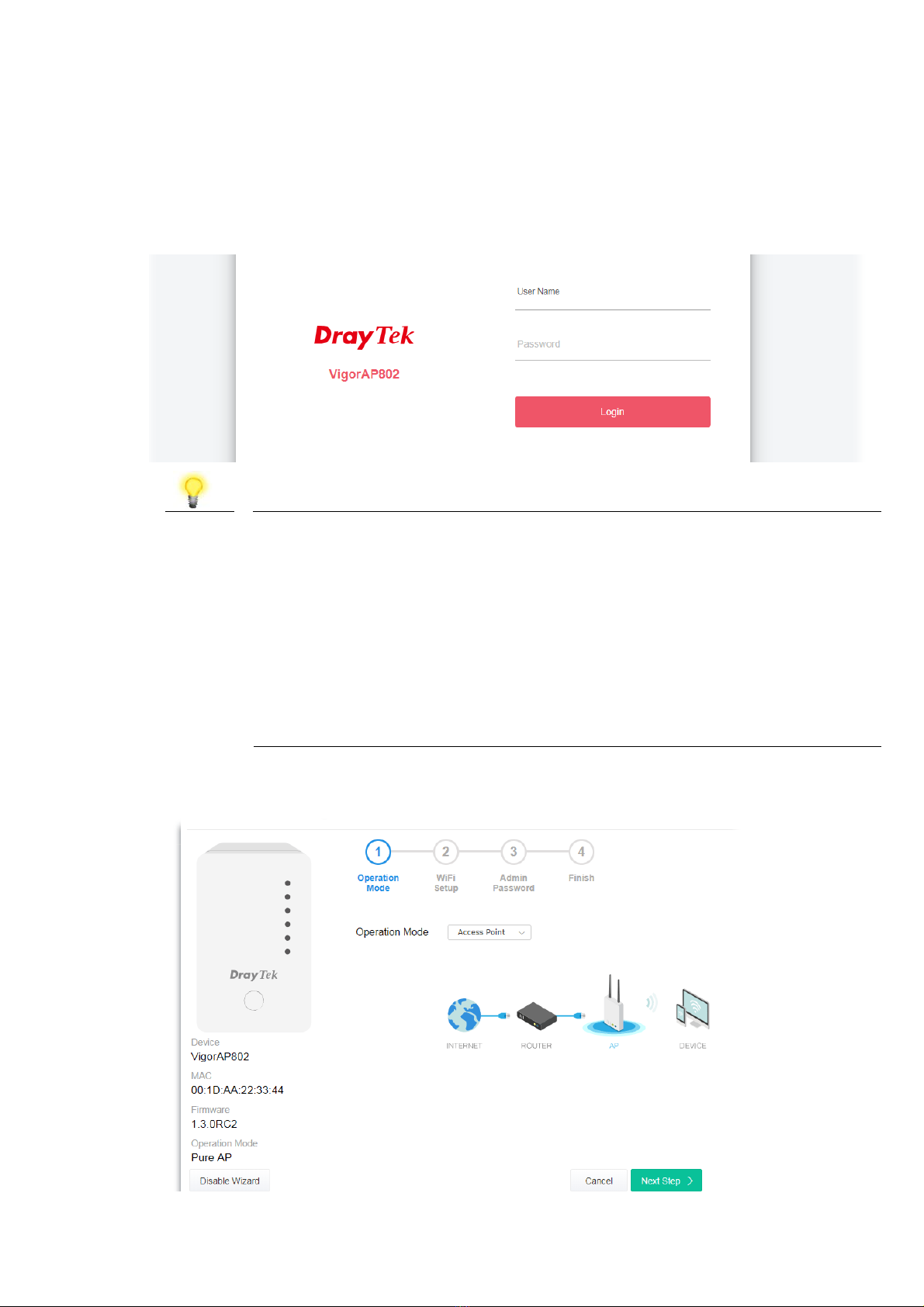

(a) First, open a web browser on your PC and type https://192.168.1.2. A

pop-up window will open to ask for username and password.

Note You may either simply set up your computer to get IP dynamically from the

router or set up the IP address of the computer to be in the same subnet as the IP

address of VigorAP 802.

If there is no DHCP server on the network, then VigorAP 802 will have an

IP address of 192.168.1.2.

If there is DHCP available on the network, then VigorAP 802 will receive its

IP address via the DHCP server.

If you connect to VigorAP by wireless LAN, you could try to access the web

user interface through http://vigorap.com.

(b) After clicking Login, Quick Start Wizard for configuring wireless

settings will appear as follows.

Method 2:

(a) Use a mobile phone to scan the QR code named with DrayTek Wireless

App to download DrayTek Wireless APP.

(b) After downloading, run the APP.

SSID. Later, click Connect to access into the APP user interface of

VigorAP 802 to set the device in AP or Range Extender mode.

Contacting DrayTek

If the access point still cannot work correctly after trying many efforts, please contact

your dealer for further help right away. For any questions, please feel free to send

e-mail to [email protected].

GPL Notice This DrayTek product uses software partially or completely licensed under the terms of the

GNU GENERAL PUBLIC LICENSE. The author of the software does not provide any

warranty. A Limited Warranty is offered on DrayTek products. This Limited Warranty does

not cover any software applications or programs.

To download source codes please visit:

http://gplsource.draytek.com

GNU GENERAL PUBLIC LICENSE:

https://gnu.org/licenses/gpl-2.0

Version 2, June 1991

For any question, please feel free to contact DrayTek technical support at

[email protected] for further information.
