Draytek Vigor 2762 Series Manuel utilisateur

Intellectual Property Rights (IPR) Information

Copyrights

by copyright. No part may be reproduced, transmitted, transcribed, stored in

a retrieval system, or translated into any language without written permission

from the copyright holders.

Trademarks

The following trademarks are used in this document:

 Microsoft is a registered trademark of Microsoft Corp.

 Windows, Windows 95, 98, Me, NT, 2000, XP, Vista, 7, 8 and

Explorer are trademarks of Microsoft Corp.

 Apple and Mac OS are registered trademarks of Apple Inc.

 Other products may be trademarks or registered trademarks of

their respective manufacturers.

Safety Instructions and Approval

Safety

Instructions

 Read the installation guide thoroughly before you set up the router.

 The router is a complicated electronic unit that may be repaired

only be authorized and qualified personnel. Do not try to open or

repair the router yourself.

 Do not place the router in a damp or humid place, e.g. a bathroom.

 Do not stack the routers.

 The router should be used in a sheltered area, within a

temperature range of +0 to +40 Celsius.

 Do not expose the router to direct sunlight or other heat sources.

The housing and electronic components may be damaged by direct

sunlight or heat sources.

 Do not deploy the cable for LAN connection outdoor to prevent

electronic shock hazards.

 Keep the package out of reach of children.

 When you want to dispose of the router, please follow local

regulations on

conservation of the environment.

Warranty

We warrant to the original end user (purchaser) that the router will be free

from any defects in workmanship or materials for a period of two (2) years

from the date of purchase from the dealer. Please keep your purchase receipt

in a safe place as it serves as proof of date of purchase. During the warranty

period, and upon proof of purchase, should the product have indications of

failure due to faulty workmanship and/or materials, we will, at our discretion,

repair or replace the defective products or components, without charge for

either parts or labor, to whatever extent we deem necessary tore-store the

product to proper operating condition. Any replacement will consist of a new

or re-manufactured functionally equivalent product of equal value, and will

be offered solely at our discretion. This warranty will not apply if the product

is modified, misused, tampered with, damaged by an act of God, or subjected

to abnormal working conditions. The warranty does not cover the bundled or

licensed software of other vendors. Defects which do not significantly affect

the usability of the product will not be covered by the warranty. We reserve

the right to revise the manual and online documentation and to make changes

from time to time in the contents hereof without obligation to notify any

person of such revision or changes.

iii

Vigor 2762 series

ADSL2/2+ & VDSL2 Router

Quick Start Guide

t .................................................................................................. 1

n ................................................................................................. 2

n ........................................................................................... 8

n ................................................................................................................... 8

-M

n ........................................................................................................... 9

n ...................................................................................... 10

e ............................................................................................... 13

Take a look at the package content. If there is anything missed or damaged, please contact

DrayTek or dealer immediately.

Vigor Router

Quick Start Guide

RJ-45 Ethernet Cable

RJ-11 Cable

2x WiFi antenna (“ac” model)

Power Adapter

LED

Status

Explanation

(Activity)

linking

The router is powere

d on and

running

normall

Off The router is powered off.

(USB)

A USB device is connected

and

active.

linking

The data is transmitting.

(DSL) Orange

On The DSL link up, waiting for the Internet

connection.

Blinkin

Slowly - The DSL connection is ready for training.

Quickly

The DSL connection is synchronizing.

Green

On The router is ready to access to the Internet

through DSL link.

Blinkin

The data is transmitting.

(LAN1/2/3/4)

On The LAN port is connected.

Blinking The data is transmitting.

Off The LAN port is disconnected.

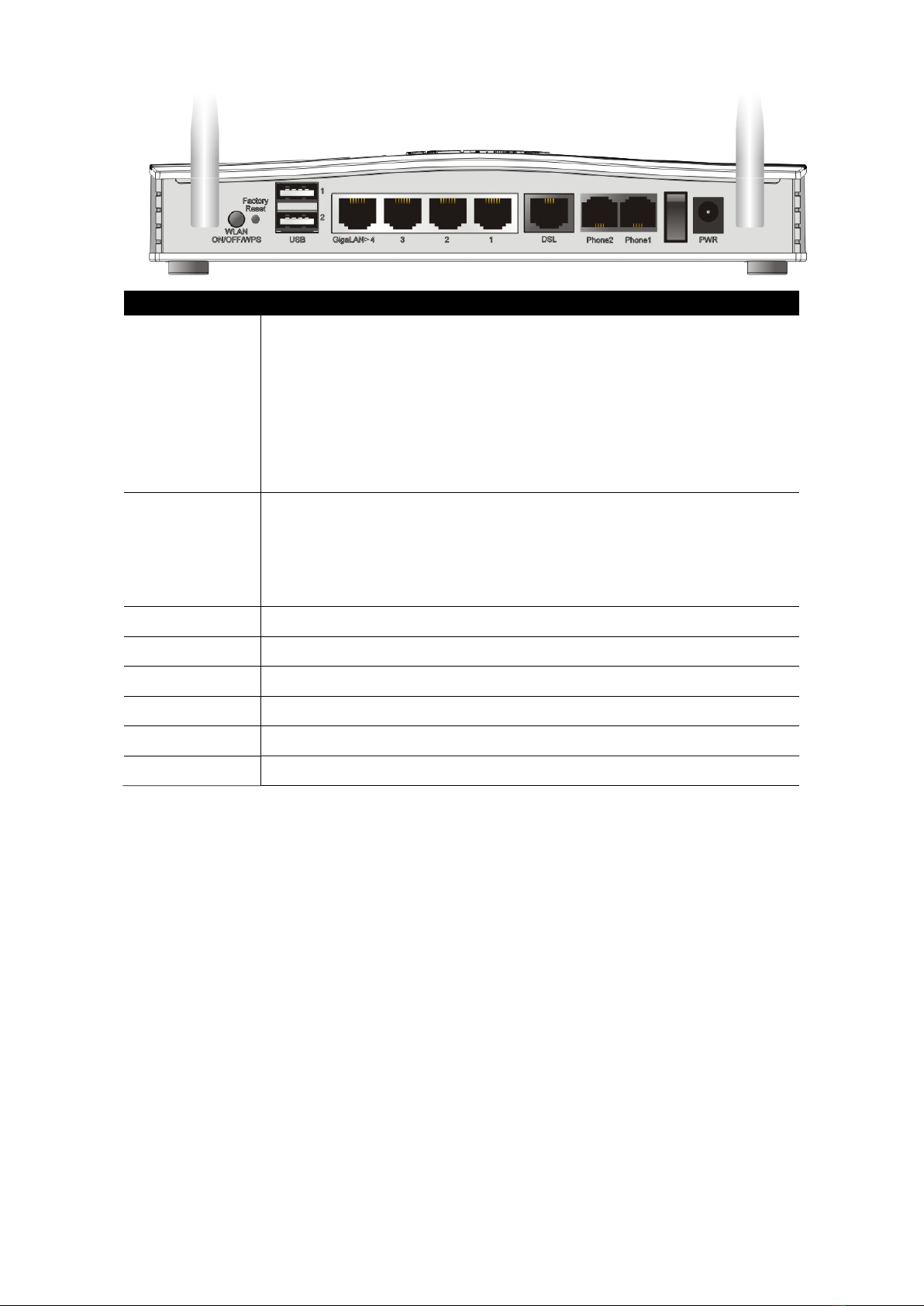

Interface

Description

Factory Reset

Restore the default settings.

Usage: Turn on the router (ACT LED is blinking). Press the hole and

keep for more than 5 seconds. When you see the ACT LED begins to

blink rapidly than usual, release the button. Then the router will

restart with the factory default configuration.

USB1~USB2 Connector for a USB device (for 3G/4G USB Modem or printer).

GigaLAN1~LAN4

Connectors for local networked devices.

DSL Connector for accessing the Internet.

I / O Power Switch.

PWR Connector for a power adapter.

LED

Status

Explanation

(Activity)

linking

The router is powered on and running

normall

Off The router is powered off.

(Wireless LAN

n/Off/WPS)

On (Green)

The w

ireless access point is ready.

Blinking (Green) The data is transmitting via wireless connection based

on the rate of 2.4GHz.

Blinking (Orange) Blinks with one second cycle for two minutes. The WPS

unction is active.

Off

The w

irel

ess access point is

turned off.

(Wireless LAN

On/Off/WPS)

On (Green)

The w

ireless access point is ready.

Blinking (Green) The data is transmitting via wireless connection based

on the rate of 5GHz.

Blinking (Orange) Blinks with one second cycle for two minutes. The WPS

function is active.

(USB)

A USB device is connected

and

active.

linking

The data is transmitting.

(DSL)

Orange

The DSL link up, waiting for the Internet connection.

Blinking

Slowly - The DSL connection is ready for training.

Quickly

The DSL connection is synchronizing.

Green On The router is ready to access to the Internet through

DSL link.

linking

The data is transmitting.

(LAN1/2/3/4)

On The LAN port is connected.

Blinking The data is transmitting.

Off The LAN port is disconnected.

Interface

Description

WLAN

ON/OFF/WPS

WLAN On - Press the button and release it within 2 seconds. When

the wireless function is ready, the green LED will be on.

WLAN Off - Press the button and release it within 2 seconds to turn

off the WLAN function. When the wireless function is not ready, the

LED will be off.

WPS - When WPS function is enabled by web user interface, press

this button for more than 2 seconds to wait for client’s device

making network connection through WPS.

Factory Reset Restore the default settings.

Usage: Turn on the router (ACT LED is blinking). Press the hole and

keep for more than 5 seconds. When you see the ACT LED begins to

blink rapidly than usual, release the button. Then the router will

restart with the factory default configuration.

USB1~USB2 Connector for a USB device (for 3G/4G USB Modem or printer).

GigaLAN1~LAN4

Connectors for local networked devices.

DSL Connector for accessing the Internet.

I / O Power Switch.

PWR Connector for a power adapter.

LED

Status

Explanation

(Activity)

linking

The router is powered on and running

normall

Off The router is powered off.

The phone connected to this port is off

hook.

The phone connecte

d to this

port is on

hook.

Blinking

A phone call

comes.

(Wireless LAN

On/Off/WPS)

On (Green)

The w

ireless access point is ready.

Blinking (Green) The data is transmitting via wireless connection

based on the rate of 2.4GHz.

Blinking (Orange) Blinks with one second cycle for two minutes. The

WPS f

unction is active.

Off

The w

ireless access point is

turned off.

(Wireless LAN

On/Off/WPS)

On (Green)

The w

ireless access point is ready.

Blinking (Green) The data is transmitting via wireless connection

base

d on the rate of 5GHz.

Blinking (Orange) Blinks with one second cycle for two minutes. The

WPS function is active.

(USB)

A USB device is connected

and

active.

linking

The data is transmitting.

(DSL) Orange

On The DSL link up, waiting for the Internet

connection.

Blinkin

Slowly - The DSL connection is ready for training.

Quickly

The DSL connection is synchronizing.

Green

On The router is ready to access to the Internet

through DSL link.

Blinkin

The data is transmitting.

(LA

N1/2/3/4)

On The LAN port is connected.

Blinking The data is transmitting.

Off The LAN port is disconnected.

Interface

Description

WLAN

ON/OFF/WPS

WLAN On - Press the button and release it within 2 seconds. When

the wireless function is ready, the green LED will be on.

WLAN Off - Press the button and release it within 2 seconds to turn

off the WLAN function. When the wireless function is not ready, the

LED will be off.

WPS - When WPS function is enabled by web user interface, press

this button for more than 2 seconds to wait for client’s device

making network connection through WPS.

Factory Reset Restore the default settings.

Usage: Turn on the router (ACT LED is blinking). Press the hole and

keep for more than 5 seconds. When you see the ACT LED begins to

blink rapidly than usual, release the button. Then the router will

restart with the factory default configuration.

USB1~USB2 Connector for a USB device (for 3G/4G USB Modem or printer).

GigaLAN1~LAN4

Connectors for local networked devices.

DSL Connector for accessing the Internet.

Phone2/Phone1

Connector of analog phone for VoIP communication.

I / O Power Switch.

PWR Connector for a power adapter.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Draytek Routeur réseau

Draytek

Draytek VigorFly 210 Manuel utilisateur

Draytek

Draytek Vigor2600VG Manuel utilisateur

Draytek

Draytek Vigor2862 Series Manuel utilisateur

Draytek

Draytek VigorPro 5510 Series Guide de référence

Draytek

Draytek Vigor2866 Series Manuel utilisateur

Draytek

Draytek Vigor2110 Series Manuel utilisateur

Draytek

Draytek Vigor 2950G Guide de référence

Draytek

Draytek Vigor2760 Manuel utilisateur

Draytek

Draytek Vigor2620PVn Series Manuel utilisateur

Draytek

Draytek Vigor2500 series Manuel utilisateur

Draytek

Draytek Vigor 110 Manuel utilisateur

Draytek

Draytek Vigor 2135 Series Manuel utilisateur

Draytek

Draytek Vigor2765 Series Manuel utilisateur

Draytek

Draytek Vigor 2925 Series Manuel utilisateur

Draytek

Draytek VigorIPPBX 2820 Series Manuel utilisateur

Draytek

Draytek Vigor2760Vn Manuel utilisateur

Draytek

Draytek Vigpr2500 Manuel utilisateur

Draytek

Draytek Vigor2760 Manuel utilisateur

Draytek

Draytek VigorBX 2000 Series Manuel utilisateur

Draytek

Draytek Vigor2910 Series Manuel utilisateur

Draytek

Draytek VigorPro 5510 Series Manuel utilisateur

Draytek

Draytek Vigor2920 Series Manuel utilisateur

Draytek

Draytek Vigor 2927 Series Manuel utilisateur

Draytek

Draytek Vigor2915 Series Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
