Draper Onyx Manuel utilisateur

Assembly/Mounting Instructions

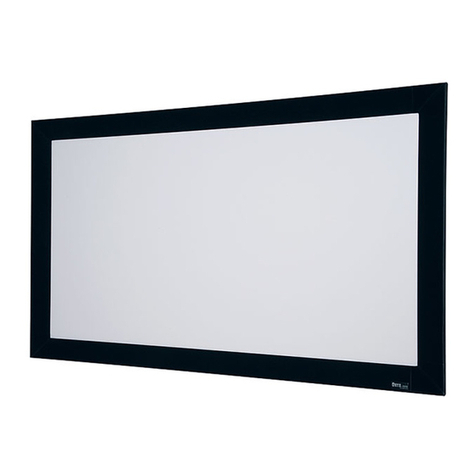

Onyx Permanently Tensioned Projection Screen by Draper

Caution

➀Read instructions through completely before proceeding.

➁Follow instructions carefully. Installation contrary to instructions

invalidates warranty.

➂Screen should be accessible for complete removal should fabric

become damaged or should other service be required.

➃Screen should be installed level (using a carpenter’s level).

➄Nothing should be fastened to screen frame or viewing surface.

➅Make sure you have received all parts (see parts list below and

exploded diagram on page 2).

➆Tools Required: Medium (#2) Phillips screwdriver (6" or greater shaft

length suggested). Optional tools: Flat blade screwdriver or small

putty knife.

NOTE: Screen has been thoroughly inspected and tested at factory and

found to be operating properly prior to shipment.

If you encounter any difficulties installing or servicing your Onyx

screen, call your dealer or Draper, Inc., Spiceland, Indiana,

(765) 987-7999; [email protected].

Onyx—Hardware and Parts List

Frame Preparation

➀Clean area and place frame assembly pieces face down. Insert plastic

corner pieces into ends of aluminum frame extrusions as indicated in

Figures 1 through 4. Secure each corner to each frame extrusion by

threading one #10-24 fastener through hole in plastic corner and into

rounded slot in aluminum frame extrusion.

Figure 1

➁Secure corner pieces to aluminum frame extrusions with four (4) remaining

fasteners. Check to verify that all four (4) plastic corners are secure to

aluminum frame extrusion lengths and all eight (8) fasteners are tight (see

Fig. 5).

Please Note: It is not necessary to over-tighten fasteners.

Figure 2

Frame Extrusions - 4

Frame Corners - 4

#10-24 fasteners - 8

Z-Brackets - 2

Viewing Surface - 1

Plastic Tubing - 4

Surface Retention

Extrusions- 4

Lag Bolts - 6

Front

Back

Figure 3

Figure 5

Figure 4

(Continued on Page 2)

Onyx by Draper Page 2 of 2

Figure 8

Mounting Screen to Wall

➀Determine height at which screen is to be mounted.

Please Note: Top edge of screen frame will be located 1.5"above mounting

bracket hole centerline when mounted to wall.

➁Mark hole centerline so that both Z-brackets can be mounted parallel and

at equal height.

➂Install Z-brackets so that the outermost edges are safely within the overall

length of the aluminum frame extrusion to allow for minor horizontal screen

adjustments.

➃Position screen slightly above Z-brackets on wall (see Fig. 9).

Surface to Frame Assembly

➀Return frame onto clean surface, face down, and drape completed surface

assembly over completed frame profile with rounded edge of surface

retention extrusion visible.

➁Insert any side of surface to notch #1 on corresponding side of frame

extrusion (see Fig. 8).

➂Insert opposite side of surface to notch #1 of frame extrusion.

➃Repeat steps 2-3 with remaining edges of surface.

➄Ensure surface retention extrusions are centered lengthwise in tension

slots on all 4 edges of surface.

➅If additional tension is desired or required over time, adjust surface one

edge at a time to tension notch #2.

Please Note: It is not necessary to adjust more than one edge at a time to

increase surface tension.

Z-brackets and

lag screws

supplied with

screen. Installer is

responsible for

ensuring appropriate

hardware is used.

Wall

Figure 9

➄Lower screen until it engages over Z-brackets. Center screen horizontally

on brackets as necessary.

Please Note: Make sure screen is installed level.

Figure 6

Surface Preparation

➀Move frame assembly out of the way, unroll viewing surface and place

on smooth/clean surface. (Orient viewing surface so that folded side of hem

is visible.)

➁Insert plastic tubing inside pocket formed by hem on all 4 edges of viewing

surface (see Fig. 6).

➂Slide surface retention extrusion (rounded edge visible) along hem and

onto surface on all 4 edges of fabric (see Fig. 7).

Please Note: To make this step easier, pinch the end of the pocket closed

before sliding it into the surface retention extrusion.

Figure 7

➃Surface retention extrusion should extend beyond edge of viewing surface

equally at both ends.

➄Verify that all surface retention extrusions are installed with rounded edge

visible and are centered on surface material.

Plastic Tubing

Surface Retention

Extrusion

Back of

Viewing Surface

Back of

Viewing Surface

Surface

Retention

Extrusion

Fabric Attachment Extrusions

Viewing

Surface

Onyx (Exploded Rear View)

15/8"

Onyx Frame—Side Detail*

*Viewing surface is approximately ¼" from wall.
