These instructions accompanying the product are the original instructions. This document is part of the product, keep
it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.
1 TONNE
78611
TRANSMISSION
JACK
1. TITLE PAGE
1.1 INTRODUCTION:
USER MANUAL FOR: 1 Tonne Transmission Jack
Stock No: 78611
Part No: TJ1/T
As our user manuals are continually updated, users should make sure that they use
the very latest version.
Downloads are available from: http://drapertools.com/manuals
Draper Tools Limited
Hursley Road
Chandler’s Ford
Eastleigh
Hampshire
SO53 1YF
UK
Website: drapertools.com
Product Helpline: +44 (0) 23 8049 4344
General Fax: +44 (0) 23 8026 0784
1.3 UNDERSTANDING THIS MANUALS SAFETY CONTENT:
WARNING! – Information that draws attention to the risk of injury or death.
CAUTION! – Information that draws attention to the risk of damage to the product or
surroundings.
1.4 COPYRIGHT © NOTICE:
Copyright © Draper Tools Limited.
Permission is granted to reproduce this publication for personal and educational use
only. Commercial copying, redistribution, hiring or lending is prohibited.
No part of this publication may be stored in a retrieval system or transmitted in any
other form or means without written permission from Draper Tools Limited.
In all cases this copyright notice must remain intact.
1.2 REVISIONS:
Date first published March 2018.
2. CONTENTS
1. TITLE PAGE
1.1 INTRODUCTION..........................................................................................................2
1.2 REVISION HISTORY ..................................................................................................2
1.3 UNDERSTANDING THIS MANUAL ............................................................................. 2
1.4 COPYRIGHT NOTICE..................................................................................................2
2. CONTENTS
2.1 CONTENTS ....................................................................................................................3
3. GUARANTEE
3.1 GUARANTEE ...............................................................................................................4
4. INTRODUCTION
4.1 SCOPE.........................................................................................................................5
4.2 SPECIFICATION .......................................................................................................... 5
4.3 HANDLING AND STORAGE ........................................................................................5
5. HEALTH AND SAFETY INFORMATION
5.1 GENERAL SAFETY WARNINGS................................................................................. 6
5.2 SAFETY PRECAUTIONS.............................................................................................7
6. TECHNICAL DESCRIPTION
6.1 IDENTIFICATION ......................................................................................................... 8
7. UNPACKING AND CHECKING
7.1 PACKAGING ................................................................................................................ 9
7.2 WHAT´S IN THE BOX? ................................................................................................9
8. ASSEMBLING THE TRANSMISSION JACK
8.1 BEFORE USING ........................................................................................................10
9. TRANSMISSION JACK INSTRUCTION
9.1 SADDLE TILT MECHANISM ...................................................................................... 11
9.2 POSITIONING THE JACK BENEATH LOAD ............................................................. 11
9.3 LOWERING THE LOAD............................................................................................. 11
9.4 TRANSPORTING THE LOAD .................................................................................... 12
9.5 RE-INSTALLING A GEARBOX...................................................................................12
10. MAINTENANCE & TROUBLESHOOTING
10.1 MAINTENANCE .........................................................................................................13
10.2 TROUBLESHOOTING ...............................................................................................13
11. EXPLANATION OF SYMBOLS
11.1 EXPLANATION OF SYMBOLS ..................................................................................14
12. DISPOSAL
12.1 DISPOSAL..................................................................................................................15
DECLARATION OF CONFORMITY .............................................................................. ENCLOSED
10 MAINTENANCE & TROUBLESHOOTING
- 3 -
3. GUARANTEE
3.1 GUARANTEE
Draper tools have been carefully tested and inspected before shipment and are guaranteed to be
free from defective materials and workmanship.
Should the tool develop a fault, please return the complete tool to your nearest distributor or
contact:
Draper Tools Limited, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF. England.
Telephone Sales Desk: (023) 8049 4333 or:
Product Helpline (023) 8049 4344.
A proof of purchase must be provided.
If upon inspection it is found that the fault occurring is due to defective materials or workmanship,
repairs will be carried out free of charge. This guarantee period covering parts/labour is 12 months
from the date of purchase except where tools are hired out when the guarantee period is 90 days
from the date of purchase. The guarantee is extended to 24 months for parts only. This guarantee
does not apply to normal wear and tear, nor does it cover any damage caused by misuse, careless
or unsafe handling, alterations, accidents, or repairs attempted or made by any personnel other
than the authorised Draper warranty repair agent.
Note: If the tool is found not to be within the terms of warranty, repairs and carriage charges will be
quoted and made accordingly.
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its
terms are not authorised.
Your Draper guarantee is not effective unless you can produce upon request a dated receipt or
invoice to verify your proof of purchase within the guarantee period.
Please note that this guarantee is an additional benefit and does not affect your statutory rights.
Draper Tools Limited.
- 4 -
4. INTRODUCTION
4.1 SCOPE
Low positional transmission jack supplied with chain for safe loading. Precision valve allows
delicate adjustment when taking out gearboxes and realigning during replacement. Four castors
for extra manoeuvrability in confined spaces. Fully adjustable saddle with forward, backward and
sideways tilt.
4.2 SPECIFICATION
Stock No................................................................................................................................... 78611
Part No. ..................................................................................................................................... TJ1/1
Rated load .............................................................................................................................. 1000kg
Maximum saddle range .................................................................................................205 - 660mm
Saddle tilt
forward......................................................................................................................... 45° Approx.
Dimensions......................................................................................................... 850 x 490 x 305mm
Weight (nett) ............................................................................................................................... 54kg
EXTREMELY IMPORTANT: Read these safety instructions carefully in addition to the
instructions for use, operation and maintenance. Keep this instructions sheet in an easy to find
place as you may need to use it again.
This vehicle lift has been designed for use in the elevation of vehicles.
Any other application, beyond the conditions established for use of this vehicle lift will be
considered inappropriate.
Handle the vehicle lift correctly and ensure that all parts are in good condition prior to its use.
Only authorised persons should operate the vehicle lift having read carefully and understood the
contents of this manual.
Do not modify the vehicle lift in any way.
Non-compliance with these rules may result in injury or damage to the user, the vehicle lift or the
vehicle to be lifted.
The manufacturer accepts no responsibility for the improper use of the vehicle lift.
4.3 HANDLING AND STORAGE
Care must still be taken when handling and lifting. Dropping this machine will have an effect on the
accuracy and may also result in personal injury. This machine is not a toy and must be respected.
The environment will have a negative result on its operation if you are not careful. If the air is
damp, components will rust. If the machine is unprotected from dust and debris; components will
become clogged: And if not cleaned and maintained correctly or regularly the machine will not
perform at its best.
- 5 -
5. HEALTH AND SAFETY INFORMATION
- 6 -
5.1 GENERAL SAFETY WARNINGS
- The jack may be used for the installation/removal of transmission systems within the weight
limitations specified.
- The jack is designed for lifting/lowering vehicles transmissions and differentials only.
- Always transport transmissions/differentials on the jack in its lowest possible height.
- Never use the jack to lift a vehicle.
- Ensure that the vehicle transmission is stable within the saddle of the transmission jack before
lifting or lowering it.
- The jack should only be used on a firm level surface. Never use on soft uneven surfaces.
- Do not turn the release valve more that 90° (one quarter turn).
- Inspect and lubricate the jack on a regular basis.
- Failure to comply with these safety warnings may result in personal injury and/ or damage to
property and jack.
Caution:
- Use only on a firm level surface.
- Do not exceed the rated capacity of this jack.
- Ensure that the transmission or differential being lifted is stable and correctly centred on the
jack cradle.
- Familiarise yourself thoroughly with this manual before operating to prevent damage to the
jack and property or personal injury.
- Only use this jack for lifting and lowering transmissions and differentials.
- Only move a jack carrying a transmission or differential in the lowest position.
5. HEALTH AND SAFETY INFORMATION
- 7 -
5.2 SAFETY PRECAUTIONS
1. The vehicle to be lifted should never exceed the rated capacity of the jack.
2. The maximum stroke of the jack indicated on the label should never be exceeded.
3. The jack should be supported on a solid, level and horizontal surface which is well illuminated
and free of obstructions. Never stand the jack on a surface which may sink.
4. Ensure that there are no persons inside the vehicle to be lifted. Switch off the engine and
apply the brake. Ensure the vehicle or element to be lifted against any type of sliding. Use
chocks if appropriate (1). Do not enter the vehicle or start the engine whilst it is supported on
the jack or appropriate stands. The jack is a lifting device only and should never be used to
move the vehicle.
5. During raising and lowering of the load, all precautions should be taken to avoid movement of
the vehicle load. Traffic may cause the raised vehicle to rock during roadside use of the jack.
6. The jack should be positioned so as to avoid the need for the user to introduce any part of
his/her body underneath the vehicle. Never work under a raised vehicle without supporting it
with axle stands (5) or other appropriate methods. Never position any part of your body near
the movable elements of the jack.
7. It is necessary for the operator to be able to observe the lifting device and the load during all
movements. In the presence of dangerous conditions, such as movement of the vehicle, etc,
the lifting process must be interrupted.
8. Ensure that there are no persons or obstructions underneath the vehicle prior to lowering.
9. As an additional safety measure against overload, the jack is fitted with an overload valve set
at the factory and which should not be adjusted under any circumstances. If the capacity of
the jack is exceeded, the overload valve will stop the lifting operation.
Caution:
• Use only on a firm, level surface, concrete is preferred.
• Do not exceed the rated capacity of this jack.
• This is a lifting device only ... do not work under the vehicle without proper support devices,
such as axle stands.
• Make sure that the lifting point is stable and correctly centred on the jack saddle.
• Familiarize yourself thoroughly with this manual before operating to prevent damage to the
jack, property, or personal injury.
6. TECHNICAL DESCRIPTION
6.1 IDENTIFICATION
Saddle attachments
Saddle base
Ring chain, hooks & pins
Saddle controls
Tilt mechanism
Jack main frame
Cylinder/Hydraulic unit
Swivel caster wheels
Release value
Jack handle
- 8 -
7. UNPACKING AND CHECKING
7.1 PACKAGING
Carefully remove the jack from the packaging and examine it for any sign of damage that may
have happened during shipping. Lay the contents out and check them against the parts shown
below. If any part is damaged or missing; please contact the Draper Helpline (the telephone
number appears on the Title page) and do not attempt to use the machine.
The packaging material should be retained at least during the guarantee period: in case the
machine needs to be returned for repair.
Warning! Some of the packaging materials used may be harmful to children. Do not leave any of
these materials in the reach of children.
If any of the packaging is to be thrown away, make sure they are disposed of correctly; according
to local regulations.
7.2 WHAT´S IN THE BOX?
The packaging contains several parts and semi-assembled elements that require final assembly.
Lay out the contents and check off the items against those featured below.
- 9 -
Saddle
attachments
Ring chain,
hooks & pins
Jack main
frame
Jack handle
Positioning rod
8. ASSEMBLING THE TRANSMISSION JACK
8.1 BEFORE USING
Important: Before using the jack for the first time, purge the hydraulic circuit in order to eliminate
any air that may have accumulated in the system during transit, as follows:
1. Open the release valve by turning the knob anti-clockwise.
2. Pump the jack handle up and down 15 to 20 times.
3. Turn the release valve clockwise to close it.
- 10 -
Table des matières
Autres manuels Draper Jack
Draper
Draper 02078 Manuel utilisateur
Draper
Draper 53089 Manuel utilisateur
Draper
Draper 03461 Manuel utilisateur
Draper

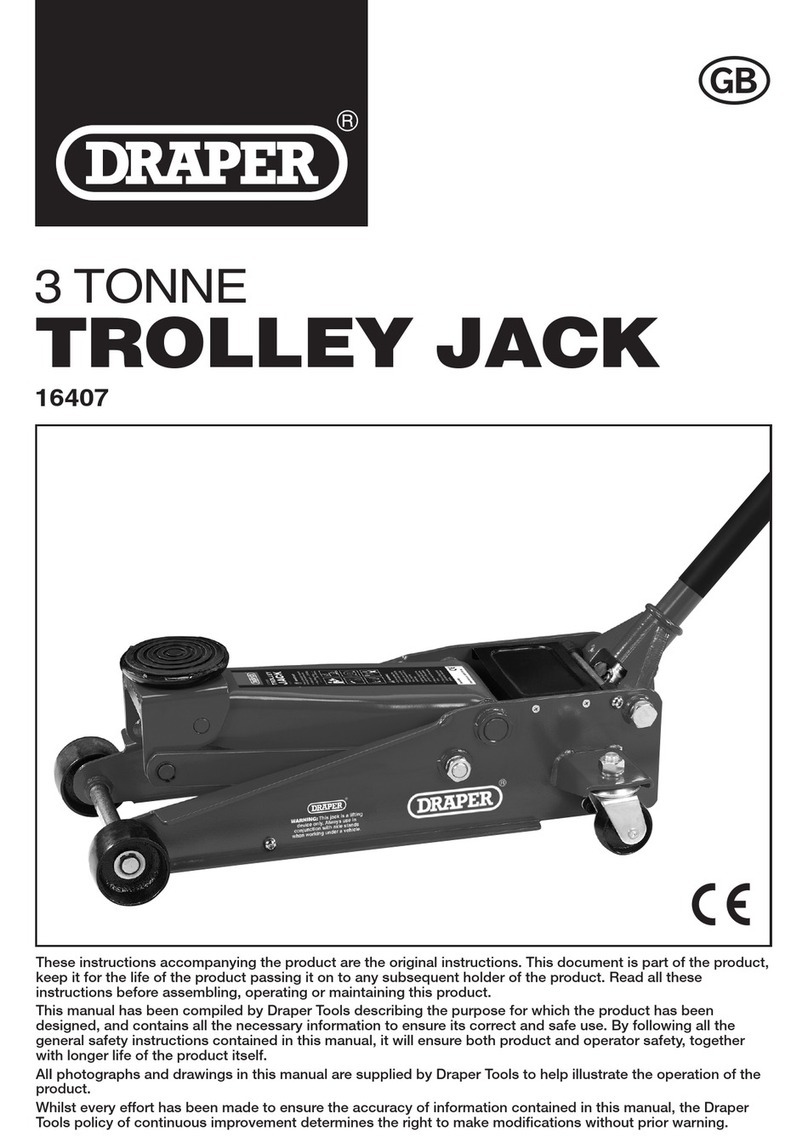

Draper 16407 Manuel utilisateur
Draper
Draper TJ2250B Manuel utilisateur
Draper
Draper TJ2/GD Manuel
Draper
Draper TJ100B Manuel utilisateur
Draper
Draper TJ2/QL Manuel
Draper
Draper 28497 Manuel utilisateur
Draper
Draper 13064 Manuel utilisateur
Manuels Jack populaires d'autres marques
VEVOR
VEVOR TJD-12000SP-F Manuel utilisateur
ULTIMATE SPEED
ULTIMATE SPEED URW 2 A1 HYDRAULIC TROLLEY JACK Manuel utilisateur
Stels
Stels 51131 Manuel utilisateur
Bushranger
Bushranger RJX01 Manuel utilisateur
Clarke
Clarke CTJ2500QLG Manuel d'installation et d'exploitation
Valex
Valex 1650520 Manuel utilisateur
