Dovado USB Mobile Broadband Router Manuel utilisateur
USB Mobile Broadband Router
Reference Manual
& Quick User Guide
The Mobile Choice for your Broadband Internet
Other names of companies, products, or standards are the trademarks or registered trademarks of their
respective owners.
Table of Contents
Introduction 3
Package contents 3
Additional required items 3
Quick Installation Guide 4
Hardware installation 4
Reset button 5
Connecting by Ethernet cable 6
Connecting by Wireless LAN (WLAN/WiFi) 6
Accessing the UMR 7
Wizard Conguration 8
Modem 14
SMS Conguration 16
Advanced Settings 17
WLAN Settings 18
LAN Settings 21
System Settings 23
Internet 25
Upgrading the rmware 29
Troubleshooting 31
Internet 31
Support 33
Technical specifications 34
Guidelines for safe and efficient use 35
Product care and maintenance 35
Limited warranty 36
Table of Contents 1
Introduction
Thank you for choosing the Dovado USB Mobile Broadband Router
(UMR). This quick user guide will help you set up your UMR to
access the Internet.
Package contents
Before continuing to the next section, make sure all of the listed items
below are included in your package. If something is missing, kindly
contact your reseller.
• USB Mobile Broadband Router (UMR)
• Wireless LAN antenna
• Power supply
• Quick User Guide
• 4 rubber feet
Additional required items
In addition to the items above you will need a mobile broadband USB
modem in order for the product to work. This modem provides the
wireless link to your operator’s network and is sold separately.To use the
Internet you need a computer.
Introduction 3
Quick Installation Guide 4
Quick Installation Guide
With the Dovado UMR you can access the Internet wirelessly. In
addition to the UMR you need a computer.The product can be set up
using a common web browser.
Hardware installation
Before continuing, you will need to
install the necessary hardware;

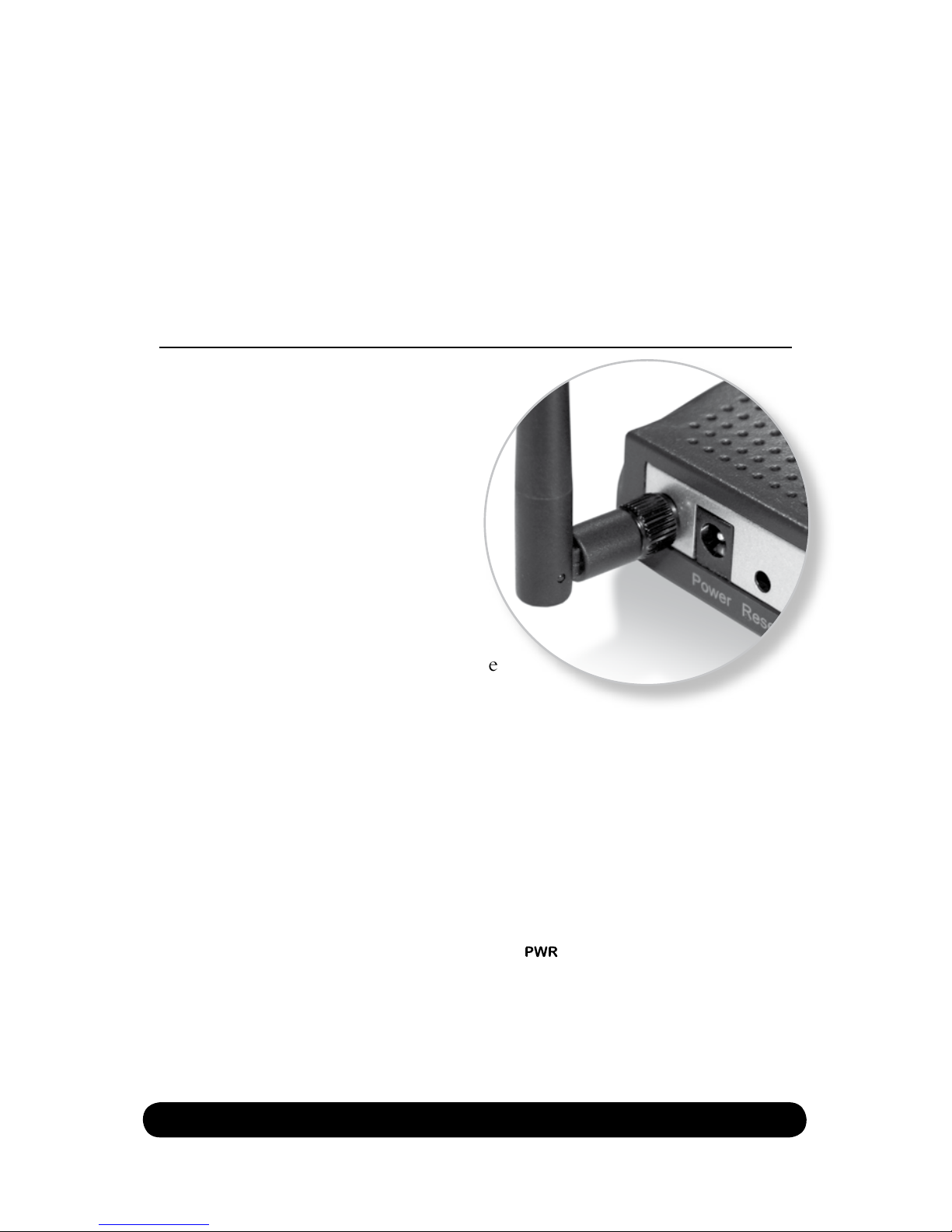

1. Connect the WLAN antenna
to the UMR unit.
2. If you do not intend on wall
mounting your UMR, then
add the included rubber feet
to the designated points on the
base of your UMR.
3. Insert the USB Modem into the
UMR.
4. Connect the power supply to a wall socket and to the PWR
connector located at the back of the UMR.
5. Please note that the USB modem should not be replaced during
operation, if you need to replace the modem, power off the UMR
first.
6. Peel off the protective layer from the front panel.
A solid green light on the power LED ( ) indicates that the unit is
working.
Quick Installation Guide 5
The reset button
The location of the reset button is at the back of the UMR. If you
need to erase all the inserted parameters and password, along with
restoring the factory defaults settings, then hold down the reset button
for approximately 8 seconds.

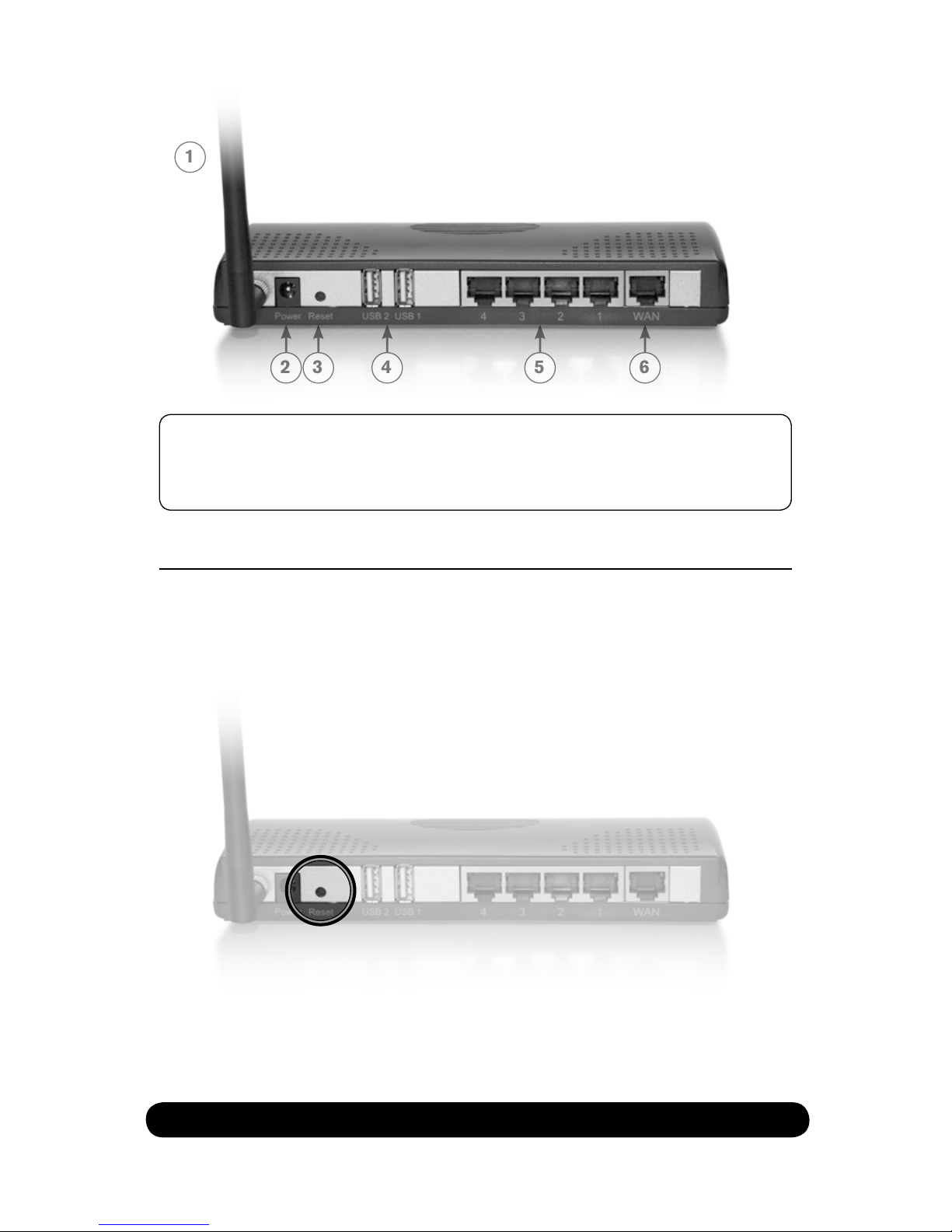

1. Wireless LAN (WLAN) antenna
2. DC Power Input
3. Reset button
4. USB ports 1-2
5. LAN ports 1-4
6. WAN port (reserved for future use)
1
6
4
3
2
5
Quick Installation Guide 6
Connecting by Ethernet cable
Make sure your computer and UMR are turned on. Connect one end
of the Ethernet cable to the Ethernet port on your computer and the
other end to one of the LAN ports on the UMR. A connection will
now automatically be established and when ready, it will be indicated
by a solid green light on the LAN LED.
Connecting by Wireless LAN (WLAN/WiFi)
Ensure that your computer and UMR are turned on and that theWireless
LAN (WLAN/WiFi) is activated on your computer. Establish a Wireless
LAN connection to the UMR (this process should be described in detail
within the product manual for your computer or for the Wireless LAN
network card).The Wireless LAN name (SSID) is DOVADO.
If these steps did not yield any results,then please verify that the network
(LAN or WLAN) interface on your computer is using a dynamic
(DHCP) IP address.
Quick Installation Guide 7
Accessing the UMR

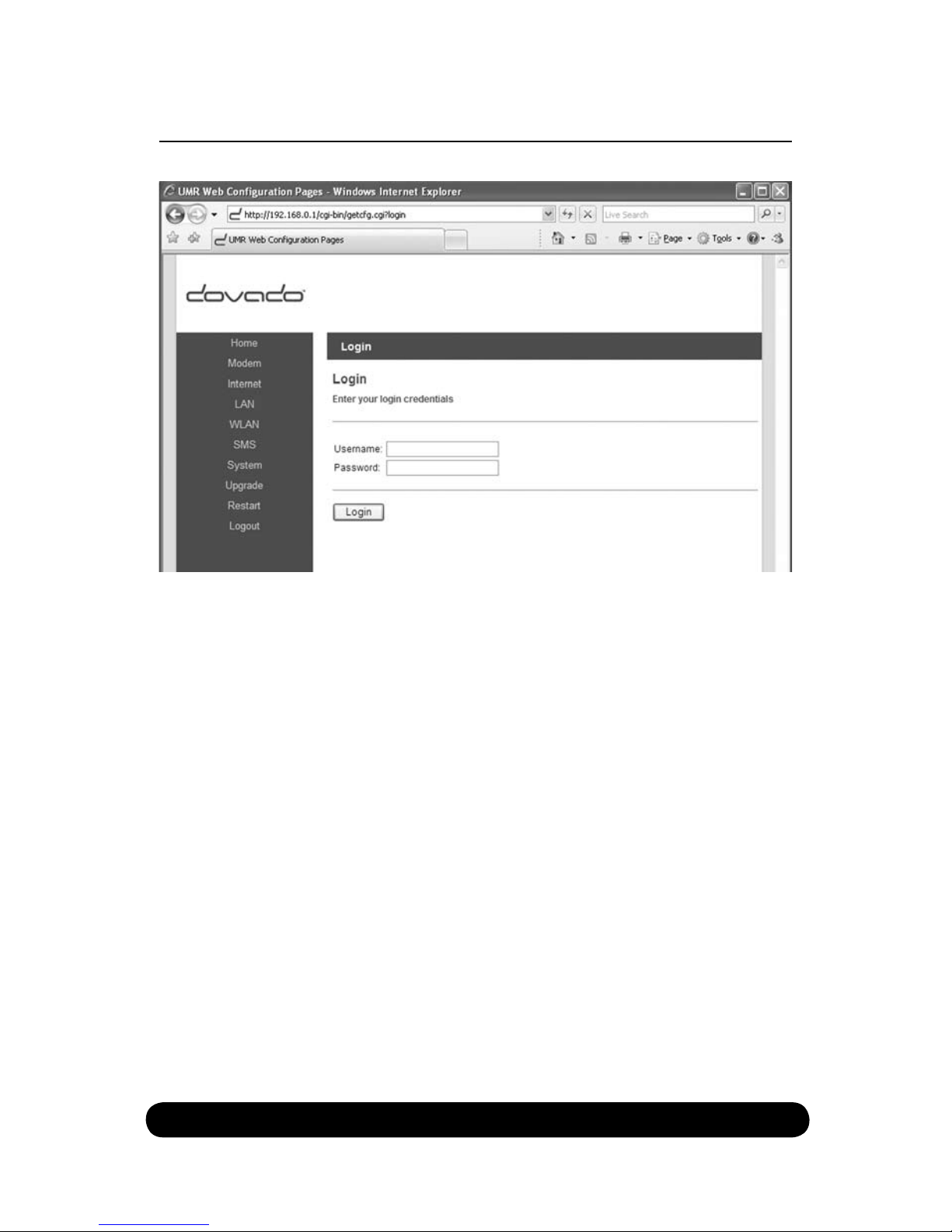

Once you have connected a computer with either an Ethernet cable
or by Wireless LAN, open your web browser and access the following
website:
Address: http://192.168.0.1/
Username: admin
Password: password
After clicking on Login, you will be taken to the Home page which will
display all the information about your UMR.
Quick Installation Guide 8
Wizard Configuration
Go to Home and then click on Start Wizard link to start the setup
wizard. It will be opened in a new window. Follow the steps below to
finish the installation.

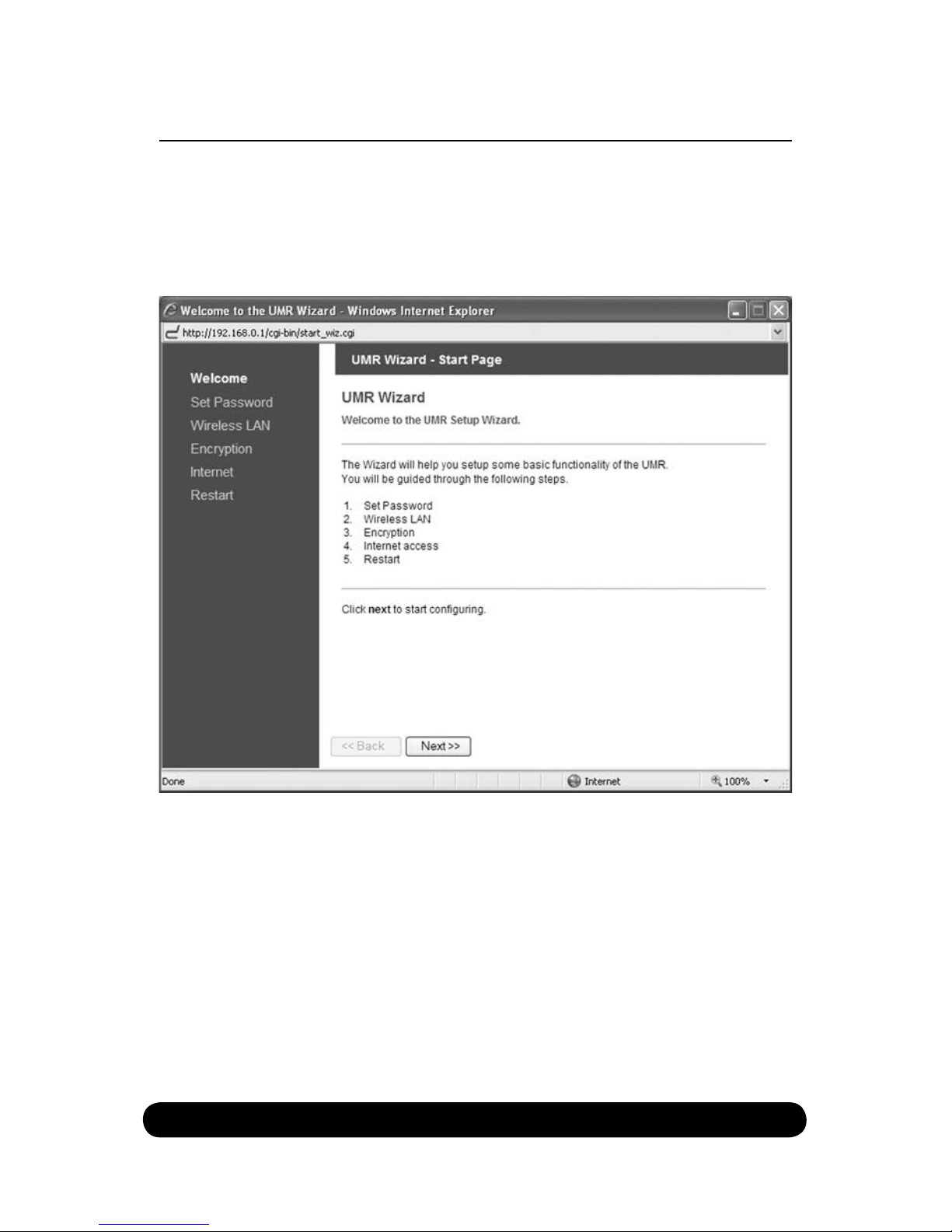

Welcome
The welcome screen presents the steps that you will be guided through.
Click on Next to continue.
