BRM-175
Lit. No. 76617, Rev. 00 2 August 15, 2017
3. Align the hitch bracket and hitch mount to result
in a nozzle height that is 18"−22" from the ground
to nozzle tip. Fasten the hitch mount to the hitch
bracket using the 1/2" hardware provided.
4. Reinstall the light on the top rear face of the hitch
bracket.
Select holes in the
hitch bracket and hitch
mount to result in
nozzle height that is
18"−22" from the
ground to nozzle tip.
1/2" x 1"
Hex Cap
Screws
1/2" Locknuts
Hitch Bracket
Hitch Mount
Copyright © 2017 Douglas Dynamics, LLC. All rights reserved. This material may not be reproduced or copied, in whole or in part, in
any printed, mechanical, electronic, film, or other distribution and storage media, without the written consent of TrynEx International, LLC.
Authorization to photocopy items for internal or personal use by TrynEx International, LLC, outlets or sprayer owner is granted.
TrynEx International, LLC, reserves the right under its product improvement policy to change construction or design details and furnish
equipment when so altered without reference to illustrations or specifications used. TrynEx International, LLC, or the vehicle manufacturer may
require or recommend optional equipment for snow and ice removal. Do not exceed vehicle ratings with a sprayer. TrynEx International, LLC,
offers a limited warranty for all sprayer and accessories. See separately printed page for this important information. The following are
registered (®) or unregistered (™) trademarks of Douglas Dynamics, LLC: Liqui Maxx™, SnowEx®.
Printed in U.S.A.

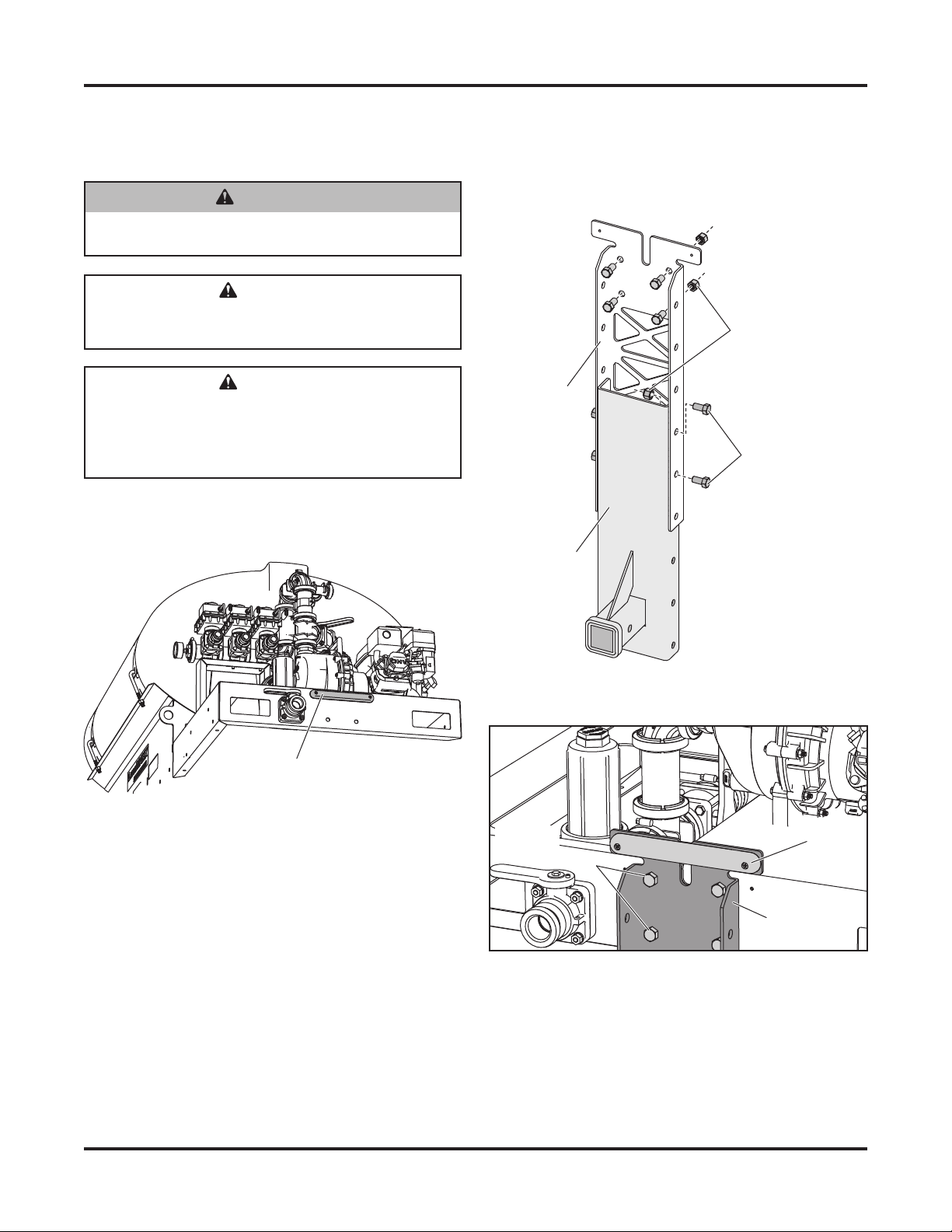

1. To install the spray boom hitch, unfasten the rear
brake light.
2. Install the hitch bracket to the pump platform using
the 1/2" hardware provided.
INSTALLATION INSTRUCTIONS
CAUTION
Use standard methods and practices when
attaching sprayer and installing accessories,
including proper personal protective safety
equipment.
CAUTION
Read this document before installing the
Spray Boom Hitch Assembly.
WARNING
Do not exceed GVWR or GAWR ratings as found
on the driver-side vehicle door cornerpost.
Rear
Brake
Light
Hitch
Bracket
1/2" x 1"
Hex Cap Screw
Remove
rear brake light.
