Dormakaba ED2227 Manuel utilisateur

Mark Center Lines

Mark Center Lines on INSIDE of door. Establish the horizontal

center line of the device by drawing a line across the door

*40-5/16* (1024) above floor line.

Establish the top and bottom rod backset center line by drawing

a vertical line from the top to bottom of the door measuring

from the LOW SIDE of the DOOR BEVEL.

*Regularly furnished unless otherwise ordered.

dormakaba ED2227

ED2227 Exit Device

Installation Instruction - Vertical Rod Rim

Before Installing

Check to be sure the exit device is the proper hand for

your door.

How to determine hand of door

Inside of LHRB is illustrated

Push Side

Right Hand

Reverse Door

Left Hand

Reverse Door

“A” Dimension Installation

 /” (.) Surface Strike

 /” (.) Flush Strike

Locate Latches

Locate Top and Bottom Latch.

Mark for later installation.

Mount Top Latch

Retract the latch by pushing up on slide and fasten Latch

Assembly with screws as illustrated.

Be sure to draw the screw up tight. Drill hole for the cover screw

using the hole in the slide Assembly at bottom as guide.

First screw into the hole to fix the correct position.

Install Strikes

Close door. Align center of strike with vertical backset center

line on door and install top and bottom strikes.

Mount Bottom Latch

Insert Bottom Latch Screw through bolt in Latch Frame into

bottom hole. Do not tighten. Lift up Slide Assembly and fit the

Spring Loop over the stump on the latch frame.

Position Latch Frame so that Latch engages strike. Now tighten

bottom screw.

Drill a hole for the Cover Screw using the hole in the Slide

Assembly at top as guide. Spot with 1/4” (6.4) drill. Drill through

with #3 drill for self tapping screw. First screw into the hole to fix

the correct position.

Top Rod Assembly

Put the top latch and top strike in the proper position, then

tighten the left and right screws.

Put part (A) in down position to match the screw hole of the rod

and assemble.

dormakaba ED2227

Install Top Rod adjust Top Latch

Attach Top Rod to Bar Assembly by slipping hole over Stump and

secure Rod by means of “E” Ring.

Shut door. Turn Adjustable Rod Connector until head touches

underside of latch slide.

Insert pin. Depress bar, if top latch does not retract completely,

remove pin and turn connector to adjust length. Repeat until

Latch Bolt just disengages.

CAUTION: Make certain “E” ring engages slot in stump

Install and Adjust Bottom Rod

Attach Bottom Rod to Bar Assembly by slipping hole over

Stump and secure Rod by means of “E” Ring. Shut door.

Dog down Active Case. Insert pin into Rod Connector by

turning clockwise or counter clockwise until Latch Bolt just

clear Strike, Undog Device.

CAUTION: Make certain “E” ring engages slot in stump

Mount Top and Bottom Latch Covers

Bottom Cover: Position above Bottom Latch Frame and align with hole in slide assembly at bottom. Secure with furnished screw.

Top Cover: Position and secure with screw through bottom hole in Top Latch Frame.

Testing Push Bar and Dogging Operations

The latches should engage the strikes when the door is closed.

If the door can be pushed open without depressing the push

bar, the top rod connector has been over adjusted.

Remove cover. Adjust connector as needed. Replace cover.

The top and bottom latches should be disengaged from the strikes

freely when the push bar is depressed or dogged down. If thy do

not disengage, remove the covers and adjust the connectors as

needed. Replace the covers. Retest fir proper operation.

Series: No Trim

Top and bottom latch bolts are retracted by the push bar inside.

Series: Plate and Pull Trim

Top and bottom latch bolts are retracted by the push bar inside

and by the key outside. Turning the key in either direction will

retract the latches. Remove key and project latches.

Series: Knob Trim

Top and bottom latch bolts are retracted by the push bar inside

and by key or knob outside.

To lock knob:

Insert key in cylinder and turn counter clockwise as far as key will

turn. Then return key to its vertical position and withdraw key.

To unlock knob:

Insert key in cylinder and turn counter clockwise as far as key will

turn (the latches will retract during this procedure). Then return

key to its vertical position and withdraw key.

Dogging:

Depress push bar. Insert dogging wrench and turn clockwise 90°.

The push bar will remain depressed and the latches will remain

retracted.

To convert the devices into right hand remove Part A and Part B.

Rotate Part C to the right then tighten the screws again.

Turn Part B to opposite direction and re-inset in its slot then

tighten Part A.

Loosen the screws.

Directions for reversing handing of device

NOTE

When your door has cylindrical lock

cu-out for ANSI A115.2 and A115.3

prep doors:

A Extend horizontal and vertical

center lines of cut-out shown at

right.

BAlign center lines on template

with center lines on door.

Drill template holes as needed.

Locate and drill mounting holes for

trim and device using furnished

template. Be sure the template is

aligned with horizontal and vertical

center lines on the INSIDE OF DOOR.

Trim Installation

Cut off length of cylinder connecting bar so that 1/2” (12.7) projects beyond inside of door.

ALWAYS refer to the

template packed with trim

before proceeding with

installation.

CAUTION

When using the Ansi Cylinder plate, be sure the bosses on the

latch assembly fit into the cutouts on the cylinder plate so that

the latch assembly lies flat on the door.

How to remove and reinstall Cylinder in lock:

A. Removing the knob

A1. Insert key in cylinder and turn 90° clockwise.

A2. Insert knob removing tool into the hole in the knob and

depress the knob catch button.

A3. While knob catch button is depressed, pull knob off.

B. Removing cylinder from knob

B1. Remove sleeve.

B2. Remove key.

B3. Slide cylinder out of knob

C. Reinstalling cylinder in knob

C1. Slide cylinder into knob.

C2. Replace sleeve.

D. Reinstalling in knob

D1. With key inserted part way into cylinder slide knob onto knob

shank.

D2. Depress knob catch button and push knob onto the knob

shank as far as it will go.

D3. Insert key completely into the cylinder and turn the key while

pushing on the knob until it engages the knob catch button

D4. Return key to its vertical position and remove it.

D5. Pull on the knob to be certain it is properly engaged to the

knob catch button.

Screw Chart

Item Quantity Fastener

Front plate assembly and rear bracket  # x -/” lag pan head tapping screws type “A”

Top Strike  # x ” truss phil head wood screws

Top and Bottom Latch  # x ” truss phil head wood screws

Top and Bottom Rod Guides  # x ” pan head tapping screws type “A”

Bottom Latch Cover  # x ” flat phil head wood screws

Bottom Strike  # x ” truss phil head wood screws and /-

x /” flat phil head machine screws and anchors

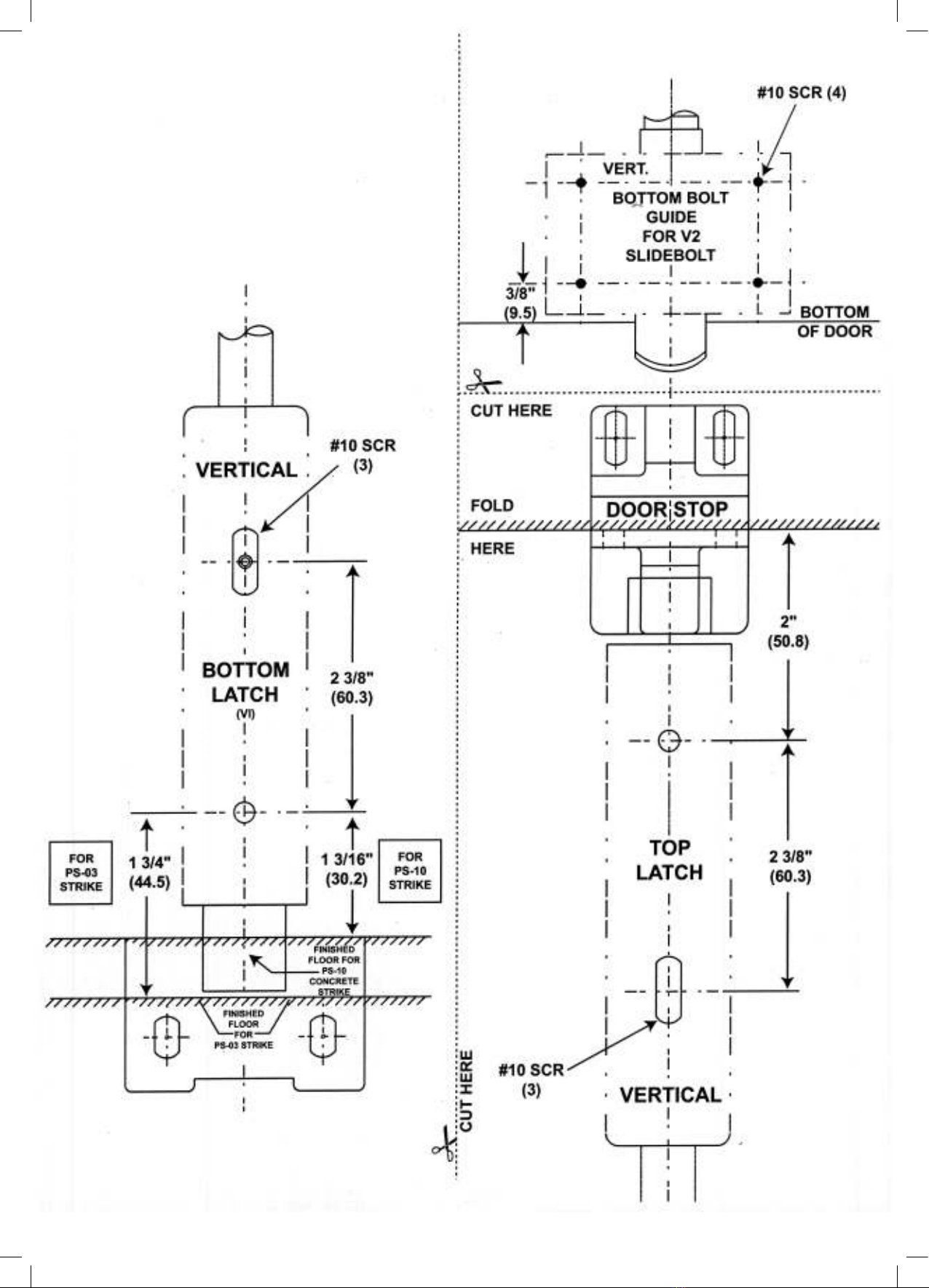

ED2227 Exit Device

Template
