1 About this manual

1.1 Information about the manual

This manual describes the installation of

OFFICE locks and contains information on

care and maintenance. The installation is

shown using the example of an OFFICE

Junior lock. All other installation options are

installed likewise.

1.2 Target group

dormakaba glass fittings may only be

installed by qualified personnel who are

specially trained in glazing installation.

1.3 Symbols used

Only use silicone- and

oil-free cleaners

(e.g. acetone).

21 Installation sequence

2.1. Step-by-step graphics

Contents

1 About this manual 1

2 Safety 1

3 Product description 2

4 Mounting 5

5 Maintenance and care 10

6 Disassembly and disposal 10

OFFICE locks

Junior, Classic, Arcos & Mundus

WN 059521 45532 – 2018-05

Mounting instructions

2 Safety

2.1 Intended use

• The OFFICE locks are only suitable for

glass doors in dry interior applications.

2.2 Foreseeable misuse

• The OFFICE locks are not suitable for

emergency exit doors compliant with DIN

EN 179 and escape doors compliant with

DIN EN 1125.

• OFFICE locks are not suitable for shower,

sauna, bath or salt-water bath

applications or areas where chemicals

(e.g. chlorine) are used.

• Glass door panels must not be slammed

shut.

• Due to crushing hazards - among others

in the area of the secondary closing edge

- and possible injury caused by breakage

of glass during mounting, corresponding

protective clothing (especially gloves and

protective goggles) is required.

• Never use clamping shoes on structured

glass surfaces (except on satined glass) or

glass of heavily varying thickness unless

with a corresponding leveling layer.

2OFFICE locks 2018-05

WN 059521 45532

dormakaba Mounting instructions Product description

• Never use clamping shoes on self-cleaning

coatings.

• When adjusting glass elements, always

stick to the required clearance for the

respective fitting. Adjust clearance so that

the glass does not touch hard

components such as glass, metal or

concrete.

2.3 Requirements for the glass

door panel

• Toughened safety glass (TSG)

• In areas with additional requirements, e.g.

nurseries, the use of heat-soaked

toughened safety glass (TSG-H compliant

with DIN EN 12150-1) is recommended.

• Do not use glass with conchoidal fractures

and/or damaged edges.

• Installation should be free of tension

(torque should not be exceeded by

over-tightening screws).

3 Product description

The OFFICE locks with latch and bolt are

suitable for glass doors in dry interior

applications. The locks comply with the

current DIN EN 12209 and are designed for

the use in public buildings. The profile

cylinder is not included in the scope of

delivery.

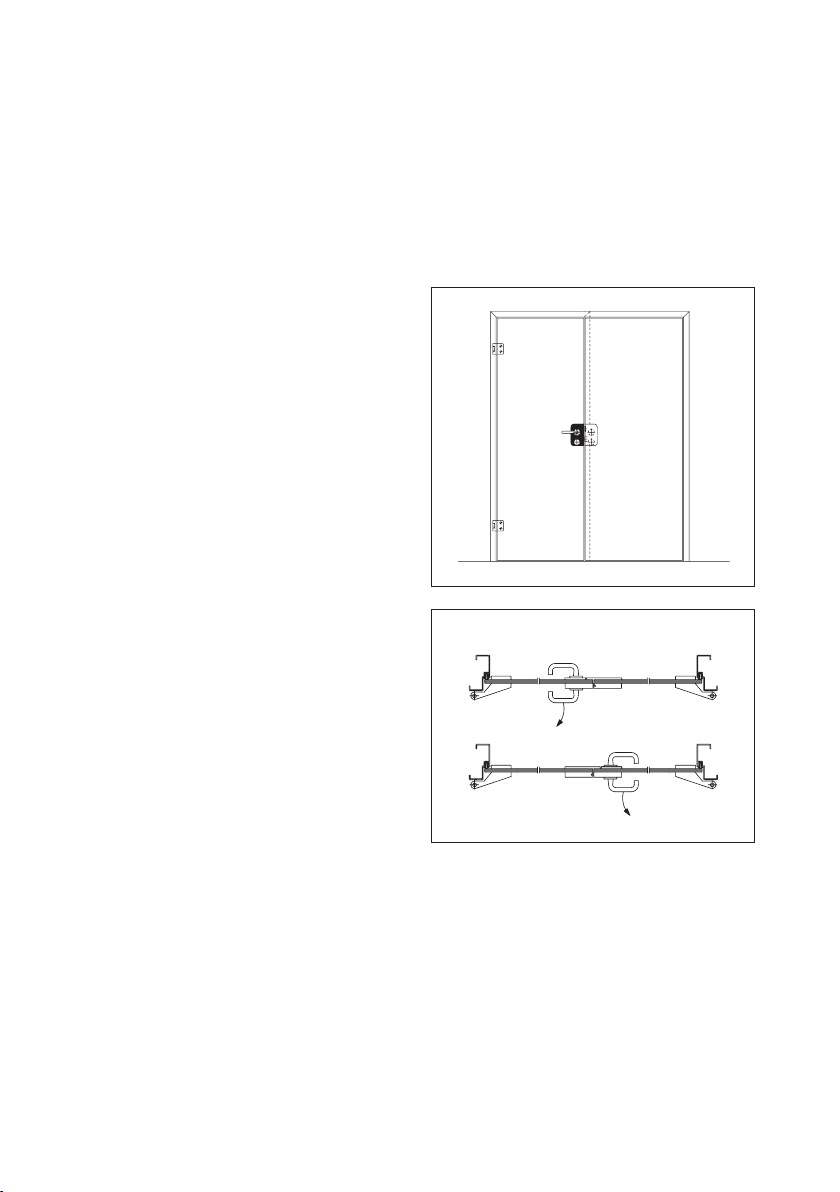

Fig. 1 Door situation

Fig. 2

DIN rightDIN left

DIN left DIN right

DIN directions

3OFFICE locks 2018-05

WN WN 059521 45532

dormakaba Mounting instructions Product description

3.1 Options

For lever handles with roses For follower

OFFICE Junior

OFFICE Classic

OFFICE Arcos

OFFICE Mundus

4OFFICE locks 2018-05

WN 059521 45532

dormakaba Mounting instructions Product description

3.2 Scope of delivery

For lever handles with roses For follower

OFFICE Junior

OFFICE Classic

OFFICE Arcos

OFFICE Mundus

5OFFICE locks 2018-05

WN WN 059521 45532

dormakaba Mounting instructions Mounting

4 Mounting

Follower

Roses

4 mm

6OFFICE locks 2018-05WN 059521 45532

dormakaba Mounting instructions Mounting

1,5 mm*

2 mm**

4 mm Pull off backing tape and apply

the aluminum strip to the glass

on the inside face.

4 mm

5 Nm

* Junior, Classic, Arcos

** Mundus

7OFFICE locks 2018-05WN WN 059521 45532

dormakaba Mounting instructions Mounting

Detail X

8OFFICE locks 2018-05WN 059521 45532

dormakaba Mounting instructions Mounting

Lever handles with roses

NOTICE:

Roses and fixings are not included in the

scope of delivery.

DETAIL X

Lever handles with follower

9OFFICE locks 2018-05WN WN 059521 45532

dormakaba Mounting instructions Mounting

NOTICE:

Lever handles are not included

in the scope of delivery.

2. 3.

3 mm

NOTICE:

Profile cylinder and fixing screw are

not included in the scope of delivery.

Carefully cut the alu strip close

to the edge of the cover cap.

10 OFFICE locks 2018-05WN 059521 45532

dormakaba Mounting instructions Maintenance and care

5 Maintenance and care

• Check the OFFICE locks at regular

intervals for proper positioning, smooth

operation and correct adjustment.

• Check the function of the OFFICE locks

every 500000 movements by specialists.

• Immediately replace damaged glass

elements.

• Immediately replace damaged

components.

• Only use dormakaba original parts.

The surfaces of the OFFICE locks are not

maintenance-free and need to be cleaned

and cared for using the appropriate

materials:

• Only use non-abrasive cleaning

substances for metallic surfaces

(anodized finishes, stainless steel).

• Only use solvent-free cleaners for painted

surfaces.

• Brass finishes (without surface protector)

need to be treated with suitable care

products from time to time to prevent

tarnishing.

6 Disassembly and

disposal

Disassembly is the same procedure in

reverse. Refer to the statutory regulations

for your country for a proper disposal.
