Dorma ED700 Manuel utilisateur
ED700
Low Energy
Automatic Swing Door
DORMA
LOW ENERGY
AUTOMATIC SWING DOOR
INSTALLATION AND TUNE IN MANUAL
Distributed by:
1
DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211
Lake Bluff, IL 60044 Fax: 877-423-7999
DL3038-010 Rev. B 6/08
Contents
ED700 LOW ENERGY AUTOMATIC DOOR OPERATOR
Page Number
1. Cover
2. Contents
3. Instructions, Safety Standards and Suggested Tools
4. Sales Packages Surface Applied
5. Arm Styles
6. Mounting the Header
7. Installing the Operator
8. Installing the Controller
9. Connecting the Controller and On Off Hold Switch
10. Wiring Diagram
11. Open to Hard Stop
12. Electronic Stop
13. Push Arm
14. Pull Arm (0”to 6”) Reveal
15 Pull Arm General Information
16 Pull Arm (0”) Reveal
17, Basic Set Up
18. Basic Set Up continued
19. Customized Set Up
20. Simultaaneous Pairs
21. Semi-Independant Pairs
22. Electronic Locks
23. Operating Instructions Care and Maintenance
24 Sinage and Safety Check
25. Technical Data
26 Controller Codes
ED700
Low Energy
Automatic Swing Door
DORMA
2
DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211
Lake Bluff, IL 60044 Fax: 877-423-7999 DL3038-010 Rev. B 6/08
Important Installation Instructions
Compliance with Safety Standards
1. Carefully Read And Follow All Installation Instructions
2. Always disconnect the power supply before servicing.
3. After installation and adjustment, the installers final responsibility is to properly
Instruct the owner in the safe use of the door. He must also present the owner
With the ED700 Owner’s Manual and carefully explain how to perform the Daily
Safety Check.
4. Save These Instructions for Future Reference
Your door system was designed to the latest operating and safety standards. In
Order to ensure the continued safe operation of your door, it is important that:
- Your door system be maintained in compliance with the standards of the industry,
BHMA/ANSI 156.19.
- Proper decals and labels to be applied, per BHMA/ANSI standards, and maintained
On your doors.
Suggested Tools:
Screwdrivers
Small straight flat blade-for small terminals
#2 Phillips (cross point)
#3 Phillips (cross point)
Wrench / Sockets
9/16” Socket for arm attachment
1/2” Wrench / Socket
7/16” Wrench / Socket
3/8” Wrench / Socket
Electric Drill / Screwgun
Various bits 1/8”, 7/32”, 1/4”, 3/8”, 1/2”
1’ Holesaw
Countersink
Level
Step Ladder
Tape Measure
Electrical Wire Strippers / Cutters
Various Wire Nuts
ED700
Low Energy
Automatic Swing Door
DORMA
3
DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211
Lake Bluff, IL 60044 Fax: 877-423-7999 DL3038-010 Rev. B 6/08
ED700
Low Energy
Automatic Swing Door
DORMA
4
DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211
Lake Bluff, IL 60044 Fax: 877-423-7999 DL3038-010 Rev. B 6/08
ED700 SALES PACKAGES:
SURFACE APPLIED
See page 25 for minimum and maximum header lengths and door weights.
DS2419-02A OR DS2419-02B
PULL (IN) PULL (IN)
PULL (IN) PULL (IN)
PULL (IN) PULL (IN)
PUSH (OUT)
LH, PUSH (OUT)
RH, PUSH (OUT)
DS2416-02A OR DS2416-02B
DS1350-02A OR DS1350-02B
Left Hand Double Egress Right Hand Double Egress
DS2519-02A OR DS2519-02B
DS2521-02A OR DS2521-02B
DS2520-02A OR DS2520-02B
DS2420-02A OR DS2020-02B
DS1400-02A OR DS1400-02B
DS2418-02A OR DS2418-02B
DS2417-02A OR DS2417-02B
DS2415-02A OR DS2415-02B
ED700
Low Energy
Automatic Swing Door
DORMA
5
DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211
Lake Bluff, IL 60044 Fax: 877-423-7999 DL3038-010 Rev. B 6/08
Slide Track Arm (Pull)
0’- 6” Reveals
1. DC0847-01A ARM, UNIVERSAL SCISSOR CL
DC0847-01B ARM, UNIVERSAL SCISSOR DB
DK2494-01A KIT, DOUBLE EGRESS SISSOR ARM
EXTENDED SPINDLE REQUIRED FOR DOUBLE EGEESS APPLICATIONS
2. DS2516-01A ASSY, TRACK ARM RH CL
DS2516-01B ASSY, TRACK ARM RH DB
DS2219-01A ASSY, TRACK ARM LH CL
DS2219-01B ASSY, TRACK ARM LH DB
3. DS2409-01A ASSY, SLIDE TRACK
DS2409-01B ASSY, SLIDE TRACK
2
1
Scissor Arm (Push)
ED700
Low Energy
Automatic Swing Door
DORMA
6
DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211
Lake Bluff, IL 60044 Fax: 877-423-7999 DL3038-010 Rev. B 6/08
Aling
MOUNTING THE HEADER
1-1/2”1-
1-1/2”1-
1-1/2”1-
1-1/2”1-
Unit Width
(= Door width + 3”)
Unit Width
(= Door width + 3”)
1-1/2”1-
Incoming 120VAC
(opposite pivot)
1-1/2”1-1/2”
PULL ARM TRACK OR DOUBLE EGRESS PAIR
Incoming 115VAC
(opposite pivot)
4” 1- ”
11”
1-
1/4
“
23-1/2
”
1/2
The header should overlap the door opening 1-1/2” on each side of the frame.
If the header is shorter then the door opening the pivot side should overlap the
frame by 1-1/2” the centerline of the drive shaft should be 4” from the pivot side
of the opening in most applications.
If the header is not predrilled with mounting holes, locate and predrill at least six
mounting locations.
For outswing applications using a Push arm the header should be flush with the
bottom of the frame opening, for frames with a standard stop.
For inswinging doors using Pull Arms or Double Egress applications the header
should be located 1-1/4’ from top of the door.
The header must be plumb and level and fastened securely to the mounting
surface. Fasteners will vary with the mounting surface but the unit is supplied with
fasteners that provide adequate support for most applications. Drywall mounting
surfaces or stucco surfaces will require additional backing to support the header.
ED700
Low Energy
Automatic Swing Door
DORMA
7
DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211
Lake Bluff, IL 60044 Fax: 877-423-7999 DL3038-010 Rev. B 6/08
INSTALLING THE OPERATOR
TO INSTALL THE OPERATOR:
Align the bottom two holes with the two holes on the header
and fasten the operator to the header with (2) #1/4-20 X 1/2” FH screws.
WARNING: DO NOT ROTATE THE SHAFT, INSTALL THE ARM OR CONNECT TO THE DOOR
WITHOUT FIRST CONNECTING THE CONTROLER TO THE OPERATOR.
THE CLOSING SPEED CONTROL IS IN THE CONTROLER, ALLOWING THE OPERATOR TO SLAM
CLOSED WITHOUT THE CONTROLER CONNECTED MAY RESULT IN DAMAGE TO THE OPERATOR.
Connect Motor and Encoder Harnesses
OR
#1 Endcap
SYNC
TXD
GND
RXD
PGM
ENC
Breakout
2-1/8”
#2 Header Bottom
Recommended Locations for Mode Switch.
(Phillips screwdriver required).
#6-32 x ½”
SYNC
TXD
GND
RXD
Breakout
PGM
ENC
Place Mode Switch in opening and fasten.
ED700
Low Energy
Automatic Swing Door
DORMA
8
DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211
Lake Bluff, IL 60044 Fax: 877-423-7999
DL3038-010 Rev. B 6/08
ENC
Controller installation.
Fasten using supplied mounting pads to
the back of the controller and the header.
SYNC
TXD
GND
RXD
PGM
Breakout
INSTALL THE CONTROLLER and ON OFF HOLD SWITCH (PROGRAM)
1
2
21
DO NOT PLUG MOTOR HARNESS INTO POWER, IT WILL DAMAGE MOTOR!
PGM
ENC
Breakout
SYNC
GND
TXD
RXD
3/4”
1 1/2”
Drill #36 (Ø.107)
(2plcs)
Drill Ø1”hole for clearace.
7
Motor
Controller
Brown
Black
Green
Mode Switch
Hold open
ON
OFF
Connect Operator Internal Wiring to Control
Jumper
Required
ENCODER
Black
Use supplied
green connector
Sensor connections
see page - 10
Green
Red
Left Side Right Side
Use supplied
green connector
Connecting the Controller
Breakout
PGM
ENC
SYNC
TXD
GND
RXD
To RXD
To TXD
To GND
Optional: use when
synchronizing two operators
MICROPROCESSOR CONTROL
115 VAC 60 Hz 2A
DORMA AUTOMATICS
Phone: 877-367-6211
Motor: 4A slow blow
Line: 2A fast acting
THIS OPERATOR CONTROLLER MUST BE
ADJUSTED TO MEET ANSI STANDARDS
POWER
115 Vac
White
Black
Green
Green
GROUND ATTACHED TO HEADER
NOTE: For LH or
LHR, Red and Black
leads must switch
Jumper
Required
Brown
Black
Green
Mode Switch Function
Brown
Black
Green
ED700
Low Energy
Automatic Swing Door
DORMA
9
DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211
Lake Bluff, IL 60044 Fax: 877-423-7999 DL3038-010 Rev. B 6/08
ED700
Low Energy
Automatic Swing Door
DORMA
10
DORMA AUTOMATICS, Inc. 924 Sherwood Drive Toll-Free: 877-367-6211
Lake Bluff, IL 60044 Fax: 877-423-7999 DL3038-010 Rev. B 6/08
THI
AD
BY
(Optional)Swing Side Door Mounted Sensor
MOUNTED TO SWING SIDE OF DOOR
MOUNTED TO APPROACH OF DOOR
GREEN (N.O.)
BLACK (-24 VDC)
RED (+24VDC)
WHITE (COM)
SMOKE
DETECTOR
(Optional)
PUSH BUTTON OR
ANY OTHER KNOWING
ACT ACTIVATION DEVICE
GREEN (N.O.)
BLACK (-24 VDC)
RED (+24VDC)
WHITE (COM)
Please see Sensors Manufacturer’s Installation Guides
for further instructions and wiring details.
Follow the installation and adjustment instructions accompanying the sensors
to be installed. Insure compliance with BHMA/ANSI Standards.
Jumper MUST be installed
if an optional smoke
detector is not present.
extra
extra
extra
(Optional)Approach Side Door Mounted Sensor
WIRING DIAGRAM FOR PUSH PLATES AND OPTIONAL ACCESSORIES
MI
Isolation Relay
for electric locks
see page 22.
MOUNTED TO THE HEADER
Data+
Data-
NC
NO
COM
24V
24V
(Optional)
OVERHEAD
SWING AREA
PRESENCE
SENSOR
Do not connect electric strike
or magnetic lock directly to
the control
Table des matières
Autres manuels Dorma Système d'ouverture de porte
Dorma
Dorma TS93 T Manuel utilisateur
Dorma
Dorma EMR Series Manuel utilisateur
Dorma
Dorma MUNDUS PREMIUM PT 20 Manuel utilisateur
Dorma
Dorma AGILE 150 Manuel utilisateur
Dorma
Dorma 9600 Series Manuel utilisateur
Dorma
Dorma MUTO COMFORT M DORMOTION 50 Guide de l'utilisateur
Dorma
Dorma VISUR Guide d'installation et d'utilisation
Dorma
Dorma EM Manuel utilisateur
Dorma
Dorma ED400 Guide de l'utilisateur
Dorma
Dorma PORTEO Manuel utilisateur
Dorma
Dorma CS 80 MAGNEO Manuel utilisateur
Dorma
Dorma 8600 EMR Series Manuel utilisateur
Dorma
Dorma TS 99 FLR-K Manuel
Dorma
Dorma RTS Series Manuel utilisateur
Dorma
Dorma 900S Series Manuel utilisateur
Dorma
Dorma PORTEO Manuel d'instructions
Dorma
Dorma ES 200 Easy Guide de l'utilisateur
Dorma

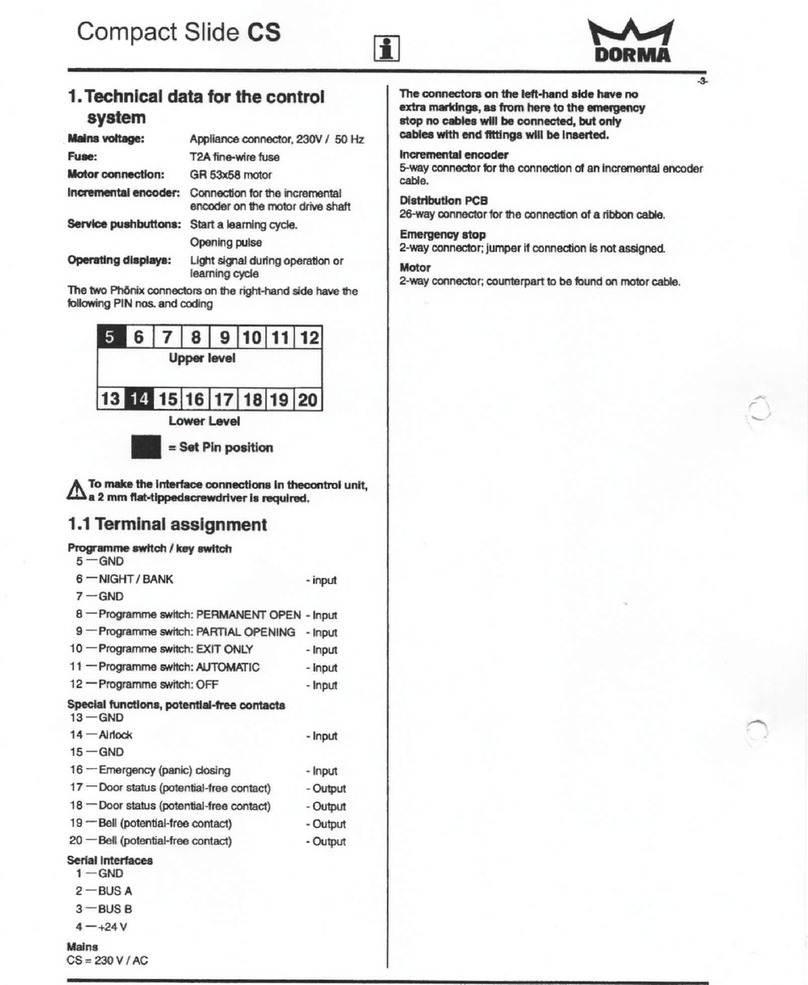

Dorma Compact Slide CS Manuel utilisateur
