Explanation of symbols CF18 – CF60

Please read this manual carefully before starting the device. Keep it in a

safe place for future reference. If the device is passed on to another

person, this manual must be handed over to the user along with it.

The manufacturer cannot be held liable for damage resulting from improper usage

or incorrect operation.

Contents

1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

6 Function description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

7 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

8 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

9 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

10 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

11 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

1 Explanation of symbols

DANGER!

Safety instruction: Indicates a hazardous situation that, if not avoided,

will result in death or serious injury.

WARNING!

Safety instruction: Indicates a hazardous situation that, if not avoided,

could result in death or serious injury.

CF18-CF60-O-AUS.book Seite 2 Dienstag, 17. September 2019 8:49 08

CF18 – CF60 Safety instructions

2 Safety instructions

The manufacturer accepts no liability for damage in the following cases:

• Damage to the product resulting from mechanical influences and incorrect

connection voltage

• Alterations to the product without express permission from the manufacturer

• Use for purposes other than those described in the operating manual

2.1 General safety

DDANGER!

• When using the device on boats: If the device is powered by the

AC mains, ensure that the power supply is protected with a ground

fault interrupter circuit.

!WARNING!

• Do not operate the device if it is visibly damaged.

• If this device's power cable is damaged, it must be replaced by the

manufacturer, customer service or a similarly qualified person in order

to prevent safety hazards.

• This device may only be repaired by qualified personnel. Improper

repairs can lead to considerable hazards.

• This device can be used by children aged 8 years or over, as well as by

persons with diminished physical, sensory or mental capacities or a

lack of experience and/or knowledge, providing they are supervised

or have been taught how to use the device safely and are aware of the

resulting risks.

CAUTION!

Safety instruction: Indicates a hazardous situation that, if not avoided,

could result in minor or moderate injury.

NOTICE!

Indicates a situation that, if not avoided, can result in property damage.

NOTE

Supplementary information for operating the product.

CF18-CF60-O-AUS.book Seite 3 Dienstag, 17. September 2019 8:49 08

Safety instructions CF18 – CF60

• Cleaning and user maintenance must not be carried out by children

without supervision.

• Children must not play with the device.

• Children must be supervised to ensure that they do not play with the

device.

• Always keep and use the device out of the reach of children under the

age of 8 years.

• Do not store any explosive substances such as spray cans with a

flammable propellant in the device.

!CAUTION!

• Disconnect the device from the power supply

– before each cleaning and maintenance

– after every use

• Food may only be stored in its original packaging or in suitable

containers.

ANOTICE!

• Check that the voltage specification on the type plate corresponds to

that of the energy supply.

• Only connect the device as follows:

– With the DC cable to a DC plug socket in the vehicle (e. g.

cigarette lighter)

– Or with the AC connection cable to the AC mains supply

• Never pull the plug out of the socket by the cable.

• If the cooler is connected to the DC socket: Disconnect the cooler and

other power consuming devices from the battery before connecting

the quick charging device.

• If the cooler is connected to the DC socket: Disconnect the cooler or

switch it off when you turn off the engine. Otherwise you may dis-

charge the battery.

• The cooling device is not suitable for transporting caustic materials or

materials containing solvents.

• The cooling device contains inflammable cyclopentane in the

insulation. The gases in the insulation material require special disposal

procedures. Deliver the device at the end of its life-cycle to an appro-

priate recycling.

CF18-CF60-O-AUS.book Seite 4 Dienstag, 17. September 2019 8:49 08

CF18 – CF60 Safety instructions

2.2 Operating the device safely

!CAUTION!

• Before starting the device, ensure that the power supply line and the

plug are dry.

ANOTICE!

• Do not use electrical devices inside the cooler unless they are

recommended by the manufacturer for the purpose.

• Do not place the device near naked flames or other heat sources

(heaters, direct sunlight, gas ovens etc.).

•Danger of overheating!

Ensure at all times that there is sufficient ventilation so that the heat that

arises during operation does not build up. Make sure that the device

is sufficiently far away from walls and other objects so that the air can

circulate.

• Ensure that the ventilation openings are not covered.

• Do not fill the inner container with ice or fluid.

• Never immerse the device in water.

• Protect the device and the cables against heat and moisture.

• Protect the device from exposure to rain.

CF18-CF60-O-AUS.book Seite 5 Dienstag, 17. September 2019 8:49 08

Scope of delivery CF18 – CF60

3Scopeofdelivery

Item Quantity Description

1 1 Cooler

2 1 Connection cable for DC connection

Only CF35, CF40, CF50, CF60

Connection cable for AC connection

Only CF35, CF40, CF50, CF60

Carrying handle, consisting of:

–2holders

–1handle

– 4 fastening screws

–1

Only CF18

Plastic grille divider

–1

Only CF35

Powdercoated steel evaporator protector

–1

Only CF40, CF50, CF60

Powdercoated steel basket

–1Operatingmanual

CF18-CF60-O-AUS.book Seite 6 Dienstag, 17. September 2019 8:49 08

CF18 – CF60 Accessories

4Accessories

Available as accessories (not included in the scope of delivery):

If you have questions regarding the accessories, contact your local service partner.

5 Intended use

The cooling device is suitable for cooling and freezing foods.

The cooling device is designed to be operated from:

• a DC on-board power supply of a vehicle, boat or caravan

• a DC auxiliary battery

• an AC power supply (CF35, CF40, CF50, CF60)

For operating CF 18, CF25 at AC mains you need an AC/DC power supply rectifier

(accessory).

The cooling device is suitable for camping use and in mobile applications such as

vehicles, caravans or boats.

The cooling device is intended to be used in household and similar applications such

• staff kitchen areas in shops offices and other working environments

•farmhouses

• clients in hotels, motels and other residential type environments

• bed and breakfast type environments

• catering and similar non-retail applications

Description Ref. no.

For CF18, CF25: AC/DC power supply rectifier

EPS-817

9109002086

CAUTION! Health hazard!

Please check if the cooling capacity of the cooling device is suitable for

storing the food or medicine you wish to cool.

CF18-CF60-O-AUS.book Seite 7 Dienstag, 17. September 2019 8:49 08

Function description CF18 – CF60

6 Function description

The cooler can refrigerate or freeze food products. A fast-acting and efficient cooling

system provides low maintenance cooling performance with a compressor and con-

trol module.

The cooler is designed for mobile use and can be carried by using a folding carrying

bracket (CF18), two recessed grips (CF25) or two removable carrying handles

(CF35, CF40, CF50, CF60).

The cooler can withstand a short-term inclination of 30°, for example on boats.

6.1 Scope of functions

CF18 CF25 CF35, CF40,

CF50, CF60

Power supply with priority circuit for

connecting to the power supply – –

Battery monitor to protect the

vehicle battery 2-level 3-level

Turbo mode for rapid cooling – –

Automatic compressor speed

control for optimal performance

––

Display with temperature gauge

(switches off automatically at low

battery voltage)

–

Temperature setting rotary-knob two buttons in steps of 1 °C (2 °F)

Removable carrying handles – –

CF18-CF60-O-AUS.book Seite 8 Dienstag, 17. September 2019 8:49 08

CF18 – CF60 Function description

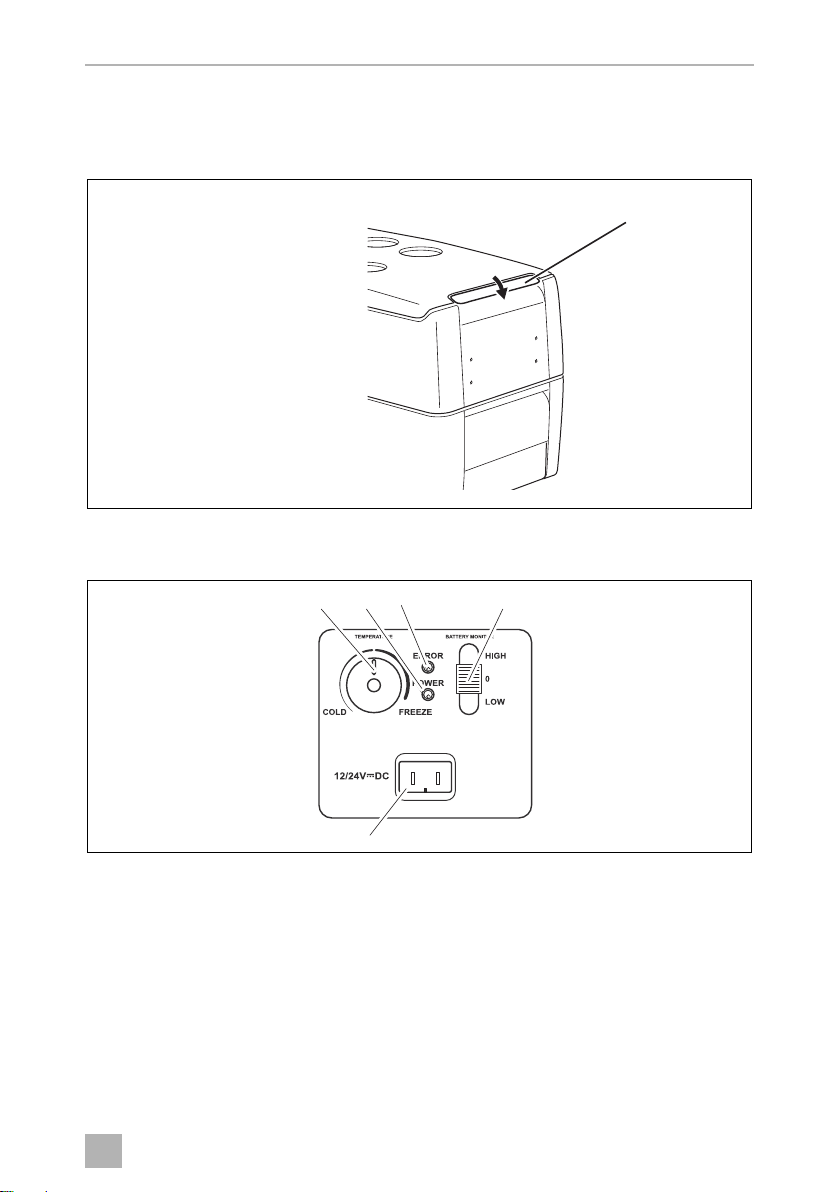

6.2 Operating and display elements

Latch for lid

Operating panel and DC power supply inlet (CF18)

CF25, CF35, CF40

CF18

1 2 3 4

CF18-CF60-O-AUS.book Seite 9 Dienstag, 17. September 2019 8:49 08

Function description CF18 – CF60

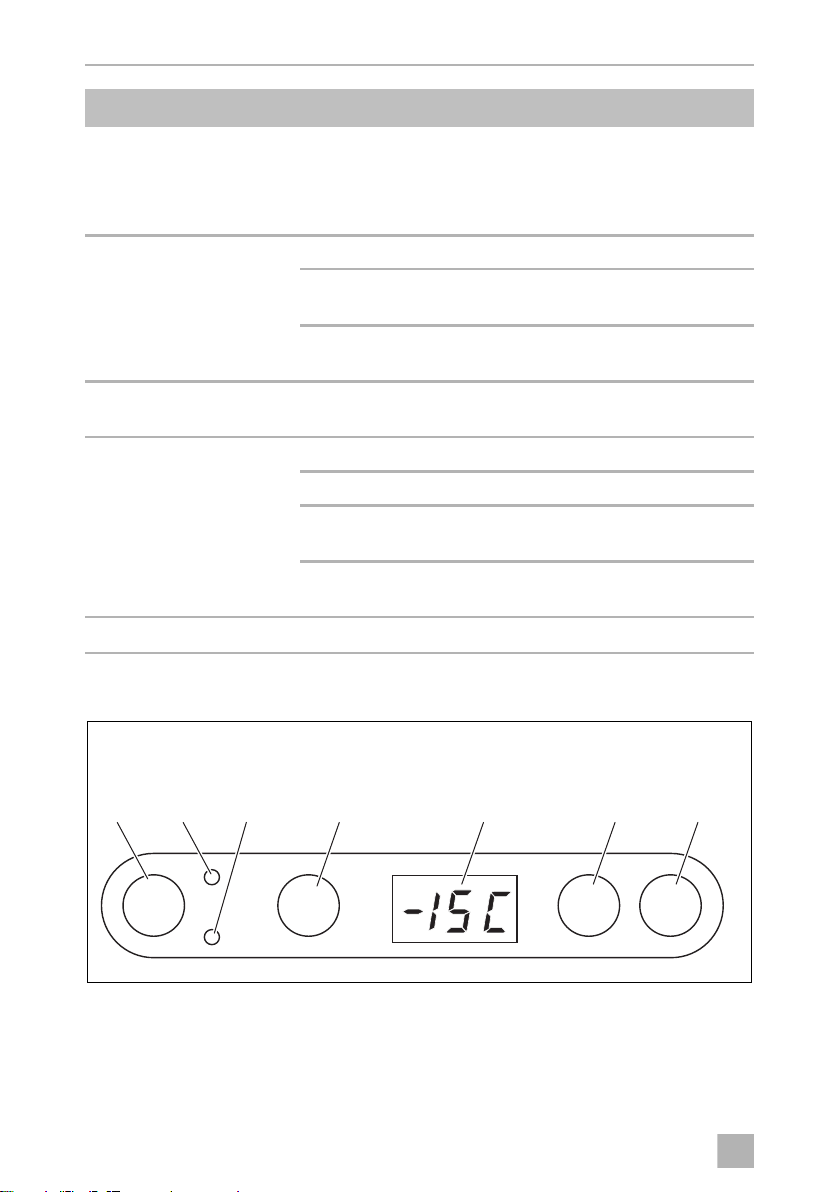

Operating panel (CF25, CF35, CF40, CF50, CF60)

Item Description Explanation

1 TEMPERATURE Temperature controller,

cooling temperature at the end positions:

COLD: +10 °C (+50 °F)

FREEZE: –18 °C (0 °F)

2 POWER Status indication

LED lights up green: Device is switched on and

ready for operation

LED lights up yellow: Set temperature has been

reached

3 ERROR LED flashes red: Device is switched on but not

ready for operation

4 BATTERY MONITOR Switch-on device/battery monitor:

0: Device is switched off

HIGH: Device is switched on, battery

monitor is in HIGH mode

LOW: Device is switched on, battery

monitor is in LOW mode

512/24 VgDC voltage supply inlet

CF25, CF35, CF40, CF50, CF60

OFF

SET

POWER

DOWN

–

ERROR

1 3 4 5 6 72

CF18-CF60-O-AUS.book Seite 10 Dienstag, 17. September 2019 8:49 08

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Dometic Réfrigérateur

Dometic

Dometic RM 8501 Manuel utilisateur

Dometic

Dometic RM2604 Manuel utilisateur

Dometic

Dometic RH440LDC Manuel utilisateur

Dometic

Dometic RC10.4S.70 Manuel utilisateur

Dometic

Dometic RM 4223 Manuel utilisateur

Dometic

Dometic 750000005 (TJ18F) Manuel utilisateur

Dometic

Dometic NRX0050 Manuel utilisateur

Dometic

Dometic N30S1 Manuel utilisateur

Dometic

Dometic N30P1 Manuel utilisateur

Dometic

Dometic COOLMATIC Manuel utilisateur

Dometic

Dometic DS 300 H Manuel utilisateur

Dometic

Dometic HiPro3000 Manuel utilisateur

Dometic

Dometic RML 8330 UL Manuel utilisateur

Dometic

Dometic COOLMATIC CRX PRO 0050T Manuel utilisateur

Dometic

Dometic 8 Series Manuel utilisateur

Dometic

Dometic RF60 Manuel utilisateur

Dometic

Dometic MoBar300S Manuel utilisateur

Dometic

Dometic REFRIGERATION 10-Series Manuel utilisateur

Dometic

Dometic Waeco MyFriedge MF-05 Manuel utilisateur

Dometic

Dometic miniCool EA 3280 Manuel utilisateur

Dometic

Dometic CRD0050 Manuel utilisateur

Dometic

Dometic ECOLINE CL460LDC Manuel utilisateur

Dometic

Dometic RMS 8465 Manuel utilisateur

Dometic

Dometic RM 2355 and Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Frigidaire

Frigidaire FSC23R5DW9 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur
