Dometic Go Power! GP-SB-PWM-10 Manuel utilisateur

10A

6V -- 16Vdc

12.5 A

- 40 to 60°C / - 40 to 140°F

99% N.C.

5.87 x 3.86 x 1.26 in; 149 x 98 x 32 mm

260 g / 9.2 oz

#8 AWG/10 mm2

5 years

Nominal System Voltage

Nominal Charge Current

Battery Voltage Range

Max Battery Charge Current

Max Solar Power

Display Consumption

Temp. Compensation

Operating Temperature

Humidity

Dimensions (H x W x D):

Weight

Maximum Wire Gauge:

Warranty

Protection

Battery/Solar Reverse Polarity, Battery/Solar Short Circuit, Battery/

Solar Reverse Current, Battery/Solar Over voltage up to 50V,

Over temperature, Over Current

200W

- 25mV/ºC

15mA

GP-SB-PWM-10

DUAL BANK

SOLAR CONTROLLER

Quick Start Guide

Find tech tips, manuals and support at gpelectric.com

12V

SPECIFICATIONS

WARNINGS:

Icons Indicator

Scroll/Menu Selectors

Parameters Identifiers

Value Indicators

Value Units

Battery Type Indicator

No.

Descrip�on

No.

Descrip�on

NO. DESCRIPTION NO. DESCRIPTION

Scan for

full

manual

34 5

INSTALLATION

TOOLS

• Flathead Screwdriver (for wire terminals)

• Philips Screwdriver (for mounting screws)

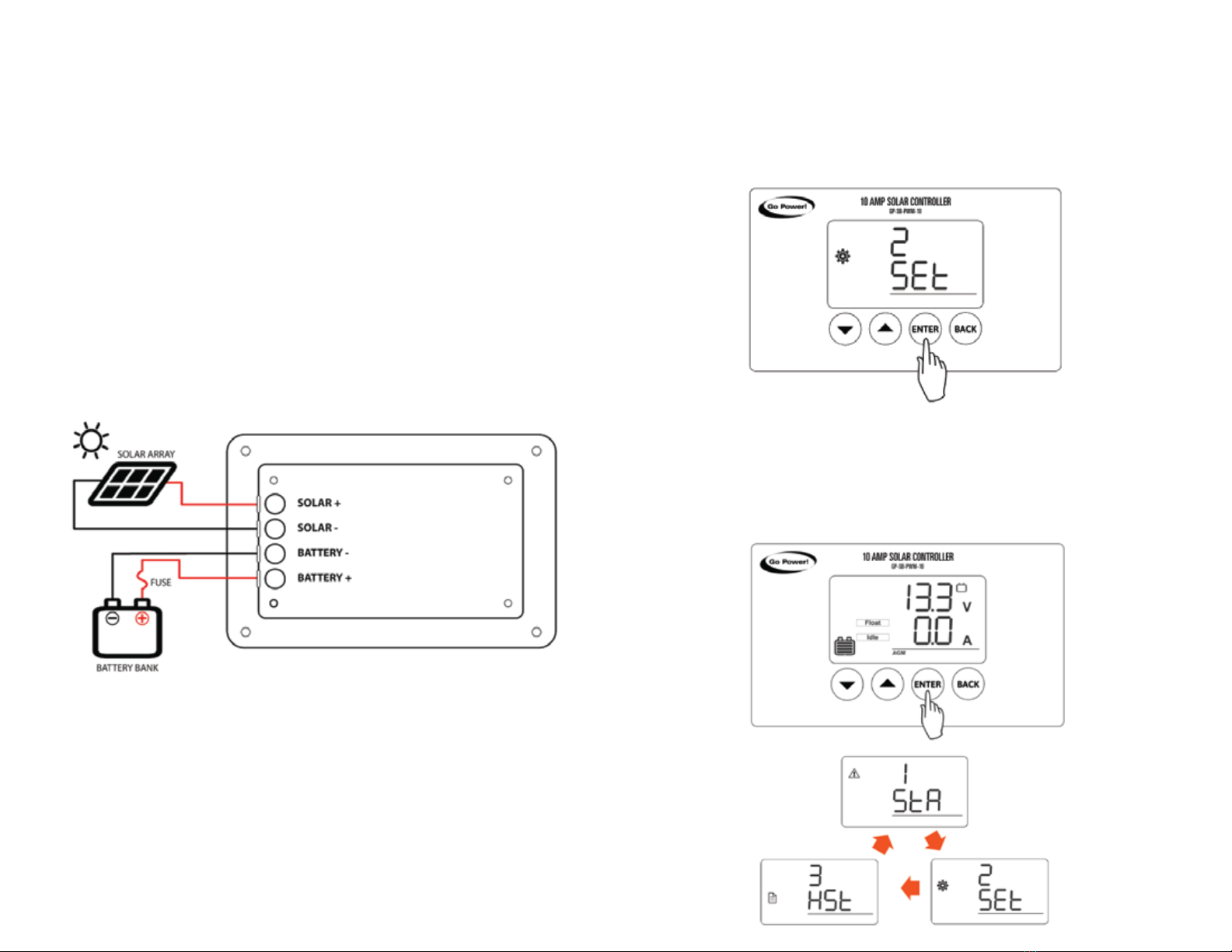

ACCESSING SETTINGS

VIEWING CONTROLLER DISPLAY

The GP-SB-PWM-10 includes an LCD of FSTN type with 4 mechanical buttons

that act as navigation keys to control the display. The GP-SB-PWM-10 settings

can be accessed by entering menu number 2 as shown below.

Three menus are implemented in the display: status, settings, and history. At

power up, the controller turns on within the status menu. The different menus

can then be accessed by pressing the Enter key as shown below.

INSTALLATION STEPS:

Install your solar array, and cover with opaque material until all wiring is complete.

Wiring should not exceed 25ft from the solar panels to the battery.

Wire the GP-SB-PWM-10 according to the wiring diagram below. Be sure to torque

all screws based on the wire gauge after installation, as well as after 30-days.

The GP-SB-PWM-10 is designed to be mounted flush against a wall, out of the

way but easily visible.

The GP-SB-PWM-10 should be:

• Mounted as close to the battery bank as possible

• Mounted on a vertical surface to optimize cooling of the unit

• Indoors, protected from the weather
