Dometic Go Power! GP-SB-PWM-30BT Manuel utilisateur

30A

6V -- 16Vdc

37.5A

- 40 to 60°C / - 40 to 140°F

99% N.C.

5.87 x 3.86 x 1.26 in; 149 x 98 x 32 mm

260 g / 9.2 oz

#8 AWG/10 mm2

5 years

Nominal System Voltage

Nominal Charge Current

Battery Voltage Range

Max Battery Charge Current

Max Solar Power

Display Consumption

Temp. Compensation

Operating Temperature

Humidity

Dimensions (H x W x D):

Weight

Maximum Wire Gauge:

Warranty

Protection

Battery/Solar Reverse Polarity, Battery/Solar Short Circuit,

Battery/Solar Reverse Current, Battery/Solar Over voltage up

to 50V, Over temperature, Over Current

600W

- 25mV/ºC

15mA

GP-SB-PWM-30BT

SINGLE BANK

BLUETOOTH®

SOLAR CONTROLLER

Quick Start Guide

Find tech tips, manuals and support at gpelectric.com

12V

SPECIFICATIONS

WARNINGS:

Icons Indicator

Scroll/Menu Selectors

Parameters Identifiers

Value Indicators

Value Units

Battery Type Indicator

No.

Descrip�on

No.

Descrip�on

NO. DESCRIPTION NO. DESCRIPTION

Scan for

full

manual

345

INSTALLATION

TOOLS

• Flathead Screwdriver (for wire terminals)

• Philips Screwdriver (for mounting screws)

ACCESSING SETTINGS

VIEWING CONTROLLER DISPLAY

The GP-SB-PWM-30BT includes an LCD of FSTN type with 4 mechanical buttons

that act as navigation keys to control the display. The GP-SB-PWM-30BT settings

can be accessed by entering menu number 2 as shown below.

BLUETOOTH®FEATURE

A Bluetooth® Low Energy module is integrated in the 30A model only.

For details on the data that can accessible/managed via Bluetooth®, please refer to

the GP-SB-PWM-10/30BT User Manual.

Three menus are implemented in the display: status, settings, and history. At power

up, the controller turns on within the status menu. The different menus can then be

accessed by pressing the Enter key as shown below.

INSTALLATION STEPS:

Install your solar array, and cover with opaque material until all wiring is complete.

Wiring should not exceed 25ft from the solar panels to the battery.

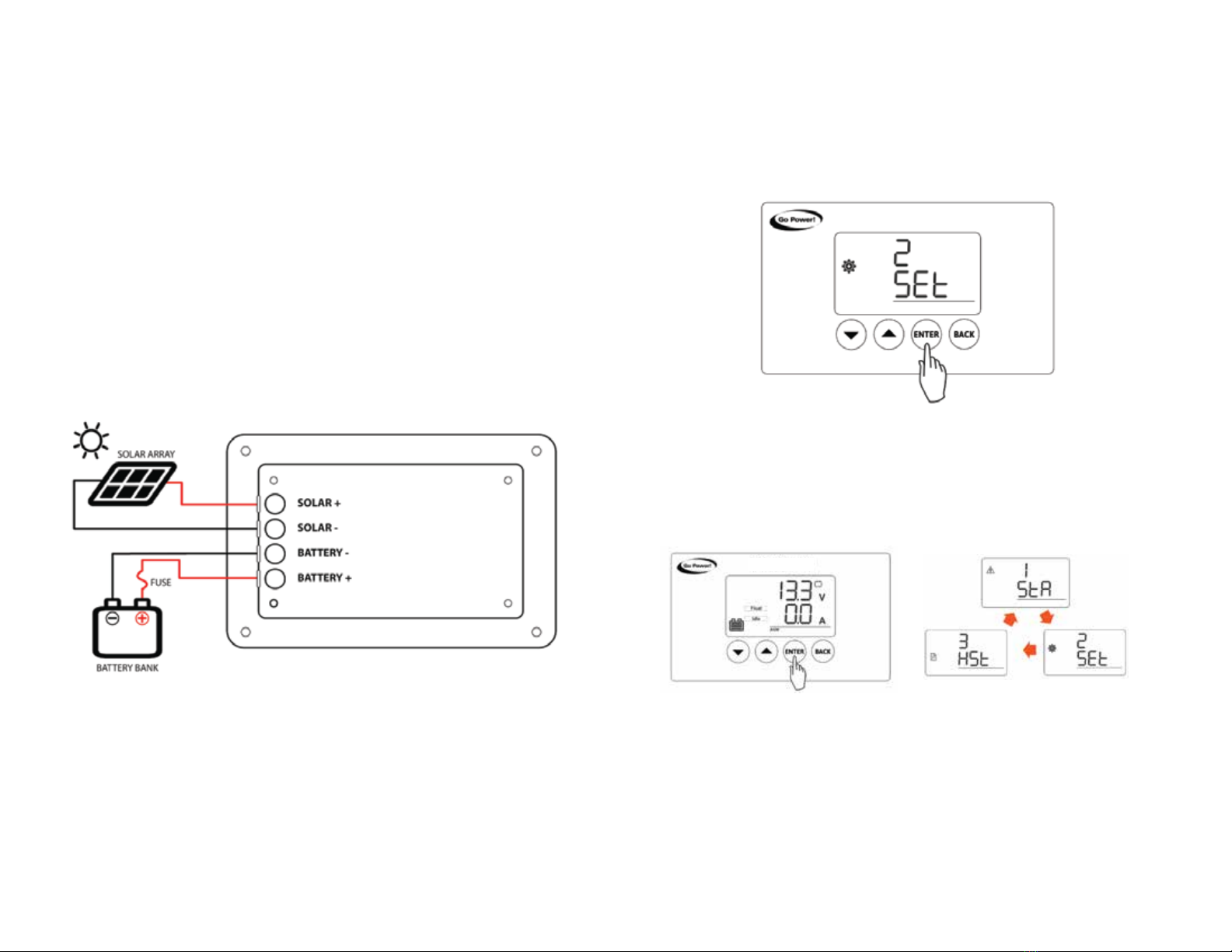

Wire the GP-SB-PWM-30BT according to the wiring diagram below. Be sure to torque

all screws based on the wire gauge after installation, as well as after 30-days.

The GP-SB-PWM-30BT is designed to be mounted flush against a wall, out of the way

but easily visible.

The GP-SB-PWM-30BT should be:

• Mounted as close to the battery bank as possible

• Mounted on a vertical surface to optimize cooling of the unit

• Indoors, protected from the weather

30 AMP SOLAR CONTROLLER

GP-SB-PWM-30-BT

30 AMP SOLAR CONTROLLER

GP-SB-PWM-30-BT
