FreshLight

Please read this instruction manual carefully before installation and first

use, and store it in a safe place. If you pass on the product to another

person, hand over this instruction manual along with it.

Table of contents

1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

2 Safety and installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

3 Target group for this instruction manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

4 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

5 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

6 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

7 Labels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

8 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

10 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

11 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

FreshLight-I-16s.book Seite 3 Mittwoch, 8. März 2017 8:55 20

Explanation of symbols FreshLight

1 Explanation of symbols

2 Safety and installation instructions

Pleaseobserve the prescribedsafety instructionsand stipulationsfrom the

vehicle manufacturer and service workshops.

The manufacturer accepts no liability for damage in the following cases:

•Faulty assembly or connection

•Damage to the product resulting from mechanical influences and excess voltage

•Alterations to the product without express permission from the manufacturer

•Use for purposes other than those described in the operating manual

Note the following basic safety information when using electrical devices to protect

against:

•Electric shock

•Fire hazards

•Injury

DANGER!

Safety instruction: Failure to observe this instruction will cause fatal or

serious injury.

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or

serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair

the function of the product.

NOTE

Supplementary information for operating the product.

FreshLight-I-16s.book Seite 4 Mittwoch, 8. März 2017 8:55 20

FreshLight Safety and installation instructions

2.1 Handling the device

!WARNING!

•Installation and repair of the roof air conditioner may only be carried

out by qualified personnel who are familiar with the risks involved and

the relevant regulations. Inadequate repairs may cause serious

hazards. For repair service, please contact the service centre in your

country (addresses on the back page).

•Electrical devices are not toys.

Keep electrical devices out of reach of children or infirm persons. Do

not allow them to use electrical devices without supervision.

•Persons (including children) whose physical, sensory or mental

capabilitiesorwhose lackof experienceand knowledgeprevent them

from using the device safely should not use it without supervision or

instruction by a responsible person.

•Do not undo the upper cover of the roof air conditioner in the eventof

a fire. Use approved extinguishing agents instead. Do not use water to

extinguish fires.

!CAUTION!

•The roof air conditioner must be installed securely so that it cannot fall

down.

•Only operate the roof air conditioner if you are certain that the housing

and the cables are not damaged.

•Do not use the roof air conditioner near flammable fluids or in closed

rooms.

•Make sure no combustible objects are stored or installed near the air

outlet. A distance of at least 50 cm must be kept.

•Do not reach into air outlets or insert any foreign objects in the device.

ANOTICE!

•Only use the device as intended.

•The roof air conditioner is not suitable for use in agricultural or

construction vehicles.

•Do not make any alterations or conversions to the device.

•Never drive through automatic car washes when the roof air

conditioner is mounted.

•If faults occur in thes refrigerant circuit, the system must be checked by

a specialist company and repaired properly. The refrigerant must

never be released into the air.

FreshLight-I-16s.book Seite 5 Mittwoch, 8. März 2017 8:55 20

Target group for this instruction manual FreshLight

INOTE

•Please ask your vehicle manufacturer if a technical inspection is

required after fitting an air conditioner and whether the height entered

in the vehicle documents needs to be altered (increased height

210 mm).

2.2 Handling electrical cables

!WARNING!

•The electrical power supply may only be connected by a qualified

electrician (e.g. VDE 0100, Part 721 in Germany).

!CAUTION!

•Attach and lay the cables so that they cannot be tripped over or

damaged.

ANOTICE!

•Use cable ducts to lay cables through walls with sharp edges.

•Do not lay loose or bent cables next to electrically conductive

materials (metal).

•Do not pull on the cables.

3 Target group for this instruction manual

The instructions in this manual are intended for qualified personnel at workshops

who are familiar with the guidelines and safety precautions to be applied.

FreshLight-I-16s.book Seite 6 Mittwoch, 8. März 2017 8:55 20

FreshLight Scope of delivery

4Scopeofdelivery

5Accessories

Available as accessories (not included in the scope of delivery):

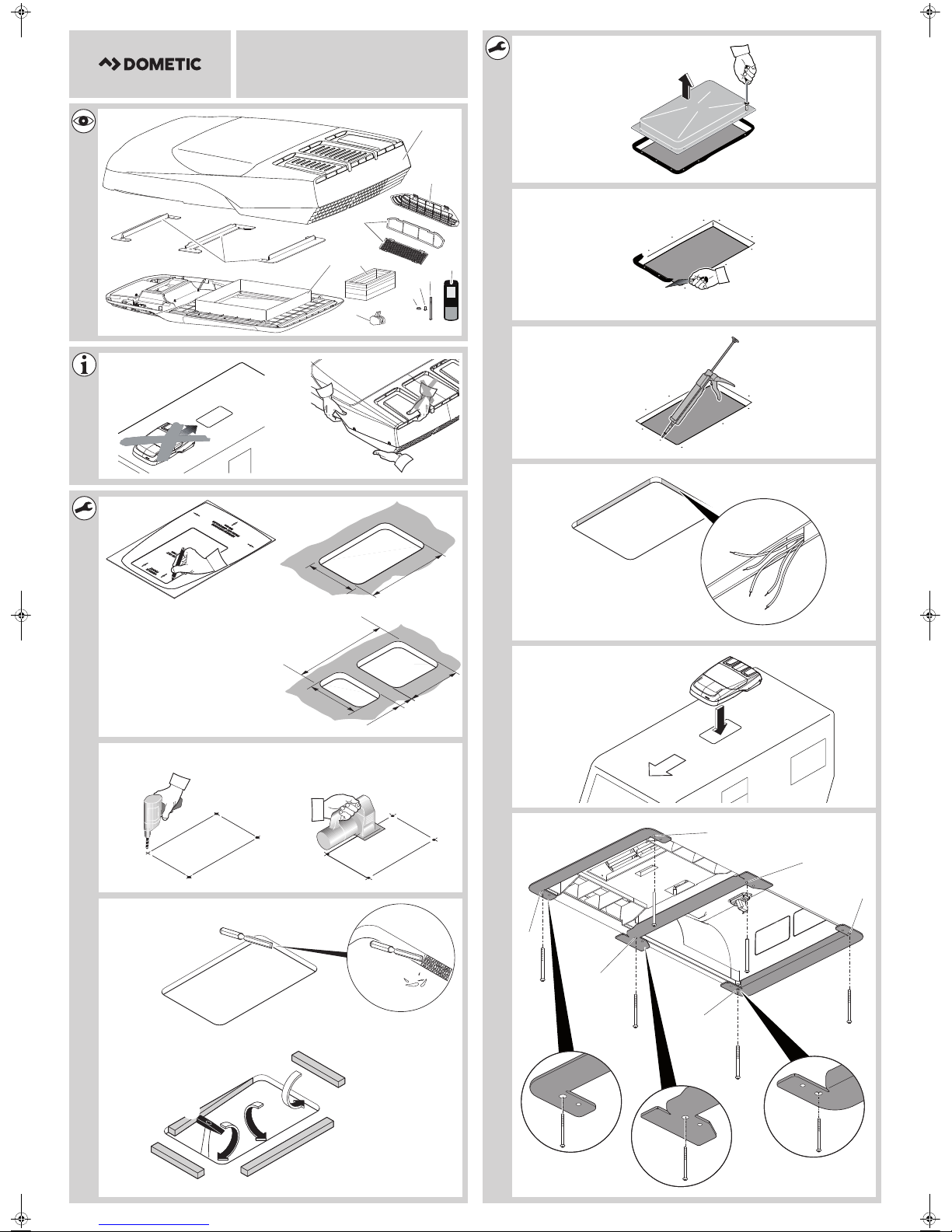

No. in fig. 1Number Description

1 1 Roof air conditioner

2 1 Air outlet unit

3 3 Fastening brackets

4 4 Air filters

52Filtercovers

6 4 Seals

7 3 Cable connectors

8 6 Long fastening screws

9 6 Short fastening screws

10 4 Caps

11 1 Remote control

Part designation Reference no.

DC extension kit DC-Kit2 9100300001

DC extension kit DC-Kit3 9100300002

DC extension kit DC-Kit5 9100300073

NOTE

The DC extension kit (accessory) allows the Dometic FreshLight roof air

conditioner to be used while in motion.

FreshLight-I-16s.book Seite 7 Mittwoch, 8. März 2017 8:55 20

Intended use FreshLight

6 Intended use

The Dometic roof air conditioner FreshLight with integrated roof window can

condition the interior of campers and caravans with cool or warm air.

The roof air conditioner is not suitable for installation in construction machines, agri-

cultural machines or similar equipment. It will not work properly if exposed to strong

vibrations.

Do not operate the roof air conditioner if the ambient temperature is above 52 °C.

Do not operate the roof air conditioner in the “Heating” air conditioning mode if the

room temperature is above 30 °C.

The heating mode is recommended at ambient temperatures of +2 °C and above.

7Labels

Labels are attached to the Dometic FreshLight roof air conditioners. These labels pro-

vide the user and fitter with information on specifications of the device.

NOTE

You can find additional information on roof air conditioners in the oper-

ating manual, such as the technical description or the controls.
