PORTABLE REFRIGERATION
FRIDGE/FREEZERS & COOLERS
COOLPRO
TC 14, TC 21, TC 35
Thermoelectric Cooler
Operation Manual
2
COOLPROOperation Manual

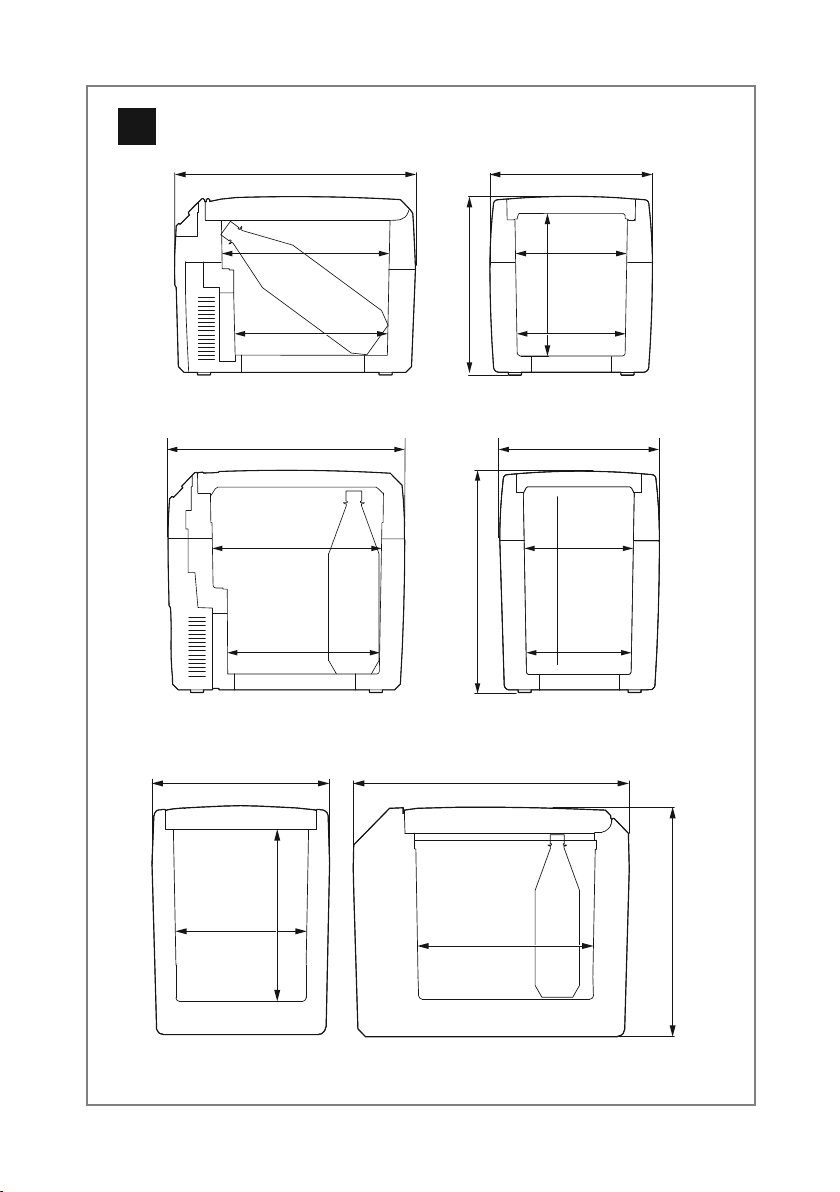

1,5/2 L
450
323
250
303
208
201
260
328
1
1, 5/2 L
550
340
460
376
265
350
TC 14
TC 21
TC 35
1,5/2 L
450
323
250
420
303
201
208
352
TCX14-TCX35--O-16s.book Seite 5 Montag, 7. November 2016 11:04 11
1
3
COOLPROOperation Manual
TC-Series
3
2
ABC D E F
12V
DC
3
TC-14_32.book Seite 3 Dienstag, 23. November 2004 3:46 15
TC-Series
3
2
ABC D E F
12V
DC
3
TC-14_32.book Seite 3 Dienstag, 23. November 2004 3:46 15
2
3
4
COOLPROOperation Manual
TC-series List of contents
4
Read these instructions carefully before the installation and
commissioning and keep them in a safe place. Pass it on to the buyer
in case of the further sale of the device.
List of contents
1 Information on using the installation instructions . . . . . . . . . . . . . . . 4
2 Safety notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4 Use as intended . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
6 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
7 Cleaning and servicing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
8 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
9 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
10 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
1 Information on using the installation
instructions
The following symbols are used in these operating instructions:
Caution!
Safety note: Failure in observing these warnings may result in
injuries to persons or damage of equipment.
Caution!
Safety note which points out the dangers involved with electrical
current or electrical voltage: Failure in observing these warnings
may result in injuries to persons or damage of equipment and
improper functioning of the device.
Note
Supplementary information on the operation of the device.
➤Action: This symbol indicates to you that you must do something. The
actions necessary are described step by step.
✓This symbol describes the result of an action.
Please also observe the following safety notes.
TC-14_32.book Seite 13 Dienstag, 23. November 2004 3:46 15
5
COOLPROOperation Manual
Safety notes TC-series
5
2 Safety notes
2.1 General safety
z
Connect the device only as follows:
– with the connecting cable contained in the scope of delivery to the
alternating current circuit
– with the connecting cable contained in the scope of delivery to the
cigarettelighter in the vehicle (see illustration 3, page 3).
z
The appliance shall not be exposed to rain.
z
Never pull the plug at the connecting cable out of the cigarettelighter or
the socket.
z
If the supply cord is damaged, it must be replaced with same type and
rating AC cord in order avoid a hazard.
z
If the device shows visible damage, you may not put it into operation.
z
Repairs on this device ma
y be executed only by specialists. Considerable
dangers can occur as a result of improper repairs.
Contact the customer service in the case WAECO of repairs.
z
Disconnect the connecting cable
– before each cleaning and servicing,
– after each use.
z
Make sure that the venting slots will not be covered!
z
With boats: Make sure that with mains opera
tion that your power supply
is protected via a FI-switch! Danger to life!
z
Disconnect your refrigerator and other consuming units from the battery
before connecting a fast battery recharger!
z
Compare the voltage indicated on the type plate to the present energy
supply.
z
The refrigerator is not suitable for the transport of corrosive or solvent-
based substances!
zFood may only be stored in its original packaging or in suitable containers.
Electrical devices are no toys!
Please keep and use the device out of the reach of children.
TC-14_32.book Seite 14 Dienstag, 23. November 2004 3:46 15
6
COOLPROOperation Manual
TC-series Scope of delivery
6
2.2 Safety when operating the device
zEnsure before starting up that supply line and plug are dry.
zDo not place the device in the proximity of open flames or other heat
sources (heating, strong solar rays, gas ovens etc.).
zDo not fill any liquids or ice into the interior container.
zNever immerse the device into water.
zProtect the device and the cables against heat and wetness.
zNever grasp with your bare hands the bare lines. This applies above all
when operating on the alternating current circuit: Danger to life!
zWAECO is not liable for damages which are caused by non- intended
use or wrong operation.
3 Scope of delivery
Check before starting up the device that all parts are available belonging to
the scope of delivery.
4 Use as intended
The refrigerator can be used to cool and keep foodstuffs warm. The device
can be also used for camping purposes.
If you want to cool medicine, check please if the cooling capacity of the
device corresponds to the requirements of the respective pharmaceuticals.
All materials processed in the refrigerator are safe for foodstuffs.
Quantity Designation
1 Refrigerator
1 Connecting cable for mains operation
1 Connecting cable for cigarette lighter
TC-14_32.book Seite 15 Dienstag, 23. November 2004 3:46 15
7
COOLPROOperation Manual
Technical description TC-series
7
5 Technical description
The cooling box is suitable for mobile use. It can cool goods up to max. 30 °C
under ambient temperature (thermostatic switch-off with approx. +1 °C) or
keep them cool or warm them up to max. 65 °C or keep them warm.
If the device has reached the set temperature range, then it will automatically
switch over to the energy save mode. In this mode only the energy is
consumed which is required to reach the temperature inside the box.
The cooling is a wear and CFC-free thermo-electric cooler with heat removal
through a ventilator.
The cooling box is equipped with an automatic priority circuit. Thus it is
ensured that with simultaneous connection to the alternating current circuit
and to a 12/24-V-battery, the alternating current circuit will be used.
6 Operation
Before you put the new refrigerator into operation, you should
clean it inside and outside with a damp cloth for hygienic reasons
(see also Chapter „Cleaning and servicing“ on page 19).
6.1 Tips to save energy
A ventilator in the interior space of the cooling box provides for the
circulation of the cold air within the box. Thus a better cooling
capacity will be achieved. In order that the cold air cannot reach
the outside when opening the cooling box, this is equipped with a
switch which turns off the ventilator as soon as the lid is opened.
zSelect a well ventilated location which is protected against sunrays.
zLet warm foods first cool down before you bin them.
zAvoid an unnecessary low inside temperature!
zDo not open the refrigerator more often than necessary!
zDo not leave the lid or door open longer than necessary!
TC-14_32.book Seite 16 Dienstag, 23. November 2004 3:46 15
25
8
COOLPROOperation Manual
TC-series Operation
8
6.2 Switch on the cooling box
➤Place the cooling box on a stable base.
The plug is safe against wrong polarity: You ca
n plug it only in one
direction into the (see illustration 3, page 3) socket.
➤Connect the cooling box
– with the connecting cable contained in the scope of delivery to the
socket or...
– with the supplied connecting cable to the
cigarette lighter in the vehicle
(see illustration 3, page 3).

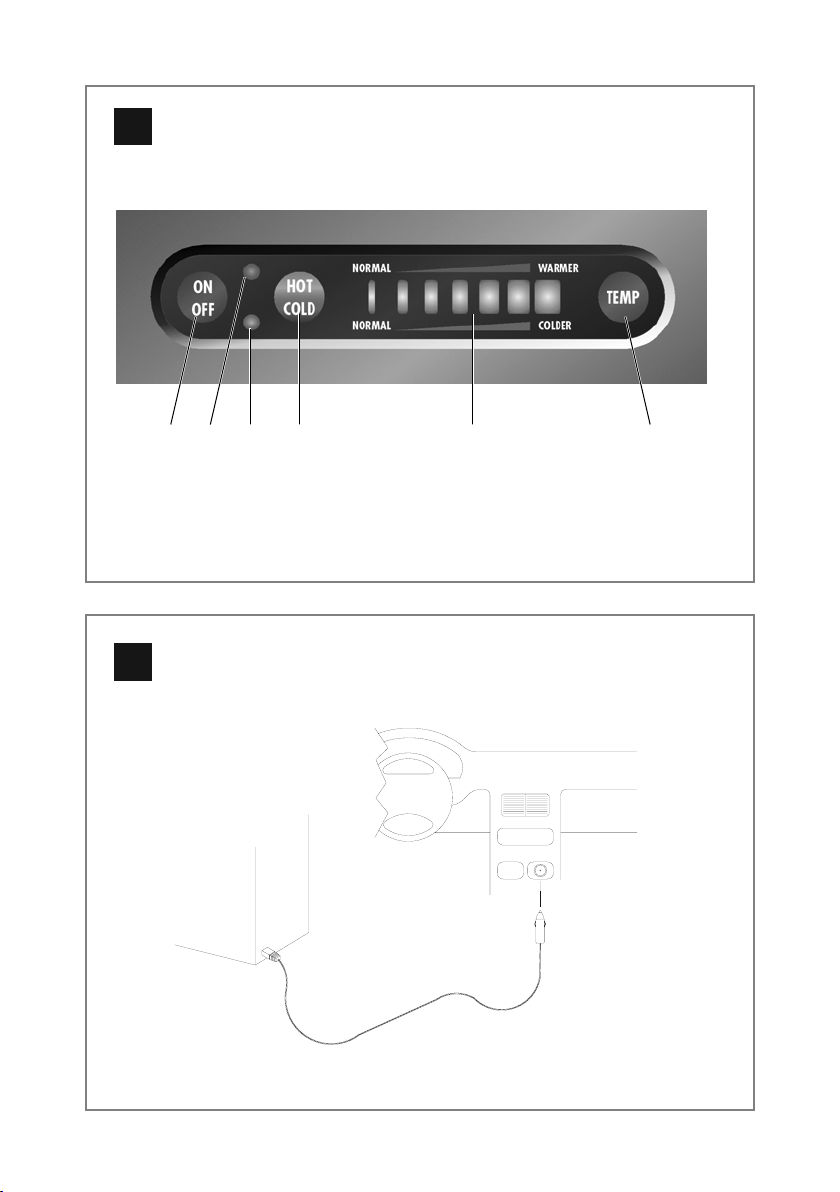

➤Press the button „ON/OFF“ at the control panel (see Illustration 2 A,
Page 3) to switch on the cooling box.
✓The cooling box starts to cool or heat the interior space.
Take care that there are only objects or goods in the cooling box
which may be cooled or heated to the selected temperature.
6.3 Switch over between cooling and heating
➤If you want to switch over between cooling and heating
, press the button
„HOT/COLD“ (see Illustration 2 D, Page 3).
The control unit of the cooling box has a memory function. Thus
the temperature range which is
previously selected in the mode is
set again with each switching on or switching over.
✓The red or blue operating display lights up and the device starts to cool/
heat.
Operating display Operating mode
red
(see Illustration 2 B,
Page 3)
heating
blue
(see Illustration 2 C,
Page 3)
cooling
TC-14_32.book Seite 17 Dienstag, 23. November 2004 3:46 15
9
COOLPROOperation Manual
Operation TC-series
9
➤When you want to finish the co
oling or heating process, press the button
„ON/OFF“ (see Illustration 2 A, Page 3).
➤When you put the cooling box out of operation, disconnect the
connectingcable.
6.4 Select temperature
The status display of the temperature
(see Illustration 2 F, Page 3) indicates
the selected temperature range. With an increasing number of illuminating
LEDs, the intensity of the temperature range also increases.
The following temperature indications are subject to tolerances
and are dependent on the measuring position.
Interior space-temperature at approx. 25 °C ambient temperature:
➤If you want to select the temperature to cool/heat, press the button
“Temp“ (see Illustration 2 F, Page 3), until the requested temperature
range is reached.
6.5 Connect to the cigarette lighter
When you connect the cooling box to the cigarette lighter of your
vehicle (see illustration 3, page 3), observe that you have to turn
on the ignition, if necessary, so that the device is supplied with
current.
Status display Temperature range
Cooling
seven illuminating
LEDs
approx 1 °C in the interior space
an illuminating LED approx 15 °C in the interior space
Heating
seven illuminating
LEDs
approx 65 °C in the interior space
an illuminating LED approx 50 °C in the interior space
TC-14_32.book Seite 18 Dienstag, 23. November 2004 3:46 15
10
COOLPROOperation Manual
TC-series Cleaning and servicing
10
7 Cleaning and servicing
Caution!
Disconnect the connecting cable from the socket or cigarette
lighter before each cleaning of the cooling box.
Caution!
Never clean the cooling box under running water
or even in rinsing
water.
Caution!
Do not use any mordant detergents or hard objects since these
can damage the cooling box.
➤Clean the cooling box inside from time to time with a damp cloth.
➤Clean the outside of the device with a damp cloth.
8 Disposal
➤Place the packaging material in the appropriate recycling waste bins
wherever possible.
If you wish to finally dispose of the device, ask your local recycling
centre or specialist dealer for details about how to do this in accord-
ance with the applicable disposal regulations.
TC-14_35.book Seite 19 Montag, 5. September 2005 3:02 15
Ce manuel convient aux modèles suivants
5
Table des matières
Autres manuels Dometic Accessoires
Dometic
Dometic TropiCool TC35 Manuel utilisateur
Dometic
Dometic A&E Systems ELITE Manuel utilisateur
Dometic
Dometic PerfectWall PW1000 Manuel utilisateur
Dometic
Dometic CFF20 Manuel utilisateur
Dometic
Dometic CFX3 Series Manuel utilisateur
Dometic
Dometic Waeco CoolFun PB 306 Manuel utilisateur
Dometic
Dometic 8952 1.4 0 Series Manuel utilisateur
Dometic
Dometic BORDBAR AS25 Manuel utilisateur
Dometic
Dometic CABANA 747 1 002 Series Manuel
Dometic
Dometic PERFECTWALL PW1100 Manuel utilisateur
Dometic
Dometic AIR BREAK Pro 3 Manuel utilisateur
Dometic
Dometic 9100 Manuel utilisateur
Dometic
Dometic 9108672221 Manuel utilisateur
Dometic
Dometic Power Awning Pro 3316554 Series Manuel
Dometic
Dometic OASIS ELITE 975 Series Manuel utilisateur
Dometic
Dometic PERFECTROOF PR2500 Manuel utilisateur
Dometic
Dometic Waeco TropiCool TC-14FL-AC Manuel utilisateur
Dometic
Dometic BordBar TF14 Manuel utilisateur
Dometic
Dometic PERFECTWALL PW3800 Mode d’emploi
Dometic
Dometic 8270000.401 Series Manuel utilisateur
