Dometic PerfectWall PW1000 Manuel utilisateur

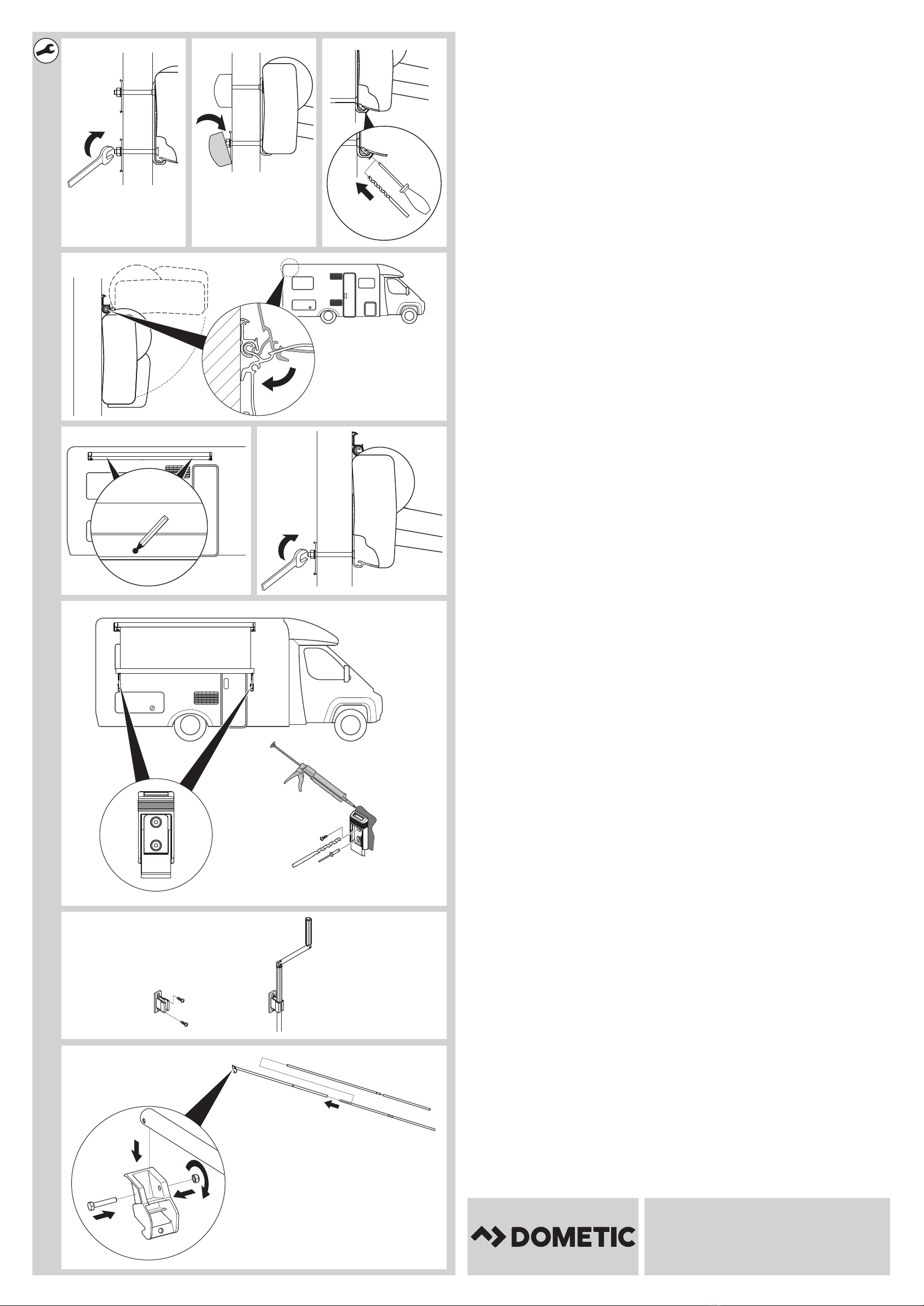

2 3 4 5 6 7 8

9 10 11 12 13 14 15

16 17

19 20

280

1010

403,0 m 1015 1015

2,6 m

1203,5 m

1215

1585

1215

1585

4,0 m

4,5 m

1250

200

1010

1500

1250

1500



15 – 20 Nm

PW1000

ab c

leaflet_figures.fm Seite 1 Mittwoch, 5. April 2017 1:06 13

www.dometic.com

Dometic WAECO International GmbH

Hollefeldstrasse 63

D-48282 Emsdetten

dometic.com

Ø 3 mm

2. 3.

Ø 3 mm

def

4445101837 04/2017

leaflet_figures.fm Seite 2 Mittwoch, 5. April 2017 1:06 13

PW1000

Awning

Installation Manual. . . . . . . . . . . . . . . . . . . . . 3

Markise

Montageanleitung. . . . . . . . . . . . . . . . . . . . 13

Store extérieuru

Instructions de montage . . . . . . . . . . . . . . .23

Toldo

Instrucciones de montaje . . . . . . . . . . . . . .33

Tol do

Instruções de montagem . . . . . . . . . . . . . .43

Ten da d a so le

Indicazioni di montaggio . . . . . . . . . . . . . .53

Zonnescherm

Montagehandleiding . . . . . . . . . . . . . . . . .63

Markise

Monteringsvejledning. . . . . . . . . . . . . . . . .73

Markis

Monteringsanvisning. . . . . . . . . . . . . . . . . .83

Markise

Monteringsanvisning. . . . . . . . . . . . . . . . . .93

Markiisi

Asennusohje . . . . . . . . . . . . . . . . . . . . . . .103

Маркиза

Инструкция по монтажу. . . . . . . . . . . . . . 113

Markiza

Instrukcja montażu . . . . . . . . . . . . . . . . . . 123

Markýza

Návod k montáži . . . . . . . . . . . . . . . . . . . . 134

Markiza

Navodilo za montažo . . . . . . . . . . . . . . . . 144

Τέντα

Οδηγίες τοποθέτησης. . . . . . . . . . . . . . 154

AWNINGS

PERFECTWALL

PW1000-I-16S.book Seite 1 Mittwoch, 5. April 2017 1:03 13

PW1000-I-16S.book Seite 2 Mittwoch, 5. April 2017 1:03 13

PW1000

Table of contents

1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

2 Important safety and installation instructions. . . . . . . . . . . . . . . . . . . . . . . . . .4

3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

6 Installing the awning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

7 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

WARNING!

•This operating manual must be read and understood before

installation, set up, operation and servicing. This device must be

installed by a specialist. Improper installation can lead to serious

injury. Alterations to the device can be extremely dangerous and

lead to serious injury or damage to the device.

•Keep this operating manual with the device. The owner must read it

carefully.

PW1000-I-16S.book Seite 3 Mittwoch, 5. April 2017 1:03 13

Explanation of symbols PW1000

1 Explanation of symbols

2 Important safety and installation

instructions

Please observe the safety instructions and stipulations issued by the

vehicle manufacturer and service workshops.

The manufacturer accepts no liability for damage in the following cases:

•Faulty assembly or connection

•Damage to the product resulting from mechanical influences

•Alterations to the product without express permission from the manufacturer

•Use for purposes other than those described in the operating manual

!WARNING!

If you do not have sufficient technical knowledge for installing

components in vehicles, you should have a specialist fit the awning to

your vehicle.

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or

serious injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair

the function of the product.

NOTE

Supplementary information for operating the product.

PW1000-I-16S.book Seite 4 Mittwoch, 5. April 2017 1:03 13

PW1000 Scope of delivery

3Scopeofdelivery

No. in

fig. 1,

page 1

Awning width

Description

2.6 m, 3 m,

3.5 m 4 m, 4.5 m

11x1xAwning

2 2x 2x Mounting plate (160 mm)

3 1x 2x Mounting plate (80 mm)

4 5x 8x Counter plate

5 5x 8x Square-head bolt

6 2x 4x Countersunk bolt

7 7x 12x Serrated lock washer

8 7x 12x Hexagon nut

9 5x 8x Cover for the counter plate

10 11x 14x Self-tapping screw

11 2x 2x Wall bracket (lower section)

12 2x 2x Wall bracket (upper section)

13 1x 1x Crank bracket

14 4x 4x Rivets

15 4x 4x Pegs

16 1x 1x Crank

17 – 1x Latch for tensioning arm

18 – 1x Hexagon head bolt

19 – 1x Tensioning arm

20 – 1x Hexagon nut with clamping part

PW1000-I-16S.book Seite 5 Mittwoch, 5. April 2017 1:03 13

Accessories PW1000

4Accessories

Available as accessories (not included in the scope of delivery):

If you have questions regarding the accessories, please contact your local service

partner.

5 Intended use

The PerfectWall PW1000 awnings are suitable for installing on motorhomes or

caravans.

The awnings must only be used whilst the vehicle is stationary. Please observe the

operating manual.

6 Installing the awning

6.1 Required installation material

For the installation of the awning, you will need:

•Various tools, e.g. screwdriver

•A suitable flexible adhesive/sealant, e.g. Sikaflex®-252

•A cleaning agent that is recommended for use with the adhesive

•A primer that is recommended for use with the adhesive

•Acid-free silicone

Description Ref. no.

Dometic Light LK120

LED lighting with remote control for fitting on the awning

arms

9106504018

Tie Down Kit

Fixing belts for the awning

9103104000

PW1000-I-16S.book Seite 6 Mittwoch, 5. April 2017 1:03 13

PW1000 Installing the awning

6.2 Notes on the installation position

When choosing the installation location, observe the following:

!WARNING!

•Keep a sufficient distance from objects or other vehicles. Once it is

retracted, it should be at least 40 cm away from other objects and

vehicles.

•Ensure the wall of the motorhome can safely take the weight of the

awning before installation. Otherwise, the awning may become

unstable and bend or break.

ANOTICE!

•Make sure that the inner screw joints are accessible.

•Only attach the awning to flat and vertical wall surfaces (fig. 2and

fig. 3, page 1). On curved wall surfaces, the mounting plates need to

be adequately lined under the fastening points.

•If there is insufficient space above the door after the awning is

mounted, the door must remain closed when retracting or extending

to avoid the door making contact with the arms or the front panel.

The required space depends on the design of the door (door width,

swing or sliding door) as well as the set awning angle of inclination

(fig. 4, page 1).

•The cables and cabinets in the interior of the vehicle may not be

damaged by drilling the holes.

INOTE

Ensure the user of the vehicle is aware that the screws on the rear hinge

(fig. 5, page 1) must be tightened up (see operating manual). The arms

must not bear any load. This must be done by the service partner.

PW1000-I-16S.book Seite 7 Mittwoch, 5. April 2017 1:03 13

Installing the awning PW1000

6.3 Installing the awning

During installation, observe the following general information:

•The awning can be attached in two ways:

– to the side of the vehicle using mounting plates

– to the existing piping rail on the side of the vehicle

•The mounting plates are bolted to the vehicle in the area of the rear hinge. In

addition, they are glued with installation adhesive (e.g. Sikaflex®-221 or a similar

product) to ensure the load is evenly spread and an optimal level of protection

from moisture is maintained.

•Observe the sealant manufacturer's instructions.

•Before installation, check the access to the screw joints. Make sure no cables or

cabinets are damaged when drilling.

•Contact your local service partner if you wish to have an angle of inclination

different to the default setting.

•If you want to use an awning tent with the PW1000 at a later date, ensure that the

vent windows and hatches of the erected tent remain accessible when choosing

the awning size and installation position (fig. 6, page 1).

•Clean the adhesive surfaces on the mounting rails and the wall.

•Prepare the adhesive surfaces with the primer.

•After gluing, wait until the adhesive has set. For further details, please refer to the

information provided by the sealant manufacturer.

•Carefully seal the drill holes to prevent moisture from entering the motorhome

wall.

•Do not open the awning or leave it unattended, before the awning has been

fastened to the mounting rails.

•As part of the regular maintenance procedure, the screws on the rear hinge must

be tightened up by a service partner. Ensure the users of the vehicle are aware of

this.

PW1000-I-16S.book Seite 8 Mittwoch, 5. April 2017 1:03 13
