DNP DS-RX1 HS Note de version

December 25, 2015 Ver.1.11_1

Dai Nippon Printing Co.,Ltd.

●Safety precautions

Please read the User’s Manual for the printer carefully before use, and follow the instructions. Note that the contents of

directions for use and safety precautions correspond to the safety standards as of the time the User’s Manual has been

created.

●Remodeling

For product safety, do not remodel the DS-RX1 printers or the contents of the DS-RX1 printer drivers and the CD.

●Copyright

Copyrights, trademarks or any other intellectual property rights whatsoever that pertain to documents, programs or other

items provided with this product, are ascribed to Dai Nippon Printing Co., Ltd., or the respective other holders of rights.

Except in cases permitted by applicable laws, these may not be duplicated or used without consent from Dai Nippon Printing

Co., Ltd.

Microsoft and Windows are registered trademarks of Microsoft Corporation valid in the USA and other countries.

The ICC profile is prepared by the technology of X-Rite.

Dai Nippon Printing Co.,Ltd.

Contents

Chapter 1Install______________________________________ 1

1.1 Printer and Host computer Preparation ________________________________________ 2

1.2 Installing the Driver Package ________________________________________________ 2

1.3 Installing the Printer Driver _________________________________________________ 5

1.4 Installing a Driver for an Unspecified Device____________________________________ 9

Chapter 2Properties__________________________________ 12

2.1 Opening Printer Properties _________________________________________________ 12

2.2 Explanation of Print Setting Functions ________________________________________ 14

2.2.1 Layout _____________________________________________________________________________________ 14

2.2.2 Advanced Options ___________________________________________________________________________ 15

2.2.3 Paper/Quality _______________________________________________________________________________ 19

2.2.4 Option______________________________________________________________________________________ 19

2.2.5 Color Adjustment____________________________________________________________________________ 20

2.3 Default Values for Various Settings ___________________________________________ 21

2.4 Color Management _______________________________________________________ 21

2.5 Print Area_______________________________________________________________ 22

2.6 Print Direction ___________________________________________________________ 22

Chapter 3Updating the Driver__________________________ 23

Chapter 4Driver Removal _____________________________ 30

Dai Nippon Printing Co.,Ltd.

[DS-RX1 Printer Driver] Instruction Manual for Windows 7, 8

Installation Flow

Installation is done in the following 3 steps.

Details of each step are shown in a subsequent page.

Insert the accessory CD into the disk drive

and install the driver package.

STEP 1 Prepare the printer and computer -> ”1.1 Printer and Host computer Preparation”

Do not connect the USB cable at this step.

STEP 2 Install the driver package -> ”1.2 Installing the Driver Package”

STEP 3 Install the printer driver -> ”1.3 Installing the Printer Driver”

Connect the USB cable, turn the printer power ON,

and install the printer driver.

After installation is complete, reboot the computer.

USB Cable

Dai Nippon Printing Co.,Ltd.

[DS-RX1 Printer Driver] Instruction Manual for Windows 7, 8

Check that the power for the DS-RX1 printer is OFF.

Have a USB cable ready. But do not connect the printer to the computer with the USB cable at this point.

In order to install the driver, login with administrator right. The following explanations are given on the assumption of use with

administrator rights.

Insert the accessory CD into the disk drive.

Start Explorer, and click on the corresponding drive.

(If the AutoPlay function is on, select “Open folder to view files - using Windows Explorer”.)

(In Windows 8 if the AutoPlay function is on, click on the message of “Tap to choose what happens with this disc.”, then select

“Open folder to view files File Explorer”.)

Select the following folders from the accessory CD. *Be sure to select the folder that matches your environment.

Windows 7 …Drive of CD:\DS-RX1_Driver\English\7

Windows 8 …Drive of CD:\DS-RX1_Driver\English\8

Fig 1.1 Driver Package Folder

Dai Nippon Printing Co.,Ltd.

[DS-RX1 Printer Driver] Instruction Manual for Windows 7, 8

In the selected folder, double click on the file “DriverInstall.CMD”. (Depending on your operating environment, the .CMD

extension may not be shown.)

The best Driver Package Installer for your operating system (32 or 64 bit) will automatically be selected.

Fig 1.2 Install File

If the User Account Control dialog appears, click on “Yes”.

Fig 1.3 User Account Control

Dai Nippon Printing Co.,Ltd.

[DS-RX1 Printer Driver] Instruction Manual for Windows 7, 8

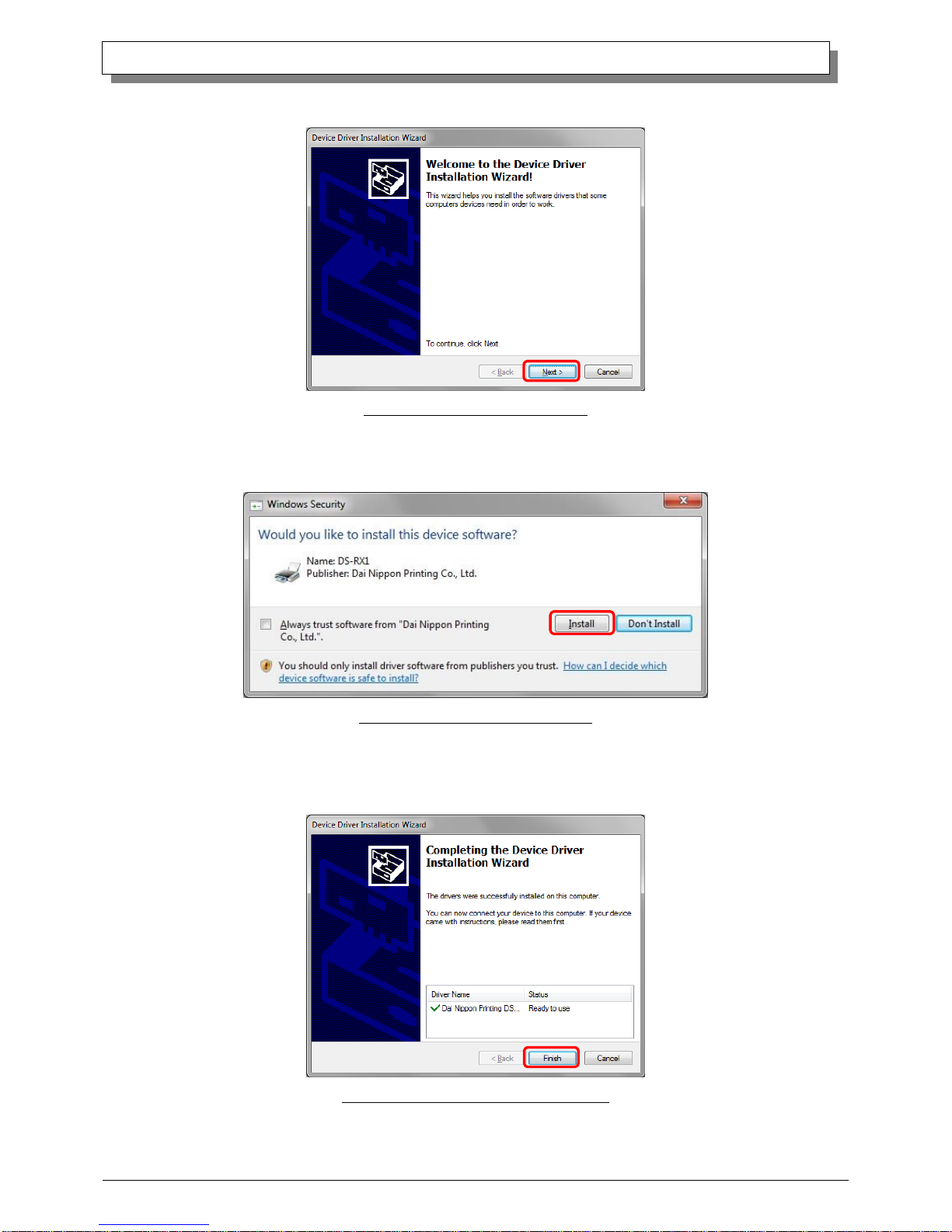

When the “Welcome to the Device Driver Installation Wizard!” window appears, click on “Next>”.

Fig 1.4 Starting of Installation Wizard

If the Windows Security confirmation window appears, click on “Install”.

Fig 1.5 Windows Security confirmation

This starts the Driver Package installation. Please wait until it is complete.

When the “Completing the Device Driver Installation Wizard” window appears, click on “Finish”.

Fig 1.6 Completion of the Installation Wizard

Dai Nippon Printing Co.,Ltd.

[DS-RX1 Printer Driver] Instruction Manual for Windows 7, 8

Connect the printer to the computer with the USB cable, and turn the printer power ON.

The printer will be recognized, and the driver installation should begin.

* Please refer to the manual for the DS-RX1 printer for connection if needed.

When driver installation begins, the message “Installing device driver software” will appear above the task bar.

The message will not appear in Windows 8. Please turn to page 7.

Fig 1.7 Driver Installation message

By clicking on this message, the “Driver Software Installation” window will be opened, and the driver installation status will be

shown. Click on “Close” to close the window.

Fig 1.8 Driver Software Installation

* About “Skip obtaining driver software from Windows Update”

If the operating system setting is such that it will get the driver software from Windows Update, it will first search for the driver

through Windows Update, so it will take more time to complete the installation. If you skip getting the driver software through

Windows Update, the time to complete the installation will be decreased (Depending on the environment, it may take some time to

complete the installation).

Click on “Skip obtaining driver software from Windows Update” in the “Driver Software Installation” window.

Fig 1.9 Skip obtaining driver software from Window Update

Dai Nippon Printing Co.,Ltd.

[DS-RX1 Printer Driver] Instruction Manual for Windows 7, 8

When the confirmation window appears, click on “Yes”.

Fig 1.10 Skip getting the driver software from Windows Update

From a beginning of installation after a while, the message “Your device is ready to use” will appear above the task bar, and the

printer driver installation will be complete.

Fig 1.11 Driver Installation Complete message

By clicking on this message, the “Driver Software Installation” window will be opened, and “Your device is ready to use” will be

shown. Click on “Close” to close the window.

(If the “Driver Software Installation” window is shown from the start of installation, the message above will not be shown.)

Fig 1.12 Driver Software installation complete

Dai Nippon Printing Co.,Ltd.

[DS-RX1 Printer Driver] Instruction Manual for Windows 7, 8

Select “Start”, then “Control Panel”, and open the control panel.

In Windows 8, right click the Start screen, select right-under the "All apps" and select the control panel.

Click on “View devices and printers”in the control panel.

Fig 1.13 Control Panel

Check that the DS-RX1 is shown in the Devices and Printers window.

Note: In Windows 8, DS-RX1 icon does not appear if the printer is offline (if the printer with the power on is not connected).

Now, installation of the DS-RX1 printer driver is complete.

Fig 1.14 Devices and Printers window

After installation of the printer-driver is complete, be sure to reboot the computer.
