eDMX1 PRO

USER MANUAL

DMXking.com •JPK Systems Limited •New Zealand
0108-700-3.7
2
TABLE OF CONTENTS
1. Introduction ............................................................................................................................................................................... 3
Hardware And Firmware Versions.................................................................................................................................................. 3
Main Features ................................................................................................................................................................................. 4
2. Exterior View.............................................................................................................................................................................. 5
Front View....................................................................................................................................................................................... 5
Rear View........................................................................................................................................................................................ 5
Status LED Table.............................................................................................................................................................................. 5
3. Default Configuration................................................................................................................................................................. 6
4. Configuration Utility................................................................................................................................................................... 7
Network Tab ................................................................................................................................................................................... 7
Port Tab........................................................................................................................................................................................... 8
DMX Display Function................................................................................................................................................................... 10
Node Report.................................................................................................................................................................................. 11
Art-Net Node Name ...................................................................................................................................................................... 11
Factory Reset ................................................................................................................................................................................ 11
Summary of settings ..................................................................................................................................................................... 12
5. Ports, Merging, Priority And DMX Input .................................................................................................................................. 13
Ports and merging......................................................................................................................................................................... 13
Supported merging combinations ................................................................................................................................................ 13
sACN / E1.31 Priority..................................................................................................................................................................... 13
sACN / E1.31 Priority –DMX Receive............................................................................................................................................ 13
DMX512 In –Unicast / Broadcast / Multicast............................................................................................................................... 13
6. Compatible Software ............................................................................................................................................................... 14
7. Technical Specifications ........................................................................................................................................................... 14
8. Warranty .................................................................................................................................................................................. 14
DMXking.com Hardware Limited Warranty.................................................................................................................................. 14
9. Declarations (FCC & CE) ........................................................................................................................................................... 15
Federal Communications Commission (FCC) Declaration of Conformity ..................................................................................... 15
EEC Declaration............................................................................................................................................................................. 16

DMXking.com •JPK Systems Limited •New Zealand

0108-700-3.7

1. INTRODUCTION

Thanks for purchasing a DMXking.com product. Our aim is to bring you high quality products with great features we know you’ll

appreciate. We ship only what’s required which is why there’s no CD or printed manual in the box, this is part of our commitment

to minimizing environmental impact.

The eDMX1 PRO product is a robust single universe bi-directional DMX512 interface communicating with the host computer over

Ethernet supporting the widely used Art-Net and sACN E1.31 protocols.

This user manual covers features up to v3.7 firmware. Some functionality may not be available with earlier firmware versions.

HARDWARE AND FIRMWARE VERSIONS

From time to time minor hardware changes occur in our products usually small feature additions or unseen optimizations. The

table below lists eDMX1 PRO product variants. Check the product label for P/N details.

Part Number

Feature addition

0108-1.0

Initial product release

Firmware updates are released on a semi-regular basis. We recommend updating to the latest available firmware version so all

product features are available. Please take note the user manual reflects latest firmware version features unless otherwise noted.

Firmware Version

Comments

v2.10

Initial release

v2.14

ArtNet 4 support, DHCP + AutoIP, Merge engine improvements, RDM performance enhancements.

v3.0

Record playback added, RDM enhancements, Universe Sync, IGMP report when universe change +

unsolicited option, DMX IN Single IP. *Update to v3.1 is highly recommend.

v3.1

ArtNet 4 NodeReport messages with BindIndex, NodeReport status messages, Dynamic IGMP reporting

based on current port configurations.

v3.3

Record/playback enhancements.

v3.5

Version consistency.

v3.7

DMXworkshop excess ArtPoll bytes accepted, Full frame DMX512 option DMX-IN & DMX-OUT,

ArtPollReply includes UID report, ArtNet fail safe modes, DMX-IN & DMX-OUT re-mapping channel offset,

Timeout all sources for DMX-IN, sACN CID fix for multiple DMX-IN ports on same universe, sACN Universe

Sync enhancements, Default Gateway added to ArtIpProg.

DMXking.com •JPK Systems Limited •New Zealand

0108-700-3.7

MAIN FEATURES

−Static IP or DHCP network addressing.

−Supported operating systems: Any with Ethernet networking support. Windows, MAC OS, Linux, iOS, Android....

−eDMX1 PRO - 1x DMX512 Out or DMX512 In with Art-Net, sACN E1.31 and E1.20 RDM support

−Art-Net broadcast, Art-Net II,3 & 4 unicast, sACN/E1.31 Multicast and sACN Unicast support

−Merge 2 incoming Art-Net/sACN streams per output channel with both HTP and LTP options

−sACN Priority takeover for multi-tier controller arrangements

−Mix and match ArtNet with sACN merge/priority sources

−DMX-IN and DMX-OUT channel offset re-mapping

−User configuration of Art-Net Node short and long names

−Tough metal enclosure

−Available with 3 pin or 5 pin XLR socket options

−Fully compatible with all software and hardware that supports Art-Net I, II, 3 & 4 and sACN protocols

−Works with your existing console if Art-Net or sACN external nodes are supported

−Universe Sync Art-Net, sACN and Madrix Post Sync

−Configuration utility with basic Art-Net output/input test functionality

−Firmware updates can be performed by end user

eDMX1 PRO products consider Art-Net 00:0:0 to be Universe 1 (i.e. offset by 1)

so there is an easy mapping between sACN/E1.31 and Art-Net.

DMXking.com •JPK Systems Limited •New Zealand

0108-700-3.7

2. EXTERIOR VIEW

FRONT VIEW

One 3pin or 5pin XLR connector for either DMX512-A input or output function. An XLR male to male gender changer may be

required in some DMX512 Input situations depending on your cabling configuration.

REAR VIEW

USB type B power socket + Ethernet RJ45 socket

STATUS LED TABLE

LED

Indication

Protocol

Protocol activity. Flash Yellow = Art-Net/sACN. Solid Yellow = Firmware Update mode.

Network

Network activity. Green = Link, Flash = Traffic

DMXking.com •JPK Systems Limited •New Zealand

0108-700-3.7

3. DEFAULT CONFIGURATION

All eDMX1 PRO units ship with DHCP network mode enabled. Please reconfigure network settings as required before use.

Parameter

Default Setting

IP Address

192.168.0.111

Subnet Mask

255.255.255.0

Default Gateway

192.168.0.254

IGMPv2 Unsolicited

Report

Unchecked

Network Mode

DHCP

DMX512 Port configuration parameter defaults.

Parameter

Default Setting

Async Update Rate

40 [DMX512 frames per second]. Universe Sync will override.

Port Operation Mode

DMX-OUT

Timeout all sources

Unchecked

Channel Offset

Fixed IP

0.0.0.0 [Only for DMX IN –Unicast to 1 IP address only]

Merge Mode

HTP

Full DMX Frame

Unchecked

Broadcast Threshold

10 [Art-Net II/3/4 unicasting up to 10 nodes]. Set to 0 for Art-Net I

broadcast on DMX IN ports.

Unicast IP [DMX-IN]

0.0.0.0

sACN Priority [DMX-IN]

100

RDM Discovery Period [DMX-OUT]

0s / RDM Disabled

RDM Packet Spacing [DMX-OUT]

1/20s

DMX-OUT Failsafe Mode

Hold Last

Recall DMX Snapshot at startup

Unchecked

DMX512 Universe

1-4 [Net 00, Subnet 0, Universe 0-3]

Note: sACN Universe 1 = Art-Net 00:0:0

DMXking.com •JPK Systems Limited •New Zealand

0108-700-3.7

4. CONFIGURATION UTILITY

The eDMX Configuration utility provides a simple interface to all device parameters. Typically, these are set once during initial

configuration and left untouched. If you are not confident in setting up network IP Address, Subnet Mask and Default Gateway

parameters please get in touch with DMXking.com support and we’ll walk you through the process. DHCP is supported from

firmware v2.14 onwards.

IMPORTANT: Once you’ve finished configuring your eDMX product close the configuration utility before starting your lighting

control application if it’s running from the same computer. In general, only 1 Art-Net application will function at a time.

NETWORK TAB

Before starting the eDMX Configuration utility please ensure your computer has appropriate IPv4 network settings. It’s highly

likely the computer is configured for DHCP addressing and no change necessary since eDMX1 PRO is also DHCP by default.

Upon startup eDMX nodes are automatically detected and displayed by IP address. To poll for new devices or just check the

communications is okay by clicking Search. From v1.16 polling is automatic every 8 seconds but can be disabled through the

Advanced | Auto Device Poll menu option. Mute Responses option prevents any new nodes from being listed regardless of their

status on the network. With large node counts this can be helpful.

Click on the desired node’s entry and all Settings will be retrieved. Note that if no response is received the settings will be greyed

out and no additional tabs visible. An activity box shows both transmitted and received messages to help with diagnosing

communication issues. If your network configuration has multiple adapters and or IP addresses you should select the same

network range as the eDMX from the Network Adapter IP Address dropdown box and also ensure the subnet mask is appropriate.

DMXking.com •JPK Systems Limited •New Zealand

0108-700-3.7

Utility v1.20 uses Settings Broadcast by default which allows node settings to be updated regardless of the network adapter

subnet range. This only works if all detected nodes are firmware v3.0+ and is automatically disabled otherwise.

Unicast single node discovery and configuration is possible by selecting Advanced | Unicast Poll and entering the destination IPv4

address then click Search. This will function over routed networks provided a Default Gateway has been specified in the node

Network Settings.

All eDMX/LeDMX/ultraDMX PRO nodes provide IGMPv2 Reports necessary to participate in a multicast environment as necessary

for sACN/E1.31 protocol. Sometimes due to network infrastructure issues an IGMP querier is not present and in these situations,

you can opt to have the node generate ongoing unsolicited IGMPv2 Reports.

To change the node Network Settings make applicable changes then click Update Network Settings.

Selecting Firmware Update will prompt for an appropriate firmware file and upload upon confirmation. A built-in boot loader

permits updating of the eDMX firmware. We do not recommend performing firmware updates over routed networks. Note only

signed encrypted firmware files from DMXking.com can be successfully loaded to ensure you won’t brick your device by accident.

Future firmware releases for this product will be in the form 0108-500-VersionMajor.VersionMinor.enc

PORT TAB

Port Operation Mode: DMX-OUT

DMXking.com •JPK Systems Limited •New Zealand

0108-700-3.7

Port Operation Mode: DMX-IN sACN with sACN Priority 100

DMX512 ports can be individually configured as either DMX-OUT, with automatic dual sACN/Art-Net protocol support, or DMX-

IN, with manually selected sACN or Art-Net protocol. When configured as DMX-IN a single Unicast IP address destination may be

specified but in the majority of applications leaving this field at 0.0.0.0 is appropriate.

Timeout all sources can be used to override default ArtNet defined behavior of holding the last sent or received frame forever.

•DMX-OUT mode: Whenever 2 sources are present and being merged together a 2nd source will always timeout when

the stream stops. In DMX-OUT mode if Timeout all sources is unchecked and Hold Last mode selected the output will

hold last frame forever. Timeout all sources checked and Failsafe Mode other than Hold Last selected will cause the

output to change to Zero, Full or Snapshot Scene.

•DMX-IN mode: An ArtNet or sACN stream is generated upon receiving DMX512 on the port. Timeout all sources

checked will cause this stream to end a few seconds after the DMX512 signal stops.

Channel Offset provides simple re-mapping for both DMX-OUT and DMX-IN port configurations. Set to 0 for no re-mapping.

•DMX-OUT mode: Incoming ArtNet or sACN stream(s) are re-mapped so channel 1 is pushed up to channel 1+N. When

channel 1+N exceeds 512 the incoming stream channels are ignored/lost.

•DMX-IN mode: Incoming DMX512 is re-mapped so channel 1 is pushed up to channel 1+N on the outgoing ArtNet or

sACN stream. When incoming DMX512 channel 1+N exceeds 512 to channels are ignored/lost.

Make changes to the applicable Port settings then click Update. Changes on all port tabs are updated regardless of which tab the

Update button is clicked.

DMXking.com •JPK Systems Limited •New Zealand

0108-700-3.7

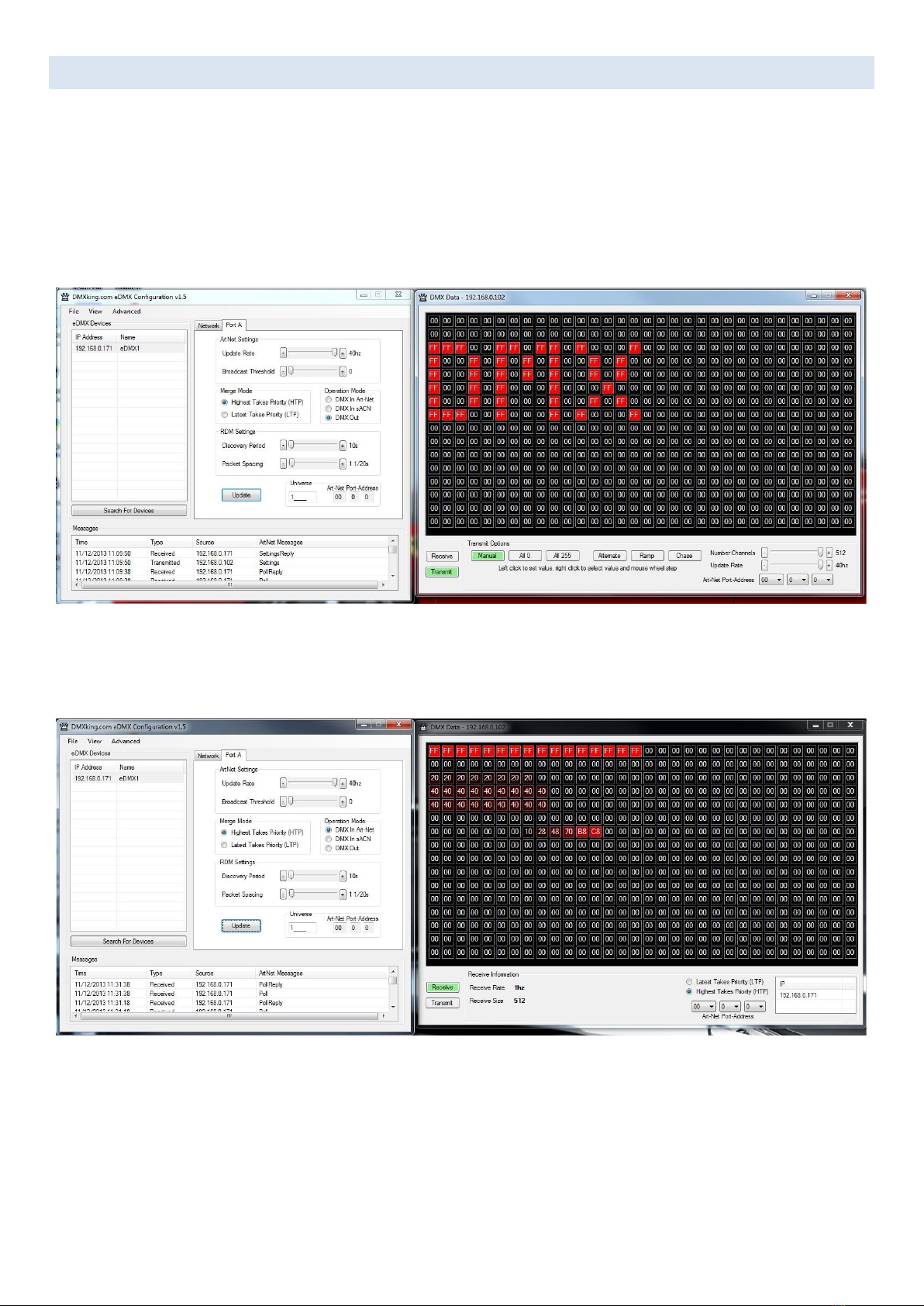

DMX DISPLAY FUNCTION

Select View | DMX Display for a simple DMX512 test utility. To generate an Art-Net output stream click Transmit then select one

of the 6 Transmit Options and change Art-Net Universe as applicable. When in Manual mode you can click on any of the channels

(represented by small boxes with hexadecimal channel level inside) to set ON level and double click to set zero. The mouse scroll

wheel adjusts a channel by a defined increment. Channel number increases left to right, top to bottom and the roaming tool tip

provides information about a specific channel.

Both the ON level and mouse wheel step can be set by right clicking anywhere within the black display area. Number of channels

transmitted and the refresh rate can be adjusted using the applicable sliders adjacent to transmit options.

Changing to Receive mode will display the selected Art-Net universe number with merged streams if more than 1 is present.

Note Art-Net II unicast is not supported meaning only Art-Net broadcast streams are displayed.

The DMX Display utility works with any manufacturers Art-Net hardware and can be useful for diagnostics and simple testing of

DMX512 fixtures.

Table des matières

Autres manuels DMXking Matériel réseau

DMXking

DMXking LeDMX4 MAX Manuel utilisateur

DMXking

DMXking LeDMX2 MAX Manuel utilisateur

Manuels Matériel réseau populaires d'autres marques

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manuel utilisateur

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manuel utilisateur

Yudor

Yudor YDS-16 Manuel utilisateur

D-Link

D-Link ShareCenter DNS-320L Manuel utilisateur

Samsung

Samsung ES1642dc Instructions d'utilisation

Honeywell Home

Honeywell Home LTEM-PV Instructions de montage

evertz

evertz 7700 Series Manuel utilisateur

D-Link

D-Link ShareCenter DNS-343 Manuel utilisateur

Asante

Asante AsanteBridge 1012 Manuel utilisateur

FireBrick

FireBrick FB2700 Manuel utilisateur

Audiovox Electronics

Audiovox Electronics ARWH2T Manuel utilisateur

ADC

ADC DSX-1 Manuel

NetComm

NetComm NF2 Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 5620 Manuel utilisateur

Dell EMC

Dell EMC XC6420 Series Manuel utilisateur

Lanner

Lanner NCA-1020A Manuel utilisateur

Allied Telesis

Allied Telesis AT-TN121-A Manuel utilisateur

Arista

Arista CCA-ETM-Q12 Manuel utilisateur

DMXking eDMX1 PRO Manuel utilisateur

Manuels Matériel réseau populaires d'autres marques
