Dixell XR06CX Temperature Control Manual

833-734-8880

service@ironmountainrefrigeration.com

Thank you for your freezer purchase. Your digital temperature controller should arrive pre-set to factory

standards. This manual is provided to assist with any small changes you may wish to make. If you are

experiencing any issues with the function of your cooler, we are available for support at

service@ironmountainrefrigeration.com or by phone at 833-734-8880.

Your freezer is designed to maintain a temperature range with a high and low setting. When the high

temperature is reached, the compressor will start and run until the low temperature is reached. Setting

the high and low too close may cause ice build up and compressor failure.

To see your set temperature, press and release “SET”. To change it, hold “SET” until Fis flashing and use

up or down to adjust. This temperature must be within the selected temperature range in the

parameters. To check or adjust the parameters, follow the steps below.

1. Hold “Set” and “Down”together for 3 seconds until F is flashing. Release. Hold “Set” and

“Down” again for 10 seconds until “L2” is shown.

2. You are now in the parameter menu. The first parameter, “Hy”is shown.

a. Press “Set”to see the current setting.

b. Use Up and Down arrows to change, if needed.

c. Press “Set” to show next parameter.

3. To exit and save changes, press “Set” and “Up” together.

Iron Mountain Refrigeration & Equipment, LLC

Dixell XR06CX Temperature Control Manual

833-734-8880

service@ironmountainrefrigeration.com

Temperature Setting Codes

We recommend a differential of 5-6 degrees, -4/-5 as a low temperature and 1 as a high temperature.

To change this, you will need to change BOTH the differential and the temperature settings.

Parameter Code

Setting

Recommended

Temperature differential

Low Temperature

- 5

High Temperature

Defrost Settings

Defrosting is pre-set to occur at regular 4 to 6-hour intervals for 25 minutes. There is a 2-minute delay

after defrosting to allow the water to drip into the evaporation tray before the compressor and fan will

start again. To manually start a defrost cycle, press the “defrost” button for 3 seconds. This will also

cancel a defrost in progress. To change the defrost settings, follow the steps to enter the parameters as

shown above.

Parameter Code

Setting

Pre-Set

Defrost Interval

4 hours

Maximum Defrost Time

25 min

Drip Delay after Defrost

2 min

Fan Delay after Defrost

10 min

Defrost Display

Def

Autres manuels pour XR06CX

Table des matières

Autres manuels dixell Régulateurs de température

dixell

dixell XH360L Manuel utilisateur

dixell

dixell iPro SERIES Mode d’emploi

dixell

dixell IC200CX Series Manuel utilisateur

dixell

dixell XW460L Schéma de câblage

dixell

dixell XT110C Manuel utilisateur

dixell

dixell XW360K Mode d’emploi

dixell

dixell XT110C Mode d’emploi

dixell

dixell XT141C Mode d’emploi

dixell

dixell XH260L Manuel du propriétaire

dixell

dixell XH240K Manuel utilisateur

dixell

dixell XR460C Schéma de câblage

dixell

dixell COOL MATE XLH360 Manuel utilisateur

dixell

dixell Wing XW35L Schéma de câblage

dixell

dixell XR720C Manuel utilisateur

dixell

dixell XR420C Schéma de câblage

dixell

dixell Wing XW270L Manuel utilisateur

dixell

dixell XR02CX Manuel utilisateur

dixell

dixell XW562K Manuel utilisateur

dixell

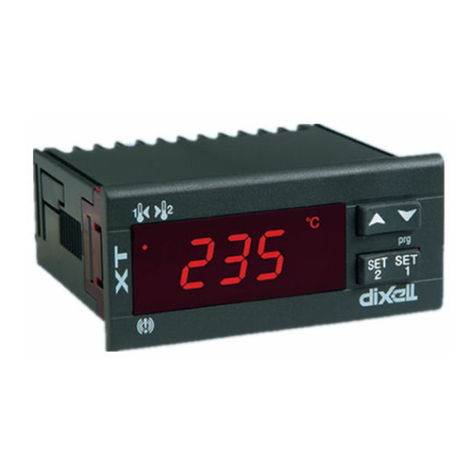

dixell XT130C Mode d’emploi
