Dirt Devil DD2502 Manuel utilisateur

700W

220-240V~50/60HZ

CYCLONE

VACUUMCLEANER

ITEM: 871125247533

A.I.&E. Adriaan Mulderweg 9-11

5657 EM Eindhoven, The Netherlands

DD2502

YEAR

GUARANTEE

9 M

1,8L

4,5KG

79dB

Points de collecte sur www quefairedemesdechets.fr

Cet appareil,

ses accessoires,

piles et cordons

se recyclent

À DÉPOSER

EN MAGASIN À DÉPOSER

EN DÉCHÈTERIE

FRFR

INSTRUCTION MANUAL

1.8 LITER

[UK] INSTRUCTION MANUAL

BAGLESS SINGLE CYCLONE

VACUUM CLEANER

ITEM NO: 871125247533

MODEL: DD2502 / V8227

IMPORTANT SAFETY INSTRUCTIONS

This appliance should only be used for domestic cleaning and not

for commercial or industrial use. Please ensure that this guide is fully

understood before operating the appliance.

WARNING: DANGER TO THE PERSON!

IMPORTANT: Damage to the appliance!

In addition we offer the following safety advice:

LOCATION

• Do not use or keep this product outside when it is raining.

• Do not store the appliance near hot ovens or heating appliances.

• Store your vacuum cleaner in a cool, dry area. If lters have been

cleaned as per user guide instructions ensure they are thoroughly

dry before storing away.

MAINS LEAD

• Do not allow the mains lead to become strained or run this

appliance over it.

• If the electrical cable becomes damaged, the complete cable

assembly must be replaced. Do not attempt this task yourself.

Contact the local retailers.

• Agency service: To ensure the continued safe and efcient

operation of this appliance we recommend that any servicing

or repairs are only carried out by an authorized Agency service

engineer.

CHILDREN

• This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance in

a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• This appliance can be used by children aged from 8 years and above.

Scan QR-Code for

extended manual

PERSONAL SAFETY

• The plug must be removed from the wall socket before cleaning or

maintaining the appliance.

• Never modify the cleaner in any way.

• Never use in the presence of explosive liquids or vapors.

•Never pick up inammable or poisonous liquids such as petrol,

copier toner or other volatile substances. Never pick up acids,

asbestos or asbestos dust.

• Repairs to electrical appliances are only to be undertaken by

trained personnel.

• Unprofessional repairs can be dangerous for users.

• The appliance must never be left running when unsupervised.

PRODUCT SAFETY

•Never use the appliance without the lters being installed.

•Never use the appliance to vacuum hot ashes, broken glass, sharp

objects or liquids.

•To protect against re, electric shock and personal injury do not

immerse cord, plug or cleaner in water or other liquid.

• This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities, or

lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a

person responsible for their safety.

• Cleaning and user maintenance shall not be made by children

without supervision.

• If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualied persons in

order to avoid a hazard.

• Always switch off the vacuum cleaner before disconnecting or

connecting the hose and accessories.

• Keep all openings clear and free from debris as this may affect the

airow/suction.

• Do not use the appliance to clean animals or people.

ELECTRICAL REQUIREMENTS

• Check that the voltage on the rating plate corresponds with your

house electricity supply which must be A.C (alternating current).

PRODUCT DESCRIPTION

Features

1. Separator 6. Dirt bin lid release clip

2. Hose entry point 7. Dirt container

3. Dirt container release button 8. Carry handle

4. Power On/Off button 9. Cord rewind button

5. Post motor lter cover 10. Post-motor lter cover release clip

HOW TO INSTALL / OPERATE THE MACHINE

Before you start

• Always switch off and unplug the vacuum cleaner before

connecting or disconnecting the hose/attachments, or removing

and emptying the dirt container.

• The vacuum cleaner is equipped with a thermal cut-out. If for

any reason the vacuum cleaner does overheat the thermostat will

automatically turn the vacuum cleaner off. If this happens, switch

the vacuum cleaner off and unplug from electrical socket. Remove

and empty the dirt container and also check the vacuum cleaner for

blockages. Allow the vacuum cleaner to cool for approximately

1 hour (if you have cleaned the lters please wait 24 hours for the

lters to fully dry before putting back into the machine).

• Clean the pre-motor lter every time the dirt container is emptied

and replace the lters every 12 months.

• If the vacuum cleaner is blocked, switch off and unplug before

removing the blockage.

ASSEMBLING YOUR MACHINE

IMPORTANT: The base of the vacuum cleaner should always

be positioned at on the oor when starting and in use. The

dirt container should be locked into place before lifting the

vacuum cleaner by the carry handle.

1. Press both buttons at the end of the hose and push hose into the

hose entry point.

2. Insert the hose grip into the telescopic extension tube.

3. Press the button on the telescopic extension tube and adjust to

required length.

4. Insert the other end of the telescopic extension tube into the

oorhead.

5. Fully unwind the power cord. A yellow mark on the cord indicates

the recommended cord length. Do not exceed the cord beyond the

yellow mark.

6. Plug into mains and press the On/Off button to switch the machine

on.

CAUTION: When unwinding the power cord always pull out to

the yellow marker but not further.

HOW TO USE

Carpets

Hard oors

7. For use on carpets, click rocker switch forward for use on hard

oors click rocker switch back.

8. A: Raise brushes for carpets. B: Lower brushes for hard oors.

9. Slide vent cover on hose grip open to reduce suction if required.

USING YOUR ACCESSORIES

10.Choose an accessory (combi brush / parquet brush / 3-in-1 crevice

nozzle)

11. Push accessory onto the telescopic extension tube or hose.

STORAGE

CAUTION: Make sure to hold the cord with your other hand to

prevent injury when rewinding.

12.Press the cord rewind button to retract the cord into the vacuum

cleaner.

13.Place the oorhead into the parking slot on the back of the vacuum

cleaner for storage and carrying.

EMPTYING AND CLEANING THE DIRT CONTAINER

IMPORTANT: Always switch off and unplug the vacuum cleaner

from the electrical socket before assembling, opening or

emptying the dirt container, or before connection / disconnecting

the attachments. Check the pre-motor lter every time you empty

the dirt container and tap against a bin to remove dirt/debris if

required. Do not use your vacuum cleaner without all of the lters

in place.

The motor is equipped with a thermal cut-out. If for any reason

the unit should overheat, the thermostat will automatically turn

the unit off.

14.Remove dirt container by pushing down the dirt container release

button and lifting the dirt container.

15.Hold dirt container over a bin. Pull the dirt release clip at the bottom

of the container, the dirt release door will open allowing dirt/debris

to fall out.

CLEANING THE PRE-MOTOR FILTER AND SPONGE

16.Lift the dirt bin lid release clip.

17.Lift the pre-motor lter and sponge to remove from the dirt

container.

18.Rap the pre-motor lter and sponge against a bin to remove any

dirt/debris.

19.Separate the sponge and lter and rinse under water (Max 40°C).

20.Leave to dry for 24 hours or until fully dry before placing back in the

machine.

CLEANING THE SEPARATOR

CAUTION: Incorrect tting of the separator cap will reduce

suction.

21.Lift the dirt bin lid release clip.

22.Lift the pre-motor lter and sponge to remove from the dirt

container.

23.Using central grips lift to remove separator from dirt container.

24.Twist grips clockwise and remove cap from separator.

25.Tap the separator against a bin to remove any dirt or debris.

REFITTING THE SEPARATOR

IMPORTANT: Incorrect tting of the separator will reduce suction.

26.Replace the separator cap, twist clockwise to lock.

27.Replace separator into dirt container, make sure the rectangular

hole in the dirt container lines up with the rectangular hole on the

separator.

POST-MOTOR FILTER MAINTENANCE

IMPORTANT: The post-motor lter is designed to offer long life

with no maintenance. The lter should be checked periodically

and when heavily discolored it should be replaced. Please do not

wash, scrub or brush the lter as this will damage the lter.

28.Push the post motor lter cover release clip to the right to remove

the post motor lter cover.

29.Pull the post motor lter to the left and remove the post motor lter.

30.Check the post motor lter for discoloration. Do not wash the post

motor lter.

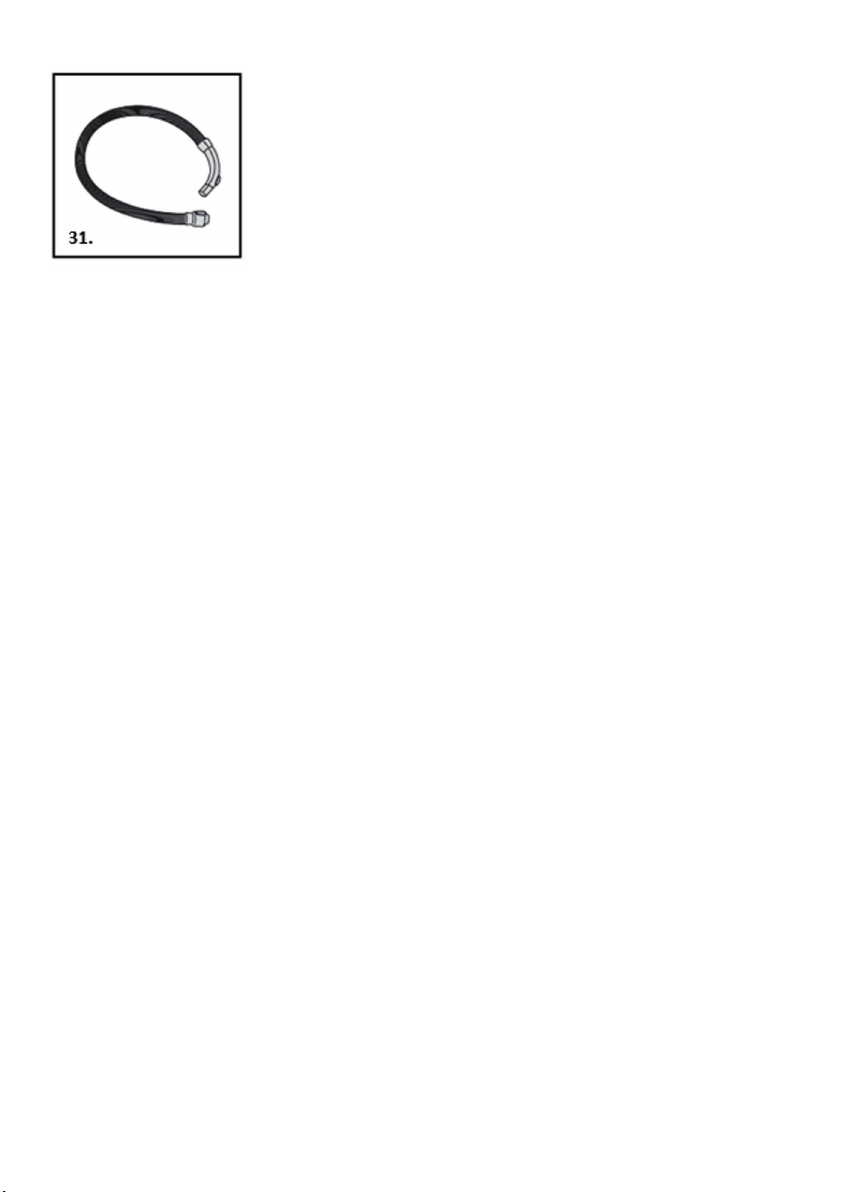

Removing blockages from the hose

31.Remove the hose from the vacuum cleaner and telescopic

extension tube. Remove any blockage by inserting a wire coat

hanger into the hose.

NOTE: To test for a blockage in the hose, drop a small ball of

paper into the hose. The paper will drop through if the hose is

clear.
