Directive Systems & Engineering DSEFO222-22 Manuel utilisateur

DSEFO222-22 Rev 2/21

Directive Systems & Engineering

2702 Rodgers Terrace

Haymarket, VA 20169-1628

www.directivesystems.com

703-754-3876

22 Element 3.9 wl. K1FO Designed Yagi, Model DSEFO222-22 (w/boom sag)

D1 D8 D9 D15 D16 D20

D11 D12 D17D5 D6

TRUSS BOOM CLAMP

BRACKET TRUSS BOOM CLAMP

BRACKET

28'-3/4"

BOOM TO MAST PLATE

LOCATION

ELECTRICAL SPECIFICATIONS

Frequency range: MHz ...................... 222-223

Gain: dBd........................................... 15.8

Impedance: Ohms.............................. 50

Connector type................................... Type N (F)

Front -to- back ratio: dB...................... 22

SWR: Typical at resonance................ 1.12:1

Beamwidth 3dB: degrees

E- Plane ................................. 23º

H- Plane ................................. 24º

Sidelobe level: decibels

1st E- Plane ............................ -17.5

1st H- Plane ............................ -15.5

Power rating, Continuous: Watts ...... 1500

Stacking Distance: ft.(m)

E- Plane.................................. 11’ (3.353)

H- Plane................................. 10’4” (3.150)

MECHANICAL SPECIFICATIONS

Boom length: in. (m.)........................... 28’3/4” (8.553)

Turning radius: in. (m.)........................ 17’ (5.182)

Weight Assembled: Lbs (kg.).............. 13 (5.90)

Max mast size: in. (cm.)....................... 2”(5.08)

Wind surface area: sqft (m. ) .............. 3 (.279)

Wind Survival: Mph (km/hr)................. 90+ (150)

BEFORE INSTALLING YOUR NEW ANTENNA, PLEASE BE SURE

TO READ THE ENCLOSED WARNING PAMPHLET.

P a g e | 2

DSEFO222-22 Rev 2/21

PARTS LIST

Note: All hardware is Stainless Steel unless otherwise noted.

Anti-Seize Compound - Apply a small amount of the supplied Anti-Seize Compound to the aluminum joints and

to the threads of the U-Bolts to prevent galling.

CAUTION: While we strive to remove all burrs from all machined parts, there is always the possibility of

sharp edges. We strongly suggest checking the edges and use a fine file, or 400 grit sandpaper,

to remove any burrs that may have been left.

Tools needed: #2 Phillips screwdriver

¼” flat blade screwdriver

soldering gun or large iron

rosin core solder

large needle nosed pliers

keeper installation tool (supplied with kit)

ruler with metric millimeter markings

marking pencil

Boom Boom Sag Hardware Bag

1 1/4"OD x 0.058" x 72" rear (Black on one end) 1 Boom Sag Bracket 2

w/ coax/balun assy attached 2" Long tangent U-bolt 1

1 3/8"OD x 0.058" x 72" rear mid (Black / Red) 1 2"Saddle 1

1 1/2"OD x 0.058" x 72" center (Red / Blue) 1 Aluminum spacer 2

1 3/8" OD x 0.058" x 71 1/2" front mid (Blue / Green) 1 10-32 Machine screw 2

1 1/4"OD x 0.058" x 69 1/4"front (Green on one end) 1 10-32 NyLock® nut 2

5/16" Split lock washer 2

Boom Sag 5/16" Flat washer 6

72"x 3/4" aluminum flattened on one end 2 5/16" Hex nut 2

48"x 5/8" aluminum flattened on one end 1

5/16" NyLock® nut 2

24"x 5/8" aluminum flattened on one end 1 3/4" Hose clamp 2

Element bundle Boom to Mast Hardware Bag

3/16" elements 22 5/16" x 2"U-bolt 2

Brass T-arms 2 2"Saddle 2

5/16" Nut 4

Hardware Bag 5/16" Split lock washer 4

8-32 x 1 3/4" Machine screw 4 5/16" Flat washer 4

#8 Split lock washer 4 1/4" x 1 1/2"U-bolt 2

#8 Hex nut 4 1 1/2" Saddle 2

Brass shorting bars 2 1/4" Nut 4

Hex wrench 1 1/4" Split lock washer 4

1 1/2" Hose clamp 4 1/4" Flat washer 4

3/16" Element insulators 46

3/16" Keepers 48 Boom to Mast plate 1

1 1/4"Black End Caps 2 Anti Seize Compound 1

Element assembly tool 1

Assembly instructions 1

P a g e | 3

DSEFO222-22 Rev 2/21

ASSEMBLY INSTRUCTIONS

1) The antenna components should be removed carefully from the shipping container and

the individual parts counted and checked for completeness. Be careful to check all tubing

pieces for elements and hardware that may be packed inside.

2) The boom consists of five pieces of tubing. The rear boom section has the driven

element connector and balun already preassembled and attached. The larger diameter rear-

mid boom section (with black on one end and red on the other is next. This is followed by the

center boom section which has a red mark on the rear and a blue mark on the front. The front

mid boom section has a blue mark on the rear and a green mark on the front. Last, the front

boom section has only a green mark on the rear where it attaches to the front-mid section.

3) Install all of the element insulators by pressing them into the holes in the boom. They

will snap in place and should not fall out. We include a couple of extras just in case!

4) The element bundle contains all of the elements needed for assembly. Take time to

inventory each one and check off each dimension with Table 1. Some elements vary by 1 or

2mm in overall length, so extreme care in measuring is called for here. Arrange elements in

order of descending size and mark each element with a scribe for proper location of the

"keeper" (see Table 1 and Figure 1). The reflector is the longest element, and each

succeeding director is slightly shorter. DIR # 20 is the shortest. The keeper must be installed

as shown in Figure 2. Using the aluminum tubing tool supplied, slide the keeper to within 1/8"

or 3 mm. of the scribed line. Final adjustment will be done on the antenna. Note that the

keeper is a one-way device only. If you go past the scribed line you must continue to the

element end and start the process over. Place the first keeper on all elements.

See pictures below for keeper orientation. The front side, with the tabs going inward, is the

side to push onto the element. The rear side, with the tabs going outward, is the side that

faces you. It is the side that goes face down into the element tool.

Keeper Front side Keeper Rear side

P a g e | 4

DSEFO222-22 Rev 2/21

5) You are now ready to install the elements on the boom. You must start at one end and

work your way, in order, to the far end of the boom. Lay out the elements in ascending or

descending order as appropriate. Install a black insulator in each side of the boom piece at the

starting end, and slide the correct element through the two insulators. Obtain a second keeper

and install that keeper on the opposite end of element #1 from the pre-installed keeper.

(See Figure 3) Check that the element is centered before you snug up both keepers. A

positioning error of +/- 1mm. or 0.040" is acceptable. At this point, if you tighten the keepers

and the element is not centered, you will have to cut one of the keepers to remove the element

and start again. Some extra keepers are supplied, but care is definitely required here. Check

your work as you go! Proceed with the next element in similar fashion. Note that the driven

element is brass tube, but otherwise is installed same as the other elements. Check off each

element on Table 1 to monitor your progress. Double-check element lengths one last time

before final installation on the boom.

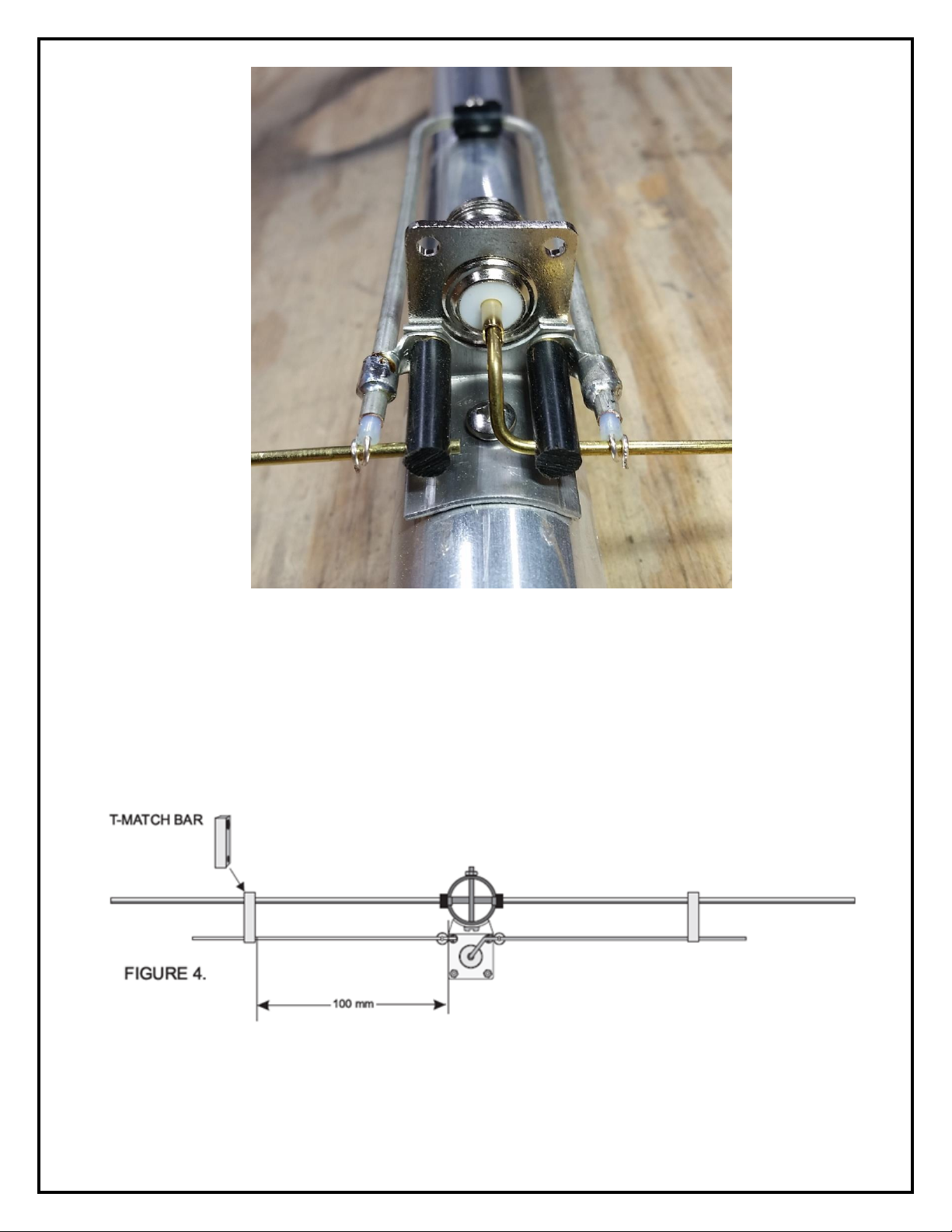

6) The driven element and T-Match assembly are built as shown in Figures 4 & 5.

7) Locate the two brass T-arms. Both are preformed- one is straight with a flattened end,

while the other is bent and flattened on one end. Locate also the brass T- arm shorting bars,

and position them on the brass driven element as shown in Figure 4.

8) Referring to photo 1, push the pre-formed T-arm into the hole in the standoff insulator

which has the hole rotated up slightly for easier installation.

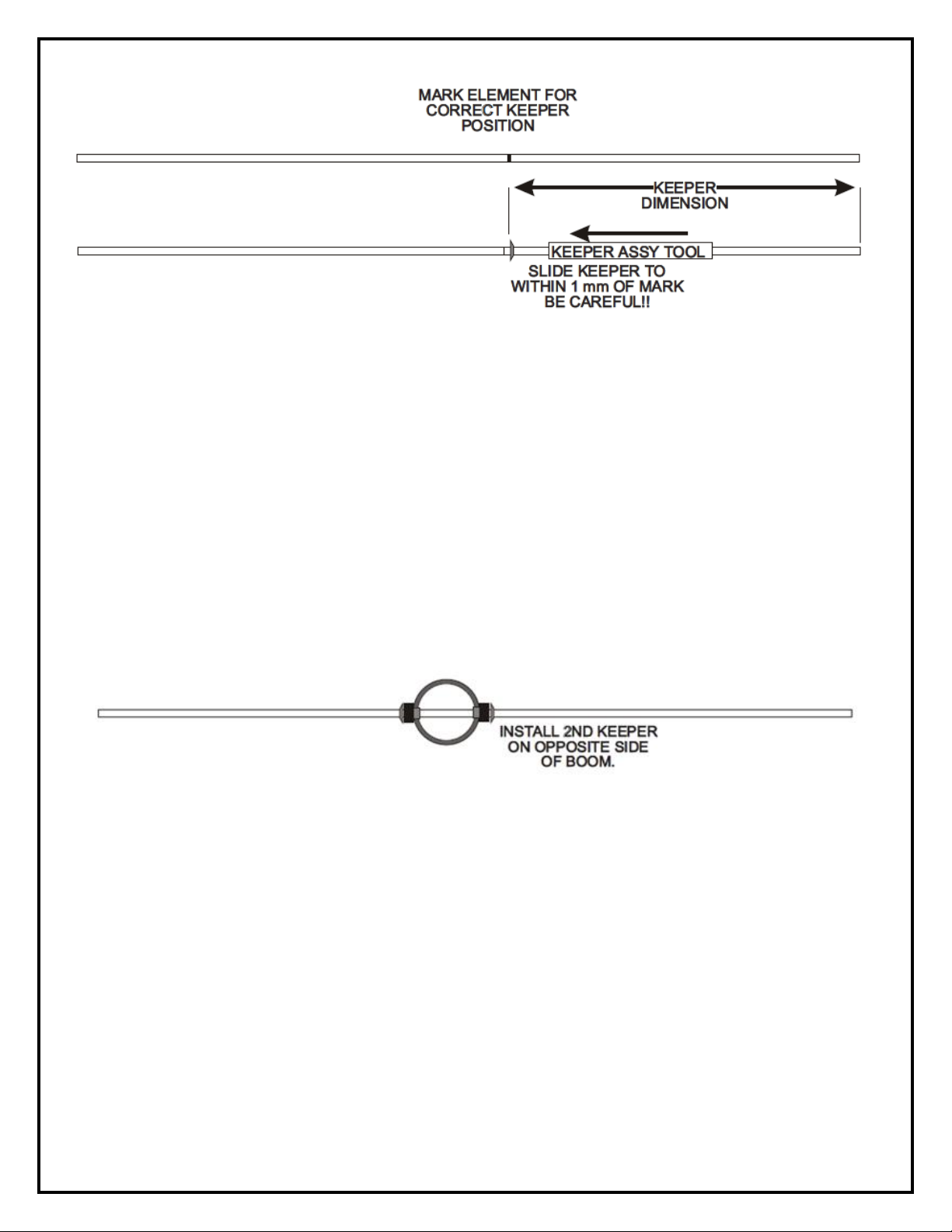

FIGURE 1.

FIGURE 2.

FIGURE 3.

P a g e | 5

DSEFO222-22 Rev 2/21

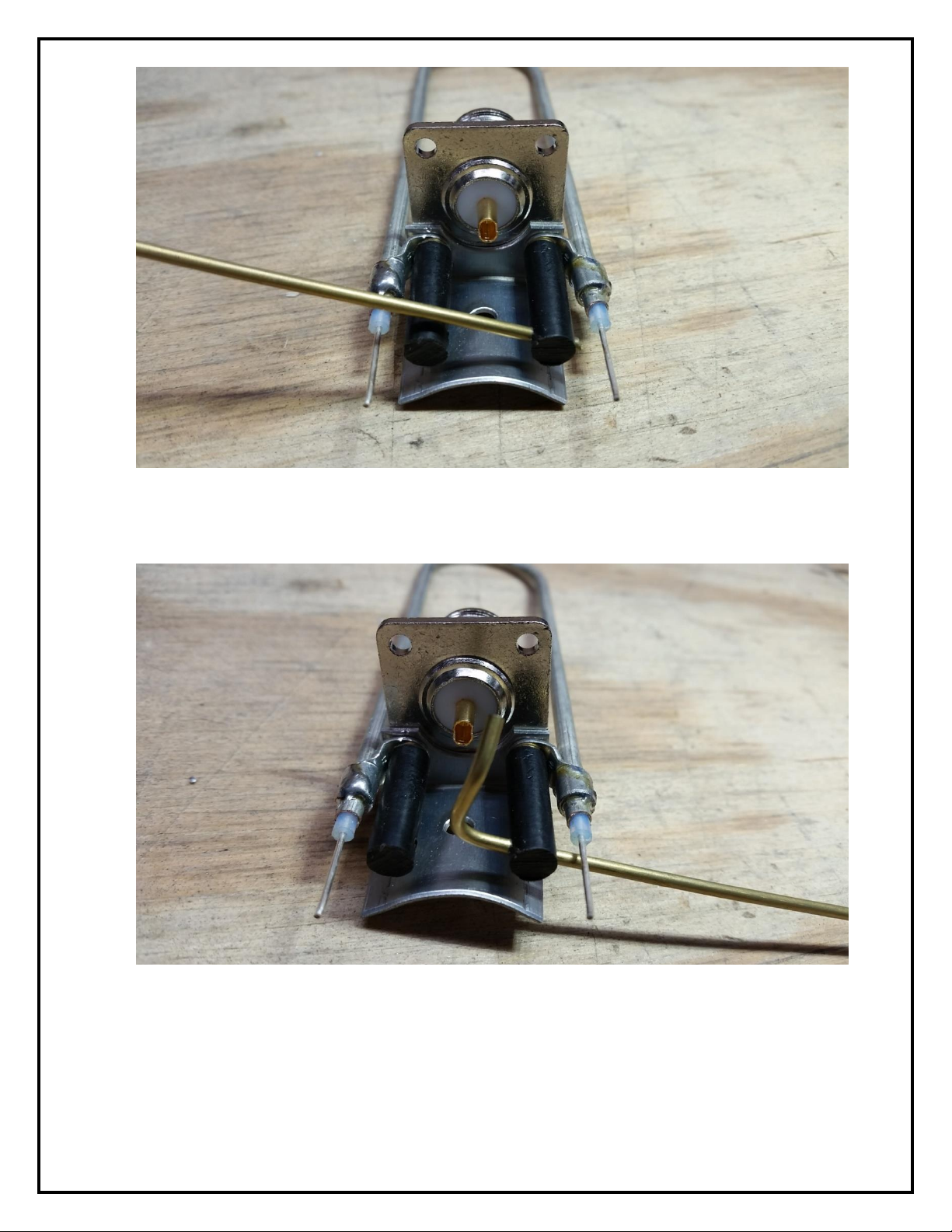

Photo 1

9) Push the T-arm all the way through as shown in photo 2.

Photo 2

10) Once the T-arm is inserted all the way as in photo 2, slightly loosen the screw holding

the insulator using a #1 Phillips screw driver.

11) Rotate the T-arm so the end of the T-arm fits into the solder cup on the N connector

(see photo 3) and tighten the Phillips screw.

P a g e | 6

DSEFO222-22 Rev 2/21

Photo 3

12) Next, insert the straight T-arm into the other standoff insulator until it is flush with the

inside edge (see photo 4).

Photo 4

13) Last, wrap the balun center conductor around the T-arms and solder (see photo 5)

P a g e | 7

DSEFO222-22 Rev 2/21

Photo 5

14) Slide the T-arm shorting bars over the driven element and T-arms. Measuring from the

boom to the inside of the shorting bar, the dimension below is a good starting point; however,

to ensure the minimum SWR at your operating frequency, we recommend using an antenna

analyzer or SWR bridge to obtain the lowest SWR. Note: The ends of the T-arms that extend

past the shorting bars can be bent up toward the driven element, or down away from the

driven element to obtain the best SWR.

P a g e | 8

DSEFO222-22 Rev 2/21

BOOM SAG SUPPORT ASSEMBLY INSTRUCTIONS

15) Last is the boom sag brace assembly. We recommend attaching the antenna to a

temporary support to get the adjustments done before erecting on your tower.

16) The boom to mast plate mounts between D11 and D12, using ¼” X 1 ½” U-bolts,

saddles, lock washers, flat washers and nuts. The exact position should be determined by

balance with your feed line in place. If unsure, just center it between D11 and D12.

17) Mount the antenna to a mast and assemble the boom sag long tangent U-bolt by

placing the saddle on the legs of the U-bolt. Next slide on the ½” spacers, then a 5/16” flat

washer, lock washer and nut. This assembly should be about 24” above the antenna.

18) Next, locate the two ¾” X 72” long boom sag struts and place a ¾” hose clamp over the

slits. Then place a flat washer on each leg of the long tangent U-bolt you just installed and

place the flattened end of one of the boom sag struts on each leg, followed by another flat

washer and a nylon lock nut. DO NOT TIGHTEN THE NUTS TO A POINT WHERE THE

BOOM SAG STRUTS CAN’T MOVE.

Mast Boom Sag Support

19) Install a boom sag support bracket on the front of the rear boom section (marked in

black), placing the bracket so that it is against the next boom section.

20) Locate the shorter 5/8” X 24” boom sag strut and slide the strut into the ¾” strut coming

from the mast going to the rear. Attach the end of the boom sag to the boom sag bracket using

a 10-32 X 1” screw and nylon lock nut. Do not over tighten. Snug the hose

clamp slightly over the slits to hold it in place.

21) Locate the 5/8” X 48” boom sag strut and slide the strut into the ¾” strut coming from

the mast going to the front. Attach the end of the boom sag to the boom sag bracket using a

10-32 X 1” screw and nylon lock nut. Do not over tighten. Snug the hose

clamp slightly over the slits to hold it in place.

P a g e | 9

DSEFO222-22 Rev 2/21

22) Assemble the front boom sag by placing the boom sag support bracket over the rear of

the front boom section (marked with green), placing the bracket so that it is against the next

boom section. Complete the assembly as you did for the rear. Once the boom is adjusted for

no sag, tighten the ¾” hose clamps securely.

23) If you are installing multiple antennas, mark each boom sag so it stays with the antenna

it came off of.

If you are installing multiple antennas, please be sure that you build each

antenna with the same T-match wire orientation. In the above drawing, the center pin

goes to the right hand side of the antenna as viewed from the back of the connector.

Make sure both antennas do the same! Proper phase relationship is very important

here!

If you wish to check your work, now is the time to apply power to the antenna. Any

workaround RF energy should be done carefully. We do not recommend standing next to an

antenna with many watts of 222 MHz energy radiating around it. The best method involves

using a low power return loss bridge and SWR indicator along with a signal generator.

A power level of 1milliwatt is all that is required. The T-arm shorting bars may be adjusted with

power applied and the point of best match can be found quickly, easily and more accurately

than that with an amateur transmitter and wattmeter connected. Generally, good watt meters

can reliably indicate SWR down to about 1.2:1. A high directivity bridge or coupler can

increase accuracy, but 1.2:1 is more than adequate for any installation.

The aperture of this antenna is large enough, so that you must elevate the antenna a

minimum of about 8 feet or 2.5 m above the ground. Point the antenna so that there are no

"reflectors" or obstructions for 100 feet directly in front of the beam. A better method would be

to point the antenna straight up toward the sky. Support the antenna on a wooden or metal

pole or tube, and tie or guy the antenna boom with very light string or line. Now the driven

element will be at arm level, and ground effects are removed. Most locations are pretty clear

straight overhead as well!

Install a short length of coax (1/2 wave is ideal ...The antenna impedance will

repeat each half wave from the antenna regardless of coax imperfections) between the coax

connector and your bridge or wattmeter. If you utilize your 222 MHz transmitter as an RF

source, apply power and observe the reflected power. Turn off the power and adjust the T-

Match bars equally in small increments - 1/8" or 3 mm. is a good starting point. Apply power

again and observe results. If it got better, keep going. If it degraded, change the direction of

your T-Match movement program and recheck your SWR. At some point, you will observe a

null in reflected power. When you have found it, tighten the set screws on both the driven

element and the T-arms with the supplied hex wrench.

Brass, copper and tin lead solder will oxidize in the weather and over the year’s performance

can degrade. It is a good idea to spray your handiwork with a good grade of clear paint

sealant. As a general rule, the slower drying sprays tend to be more enduring. Rustoleum

"Clear Seal" or Krylon clear sprays are recommended. A few light coats work better than one

big one. Be sure to cover the connector before spraying.

DO NOT, UNDER ANY CIRCUMSTANCES, APPLY ANY TYPE OF SEALANT OR COATING TO THE DRIVEN

ELEMENT, T-ARMS OR CONNECTOR ASSEMBLY, OTHER THAN KRYLON® CLEAR COAT. ANY OTHER

COATING WILL ADVERSELY AFFECT THE SWR AND VOID YOUR WARRANTY.

P a g e | 10

DSEFO222-22 Rev 2/21

You are now ready to install your new antenna. Be careful when you dress the coax

down the boom. Keep the coax away from any elements. Tape the cable tightly and securely

to the boom. The Boom-to Mast plate has V shaped grooves to fit mast sizes up to 2"

maximum. The 1/4" U-bolts, flat washers, lock washers and nuts are used to attach the boom

to the mounting plate and the 5/16” U-bolts, flat washers, lock washers and nuts are used to

attach the antenna to your mast. It is a good idea to apply a small amount the supplied anti-

seize compound to the stainless steel threads under the hex nuts to prevent galling of

stainless steel.

This will complete the assembly of your DSEFO222-22. The construction of this

antenna will provide many years of consistent performance with no degradation of

performance due to corrosion and weathering.

Table 1

Element Description

Element

Length mm.

+/- 1mm

Keeper Half

Length mm.

Reflector 684 324

Driven Element 650 308

Director #1 631 298

Director #2 616 291

Director #3 602 284

Director #4 595 280

Director #5 589 277

Director #6 584 275

Director #7 581 271

Director #8 577 270

Director #9 574 268

Director #10 571 266

Director #11 568 264

Director #12 566 263

Director #13 564 262

Director #14 563 262

Director #15 562 262

Director #16 558 262

Director #17 557 262

Director #18 556 261

Director #19 555 260

Director #20 554 260

Table des matières

Autres manuels Directive Systems & Engineering Antenne

Directive Systems & Engineering

Directive Systems & Engineering DSEFO144-15 Manuel utilisateur

Directive Systems & Engineering

Directive Systems & Engineering DSEDPM144-5LVA Manuel utilisateur

Directive Systems & Engineering

Directive Systems & Engineering DSEH12-27 Manuel utilisateur

Directive Systems & Engineering

Directive Systems & Engineering DSE2424LYRMK Manuel utilisateur

Directive Systems & Engineering

Directive Systems & Engineering Yagi DSE3319LYCEL Manuel utilisateur

Directive Systems & Engineering

Directive Systems & Engineering DSEFO144-12XPOL Manuel utilisateur

Directive Systems & Engineering

Directive Systems & Engineering DSE2424LYRM Manuel utilisateur

Directive Systems & Engineering

Directive Systems & Engineering DSE3333LYA Manuel utilisateur

Directive Systems & Engineering

Directive Systems & Engineering DSE144-6RS Manuel utilisateur

Directive Systems & Engineering

Directive Systems & Engineering DSE1245LY Manuel utilisateur

Directive Systems & Engineering

Directive Systems & Engineering DSE3-50 Manuel utilisateur

Directive Systems & Engineering

Directive Systems & Engineering DSE2314LYRM Manuel utilisateur

Directive Systems & Engineering

Directive Systems & Engineering DSE1345LYK Manuel utilisateur

Directive Systems & Engineering

Directive Systems & Engineering DSE3318LYDRM Manuel utilisateur

Directive Systems & Engineering

Directive Systems & Engineering DSE1245LYK Manuel utilisateur

Directive Systems & Engineering

Directive Systems & Engineering DSE3333LY Manuel utilisateur

Directive Systems & Engineering

Directive Systems & Engineering DSE1345LY Manuel utilisateur

Directive Systems & Engineering

Directive Systems & Engineering DSE2325LYK Manuel utilisateur

Directive Systems & Engineering

Directive Systems & Engineering DSE2455LY Manuel utilisateur

Directive Systems & Engineering

Directive Systems & Engineering DSE3-50LVA Manuel utilisateur

Directive Systems & Engineering

Directive Systems & Engineering DSE976LY Manuel utilisateur

Directive Systems & Engineering

Directive Systems & Engineering DSE2455LYK Manuel utilisateur

Directive Systems & Engineering

Directive Systems & Engineering DSE2414LYRM Manuel utilisateur

Directive Systems & Engineering

Directive Systems & Engineering DSEFO146-12 Manuel utilisateur

Manuels Antenne populaires d'autres marques

Alfa Network

Alfa Network APA-L01 Manuel utilisateur

Naval

Naval PR-422CA Manuel utilisateur

Feig Electronic

Feig Electronic ID ISC.ANTH200/200 Series Manuel utilisateur

TERK Technologies

TERK Technologies TV44 Manuel utilisateur

HP J8999A Manuel utilisateur

MobilSat

MobilSat MSP-S Manuel utilisateur

Steren

Steren ANT-UHF 13 Manuel utilisateur

Novatel

Novatel 600-G Manuel d'utilisation

Radio Shack

Radio Shack Amplified VHF/UHF/FM Indoor Antenna Manuel utilisateur

TRENDnet

TRENDnet TEW-AO12O Manuel utilisateur

Radio Shack

Radio Shack 15-1837 Manuel utilisateur

CommScope

CommScope CMAX-OMFX-43M-I53 Manuel utilisateur

Ramsey Electronics

Ramsey Electronics DAP25 Manuel utilisateur

COBHAM

COBHAM SAILOR 800 VSAT Manuel d'utilisation et d'entretien

Trango Systems

Trango Systems AD900-9 Manuel utilisateur

Steren

Steren ANT-100 Manuel utilisateur

Proxim

Proxim 5054-PA-23 Manuel utilisateur

IWCS

IWCS iriBelt II Guide de configuration
