Dual Band W5LUA Type Dish Feed, Model DSEDBFEED

This feed design is based on the work of Al Ward, W5LUA, and represents an efficient way to

use one dish on two different ham bands. Unlike earlier multi band feed designs, W5LUA’s

design is capable of good performance on both microwave bands in use. In addition, the

higher isolation of this design, between 10 & 5.7 GHz simplifies installation requirements by

eliminating the need, in many cases, for a protective relay on the 5.7 GHz port. Isolation runs

over 30 dB and is typically 40 dB.

Note: All hardware is Stainless Steel unless otherwise noted.

BEFORE INSTALLING YOUR NEW ANTENNA, PLEASE BE SURE

TO READ THE ENCLOSED WARNING PAMPHLET.

INSTALLATION INSTRUCTIONS

1) Unpack antenna feed assembly and observe the location of the connectors and probe

orientation. For horizontal polarization, the probes must be oriented parallel with the horizon.

(The connectors will stick out laterally on the antenna.)

P a g e | 2

DSEDBFEED Rev 10/20

2) Install the feed on your parabolic dish using the proper dimension of the focal point

(supplied with the dish) to the feed. Measure this distance from about 1/4 inch inside the open

mouth of the feed to the center surface of the dish. Our .6 m dish needs 11.25” from lip of the

feed to dish surface.

3) The dish feed SWR has been adjusted at the factory for maximum isolation between 10

GHz and 5.7 GHz. Do not try to adjust the 10 GHz or 5.7 GHz tuning slugs without proper

measuring equipment. All feeds are adjusted before shipment and are set for optimum

isolation. If you wish to adjust your feed for best VSWR, be aware that connecting cables can

introduce serious mismatch errors at these frequencies. The 3/4” tube tuning adjustment

affects 10 GHz primarily. The screw on the large diameter portion is for 5.7 GHz, but can

affect 10 GHz at certain positions. Use caution when tuning! Do not move this slug very far, or

serious degradation at 10 GHz will result.

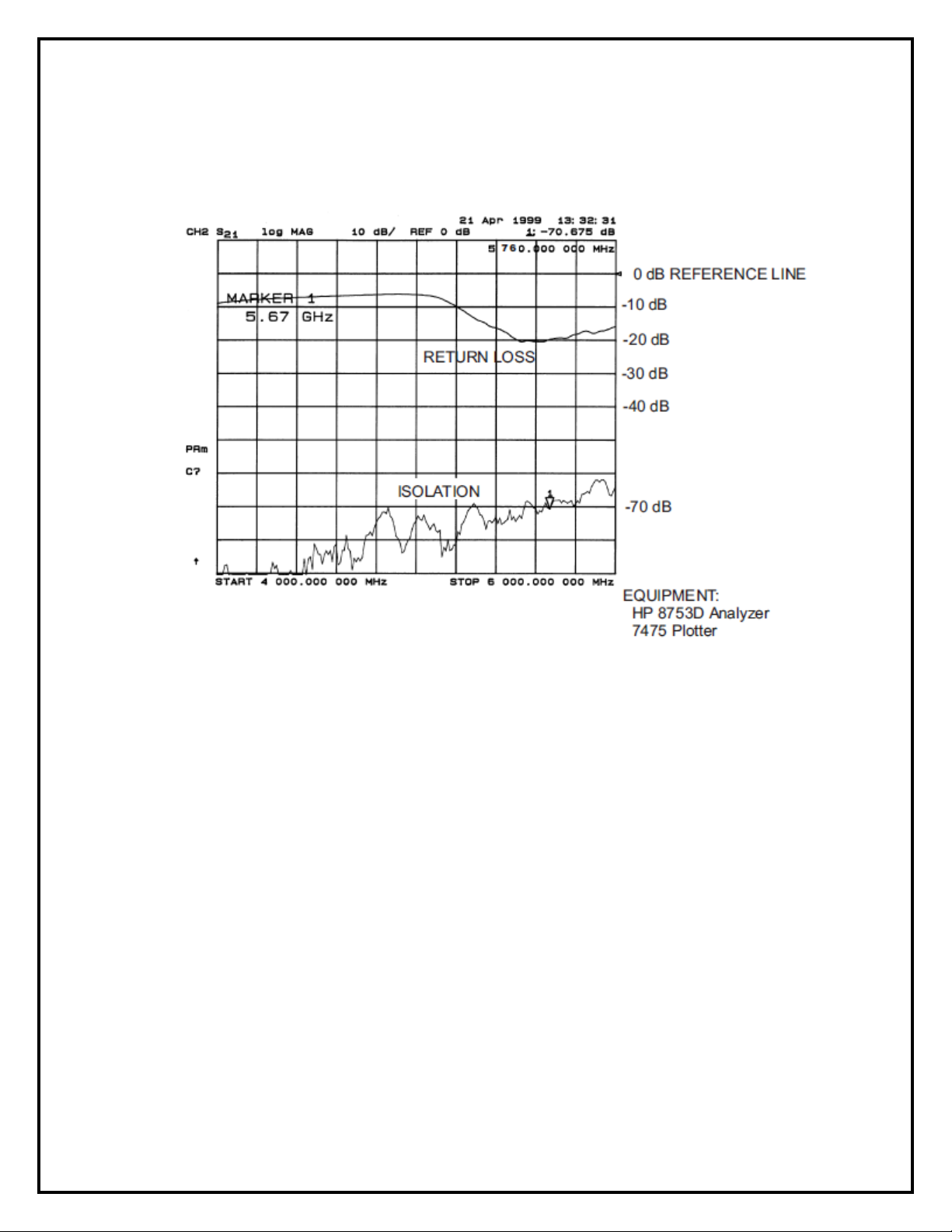

DUAL BAND W5LUA FEED FOR 5.76 & 10.368 GHz Amateur bands. Each plot displays the

VSWR (return loss) and isolation between ports for the respective band. The feeds are

optimized for 10 to 5.7 GHz isolation when shipped from the factory. Considerable effort has

been made to produce best isolation between the ports, while maintaining high return loss. It’s

all a trade-off!

10 GHz isolation is quite critical and can be affected by what the feed “sees”. It is always a

good idea to check port to port isolation whenever you adjust the feed location on your

parabolic reflector.

Normally, the dish will have little effect on port isolation when properly installed, but unwanted

reflections back into the feed can degrade the >30 dB isolation value. These plots were made

with the feed only in free space. Actual results should be the same unless there is blockage at

the mouth of the feed.

P a g e | 3

DSEDBFEED Rev 10/20

5760 MHz isolation is very high and is not influenced by much, since the 10 GHz waveguide

portion of the dual band feed is too small, and cannot support 5.7 GHz propagation. 70 dB is

typical.

The 5760 MHz VSWR is about -18 to20 dB or more when the 10 Ghz isolation is at optimum.
