Directed Directechs DB3 Manuel utilisateur
DB3 403.TL10
v2.32
2015 Toyota RAV4 (H Key)
Introduction 3
Vehicle function compatibilities 4
Pre-installation and application warnings 5
Key type 5
Wiring diagram 6
Locating components in the vehicle 7
Vehicle connections 8
Module programming 10
Note: The master key is REQUIRED to complete the module programming successfully. 10
Module programming for convenience only (skip transponder) 11
Connecting the module 11
LED diagnostics and troubleshooting 13
Soft reset 15
Hard reset 15
Feature programming 16
Feature and option list 17
Limited one year consumer warranty 18
Quick reference guide 19
Contents
3403.TL10 2.32 2015 Toyota RAV4 (H Key)
©2023 Directed. All rights reserved.
Introduction
DB3 is an all-in-one door lock and override module.
Warning!
This module can only be flashed and configured using DirectLink at www.directechs.com or using the Directechs
Mobile application for smartphones. Refer to “Connecting the module” for more information.
4403.TL10 2.32 2015 Toyota RAV4 (H Key)
©2023 Directed. All rights reserved.
Vehicle function compatibilities
This section lists all the functions compatible with this vehicle for the installation illustrated in this guide.
Note: The telematics features listed below (with an asterisk) ONLY apply when using SmartStart.
Auto Headlamp Shutoff
Parking Lights Control
Arm Factory Security
Disarm Factory Security
Door Lock Control
Door Unlock
Driver Priority Unlock
Control of aftermarket alarm with OEM remote
Immobilizer Bypass-Data No Key Req'd
Remote Start Takeover
SmartStart
Tach / RPM Output
Entry Monitoring ALL Door Pins
Entry Monitoring Hood Pin
Entry Monitoring Trunk/Hatch Pin
Factory Alarm Trigger Monitoring
Brake Status (foot brake)
Door Locks Status
E-Brake Status
Ignition Status
5403.TL10 2.32 2015 Toyota RAV4 (H Key)
©2023 Directed. All rights reserved.
Pre-installation and application warnings
START HERE This section highlights important information for this specific firmware and will assist in pricing accordingly, as
well as bringing awareness to any operational or vehicle limitations.
Compatibilities and Requirements
T-Harness
compatible T-Harness is not compatible. Keys required for
programming 1Keys required
for operation 0
Vehicle Takeover Refer to the Quick Reference Guide section for more details.
Firmware notes
Keysense wire: Make sure you do not connect the keysense wire in the installation for each of these vehicles or you will encounter
issues when attempting to start the vehicle.
Fuses: It is important to check that the fuses are positioned correctly in the module. Proper fuse positioning is displayed on each wiring
diagram.
Refer to the Vehicle connections section following the installation diagram.
Footnotes
[1] Hood pin: The installation of an aftermarket hood pin is only required on vehicles that are not equipped with a factory
hood pin, or if not supported in data.
[2] Tach wire: Optional connection required on some remote starters, which do not support a tach signal in D2D. Also note that, by
default, the tach is set to 1000 rpm on hybrid vehicles.
[3] Autolights Interrupt: Connection only required if the vehicle is equipped with automatic headlights.
[4] TPMS Ignition Interrupt: Depending on the vehicle's trim, the TPMS Ignition Interrupt connection may be required to obtain OEM
remote functionality during runtime.
Note: the TPMS light may flash during runtime.
Key type
Some Toyota 2010+ models have different encryption types. Please look at your key blade and identify the markings.
G-stamped keys Standard Key
H-stamped keys
H
For vehicles with H-stamped keys, see
the TL10 firmware.
For vehicles with G-stamped keys, see
the TL5 & TL7 firmware.
For vehicles with dot-stamped keys,
see the TL11 firmware.
Note: Some replacement keys
may not have any markings on
the key.
6403.TL10 2.32 2015 Toyota RAV4 (H Key)
©2023 Directed. All rights reserved.
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram ( ).

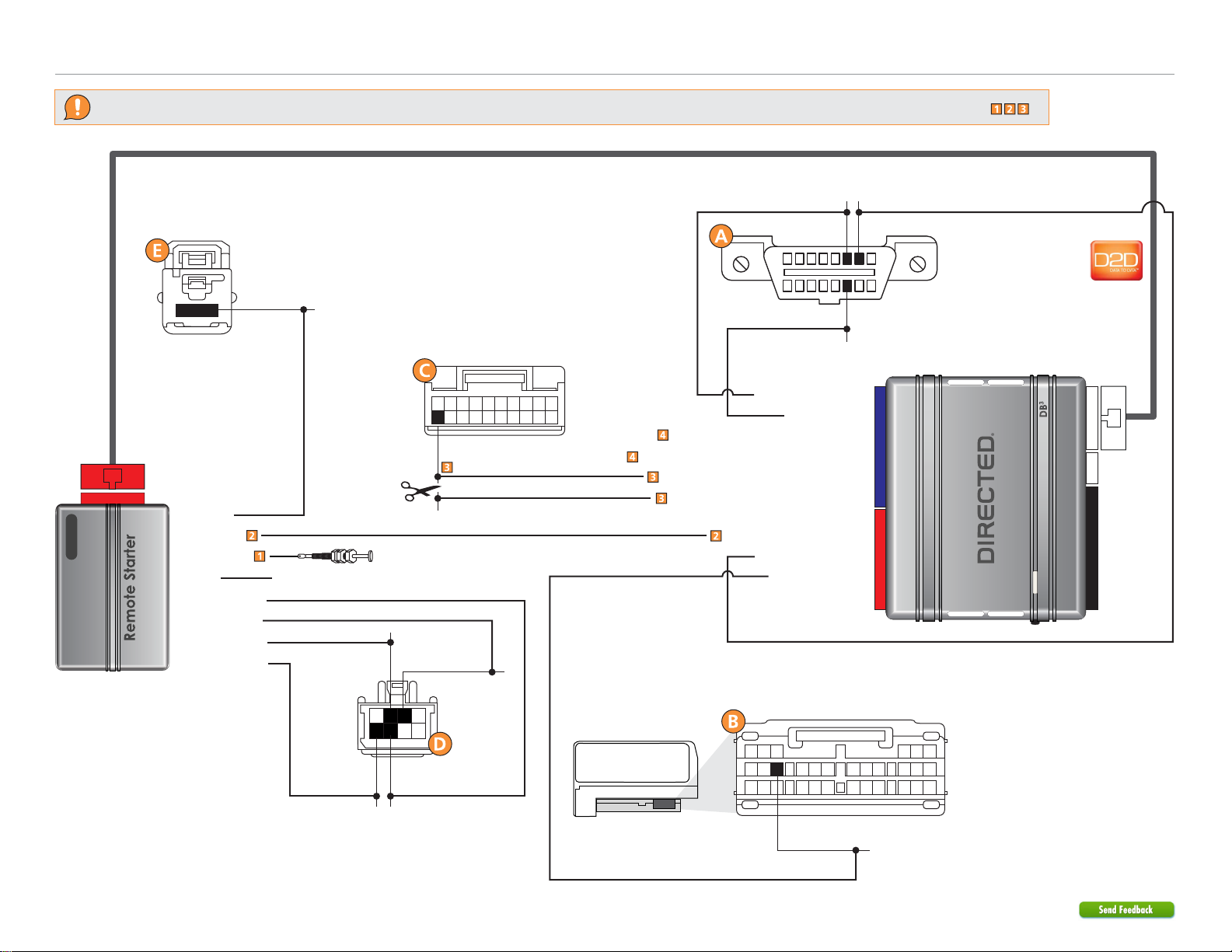

Wiring diagram
D2D Port
HS CAN High: Tan/Black: 3
HS CAN Low: Tan: 4
SIL Data: Yellow/Black: 10
RDA: Orange/Black: 11
1412
10 42
XKD2D65
16
8
9
1Diagnostic
Connector
OBDII
HS CAN Low: White, pin 14
HS CAN High: Black, pin 6 SIL Data: Green, pin 7
(AC) Tach Output: Violet/White: 5
Body ECU Connector
(underside conn. of ECU)
RDA: Lt. Blue or
Green, pin 16
Autolight Interrupt (conn. side): Orange/Red: 10
Autolight Interrupt (veh. side): Yellow/Red: 11
Cut
Autolight: Green, pin 20
FUSES
BODY ECU
4
56
161718
282930
131415
25
26
27
10
11
12
22
23
24
123
789
192021
Headlight Switch
456
1617
18
131415
10
1112
123
789
1920
(+) Ignition 2:
Pink, pin 8
(+) Ignition 1:
White, pin 3
(+) Accessory:
Red, pin 7
(+) 12V:
White, pin 1
67
1234
85
(+) Starter:
White, pin 2
(+) Ignition 1 Output
(+) Accessory Output
(+) Starter 1 Output
(-) Ground (-) Ground
(+) Ignition 2 Output
(+) 12V input
1
Dash Fuse Box
(white conn.)
Ignition Connector
TPMS Ignition Interrupt (conn. side): Yellow: 8
TPMS Ignition Interrupt (veh. side): Orange/Yellow: 9
6 7
14
(AC) Tach Intput
(-) Hood Pin Input Hood Pin
8403.TL10 2.32 2015 Toyota RAV4 (H Key)
©2023 Directed. All rights reserved.
Vehicle connections
The connection information listed below is specific to the 2015 Toyota RAV4 (H Key). Refer to “Pre-installation and application warnings” for a list of important notes.
Data 14-pin blue connector (H1)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H1/1 Light Green No Connection No Connection
H1/2 Violet/Yellow No Connection No Connection
H1/3 Tan/Black (DATA) HS CAN High OBD-Data Link Connector, white 16 pin plug, pin 6 Data Black
H1/4 Tan (DATA) HS CAN Low OBD-Data Link Connector, white 16 pin plug, pin 14 Data White
H1/5 Orange/Green (DATA) HS CAN High No Connection
H1/6 Orange/Brown (DATA) HS CAN Low No Connection
H1/7 Brown Relay N.O. No Connection No Connection
H1/8 Yellow Relay COM TPMS. Ignition Interrupt (connector side)
[4]
Passenger Kick, blue 20 pin plug, pin 13 Cut Tan (TPMS)
H1/9 Orange/Yellow Relay N.C. TPMS Ignition Interrupt (vehicle side) [4] Passenger Kick, blue 20 pin plug, pin 13 Cut Tan (TPMS)
H1/10 Orange/Red Relay N.C. Auto Light Interrupt (connector side) [3] Headlight Switch, black 20 pin plug, pin 20 Cut Green
H1/11 Yellow/Red Relay COM. Auto Light Interrupt (vehicle side) [3] Headlight Switch, black 20 pin plug, pin 20 Cut Green
H1/12 Brown/Red Relay N.O. No Connection No Connection
H1/13 Red (+) W2W Only - 12 Volt Dash Fuse Box, white 1 pin plug (3A), pin 1 + White (120A)
H1/14 Black (-) W2W Only - Ground (chassis ground)
Output 12-pin red connector (H2)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H2/1 Black/White (-) W2W Only - E-Brake Output Remote Starter
H2/2 Green/Black No Connection No Connection
H2/3 Green/White (-) W2W Only - Door Output Remote Starter
H2/4 Red/Black (-) W2W Only - Trunk Output Remote Starter
H2/5 Violet/White (AC) W2W Only - Tach Output [2] Remote Starter
H2/6 Gray (+) W2W Only - Brake Output Remote Starter
H2/7 Gray/Black No Connection No Connection
H2/8 Violet/Green No Connection No Connection
H2/9 Violet/Brown No Connection No Connection
H2/10 Yellow/Black (Data) SIL OBD-Data Link Connector, white 16 pin plug, pin 7 Data Green
H2/11 Orange/Black (Data) RDA Body ECU on back of dash fuse box, white 30 pin plug, pin 16 Data Lt. Blue or Green
H2/12 Blue/Red (-) W2W Only - Hood Output Remote Starter
9403.TL10 2.32 2015 Toyota RAV4 (H Key)
©2023 Directed. All rights reserved.
Input 10-pin black connector (H3)
Module Connects To
Conn./Pin Color Description Wire Location (+/-) Wire Color
H3/1 Green (-) W2W Only - Lock Input Remote Starter
H3/2 Blue (-) W2W Only - Unlock Input Remote Starter
H3/3 Red/White (-) W2W Only - Trunk Input Remote Starter
H3/4 White/Violet (-) W2W Only - Right Slidding Door Remote Starter
H3/5 Violet/Black (-) W2W Only - Left Slidding Door Remote Starter
H3/6 White/Black No Connection No Connection
H3/7 Pink/White (+) W2W Only - Pk Light Input Remote Starter
H3/8 Violet No Connection No Connection
H3/9 Pink (+) W2W Only - Ignition Input Ignition Switch, white 8 pin plug, pin 3 + White
H3/10 Blue/White (-) W2W Only - Ground When Running (Status) Input Remote Starter
D2D 4-pin white connector (H4)
Module
Conn./Pin Color Description
H4/1 Green (Data) TX
H4/2 Black (-) Ground
H4/3 Blue (Data) RX
H4/4 Red (+) 12 Volt
RF 2-pin white connector (H5)
Module
Conn./Pin Color Description
H5/1 N/A No Connection
H5/2 N/A No Connection
Additional remote start connections
(Not all of these connections may be required for your installation. Refer to the wiring diagram for vehicle-specific connections.)
Wire Connects To
Wire Location (+/-) Wire Color
12 Volts Dash Fuse Box, white 1 pin plug (3A), pin 1 + White (120A)
Accessory Ignition Switch, white 8 pin plug, pin 7 + Red
Hood Pin [1] Above Driver Kick, white 5 pin plug, pin 4 - Red (with remote start only)
Ignition Ignition Switch, white 8 pin plug, pin 3 + White
Second Ignition Ignition Switch, white 8 pin plug, pin 8 + Pink
Starter Ignition Switch, white 8 pin plug, pin 2 + White
Tachometer [2] OBD-Data Link Connector, white 16 pin plug, pin 9 AC Gray
10 403.TL10 2.32 2015 Toyota RAV4 (H Key)
©2023 Directed. All rights reserved.

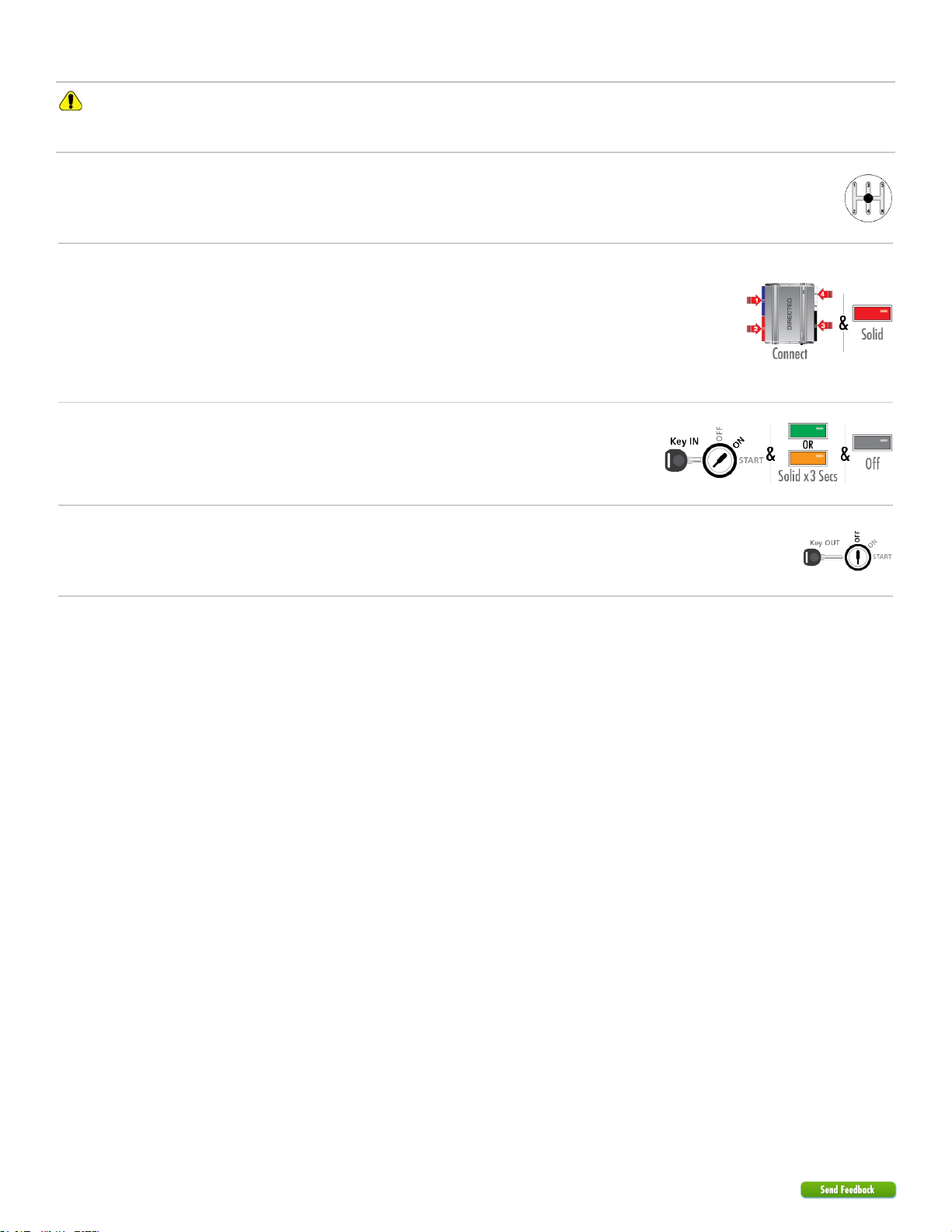

Module programming
Refer to “LED diagnostics and troubleshooting” for more information and for troubleshooting purposes.
Note: The master key is REQUIRED to complete the module programming successfully.
1Ensure vehicle is in a safe location and cannot move forward during programming. For
vehicles equipped with a manual transmission, make sure the gearshift is in the neutral
position.
2
The harnesses must be connected in this exact order:
1. Connect the 14-pin.
2. Connect the 12-pin.
3. Connect the 10-pin.
4. Connect the 4-pin D2D cable (if being used).
When the LED turns ON solid red, proceed with the next step.
3
Insert and turn the key to the ignition position. Wait for the LED to turn on solid green for 3
seconds, and turn OFF.
Note: If transponder programming was skipped, the LED turns ON solid orange for 3
seconds then shuts OFF when programming is done.
4Turn the key to the OFF position, and remove it from the ignition barrel.
You have successfully completed the module programming sequence.
