Responder One

Remote Start

Owner's Guide

G4203X 2008-09

Contents

Government Regulations ....................................................................................5

Warning! Safety first .........................................................................................7

What is Included ............................................................................................9

Important Information ........................................................................................9

System Maintenance .................................................................................9

Your Warranty..........................................................................................9

Using Your System .........................................................................................10

Unlocking ..............................................................................................10

Car Finder .............................................................................................10

Ignition Controlled Door Locks..................................................................10

Remote Start...........................................................................................11

Valet Take-Over ......................................................................................13

Programming options.......................................................................................14

Glossary of Terms............................................................................................14

Quick Reference Guide....................................................................................15

Limited lifetime consumer warranty ....................................................................17

Government Regulations

This device complies with Part 15 of FCC rules. Operation is subject to the fol-

lowing two conditions: (1) This device may not cause harmful interference, and

(2) This device must accept any interference received, including interference that

may cause undesirable operation.

This equipment has been tested and found to comply with the limits for a class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential instal-

lation. This equipment generates and can radiate radio frequency energy and,

if not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. However, there is no guarantee

that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television, which can be determined by

turning the equipment OFF and ON, the user is encouraged to try to correct the

interference by one or more of the following measures:

Re-orient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that•

to which the receiver is connected.

Consult the dealer or an experienced radio / TV technician for•

help.

This device complies with the Industry Canada Radio Standards Speciﬁcation

RSS 210. Its use is authorized only on a no-interference, no-protection basis; in

other words, this device must not be used if it is determined that it causes harm-

ful interference to services authorized by IC. In addition, the user of this device

must accept any radio interference that may be received, even if this interference

could affect the operation of the device.

Warning:

Changes or modiﬁcations not expressly approved by the party re-

sponsible for compliance could void the user’s authority to operate this device.

Warning! Safety ﬁrst

The following safety warnings must be observed at all times:

Due to the complexity of this system, installation of this product must only be

performed by an authorized Directed dealer.

When properly installed, this system can start the vehicle via a command signal

from the remote control transmitter. Therefore, never operate the system in an

enclosed area or partially enclosed area without ventilation (such as a garage).

When parking in an enclosed or partially enclosed area or when having the

vehicle serviced, the remote start system must be disabled using the installed

toggle switch. It is the user’s sole responsibility to properly handle and keep out

of reach from children all remote control transmitters to assure that the system

does not unintentionally remote start the vehicle. THE USER MUST INSTALL A

CARBON MONOXIDE DETECTOR IN OR ABOUT THE LIVING AREA ADJA-

CENT TO THE VEHICLE. ALL DOORS LEADING FROM ADJACENT LIVING

AREAS TO THE ENCLOSED OR PARTIALLY ENCLOSED VEHICLE STORAGE

AREA MUST AT ALL TIMES REMAIN CLOSED. These precautions are the sole

responsibility of the user.

Use of this product in a manner contrary to its intended mode of operation may

result in property damage, personal injury, or death. (1) Never remotely start the

vehicle with the vehicle in gear, and (2) Never remotely start the vehicle with

the keys in the ignition. The user must also have the neutral safety feature of the

vehicle periodically checked, wherein the vehicle must not remotely start while

the car is in gear. This testing should be performed by an authorized Directed

dealer in accordance with the Safety Check outlined in the product installation

guide. If the vehicle starts in gear, cease remote start operation immediately and

consult with the authorized Directed dealer to ﬁx the problem.

After the remote start module has been installed, contact your authorized dealer

to have him or her test the remote start module by performing the Safety Check

outlined in the product installation guide. If the vehicle starts when performing

the Neutral Safety Shutdown Circuit test, the remote start unit has not been

properly installed. The remote start module must be removed or the installer must

properly reinstall the remote start system so that the vehicle does not start in gear.

All installations must be performed by an authorized Directed dealer.

OPERATION OF THE REMOTE START MODULE IF THE VEHICLE STARTS IN

GEAR IS CONTRARY TO ITS INTENDED MODE OF OPERATION. OPERAT-

ING THE REMOTE START SYSTEM UNDER THESE CONDITIONS MAY RESULT

IN PROPERTY DAMAGE OR PERSONAL INJURY. YOU MUST IMMEDIATELY

CEASE THE USE OF THE UNIT AND SEEK THE ASSISTANCE OF AN AU-

THORIZED Directed DEALER TO REPAIR OR DISCONNECT THE INSTALLED

REMOTE START MODULE. DIRECTED WILL NOT BE HELD RESPONSIBLE OR

PAY FOR INSTALLATION OR REINSTALLATION COSTS.

This product is designed for fuel injected, automatic transmission ve-

hicles only. Use of this product in a standard transmission vehicle is

dangerous and contrary the product's intended use.

What is Included

The control module•

Two 1-button transmitters• (P/N 7211X)

A push-button programming switch•

Your warranty card•

A shut-down toggle switch•

Important Information

Congratulations on the purchase of your remote start keyless entry sys-

tem. This system has been designed to provide years of trouble-free

operation. By carefully reading this owner’s guide prior to using your

system, you can maximize the use of this system and its features. Addi-

tional or replacement copies of this guide can be printed by accessing

the Directed Electronics internet website at

www.directed.com

➢Your Warranty

Your warranty card must be completely ﬁlled out and returned within

10 days of purchase. Your product warranty is not honored if your

warranty card is not returned. Make sure that you receive the warranty

card from your dealer.

➢System Maintenance

The system requires no speciﬁc maintenance. Your remote is powered

by two CR2016 cell batteries. When the batteries weakens, the LED

on the remote dims and operating range is reduced.

➢Battery Replacement

Front

Elastomer

contact

Front

Elastomer

contact

Front

Elastomer

contact

+++

Circuit Board

Front

Elastomer

contact

Front

Elastomer

contact

Front

Elastomer

contact

+++

Circuit Board

Using a small slotted screw-1.

driver, insert into slot located on

the side of the unit as shown and

carefully pry the front of the unit

up, working your way around the

edge until the front is completely

separated from the housing.

Note:

Make sure that the small elas-

tomer contact located inside the unit

as shown does not fall out during the

replacement process.

Turn the circuit board over,2.

remove batteries from clip and re-

place.

Note:

Verify that the battery polarity is correct when replacing.

Batteries are stacked in series and polarity is indicated.

Reposition all parts and snap together3.

Front

Elastomer

contact

Front

Elastomer

contact

Front

Elastomer

contact

+++

Circuit Board

Using Your System

➢Unlocking

Only after the vehicle is remotely started via the transmitter, press and

release the transmitter button for 1 second to unlock the vehicle’s doors.

The remote responds with 2 short beeps and the green LED on the re-

mote ﬂashes once. The vehicle responds by ﬂashing the parking lights

twice and honking the horn twice to conﬁrm unlocking.

Note:

horn honk is an optional feature.

➢Car Finder

Before the vehicle is remotely started via the transmitter, press and

hold the transmitter button for 3 seconds to activate the car ﬁnder

function. The vehicle responds by ﬂashing the parking lights 5 times

slowly. The remote responds with 1 short beep and the orange LED on

the remote ﬂashes once.

➢Ignition Controlled Door Locks

If power door locks have been connected to your

system, the doors will lock three

seconds after the ignition is turned

on, and unlock when the ignition

is turned off.

Note:

In order for the ignition controlled door locks to work, the feature

must be turned on in programming.

Note:

If the ignition is turned on while the vehicle is remote started the

doors do not lock until the remote start shuts off. To avoid being locked

out of the vehicle, do not turn the ignition on until you are ready to drive

the vehicle.

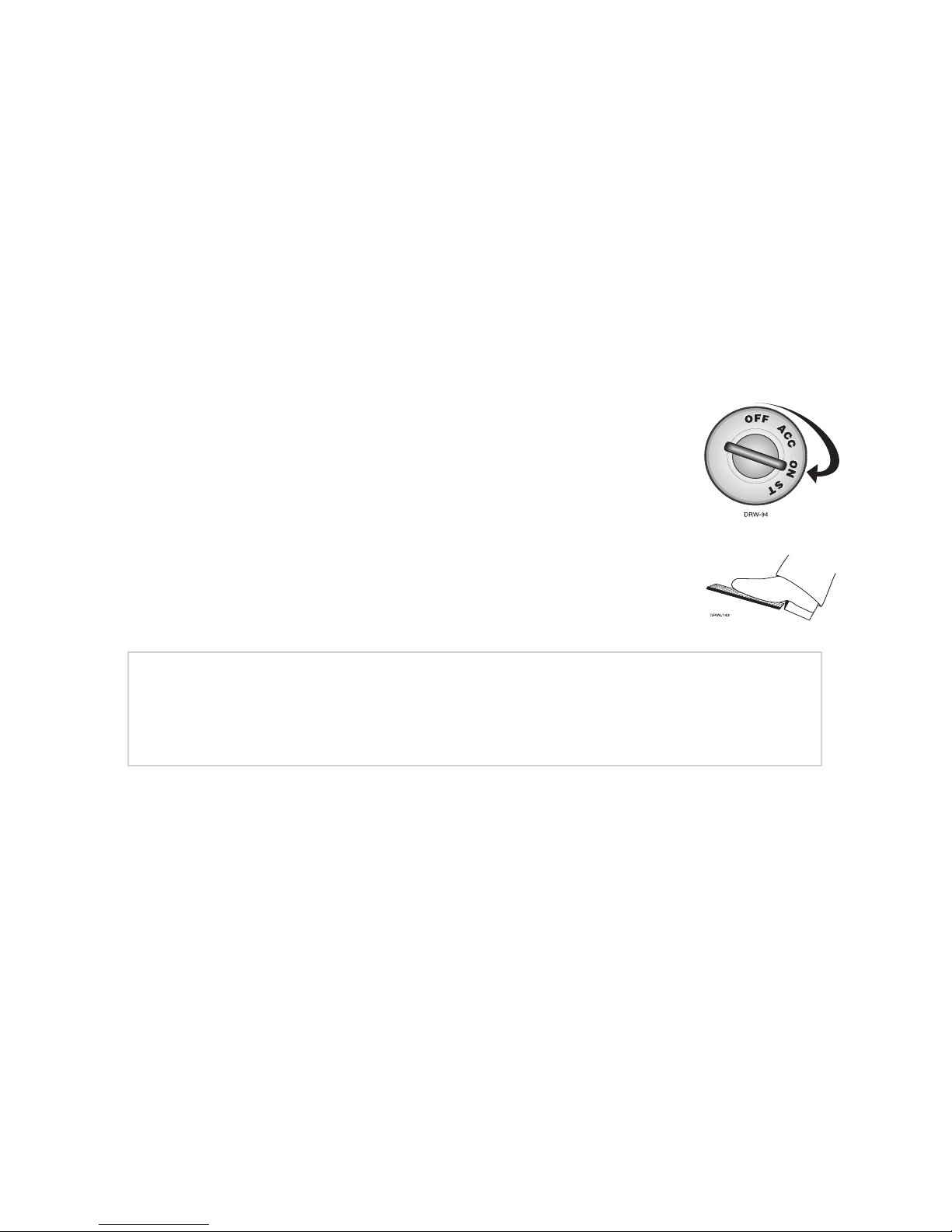

➢Remote Start

This feature allows you to remotely start and run your vehicle for a

programmable period of time. This makes it possible

to warm up the engine, as well as adjust the interior

temperature of the vehicle with the climate control sys-

tem. If interior heating or cooling is desired, the climate

controls must be preset, and the fan blower must be set

to the desired level prior to remote starting the vehicle.

Important!

(1) Never remotely start the vehicle with the

vehicle in gear, and (2) Never remotely start the vehicle

with the key in the ignition.

To remote start the vehicle:

Press the single button on the transmitter once.1.

The remote responds with the remote start On tones and the green2.

LED on the remote ﬂashes once. The vehicle's parking lights turn

ON constant to conﬁrm remote start operation.

Once the vehicle has started, it runs for the pre-programmed pe-3.

riod of time (12, 24, or 60 minutes) or until a shutdown input is

triggered. This can be set to minute increments by your installer.

Table des matières

Autres manuels Directed Electronics Démarreur à distance

Directed Electronics

Directed Electronics AutoCommand 25622 Guide de démarrage rapide

Directed Electronics

Directed Electronics Avital G3000 7/01 Manuel utilisateur

Directed Electronics

Directed Electronics AutoCommand 25522 Manuel utilisateur

Directed Electronics

Directed Electronics ProSecurity RK20 Manuel utilisateur

Directed Electronics

Directed Electronics 335912 359D Manuel utilisateur

Directed Electronics

Directed Electronics DB3 Manuel utilisateur

Directed Electronics

Directed Electronics Smart start Manuel utilisateur

Directed Electronics

Directed Electronics 5301 Manuel utilisateur

Directed Electronics

Directed Electronics 5301 Manuel utilisateur

Directed Electronics

Directed Electronics Python 1601 Manuel utilisateur

Directed Electronics

Directed Electronics AS-1775 Manuel utilisateur

Directed Electronics

Directed Electronics AutoCommand 28624TN Guide de démarrage rapide

Directed Electronics

Directed Electronics SMARTSTART VSM200 Manuel utilisateur

Directed Electronics

Directed Electronics PS-4461TWE-FM Manuel utilisateur

Directed Electronics

Directed Electronics 50.7X Manuel utilisateur

Directed Electronics

Directed Electronics AutoCommand 41027T Guide de démarrage rapide

Directed Electronics

Directed Electronics ProStart CT-3371 Manuel utilisateur

Directed Electronics

Directed Electronics CLIFFORD 1.3X Manuel utilisateur

Directed Electronics

Directed Electronics Python 1500 esp Manuel utilisateur

Directed Electronics

Directed Electronics Smart start Manuel utilisateur

Directed Electronics

Directed Electronics Ready Remote Guide de démarrage rapide

Directed Electronics

Directed Electronics Cyber 110XV Manuel utilisateur

Directed Electronics

Directed Electronics AVITAL 4603 Manuel utilisateur

Directed Electronics

Directed Electronics READY REMOTE 24926 Guide de démarrage rapide

Manuels Démarreur à distance populaires d'autres marques

AstroStart

AstroStart 803U Manuel utilisateur

Durite

Durite 0-649-20 Manuel

EINHELL

EINHELL BT-PS 1000 Manuel

Linear

Linear ACCESS AK-21 Caractéristiques techniques

Soundstream

Soundstream TARANTULA RS.2 Manuel utilisateur

Jaycar Electronics

Jaycar Electronics MB3752 Manuel utilisateur

Ultra Start

Ultra Start 72 Series Manuel utilisateur

ADS

ADS FLASHLOGIC FLRSVW1 Manuel utilisateur

Selecta

Selecta JS012 Manuel utilisateur

Black Widow Security

Black Widow Security BW RAS 400 Manuel utilisateur

Vector

Vector Power City DK080706 Supplément

Code Alarm

Code Alarm CA-535 Manuel utilisateur

Ozito

Ozito OJS-800 Manuel utilisateur

Profi-Partner

Profi-Partner 46387 Manuel utilisateur

EZ STARTER

EZ STARTER EZ-45 Manuel utilisateur

Viper

Viper 4204 Manuel utilisateur

Essex Electronics

Essex Electronics KE-1701 Manuel utilisateur

EINHELL

EINHELL EGS 3600 Manuel
