Table of Contents
Safety Precautions.......................................................... 2
General Description.........................................................4
Technical Parameter........................................................4
Operation............................................................................ 4
Setup.................................................................................... 4
Preparing to Paint.............................................................5
Painting................................................................................5
Electronic Pressure Control Indicators..................... 5
Pressure Relief Procedure............................................ 6
Spraying.............................................................................. 6
Spraying Technique......................................................... 6
Practice................................................................................7
Shutdown and Cleaning..................................................7
Troubleshooting................................................................ 8
Parts Listings.................................................................... 10

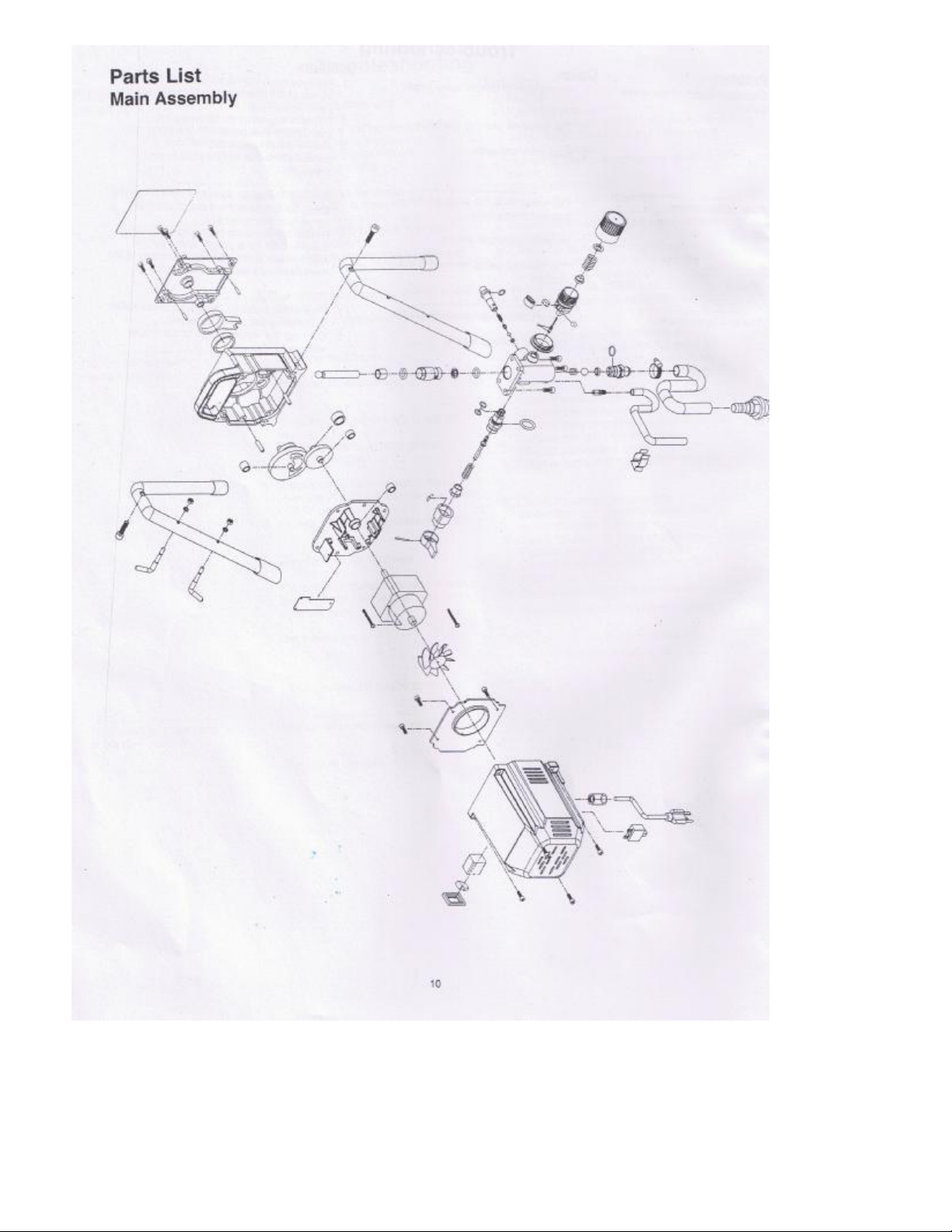

Main Assembly............................................................10
Motor Assembly..........................................................11
Gear Box Assembly...................................................12
Suction Set Assembly............................................... 12
Stand Assembly.......................................................... 12
Fluid Section Assembly............................................ 13
Tip Selection................................................................ 14
Selecting Tip Hose Size................................................. 14
Choosing The Correct Tip..............................................14
Tip Hose Size.................................................................... 14
Fan width............................................................................ 14
Understanding Tip Number........................................... 14
Reversible Tip Selection Chart....................................15
Safety Precautions
This manual Contains Information that must be read and
understood before using the equipment, When you come to an
area thathas one of the following symbols, pay particular
attention and
N
m
O
a
T
k
E
e
:
c
N
e
o
rt
te
a
s
in
g
t
i
o
ve
he
im
ed
po
th
rt
e
an
s
t
a
i
f
n
e
f
g
o
u
rm
ar
a
d
ti
.
The operating instructions state that the following points
must always be observed before starting up:
1.
Faulty units should not be used.
2.
Secure spray gun using the safety catch on the trigger
3.
Ensure that the unit isproperly earthed.
4.Check the permissible operating pressure.
5.Check all connections for leaks.
The instructions regarding regular cleaning and
maintenance of the unit must be strictly observed.
Before any work is done on the unit or for every break in
work the following rules must be observed:
1.
Release the pressure from the spray gun and hose.
2.
Secure the spray gun using the safety catch on the
trigger.
3.
Turn off the motor.
Be safety-conscious!
All local regulation in force must be observed.
In order to ensure safe operation of the airless systems
the safety regulations listed below must be followed:
1.In
order to avoid dangers, read the operating instructions
carefully and follow the instructions laid down in them.
2.Do not use materials with flash point below 2
1℃
(7
0℉H
).
3.The use of this unit is prohibited in workshops which are
covered under the explosion prevention regulations.
4.
Never spray near sources of ignition; e.g. open flames,
cigarettes also cigars and pipes are sources of ignition
- sparks, hot wires and hot surfaces, etc.
5.Attention! Danger of injury by injection!
Never point the spray gun at yourself or anyone else.
Never put your fingers or hands into the spray jet. The
very high spraying pressures can cause very serious
injuries. Never use the spray gun without the safety guard.
When Installing an d removing the t ip and d uring bre aks in
wo rk the spray gun must alw ays be secured, so that it
cannot be activated.
6.
Wear respiratory equipment when spraying. The opera tor
must be provided w ith a protective mas k.
In order to prevent work related illness, the ma nufacturer
'
s
ag ents used must be observed when prepa ring, wo rking
with and cleaning the unit. Protective clothing, gloves and
in
certain cases, protective skin cre am are n ecessary to
protect the skin.
7.The spray gun and high pressure hose betw een the unit
an d spr ay gun mus t be of a sufficient standard for the
pressure p roduced in the unit.
The permissible operating pressure for the high- pressure
ho se, the manufacturer and the da te of manufacture must be
indicated by a permanent identification ma rking on the
ho se. Furth ermore, it must be constructed so that the
electrical re sistance between the connections to th e unit
an
d the sp ray gun is equal to or less than one megohm.
8.Und er certain cond itions the follow speed can cause an
electrostatic charge on the unit. This could cause sparks
or flames on discharging. It is, therefore, important that
the un it is always earthed over the electrical in stallation.
The con ta ct should be made us in g a sho ckpro of socket
ea rthed in accord ance with the re gulations.
9.Forbidden to use of electrostatic atomising and spraying
equipment with machines not specifically designed for this
equipm ent, because it may result in serious hazards for
the operators;
10.
Pay attention to hazards resulting from contact with and/or
breathing of toxic materials, gases, mists and vapours which
may be created by operation of the machine.
11.
Before installation and usage, visually inspection for damage
on hoses which may be subjected to friction should be done.
2.
