Dimplex DF2500L Manuel utilisateur

7212620100R02

Owner’s Manual

Model

DF2500L

6908920359

IMPORTANT SAFETY INFORMATION: Always read this manual rst

before attempting to install or use this replace. For your safety, always

comply with all warnings and safety instructions contained in this manual

to prevent personal injury or property damage.

To view the full line of Dimplex products, please visit

www.dimplex.com

2 www.dimplex.com

Table of Contents

Always use a qualied technician

or service agency to repair

this stove.

!NOTE: Procedures and

techniques that are

considered important

enough to emphasize.

CAUTION: Procedures and

techniques which, if not

carefully followed, will result

in damage to the equipment.

WARNING: Procedures

and techniques which, if not

carefully followed, will expose

the user to the risk of re,

serious injury, or death.

Welcome & Congratulations ...................3

IMPORTANT INSTRUCTIONS .................4

Fireplace Installation ........................7

Front Glass Installation .......................7

Mantel Installation ...........................7

Operation ..................................9

Maintenance ...............................11

Warranty .................................12

Replacement Parts ..........................14

Welcome & Congratulations

Thank you and congratulations for choosing to purchase an electric

replace from Dimplex, the world leader in electric replaces.

Please carefully read and save these instructions.

CAUTION: Read all instructions and warnings carefully before

starting installation. Failure to follow these instructions may result in a

possible electric shock, re hazard and will void the warranty.

Please record your model and serial numbers below for future

reference: model and serial numbers can be found on the Model and

Serial Number Label.

NO NEED TO RETURN TO THE STORE

Questions with operation or assembly? Require Parts Information?

Product Under Manufacturer’s Warranty?

For Troubleshooting and Technical Support

OR Toll-Free 1-888-346-7539

Monday to Friday 8:00 a.m. to 4:30 p.m. EST

Please have your model number and product serial

number ready. (See above)

S E R IAL No.

MODE L

MOD.

4 www.dimplex.com

When using electrical appliances,

basic precautions should always

be followed to reduce the risk of

fire, electric shock, and injury to

persons, including the following:

① Read all instructions before

using this heater.

② This heater is hot when in use.

To avoid burns, do not let bare

skin touch hot surfaces. The trim

around the heater outlet becomes

hot during heater operation.

WARNING: High tempera-

tures may be generated under

certain abnormal conditions.

Do not partially or fully cover

or obstruct the front of this

heater.

③ Extreme caution is necessary

when any heater is used by or

near children or invalids and

whenever the unit is left operating

and unattended.

④ Always unplug the heater

when not in use.

⑤ Do not operate any heater

with a damaged cord or plug, or if

the heater has malfunctioned, or if

it has been dropped or damaged

in any manner. Return heater

to authorized service facility

for examination, electrical or

IMPORTANT INSTRUCTIONS

mechanical adjustment, or repair.

⑥ Do not use outdoors.

⑦ This heater is not intended for

use in bathrooms, laundry areas

and similar indoor locations.

Never locate this heater where

it may fall into a bathtub or other

water container.

⑧ Do not run cord under

carpeting. Do not cover cord with

throw rugs, runners, or the like.

Arrange cord away from trafc

area and where it will not be

tripped over.

⑨ To disconnect heater, turn

controls to off, then remove plug

from outlet.

⑩Do not insert or allow foreign

objects to enter any ventilation

or exhaust opening as this may

cause an electric shock or re, or

damage the heater.

⑪ To prevent a possible re, do

not block air intakes or exhaust

in any manner. Do not use on

soft surfaces, like a bed, where

openings may become blocked.

⑫ All electrical heaters have

hot and arcing or sparking parts

inside. Do not use in areas where

gasoline, paint, or ammable

SAVE THESE INSTRUCTIONS

liquids are used or stored or

where it will be exposed to

ammable vapors.

⑬ Do not modify the heater.

Use it only as described in

this manual. Any other use

not recommended by the

manufacturer may cause re,

electric shock, or injury to

persons.

⑭ To reduce the risk of electric

shock, this heater has a polarized

plug (one blade is wider than

the other). This plug will t in a

polarized outlet only one way.

If the plug does not t fully in

the outlet, reverse the plug.

If it still does not t, contact a

qualied electrician to install the

proper outlet. Do not change

the plug in any way. Always plug

heaters directly into a wall outlet/

receptacle. Never use with an

extension cord or relocatable

power tap (outlet/power strip).

⑮ Do not burn wood or other

materials in the Compact

Fireplace.

⑯ Do not strike the front glass.

⑰Always use a certied

electrician should new circuits or

outlets be required.

⑱ Always use properly

grounded, fused and polarized

outlets.

⑲ Disconnect all power supply

before performing any cleaning,

maintenance or relocation of the

heater.

⑳ When transporting or storing

the heater and cord, keep in a

dry place, free from excessive

vibration and store so as to avoid

damage.

IMPORTANT INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

NO USER-SERVICEABLE PARTS INSIDE

6 www.dimplex.com

IMPORTANT INSTRUCTIONS

WARNING: Remote control

contains small batteries. Keep away

from children. If swallowed, seek

medical attention immediately.

WARNING: Do not install battery

backwards, charge, put in re or mix

with used or other battery types - may

explode or leak causing injury.

!NOTE: Changes or modications

not expressly approved by the party

responsible for compliance could

void user's authority to operate the

equipment.

!NOTE: This equipment has been

tested and found to comply with

the limits for Class B digital device,

pursuant to part 15 of the FCC

Rules. These limits are designed to

provide reasonable protection against

harmful interference in a residential

installation. This equipment

generates, uses and can radiate

radio frequency energy and, if not

installed and used in accordance with

the instructions, may cause harmful

interference to radio or television

reception, which can be determined

by turning the equipment off and

on, the user is encouraged to try to

correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving

antenna.

• Increase the separation between

the equipment and the receiver.

• Connect the equipment into an

outlet on a circuit different from

that to which the receiver is

connected.

• Consult the dealer or an

experienced radio/TV technician

for help.

Operation is subject to the following

two conditions: (1) this device may

not cause interference and; (2) this

device must accept any interference,

including interference that may cause

undesired operation of the device.

Fireplace Installation

!NOTE: A 15 Amp, 120 Volt

alternating current (VAC) circuit

is required. A dedicated circuit

is preferred but not essential in

all cases. A dedicated circuit will

be required if, after installation,

the circuit breaker trips or fuse

blows on a regular basis when the

heater is operating. Additional

appliances on the same circuit

may exceed the current rating of

the circuit breaker.

WARNING: Ensure the power

cord is not installed so that it is

pinched or against a sharp edge

and ensure that the power cord is

stored or secured to avoid tripping

or snagging to reduce the risk

of re, electric shock or injury to

persons.

Construction and electrical outlet

wiring must comply with local

building codes and other applica-

ble regulations to reduce the risk

of re, electric shock and injury to

persons. Do not attempt to wire

your own new outlets or circuits.

To reduce the risk of re, electric

shock or injury to persons, always

use a licensed electrician.

1. Make sure the units 3-Posi-

tion switch is switched OFF

(refer to operating instruction

section).

2. Plug the unit into a 15

Amp/120 VAC outlet.

Front Glass Installation

1. Unpack the glass assembly.

2. Hang bottom bracket on

screw at the bottom of the

rebox. (Figure 1)

3. Secure the top bracket to re-

box using screws provided in

the hardware bag. (Figure 1)

Mantel Installation

For use with a new or existing

mantel. Depending on the avail-

able space within the mantel cav-

ity, the unit can be secured to the

mantel at the bottom side or back.

Remove the screw on the bottom

Figure 1

8 www.dimplex.com

ange in the most appropriate

place for securing and using the

provided L-bracket and the screw

that was removed attach the re-

box to the mantel. (Figure 2)

!NOTE: There are no guide

holes provided for the L-Brackets

in the mantel.

If not installing the unit into a

Dimplex mantel the required

opening dimensions for the

replace are: 24.0 in. (610 mm)

wide x 18 ⅜ in. (467 mm) high x

7 ½ in. (191 mm) deep (Figure 3).

The rebox is to be installed

from the front of the mantel and

inserted so that the anges are

ush against the front surface of

the mantel.

Fireplace Installation

Figure 2

Figure 3

24.0 in.

(610 mm)

18 ⅜ in.

(467 mm)

7 ½ in.

(191 mm)

Figure 4

Operation

The controls are located on

the upper right of the replace.

(Figure 4)

A. 3-Position Switch

The switch has two ON positions

marked with " I" and " II " .

The " I" position is for manual

operation. In this position the

built-in remote control is by-

passed.

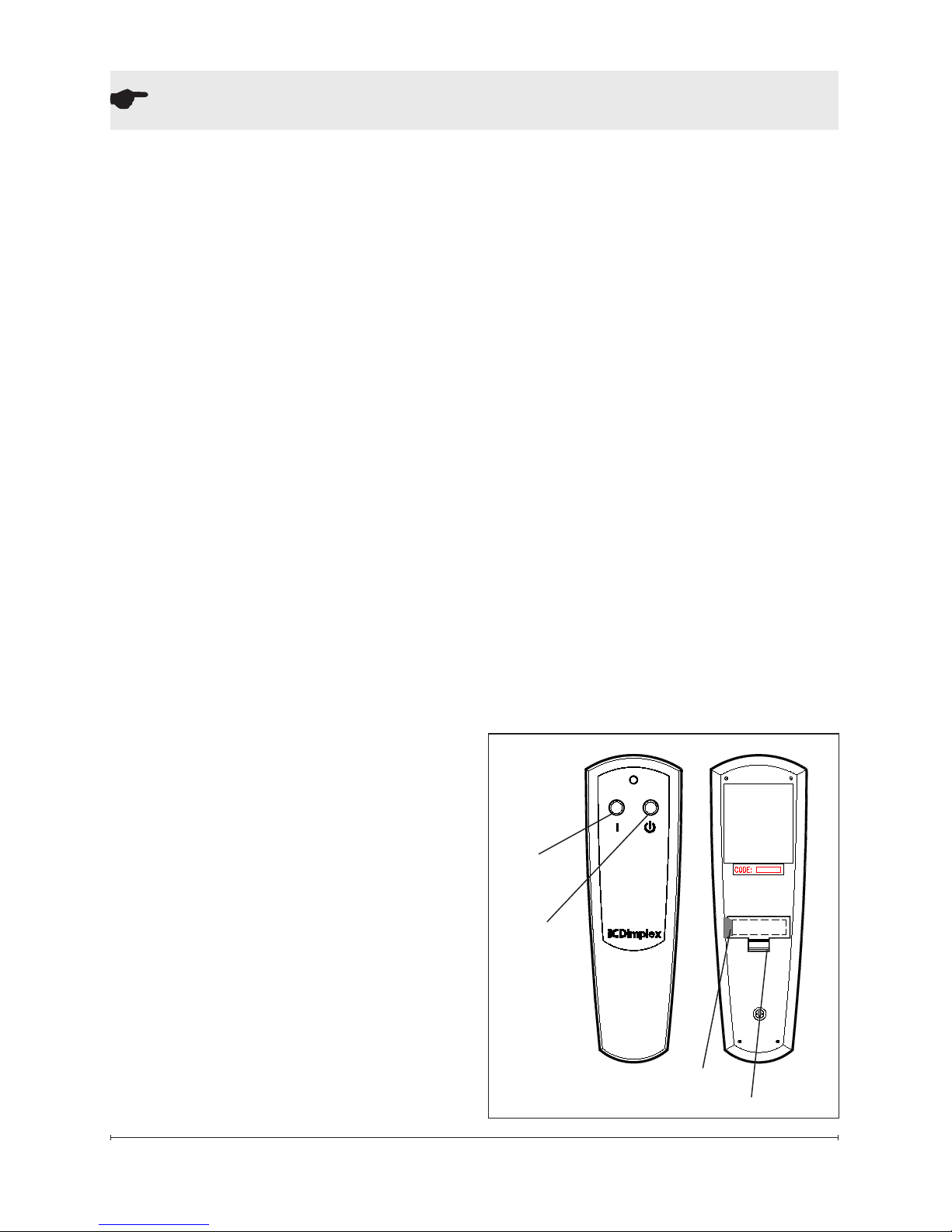

The " II " position is for operating

the unit with the provided remote

control.

When in the " II " position the unit

is operated with the ON and OFF

buttons of the remote control.

When the switch is in the center

position the unit is off.

B. Heater ON/OFF Switch

The Heater ON/OFF Switch

supplies power to the heater

fan and the heater element.

When the switch is in the ON

position the heater operates if the

thermostat calls for heat.

!NOTE: The fan will continue

running even when the heater is

not, when the Heater Switch is in

the ON position.

C. Heater Thermostat Control

To adjust the temperature to

your individual requirements,

turn the thermostat control

clockwise all the way to turn

on the heater. When the room

reaches the desired temperature,

turn the thermostat knob counter

clockwise until you hear a click.

Leave in this position to maintain

the room temperature at this

setting. For additional heat, turn

clockwise until you hear the click

again and the heater will turn on.

Resetting The

Temperature Cutoff

Switch

Should the heater overheat, an

automatic cut out will turn the

heater off and it will not come

back on without being reset.

It can be reset by switching

the 3-Position Switch to OFF

and waiting 5 minutes before

switching the unit back on.

CAUTION: If you need to

10 www.dimplex.com

Button

Battery Cover

OFF

Button

Plastic Strip

Figure 5

Operation

continuously reset the heater,

unplug the unit and call technical

support at 1-888-346-7539.

!NOTE: The heater may emit

a slight, harmless odor when

rst used. This odor is a normal

condition caused by initial heating

of internal heater parts and will

not occur again.

Remote Operation

The replace is supplied with an

integrated On/Off remote control.

!NOTE: Ensure that the

replace 3 position switch is set

to the remote control setting, "II".

To operate, push the ON button

to turn replace on, push the OFF

button to turn the replace off.

!NOTE: Before attempting any

operation with the remote control,

pull the plastic insulator strip out

from between the remote casing

and battery cover (Figure 5).

Remote Control Initialization/

Reprogram

In the event that your remote

control ceases to operate your

replace, follow these steps to

reinitialize the remote control and

the remote control receiver in the

replace:

1. Place the 3-Position Switch

(Figure 4A) in the OFF (“O”)

position.

2. Wait a minimum of 5 seconds

and then place the 3-Position

Switch in the Remote Control

position.

3. Within 10 seconds of

changing the switch position,

press the ON button located

on the remote control (Figure

5). This will synchronize

the remote control and the

replace receiver.

!NOTE: You will have only 10

seconds to perform this last step.

Failure to do so will result in these

steps needing to be followed

again.

Table des matières

Autres manuels Dimplex Cheminée intérieure

Dimplex

Dimplex SP16 Manuel utilisateur

Dimplex

Dimplex Clova CLV20B Manuel utilisateur

Dimplex

Dimplex Vivente Plus V V T75 Manuel

Dimplex

Dimplex DFB4047 Manuel utilisateur

Dimplex

Dimplex MULTIFIRE DF3215 Manuel utilisateur

Dimplex

Dimplex Opti-Myst Cassette 500 Manuel utilisateur

Dimplex

Dimplex MULTI-FIRE SL PLF3614-XS Manuel utilisateur

Dimplex

Dimplex Mini Mozart Manuel utilisateur

Dimplex

Dimplex DFI2309 Guide de démarrage rapide

Dimplex

Dimplex 6911540100 Manuel utilisateur

Dimplex

Dimplex BLF50 Manuel utilisateur

Dimplex

Dimplex DCF44GS Manuel utilisateur

Dimplex

Dimplex DS5629 Manuel utilisateur

Dimplex

Dimplex SCANDIC DELUXE Manuel utilisateur

Dimplex

Dimplex BF362SD Manuel utilisateur

Dimplex

Dimplex OPTIMYST CAS250-INT Manuel utilisateur

Dimplex

Dimplex Electric fireplaces Manuel utilisateur

Dimplex

Dimplex DF2608-INT Manuel utilisateur

Dimplex

Dimplex THWG XLF50 Manuel utilisateur

Dimplex

Dimplex RONDO Manuel utilisateur

Dimplex

Dimplex VCX1525 Manuel utilisateur

Dimplex

Dimplex STOCKBRIDGE SKG20BL Manuel utilisateur

Dimplex

Dimplex Montclair Manuel utilisateur

Dimplex

Dimplex BF36E Manuel utilisateur

Manuels Cheminée intérieure populaires d'autres marques

Brigantia

Brigantia 35-DVRS31N-2 Manuel du propriétaire

Nordpeis

Nordpeis Bergen Manuel utilisateur

Superior

Superior BCT2536TMN Manuel utilisateur

Quadra-Fire

Quadra-Fire 5100I-GD-B Manuel utilisateur

Renaissance

Renaissance RUMFORD 1000 Manuel utilisateur

Lacunza

Lacunza IV-800 Manuel utilisateur

Baxi

Baxi 940 Instructions d'utilisation

Dru

Dru Maestro 60/2 Tall RCH Manuel utilisateur

Diamond Fireglass

Diamond Fireglass SS-O22 Manuel utilisateur

HearthStone

HearthStone Windsor Bay 8830 Manuel de programmation

Napoleon

Napoleon ASCENT B42 Manuel utilisateur

Enviro

Enviro E33GI Manuel utilisateur

Smeg

Smeg L30 FABE Instructions de montage

KEDDY

KEDDY K700 Manuel utilisateur

Godin

Godin 3451 Manuel utilisateur

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manuel utilisateur

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manuel utilisateur

Desa

Desa CCFPDFT Manuel d'utilisation
