PARTS & SERVICE MANUAL

FOR THE COMPACT FIREPLACE

TABLE OF CONTENTS

OPERATION PAGE1

PARTS DRAWING PAGE 2

PARTSLIST PAGE3

WIRING DIAGRAM PAGE 5

LIGHT BULB REPLACEMENT PAGE 6

MAIN ON/OFF SWITCH REPLACEMENT PAGE 7

HEAT ON/OFF SWITCH REPLACEMENT PAGE 8

THERMOSTAT CONTROL REPLACEMENT PAGE 9

FLAME MOTOR/FLAME ROD REPLACEMENT PAGE 10

HEATER ASSEMBLY REPLACEMENT PAGE 11

POWER CORD REPLACEMENT PAGE 12

MIRROR REPLACEMENT PAGE 13

OPERATION

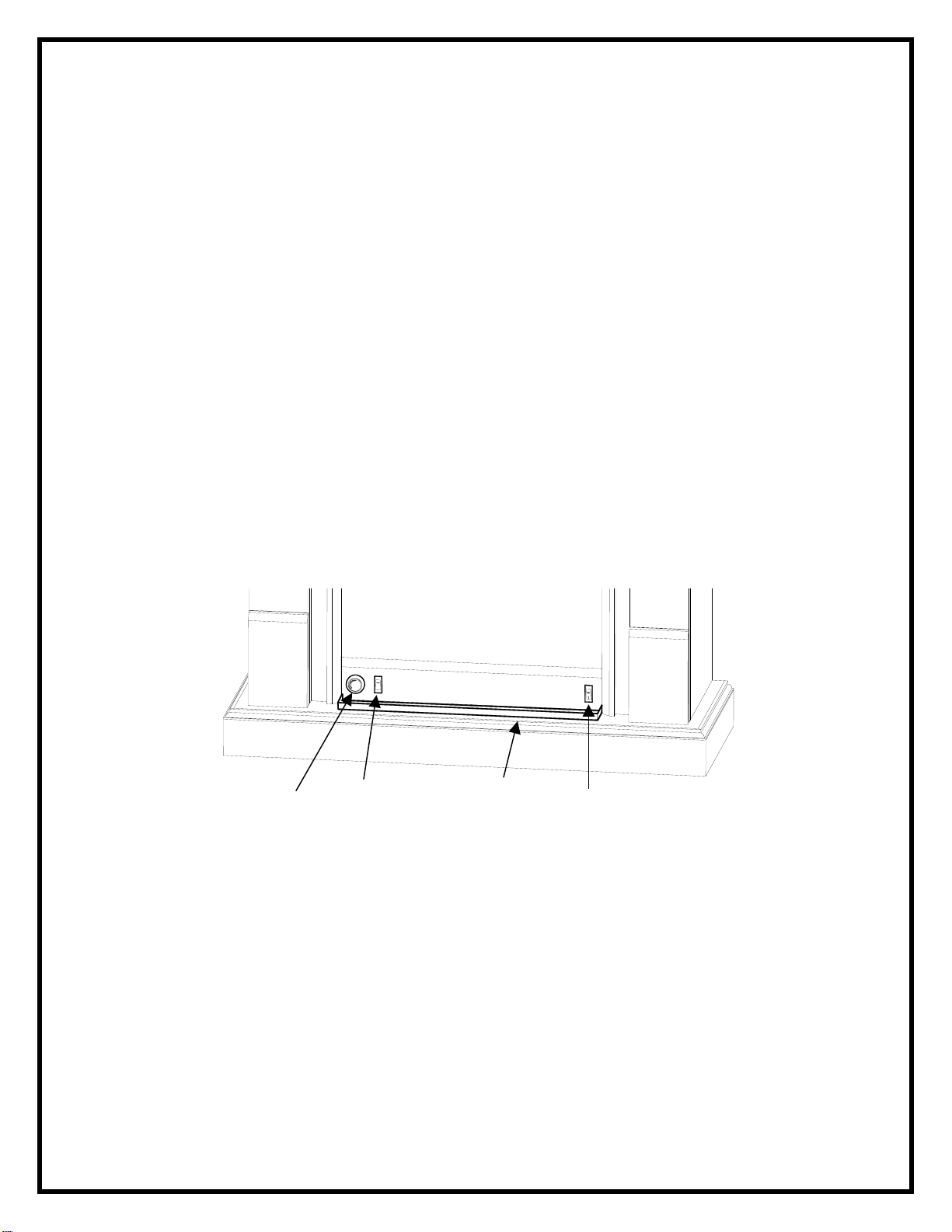

To access the controls, swing down the front cover panel located on the lower front of

the Fireplace (refer to diagram below).

A. MAIN ON/OFF SWITCH

The on/off switch supplies power to all unit functions (heat/flame)

B. HEATER ON/OFF SWITCH

The HEATER ON/OFF SWITCH supplies power to the heater fan and the heater

element.

C. HEATER THERMOSTAT CONTROL

To adjust the temperature to your individual requirements, turn the thermostat control

clockwise all the way to turn on the heater. When the room reached the desired

temperature, turn the thermostat knob counter clockwise until you hear a click. Leave in

this position to maintain the room temperature at this setting. For additional heat, turn

clockwise until you hear the click again and the heater will turn on. To turn the heater

off, switch the HEATER ON/OFF SWITCH to the OFF position.

NOTE: When the heater is switched ON, the heater fan will operate. The heater

element may or may not be on, depending on the thermostat control setting (SEE

“HEATER THERMOSTAT CONTROL”).

RESETTING THE TEMPERATURE CUTOFF SWITCH

This unit is equipped with a thermostat, which controls the temperature of the room. It

does this by turning the heater on and off. The heater is protected with a safety device

to prevent overheating. Should the heater overheat, an automatic cut out will turn the

heater off and it will not come back on without being reset. It can be reset by switching

the ON/OFF SWITCH to OFF and waiting 5 minutes before switching the unit back on.

CAUTION

If you need to continuously reset the heater, unplug the unit and call Dimplex North

America Limited at 1-800-668-6663.

C B

COVER PANEL

REPLACEMENT PARTS

COMPACT FIREPLACE

PART NO. 6901860100 6901860200

MOD LEVEL: NONE NONE

MADE IN: CHINA CHINA

REPLACEMENT PART REPLACEMENT PART NO.

1. LOGSET 0438270100RP 0438270100RP

2. FLICKER MOTOR 2000220100RP 2000220100RP

3. HEATER ASSEMBLY 2200490300RP 2200490300RP

4. CUTOUT 2300270100RP 2300270100RP

5. THERMOSTAT 2300150100RP* 2300150100RP*

6. ON/OFF SWITCH 2800070200RP 2800070200RP

7. CAPACITOR 3200030100RP 3200030100RP

8. TERMINAL BLOCK 4000070100RP 4000070100RP

9. CORD SET 4100090104RP 4100090104RP

10.REFLECTOR ASSEMBLY 5900340100RP 5900340100RP

11.MIRROR 5900410100RP 5900560100RP

12.FRONT GLASS 5900420100RP 5900420100RP

13.BUSHING, SNAP-IN 8500000400RP 8500000400RP

14.FLICKER CONNECTOR 8500680100RP 8500680100RP

15.CONTROL KNOB 8800000300RP 8800000300RP

16.LAMPHOLDER ASSEMBLY 4200120800RP 4200120800RP

17.HEYCO STRAIN RELIEF 8500260003RP 8500260003RP

REPLACEMENT PARTS

COMPACT FIREPLACE

PART NO. 6901860300

MOD LEVEL: NONE

MADE IN: CHINA

REPLACEMENT PART REPLACEMENT PART NO.

1. LOGSET 0438270100RP

2. FLICKER MOTOR 2000220100RP

3. HEATER ASSEMBLY 2200490300RP

4. CUTOUT 2300270100RP

5. THERMOSTAT 2300150100RP*

6. ON/OFF SWITCH 2800070200RP

7. CAPACITOR 3200030100RP

8. TERMINAL BLOCK 4000070100RP

9. CORD SET 4100090104RP

10.REFLECTOR ASSEMBLY 5900340100RP

11.MIRROR 5900560100RP

12.FRONT GLASS 5900420100RP

13.BUSHING, SNAP-IN 8500000400RP

14.FLICKER CONNECTOR 8500680100RP

15.CONTROL KNOB 8800000300RP

16.LAMPHOLDER ASSEMBLY 4200120800RP

17.HEYCO STRAIN RELIEF 8500260003RP

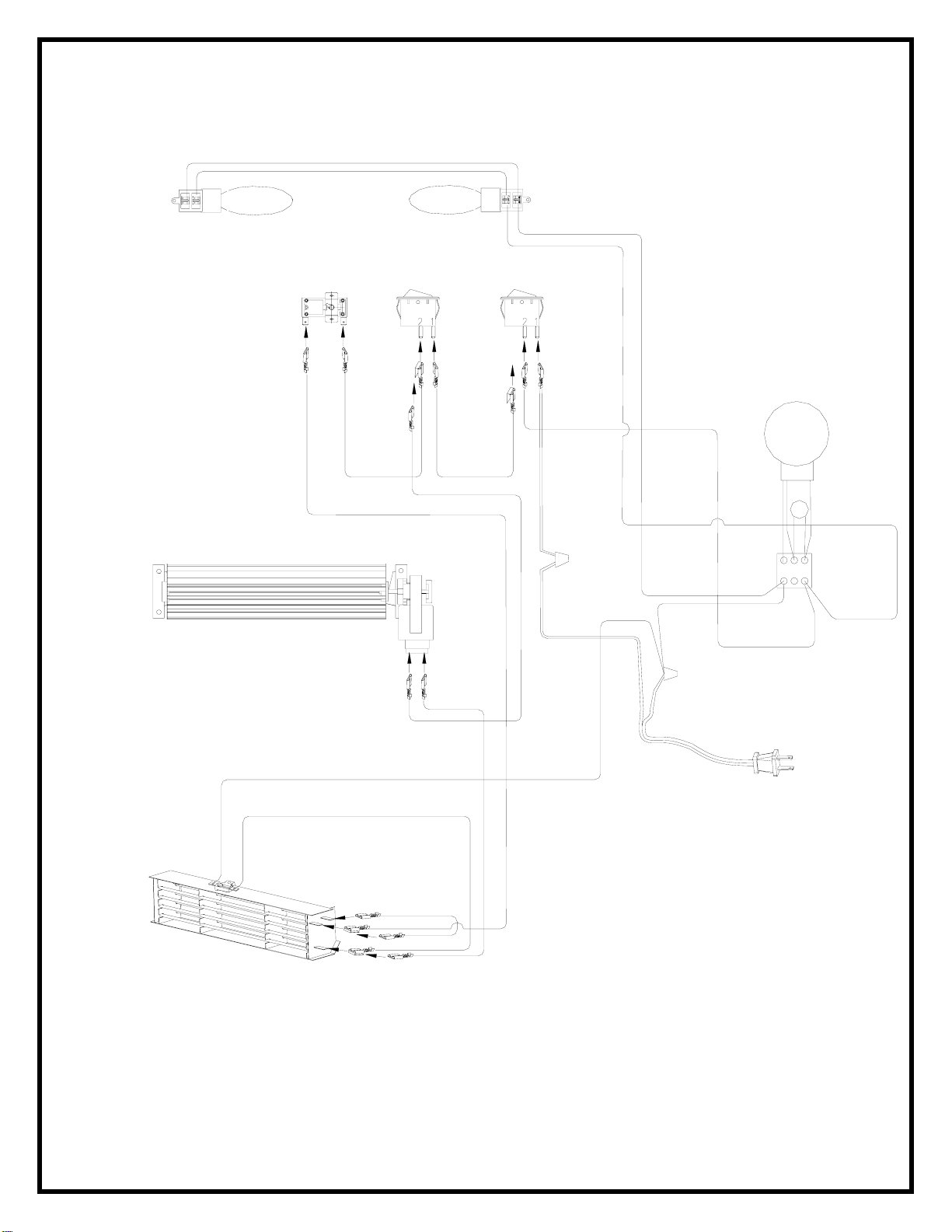

WIRING DIAGRAM

If unit was operating prior to servicing allow at least 10 minutes for light bulbs and

heating element to cool off to avoid accidental burning of skin.

Disconnect power before attempting any maintenance or cleaning to reduce the risk of

electric shock or damage to persons.

Light bulbs need to be replaced when you notice a dark section of the flame. There are

four bulbs under the log set which generate the flames and embers.

It is a good idea to replace all of the light bulbs at one time if they are close to the end of

their rated life. Group replacement will reduce the number of times you need to open

the unit to replace the light bulbs.

LOWER BULB REPLACEMENT

1. Unplug the unit from power outlet.

2. On the back of the Compact Fireplace remove the screws from the light access

cover.

3. Remove the light access cover.

4. Reach into the opening, locate and examine the bulbs to determine which bulb(s)

required replacement.

5. Unscrew the bulb(s) counter clockwise.

6. Insert new bulb(s).

7. Install the light access cover and install the screws.

SCREWS

LIGHT

ACCESS

COVER

LIGHT

BULBS

LOWER LIGHT BULB REQUIREMENTS

Quantity of 4 clear chandelier or candelabra bulbs with an E-12 (small) socket base,

60 watt rating.

If unit was operating prior to servicing allow at least 10 minutes for light bulbs and

heating element to cool off to avoid accidental burning of skin.

Disconnect power before attempting any maintenance or cleaning to reduce the risk of

electric shock or damage to persons.

TO REPLACE MAIN POWER SWITCH

1. Unplug the unit from power outlet.

2. On the back of the unit, remove the 10 screws along the top, sides and bottom from

the Compact Fireplace, and the 2 screws from the light access cover that secure it to

the mantel.

3. Carefully remove the Compact Fireplace from the mantel holding onto the front glass

so that it does not move.

WARNING

The front glass is held to the Compact Fireplace with double sided tape and could come

apart when separated from the mantel

4. Remove the front glass and set aside.

5. Remove the log set screw and remove the log set.

6. Lay the Compact Fireplace on its back.

7. Remove the 4 bottom access panel screws and separate the bottom access panel

from the unit.

8. Locate the Main Power switch and disconnect the wiring connections noting their

original locations.

9. Depress the retainer clips on the rear of the switch and push the switch out of the

bottom access panel.

10.Properly orientate the new switch and connect all of the wiring connections.

11.Reassemble in the reverse order as above.

MAIN POWER SWITCH

If unit was operating prior to servicing allow at least 10 minutes for light bulbs and

heating element to cool off to avoid accidental burning of skin.

Disconnect power before attempting any maintenance or cleaning to reduce the risk of

electric shock or damage to persons.

TO REPLACE HEATER CONTROL SWITCH

1. Unplug the unit from power outlet.

2. On the back of the unit, remove the 10 screws along the top, sides and bottom from

the Compact Fireplace, and the 2 screws from the light access cover that secure it to

the mantel.

3. Carefully remove the Compact Fireplace from the mantel holding onto the front glass

so that it does not move.

WARNING

The front glass is held to the Compact Fireplace with double sided tape and could come

apart when separated from the mantel

4. Remove the front glass and set aside.

5. Remove the log set screw and remove the log set.

6. Lay the Compact Fireplace on its back.

7. Remove the 4 bottom access panel screws and separate the bottom access panel

from the unit.

8. Locate the Heater control switch and disconnect the wiring connections noting their

original locations.

9. Depress the retainer clips on the rear of the switch and push the switch out of the

bottom access panel.

10.Properly orientate the new switch and connect all of the wiring connections.

11.Reassemble in the reverse order as above.

HEATER CONTROL SWITCH
