If you have any questions regarding our products please have the product model and serial

numbers available upon calling Dimplex customer service at 1-888-DIMPLEX (1-888-346-

7539). To locate the model and serial number labels see below. Record the model

number, serial number, on the front cover of this manual for future reference.

Serial Number

Model Number

EBQ™MODEL AND SERIAL NUMBER INFORMATION

Back of the unit

Serial Number Model Number

EBQ™ELECTRIC GRILL PACKAGE CONTENTS

QRS

LMN2

EBQ™ELECTRIC GRILL PACKAGE CONTENTS

Two people are required for some assembly of the EBQ™Electric Grill.

Care should be taken when handling all parts during assembly to pre-

vent damage.

Tools Required for Assembly

Metric Wrench (included)

L-hex Wrench (included)

Small Phillips Screw Driver (#1)

Adjustable Wrench

Item Number Description Quantity

AGrill Assembly 1

BFront Tray 1

CLower Shelf 1

DUpper Shelf 1

EWheels 2

FLong Leg Assembly 1

GShort Leg Assembly 1

HGrease Cup 1

IGrease Cup Bracket 1

JTool Holder 2

KBolt, M4 x 12 Long 4

LBolt, M8 x 80 Long 2

MWasher, 3/8" 2

NNut, M8 2

OBolt, M6 X 34 Long 20

PNut, M6 20

QBolt, M4 x 40 Long 2

RSpacer 2

SNut, M4 2

EBQ™ELECTRIC GRILL ASSEMBLY

Step 1

2 of L

2 of M

2 of N

Wheel Assembly

Install the wheels onto the

short leg assembly using 1 of

item L, M and N for each

wheel.

Tighten all fasteners using

the supplied metric wrench

and an adjustable wrench.

Wheel

Item E on Grill Package

Contents Page

Short Leg Assembly

Item G on Grill Package

Contents Page

EBQ™ELECTRIC GRILL ASSEMBLY

Step 2

8 of O

8 of P

Lower Shelf Assembly

Install the lower shelf onto the short

and long leg assembly using 8 of

item O and P.

Tighten all fasteners using an

adjustable wrench and a L-hex

Wrench.

Lower Shelf

Item C on Grill Package

Contents Page

Short Leg

Assembly

Item G on Grill Package

Contents Page

Long Leg

Assembly

Item F on Grill Package

Contents Page

EBQ™ELECTRIC GRILL ASSEMBLY

Step 3

4 of O

4 of P

Upper Shelf Assembly

Install the upper shelf onto the

short and long leg assembly

using 4 of item O and P.

Tighten all fasteners using an

adjustable wrench and a L-hex

Wrench

Upper Shelf

Item D on Grill Package

Contents Page

Short Leg

Assembly

Item G on Grill Package

Contents Page

Long Leg

Assembly

Item F on Grill Package

Contents Page

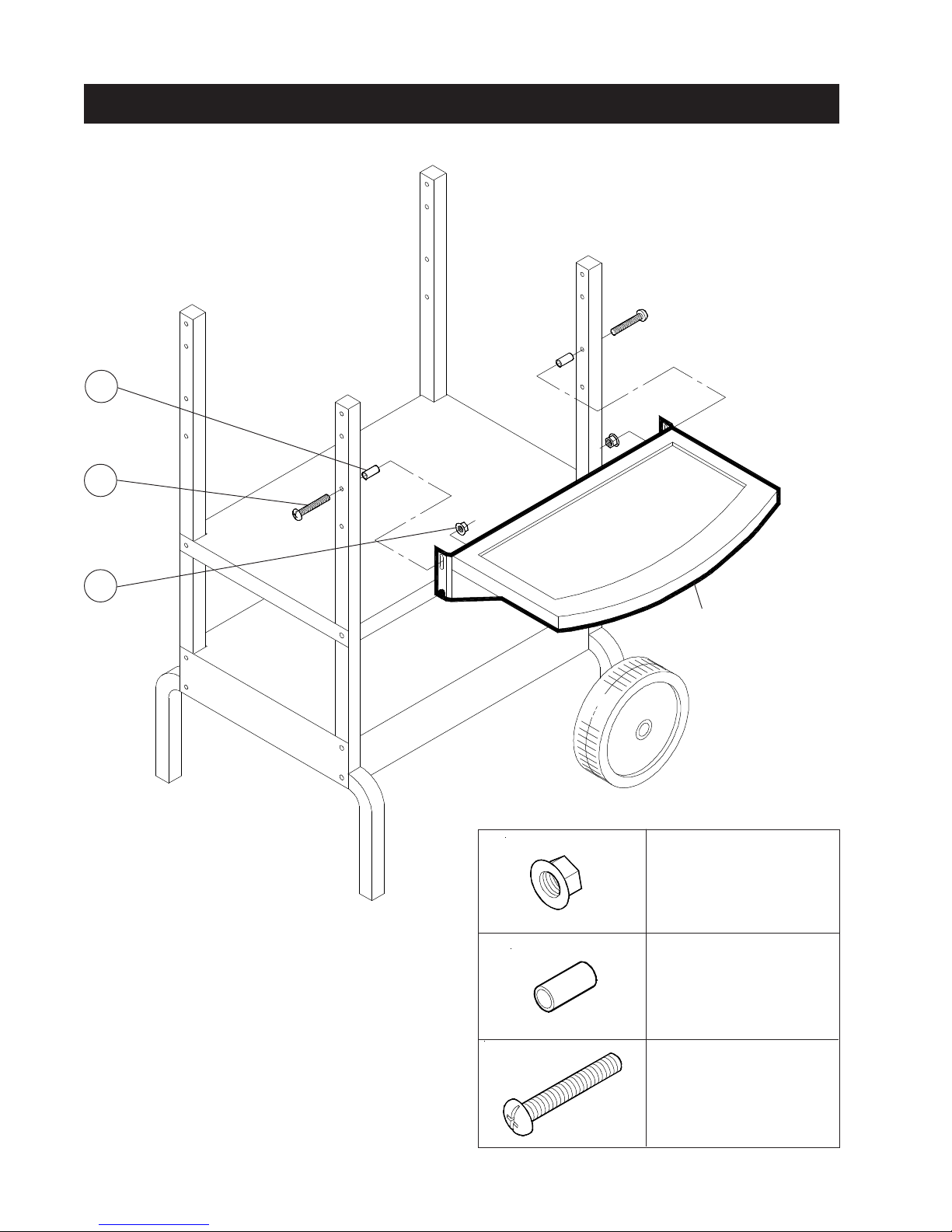

EBQ™ELECTRIC GRILL ASSEMBLY

Step 4

2 of R

2 of Q

2 of P

Front Tray Assembly

Install the front tray assembly

onto the leg assemblies

using 2 of item P, Q and R.

Tighten all fasteners using a

small Phillips screw driver

(#1) and an adjustable

wrench.

Front Tray

Assembly

Item B on Grill Package

Contents Page

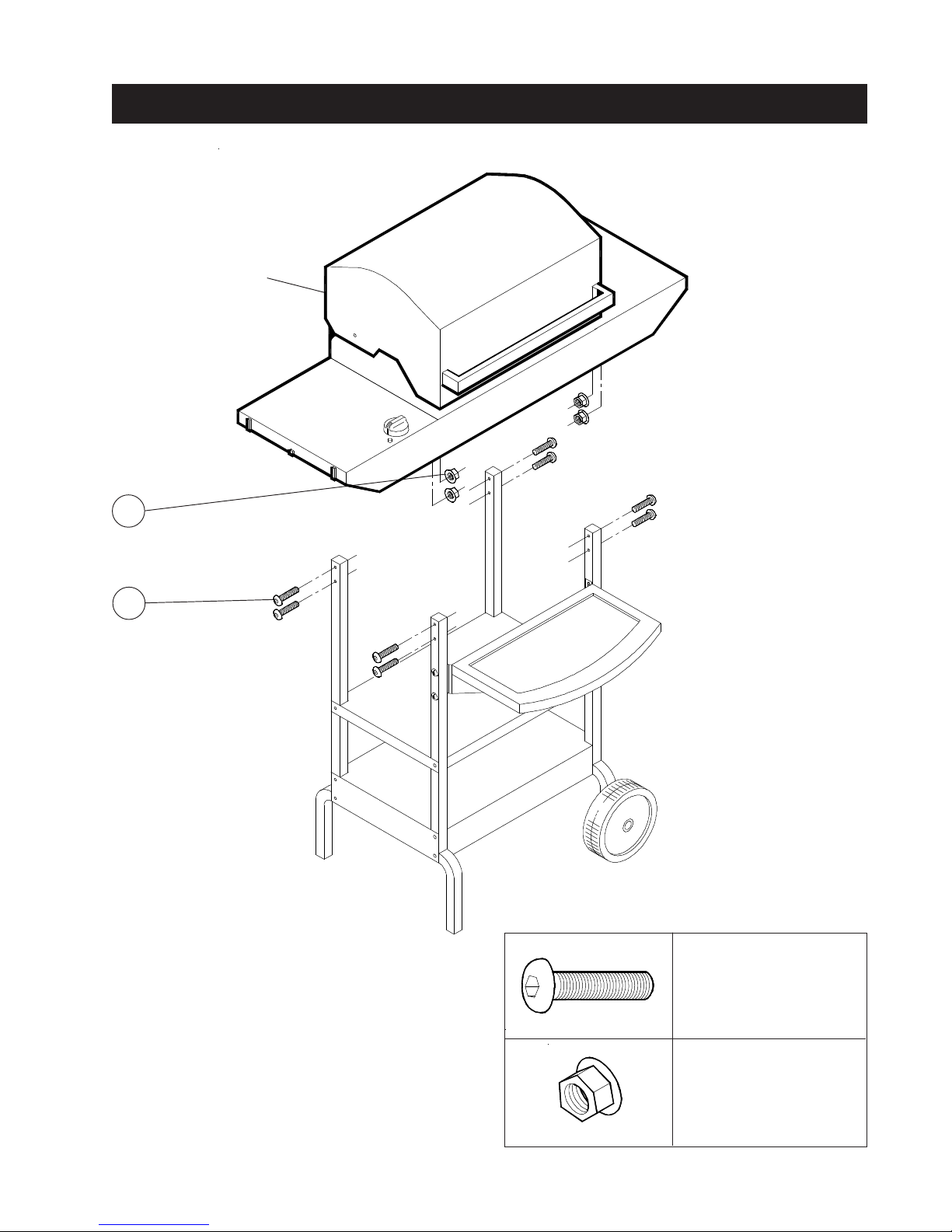

EBQ™ELECTRIC GRILL ASSEMBLY

8 of O

8 of P

Grill Assembly

Two people are required for

this portion of assembly.

Lower the grill assembly onto the

base and secure using 8 of item

O and P

Tighten all fasteners using an

adjustable wrench and a L-hex

Wrench

Grill Assembly

Item Aon Grill Package

Contents Page

Step 5

EBQ™ELECTRIC GRILL ASSEMBLY

2 of K

Tool Holder Assembly

Align the tabs on the electric grill

with the slots in the tool holders

and slide until secure. Install 1

of item Tand S into the center

location of each tool holder using

a small Phillips screw driver (#1)

Tool Holder

Item J on Grill Package

Contents Page

Step 6

Slots

Tabs

2 of S
