Dimplex DCACE20R Manuel utilisateur

DCACE20R

Air Circulator w/Electronic

Controls, Timer & Remote

www.dimplex.com.au

INSTRUCTION MANUAL

PLEASE READ THE INSTRUCTION MANUAL CAREFULLY BEFORE USING THE UNIT.

www.dimplex.com.au

CONTENTS

WARNINGS AND PRECAUTIONS 1

STRUCTURE 3

OPERATION 4

CLEANING AND MAINTENANCE 7

TECHNICAL REFERENCE DATA 9

WARRANTY 9

Warnings

• Never place the unit near gas appliances, ames or

• ammable liquids.

• Never hit or shake the unit. Doing so may cause damage.

• Never cover or obstruct the air inlet or outlet.

• Doing so may cause overheating.

• Never spray water on or place the unit near water.

• Doing so may cause electric shock.

• Never connect other appliances to the same power outlet.

• Never connect or disconnect the power plug with wet hands.

• Doing so may cause electric shock.

• Never insert ngers or objects through the guards when the unit is

operating.

• Never use an extension cord.

• Always have a professional technician, manufacturer or service agent

replace a damaged power cord.

Precautions

• This appliance is for indoor use only.

• Do not use the unit near windows or where water collects. Rain and

water collection may lead to a risk of re or electric shock.

• Do not place the unit in a damp place or where humidity is high (such

as a bathroom).

• Do not leave the unit operating while unattended.

• Do not place the unit in direct sunlight to avoid surface discolouration.

WARNINGS & PRECAUTIONS

• This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person responsible for

their safety.

• Children should be supervised to ensure they do not play with the

appliance.

• Avoid electromagnetic interference. Keep the unit at least 1 metre away

from electric appliances such as televisions and radios.

• Avoid scratching and damaging the surface. Do not use chemical

solvents (i.e. Benzene, alcohol) to clean the surface.

• Place the unit on a stable surface when operating.

• Unplug the unit before cleaning, servicing or maintenance.

• Electrical connections must be in accordance with National or

• Local Codes.

• The rear of the unit must be at least 50cm away from the wall.

• If the supply cord is damaged, it must be replaced by the manufacturer,

its service agent or similarly qualied persons in order to avoid a hazard.

WARNINGS & PRECAUTIONS

1. Base

2. Buttons

3. LED indicator light

4. Remote receiver

5. Brand badge

6. Front grille

7. Remote control/holder

8. Rear housing

9. Fan body

10. Fan body

11. Power cord

STRUCTURE

CONTROL PANEL & REMOTE

OPERATION

Oscillation

button

Fan Speed

button

Timer

button

Mode

button

On/Off

button

INDICATOR LIGHTS

Oscillation

indicator

Fan Speed

indicator

Timer

indicator

Mode

indicator

On/Off

indicator

红线充鼓包范围

图案丝印颜色Pantone Coolgray 6c

白色White

循环扇白色遥控器 DF-EF0816V 肖超 2017/01/12

红线充鼓包范围

Pantone 877C

黑色Black

Pantone 877C

Pantone Coolgray 6c

Background (White)

Background (Black)

循环扇黑色遥控器 DF-EF0816V 肖超 2017/01/12

注：

1，此遥控器PVC为白色，表面喷消光油

2，背面备胶

3，按键冲鼓包，直径为10mm

注：

1，此遥控器PVC为白色，表面喷消光油

2，背面备胶

3，按键冲鼓包，直径为10mm

OPERATION

REMOTE CONTROL

The remote control can be used to operate all functions.

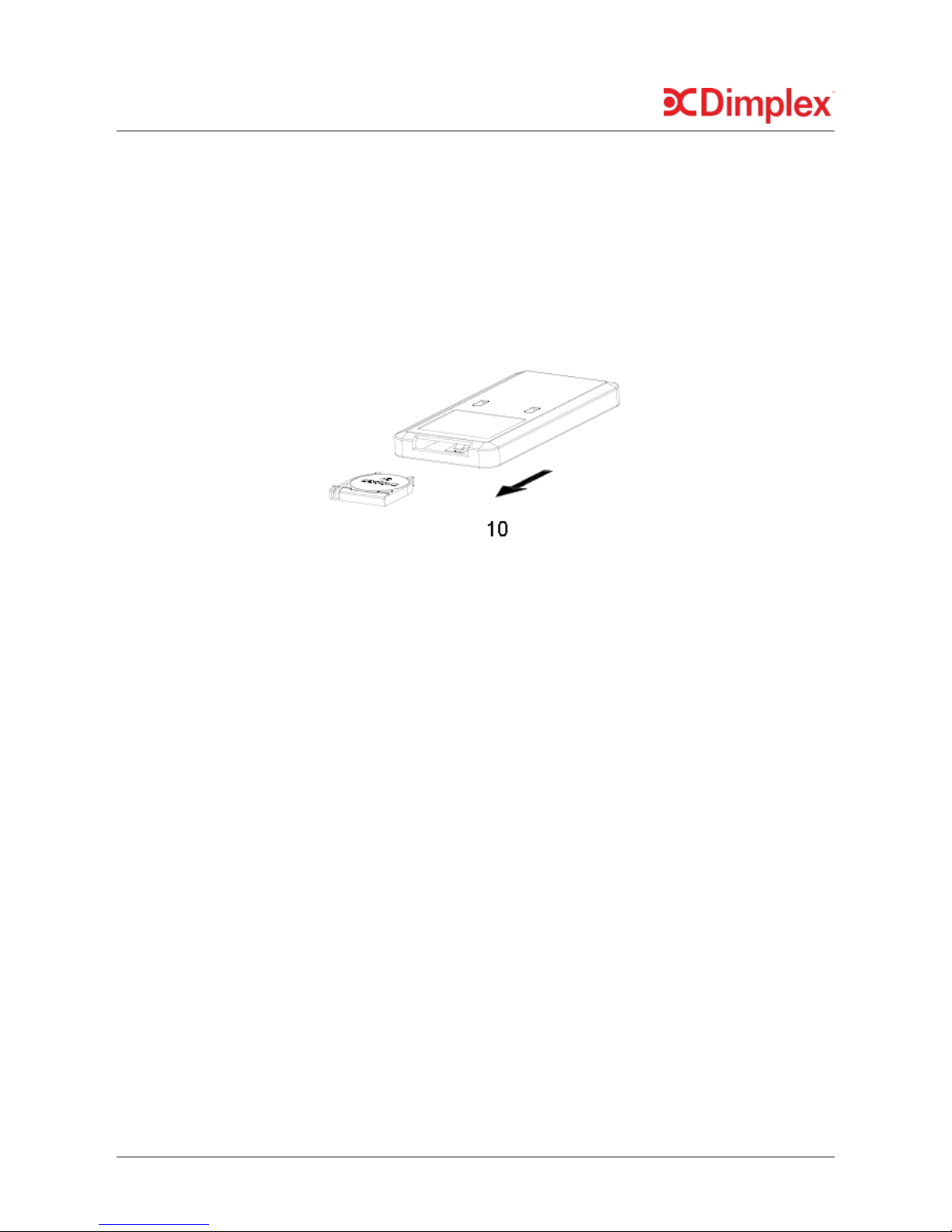

1. Remove the battery cover at the back of remote control (Picture 2).

2. Insert the 3V CR2032 battery.

3. Replace the battery cover.

ON / OFF

This button is used to switch the unit on and off. By simply pressing the

button, you can turn the unit on or off. Once turned on, default mode is

Normal Mode & Low Speed.

FAN SPEED

This button is used to select the desired fan speed – Low, Med, or High.

The fan speed indicator light will illuminate indicating what speed has been

selected. Press once for low speed, press twice for medium speed, press

three times for high speed. Pressing again in high speed, will return to low

speed.

OPERATION

MODE

This button is used to switch between pre-set operating modes. By simply

pressing the button, you can regulate the mode from NORMAL, NATURAL

or SLEEP depending on your needs. The unit automatically starts in

NORMAL mode.

Normal Mode: Operates normally with the selected wind speed –

Low, Med, High.

Natural Mode: The fan speeds automatically shift through High,

Med, Low speed to imitate a natural wind speed rhythm.

Sleep Mode: The fan automatically lowers the set wind speed

in 30 minute intervals. E.g. High speed: 30mins -> Med speed

30mins -> Low speed 30 mins.

TIMER

This air circulator comes with an 8 hour timer that allows you to pre-set the

unit to switch off automatically, in intervals of 1, 2, 4 or 8 hours.

To operate, simply select the number of hours ahead you wish the unit to

switch off and the respective indicator lights will illuminate. If you’d like the

unit to run continuously, ensure no timer indicator lights are illuminated.

OSCILLATION

Press the oscillation button to activate 360° Horizontal oscillation. Press

again to deactivate.

90° VERTICAL OSCILLATION

Tilt the fan head to achieve up to 90° angled oscillation. Ensure the fan is

OFF when adjusting the fan head position.

OPERATION

1. Remove the unit from its packaging

2. Plug the unit into a power outlet, a ‘beep beep’ will sound and the unit

will be in standby mode.

3. Press the “On/Off” button to turn the unit On.

4. Press the “Fan Speed” button to change the fan speed (low, med, high).

5. The unit defaults in “Normal” mode. Press the mode button to change

to Natural or Sleep Mode.

6. The unit will operate initially on a continual basis. If a set period of

operation is required, please follow “TIMER” instructions on page 6.

7. To activate 360° oscillation, press the oscillation button. To turn off

oscillation, press again.

8. To switch the unit off at any time, press the “On/Off” button.

CLEANING & MAINTENANCE

CLEANING

Over time, dust can accumulate on the rear grille cover and fan blades,

which can affect the fans performance. It is recommended to clean the fan

at least once a month.

1. Turn the unit OFF and disconnect the appliance from the power supply.

2. Remove any dust build up with a soft brush.

3. Wipe the surface of the unit with a soft damp cloth. Mild detergent can

be used for any stubborn marks.

IMPORTANT

The control panel and other parts must not come into contact with water or

any other liquids.

• Do not dispose of electrical appliances as unsorted municipal waste.

• Use separate collection facilities.

• Contact your local government for information regarding the collection

systems available.

• If electrical appliances are disposed of in landlls or dumps, hazardous

substances can leak into the ground water, polluting the food chain and

damaging health and well-being.

MAINTENANCE

If the unit fails to operate efciently, is broken or other problems arise,

unplug and do not operate. Ask for advice by calling your local after sales

service agent or the Customer Care Centre on 1300 556 816 (AU) / 0800

666 2824 (NZ).
