Dimplex DCB07C Manuel utilisateur
Window/Wall Box
Air Conditioner
Cooling Only: DCB05C, DCB07C & DCB09C
Reverse Cycle: DCB07, DCB09 & DCB14
www.dimplex.com.au
INSTRUCTION MANUAL
PLEASE READ THE INSTRUCTION MANUAL CAREFULLY BEFORE USING THE UNIT.
Table of Contents
Page
- 1 -
Introduction
Electrical Specifications
Care and Maintenance
Operating Instructions
Trouble Shooting Guide
2
4
5
6
9
10
Installation Instructions
Introduction
Front Cover
Air inlet grille
(Indoor)
Cabinet
Air outlet grille
(Indoor)
Air inlet grille
(Outdoor)
Control Panel
Air filter
Vent Lever
- 2 -
Fig.1-1
SLEEP
DCB05C/DCB07C/DCB09C
DCB07/DCB09 DCB14
11
Compressor running
Operating Instructions
- 4 -
The remote controller transmits signals to the system.
Remote controller
The shape and position of buttons and indicators may vary according to the model,
but their function is the same.
The outlooking and some function of remote control may vary according to the model.
The unit confirms the correct reception of each press button with a beep.
To select the mode of operation
To activate or deactivate of the movement of
the DEFLECTORS .
To activate the function SLEEP
Decrease the temperature or time by 1 unit
Increase the temperature or time by 1 unit
To switch the conditioner on and off.
To set automatic switching-on/off
To select the fan speed of auto/low/mid/high
No.
8
9
6
MODE
SWING
SLEEP
1
(TEMP DN)
(TEMP UP)
2
3
4
ON/OFF
FAN
5
TIMER
Button Function
Remote Controller
SLEEP FAN
TIMER SWING
ON/OFF
MODE
MID
SWING
AUTO
DRY
FAN
COOL
FEEL
SLEEP
TIMER ON
HIGH
LOW
TMIER OFF
DCB05C/DCB07C/DCB09C
DCB07/
DCB07 DCB09 DCB14
DCB05C DCB07C DCB09C
RATED VOLTS
AMPS
RECEPTACLE AND FUSE TYPES
250V
7.1A
250V
7.1A
250V
7.1A
RATED VOLTS
AMPS
RECEPTACLE AND FUSE TYPES
250V 250V250V
7.1A7.1A 8.5A
If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
CAUTION
REMOVE ALL THE SHIPPING PARTS BEFORE INSTALLATION
LOCATION
Select a location that can support the weight of the air conditioner and one that will not
cause increased operation noise and vibration.
Direct sunlight is unfavorable for efficient cooling.
Select a place where there is no obstacles near the air inlet and outlet.
wall thickness is less than 210
lf the wall thickness is more than 210 scrape the wall as
shown above.
Make rear side lower so that waterwill drain out smoothy.
Less than 210
More than 55 Scrape
45
Less
than
210
5-10mm
more
than 400
more
than 400
more
than 500
less
than 210
Installation instructions
- 6 -

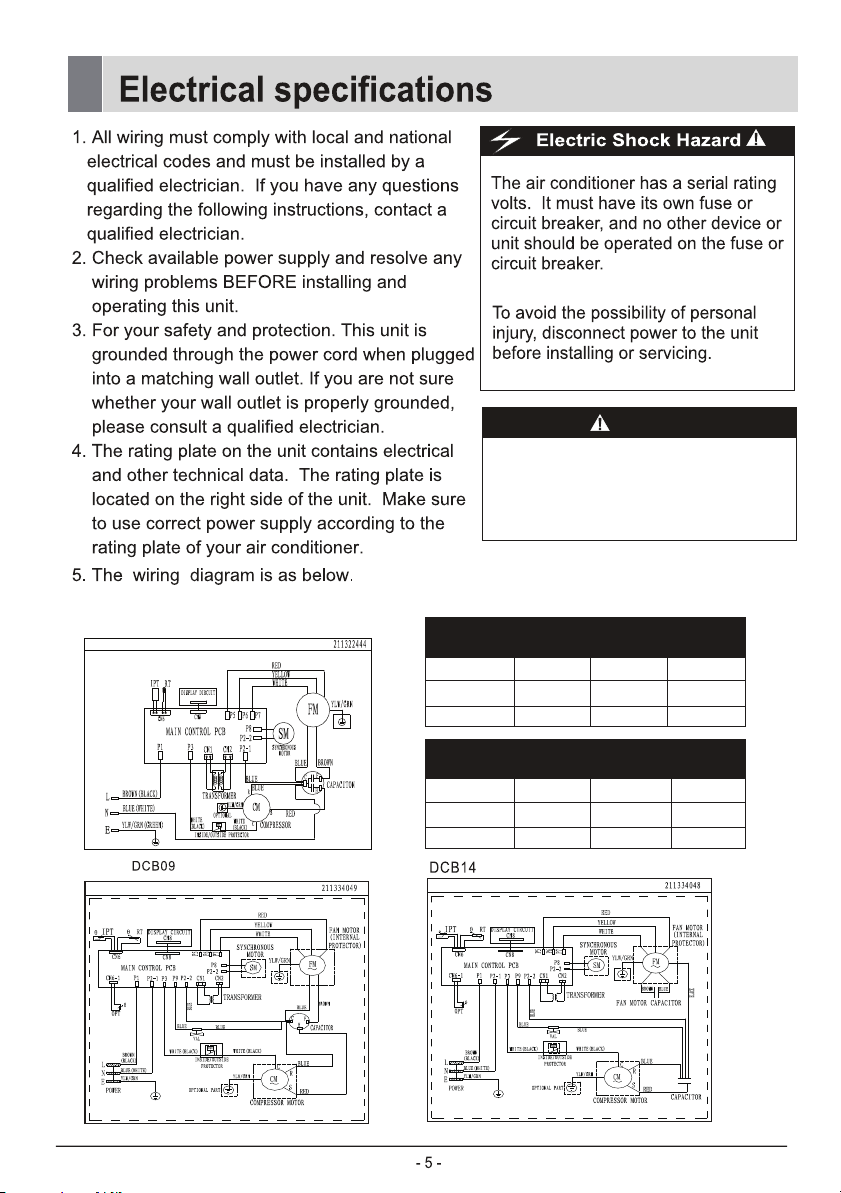

Check the capacity of wiring and power outlet. The power outlet should be used
exclusively for the air conditioner. Do not use it with other appliances.
Ground the air conditioner to prevent danger of electric shock.
Connect the air conditioner with power source securely.
Use a fuse as below.
OPERATION
Installation instructions
- 7 -
CAUTION
Before installation,turn off the operation switch and disconnect the power cord.
This appliance isnot intended foruse by persons(includingchildren) with
reduced physical, sensory or mental capabilities,or lack of experience and
knowledge, unless they have been given supervision or instruction concern-
ing use of the appliance by a person responsible for their safety. Children
should be supervisedto ensure thatthey do not playwith the appliance.
The appliance isfitted with means for disconnection from the supply mains
having a contact separation in all poles that provide full disconnection
under over voltage category IIIconditions, and thesemeans must be
incorporatedin the fixedwiring in accordancewith the wiringrules.
Do not install air conditioner in the place where flammable gas leaks are a
possibility.
The minimum clearance from the appliance to combustible surfaces is 100mm;
(Only for electric heating)
The range of external static pressures at which the appliance was tested is 0-5Pa
CAUTION
Installation instructions
- 8 -
1) Remove the front panel. (Fig.5)
Remove the air filter. (Fig.6)
Remove screw at the botton of the front panel. (Fig.7)
Open the panel cover.
2) Remove the screws fix the chassis-fixing board and cabinet.
some Models have two more screws on the back of the
cabinet. (Fig.8)
3)
4)
5)
Grasp the handle on the front of the chassis and carefully
slide the air conditioner unit out of the cabinet. (Fig.9)
lnstall the drain tube connection into the hole provided
at the rear of the air conditioner chassis.(Fig.11)
To meet different requirementsof different type of air
conditioner, there are two kinds of methods for your choice
to treat the condensed water. You can choose back
drainage or bottom drainage.
Bottom drainage way: the drain tray is fixed in position
through four pcs of screws and use the flare nut to block
the back drainage hole.(Fig.15)
Back drainage way using the flare nut to block the bottom
drainage hole and use water outlet pipe to connect the
back drainage hole pay attention to increase the sealing
ring to prevent water leakage.(Fig.16)
lnstall the air conditioner cabinet on the installation shelf
(not included) with screws.(Fig.10)
6) Carefully slide the unit back into the cabinet.(Fig .12)
7) Reinstall the retaining bracket,front panel and mounting
screws.(Fig.8,7,13)
8) Reinstall the air filter.(Fig.14)
Fig.5
Fig.6
Fig.7
Fig.8
Fig.9
Wall
Cabinet
Screw
Installation shelf
Fig.10
Fig.11 Fig.12 Fig.13
Fig.14
drain tray
screw
falre nut
Fig.15
falre nut sealing ring
water outlet pipe
Fig.16
The front cover will accumulate dirt and dust.
To clean it, wipe it with a soft dry cloth. When
it is excessively dirty, wipe it with a soft cloth
dampened with warm water or mild soap, then
wipe it again thoroughly with a soft dry cloth.
AIR FILTER
The air filter should be washed at least once a month. lf the air filter remains
full of dust, the air flow will decrease and the cooling capacity will be reduced.
The filter is behind the cover and to be pulled out from right hand side.
Wash the air filter with water anddetergent.
Rinse with clean water and dry completely before reinstalling.
AIR CLEANING FILTER
FRONT COVER,ETC
The air cleaning filter is attached to the air filter.
Wash the air cleaning filter as well when wash air
filter.
Hot Water
Benzine,acid,etc.
- 9 -
Care and Maintenance
Fig.15 Fig.16
CAUTION
Do not use hot water above 40 C for washing the air filter.
Let the filter dry thoroughly in the shade before reinstalling. Do not expose
it directly on the sun.
Do not operate the air conditioner with the filter removed.
T3 : The ambient temperature for cooling: 25~52 ;condition
The ambient temperature for heating: -5~20 .
T1 condition: The ambient temperature for cooling: 18~43 ;
The ambient temperature for heating: -5~20 .
