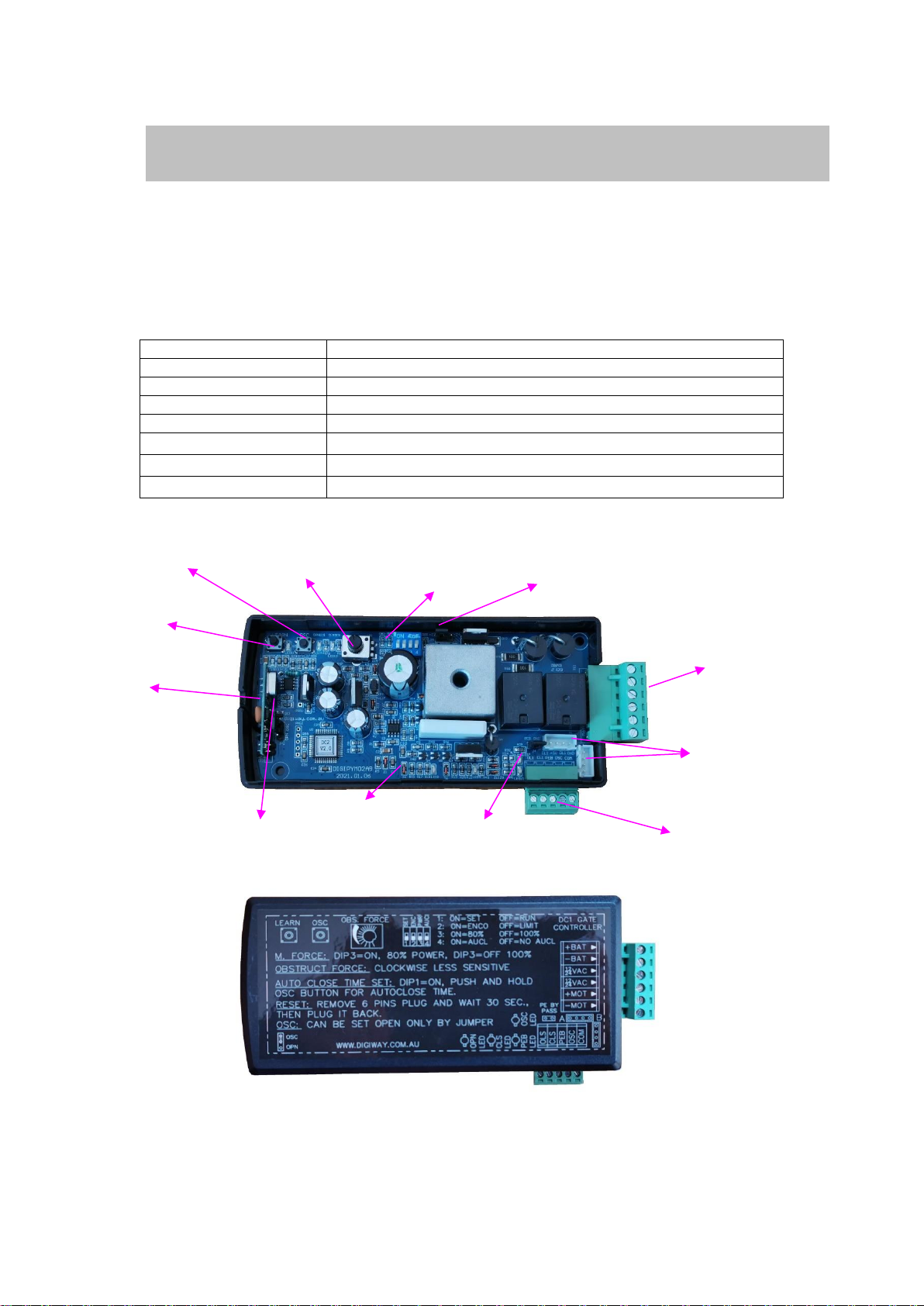

4. Control Board Input
OSC input
The OSC inputs terminal input can be from switch, push button or relay (from any other brand
standalone receiver) N/O. It became active when short to COM. This terminal can be set to OSC or
OPN function by jumper on board. If keep active, gate will stay open.
PEB input
If the P.E input activated while gate is closing, the gate will stop or reopen. If the gate in the opened
position and P.E beam activated, the gate will stay in opened.
CLS limit input
If gate is closing cycle, when CLS limit is active, gate will stop and controller will display closed. If
controller working encode model, this terminal no function
OPEN limit input
If gate is opening cycle, when OPN limit is active, gate will stop and controller will display opened.
If controller working encode model, this terminal no function
OSC button
The OSC button operate gate (Push Open, push again Stop, push again Close) and set auto close time.
Encoder inputs
Encoder is mounted on the motor shaft inside of motor. it is not serviceable by customer. There are two
four pings socket on control board, one for right hand gate and other one for left hand gate.
5. DIP SWICTH FUNCTION
DIP1 –SET/RUN ON=SET, OFF=RUN
DIP2 –ENCODER/LIMIT ON=ENCODER OFF=LIMIT
DIP3 –POWER SELECT ON= 80% OFF= 100%
DIP4 -- AUTO CLS ON=AUTO CLS OFF=NO AUTO CLS

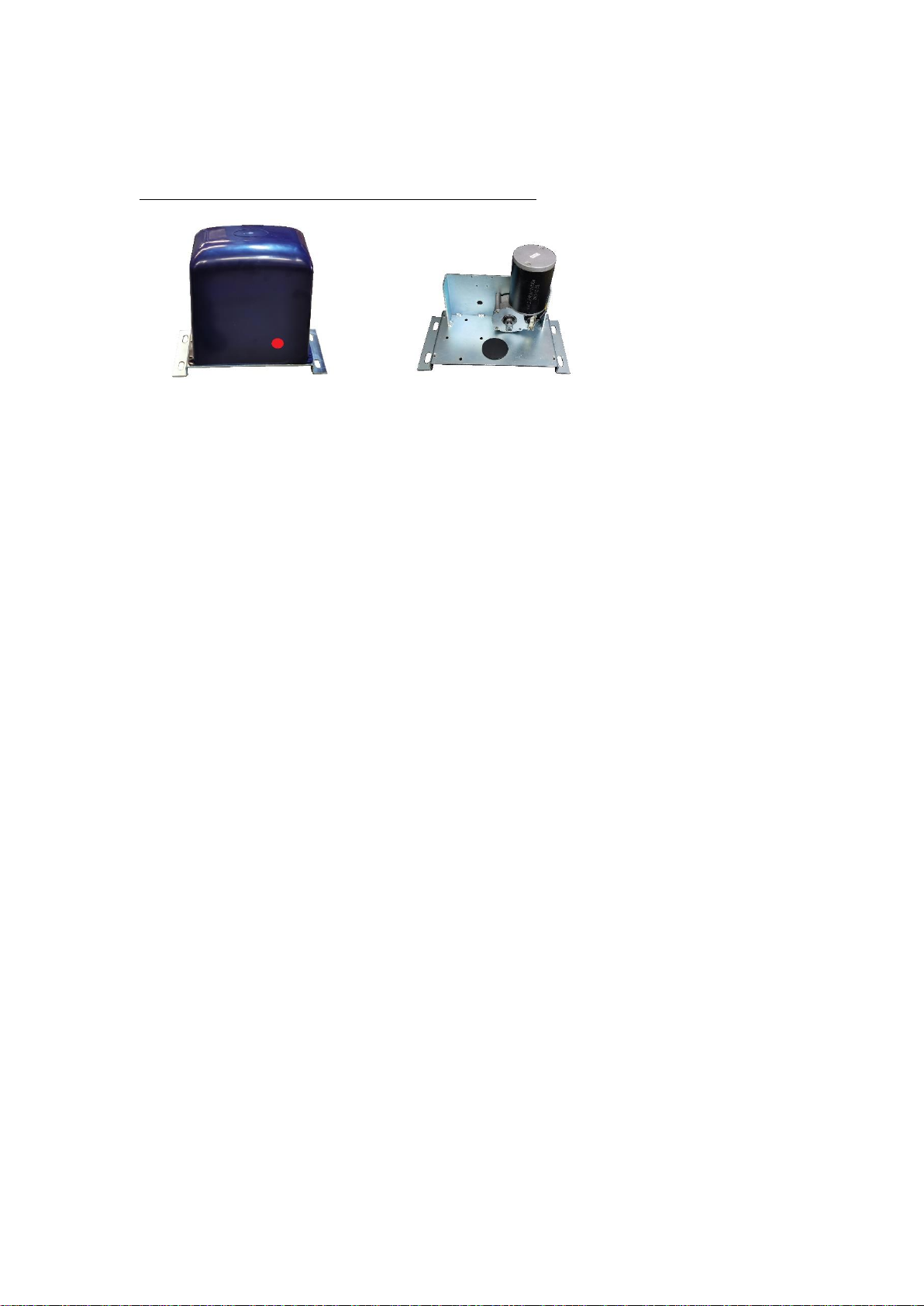

6. Motor Set up
6.1 Encoder control --- DIP2=ON
Motor installation as other motor and do not mention here.
Default setting is gate closing to left. If gate close to right, you need swap two motor wires and move
the encoder plug to J1. Make sure gate has opened and closed stopper installed, then power up, push
OSC button or remote, after two completely operation cycle, controller will be automatically
programmed. Do not need do anything.
6.2 Limit control --- DIP2=OFF
Default setting is gate close to left. If gate close to right, you need swap two motor wires and swap
close and open limit switch input. Push OSC button or remote, after two completely operation cycle,
controller will be automatically programmed. Do not need do anything.
6.3 Timers setting
Auto close time set
Set DISP1 On, push and hold on OSC, the time you push and hold OSC button is the time of
gate auto close time. when reached the required time simply release OSC button. Set DIP1
