FIREWIRE 800 / 400 INTERFACE, 3 PORT

PCI EXPRESS ADD-ON CARD

User Manual

(DS-30203-1)

All brand names and trademarks are properties of their

Respective owners.

Page 2

Features and Benefits

Provides two FireWire 800 (1394b) ports and one 1394a

(6-pin) port for multiple 1394b/1394a devices connections

Supports data transfer rates of 100, 200, 400 and 800 Mbps

Built-in 4-pin power connector provides extra power when

connected to the system’s power supply (recommended)

Supports hot-swapping and Plug-n-Play connection of

peripheral devices

Works with various types of FireWire 800 (1394b) and

1394a devices including portable hard disk, DV camcorder,

digital camera, CD-RW/DVD-ROM drive and other

audio/video devices

Support Windows® 7 / Vista / Server 2003 SP1 or above /

XP / 2000

System Requirements

Windows® 7 / Vista / Server 2003 SP1 or above / XP / 2000

PCI Express-enabled system with an available PCI Express

slot

Page 3

Package Contents

1 x PCIe FireWire 800 Card 3 Ports

1 x User’s Manual

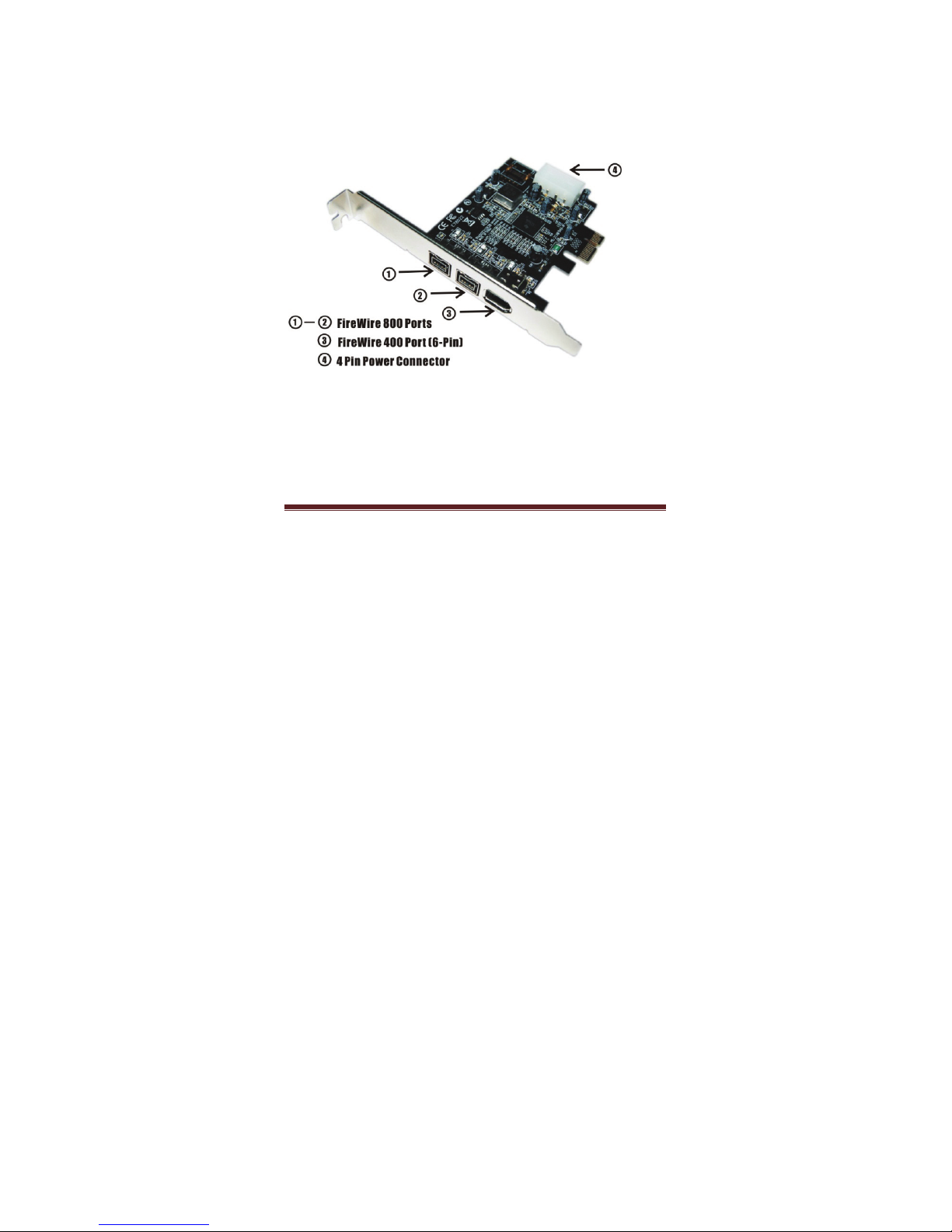

Board Layout

Hardware Installation

1. Turn Off the power to your computer.

2. Unplug the power cord and remove your computer’s cover.

3. Remove the slot bracket from an available PCIe slot.

Page 4

4. To install the card, carefully align the card’s bus connector

with the selected PCIe slot on the motherboard. Push the

board down firmly.

5. Connect the system power source to the board’s power

connector.

6. Replace the slot bracket’s holding screw to secure the card.

7. Replace the computer cover and reconnect the power cord.

Driver Installation

Please make sure the board is installed before proceeding with

driver installation.

Important: If your system doesn’t boot to Windows properly with

our card installed, check with your system’s manufacturer for the

latest system firmware update.

For Windows® 7 / Vista / Server 2003 SP1 or above /

XP / 2000

Note: Server 2003 Server Pack 1 or above is required to

install the FireWire 800 Card 3 Ports successfully.

Page 5

Windows® 2000/XP/Server 2003 SP1/Vista / 7 will automatically

detect and install the correct driver for the FireWire 800 Card 3

Ports.

To Verify Windows Installation

Right click My Computer, then click Manage, click Device

Manager. The Device Manager window opens. Scroll to the

IEEE 1394 Bus host controllers icon and click on the plus

symbol, the Texas Instruments OHCI Compliant IEEE 1394

Host Controller should be displayed.
