Digitus DN-7066 Manuel utilisateur
COPYRIGHT
Copyright ©2007/2008 by this company. All rights reserved. No part of this
publication may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language or computer language, in any form or
by any means, electronic, mechanical, magnetic, optical, chemical, manual or
otherwise, without the prior written permission of this company
This company makes no representations or warranties, either expressed or
implied, with respect to the contents hereof and specifically disclaims any
warranties, merchantability or fitness for any particular purpose. Any software
described in this manual is sold or licensed "as is". Should the programs prove
defective following their purchase, the buyer (and not this company, its
distributor, or its dealer) assumes the entire cost of all necessary servicing,
repair, and any incidental or consequential damages resulting from any defect
in the software. Further, this company reserves the right to revise this
publication and to make changes from time to time in the contents thereof
without obligation to notify any person of such revision or changes.
2-7 WPS Configuration
2-8 About
CHAPTER III: Soft-APFunction
3-1 Switch to AP Mode and Basic Configuration
3-2 Security Settings
3-3 Access Control
3-4 Connection Table
3-5 Event Log
3-6 Statistics
CHAPTER IV: APPENDIX
4-1 Hardware Specification
4-2 Troubleshooting
4-3 Glossary
4-4 FCC and Other Compliance Statements
Chapter I: Product Information
1-1 Introduction and safety information
Thank you for purchasing this high-speed 802.11b/g/Draft-N wireless
network card! Excepting common wireless standards 802.11b/g, this
wireless network card is also 802.11 Draft-N compatible. 802.11 Draft-N
also provides wider wireless coverage, so you don’t have to worry if your
computer is far from your wireless access point. This wireless network
card also supports MIMO (Multi-In, Multi-Out) technology, which uses
two antennas for signal reception and one antenna for high power signal
transmission to enhance data transfer rate (Up to 150Mbps) and wireless
coverage.
With easy-to-install PCI interface - a very common expansion slot of
desktop computers - and Plug-and-Play technology, even inexperienced
computer user can get this wireless network card installed on his or her
computer in just few minutes! All you have to do is shutdown the
computer and remove the cover and then insert the wireless network card
into any empty PCI slot, that’s all!
Other features of this router including:
High-efficiency antenna expands the scope of your wireless
network.
QoS function: control the bandwidth required for different
applications.
802.11b/g/Draft-N compatible.
Supports major encryption methods like WEP, WPA, and WPA2
encryption.
PCI interface - you can get it installed on your computer in just
few minutes!
Supports software AP function (turns the card to a wireless
access point).
1-2 Safety Information
In order to keep the safety of users and your properties, please follow the
following safety instructions:
1. This PCI wireless network card is designed for indoor use only. DO
NOT expose this network card to direct sun light or rain, snow.
2. DO NOT put this network card at or near hot or humid places, like
kitchen or bathroom. Also, do not left this wireless network card in the
car in summer.
3. Shutdown the computer and remove the power cord of your computer
when you want to install / remove the network card. If you’re not familiar
about interface card installation, ask an experienced technician for help.
4. The antenna of this network card is small enough to put in a child’s
mouth, ear, or nose, and it could cause serious injury or could be fatal. If
they throw the network card or antenna, cards or antennas will be
damaged. PLEASE KEEP THIS NETWORK CARD OUT THE REACH
OF CHILDREN!
5. If you found that the network card is not working properly, please
contact your dealer of purchase and ask for help. DO NOT try to fix the
network card by your self, warranty will be void.
6. If the network card falls into water, DO NOT USE IT AGAIN
BEFORE YOU SEND THE CARD TO THE DEALER OF PURCHASE
FOR INSPECTION.
7. If you smell something strange or even see some smoke coming out
from your computer, switch the computer off immediately, and call dealer
of purchase for help.
1-3 System Requirements
Desktop PC with Pentium 300 MHz-compatible processor or higher
An empty PCI slot
Windows 2000, 2003, XP, or Vista operating system
CD-ROM drive
At least 100MB of available disk space
1-4 Package Contents
Before you starting to use this wireless network card, please check if
there’s anything missing in the package, and contact your dealer of
purchase to claim for missing items:
□PCI wireless network card (1 pcs) ……………………………… 1
□ Quick installation guide (1 pcs) ………………………………… 2
□ User manual/Device Driver CDROM (1pcs) ……………………..3
□ Antennas (2 pcs) ……………….……………………………….. 4
1-5 Familiar with your new wireless network card
1. Antennas
Two 3dBi dipole antennas are enclosed with the PCI card. Please secure
these two antennas to Reverse SMA connectors of the card.
2. WPS Button
Press this button and hold for 3 seconds to start WPS function. When
WPS is enabled, the Link and Tx/Rx LEDs will be steadily on.
3. Link and Tx/Rx LED Definitions
LED Name Light Status Description
On Link to a wireless access pointLink
Off Not linked to any wireless access point
Blinking Transferring / receiving dataTx/Rx
Off No wireless activity
1
2
3
CHAPTER II: DRIVER INSTALLATION AND
CONFIGURATION
2-1 Network Card Installation
Please follow the following instructions to install your new wireless
network card:

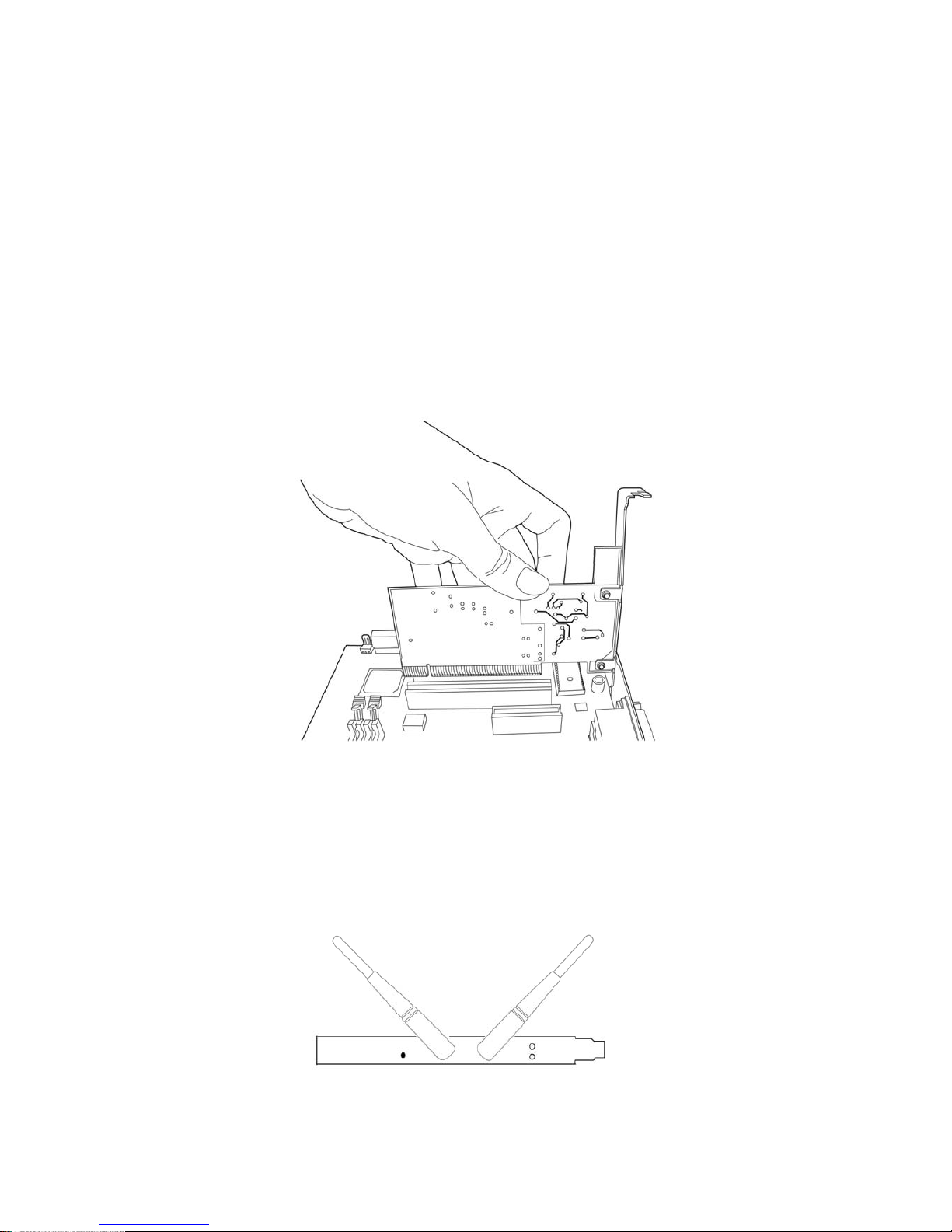

1. SWITCH THE COMPUTER OFF, remove the cover and insert the
wireless network card into an empty PCI slot of your computer.
2. Install all two antennas on the wireless network card, and make sure
the antennas are securely installed. To improve radio reception, please
adjust antennas to the position shown in the picture.
