Digitus EASY WEASEL Manuel utilisateur

EASY WEASELTM MOBILITY

3G | 4G | LTE ACCESSPOINT & TRAVEL ROUTER

Quick Installation Guide

IMPORTANT USAGE INSTRUCTION

For the convenience of use, this product accepts power from a desktop or a laptop

computer. It’s mandatory to connect both of two USB connectors at one end of USB

supplied power cable to computer at one time. Power supply is not sufficient for the device

to operate normally if only one USB connector is inserted into the computer. In this scenario

it might cause temporary malfunction on the computer.

LED indicators

LED color Description

USB LED Blue 3G/3.5G is on

Blue in flash Data access

Wi-Fi LED

Blue WLAN is on

Blue in flash Data access

Blue in fast flash Device is in WPS mode

Installation Steps

DO NOT switch on WiFi Mobile Router before performing the installation steps below.

Step 1.

Turn off the power switch and then plug USB 3G Modem to the Router.

Note: The WiFi Mobile Router is designed to work with either UMTS or EV-DO and

even HSUPA 3G modem. Please refer to your service provider for detailed

feature information.

Step 2.

Plug your USB modem which is with activated USB dongle.

Step 3.

You can choose either Power Adapter or USB Cable for power supply.

3.1. Use Power Adapter

Connect with the power adapter to the receptor on the back panel of it.

3.2. Use USB cable

Connect USB Cable to the same place of it.

Step 4.

4.1. Use Power Adapter

Then plug the other end of the power adapter into a wall outlet.

4.2. Use USB Cable

Then plug the other end of USB Cable to USB port on your PC or NB.

Step 5.

Turn on the power switch.

The Wi-Fi and 3G LEDs will turn ON to indicate that the power has been

applied.

Getting Started with Easy Setup Utility

We provide Wizard and Easy Setup by Windows Utility to enable you to set up the WiFi Mobile Router quickly

and easily.

Check the steps below before running the section.

(1) Press WPS button more than 6 seconds on the Router. The Router will reset to default.

(2) Connect to the Router by Wi-Fi. The default SSID is the same as “Mac Address”

(3) Insert CD to CD-ROM, Click the Easy Setup Utility from CD or Auto Run.

Step 1.

You can start to configure the device

via the Easy Setup Utility

Step 2.

Select language then click “Next”

to continue.

Step 3.

1. Please select Wizard mode to

run the setup step-by-step to

diagnose the network settings

of the Router.

2. Click the “Wizard” button and

click “NEXT” to continue.

Step 4.

1. Make sure your USB 3G Modem

is connected to the USB port of

the Router.

2. Make sure the Router is

powered on.

3. Make sure your computer has

connected to the Router.

4. Make sure your computer has

an IP address.

5. Click “Next” to continue.

Step 5.

1. Key in the SSID, Channel and

Security options, for example:

SSID: “WiFi Mobile Router”,

Security: WEP

Key: “1234567890”.

Default SSID is the same as “Mac

Address”

2. And then click “Next” to

continue.

Step 6-1.

Select “Auto-Detection”, and the

Utility will try to detect and configure

the required 3G service settings

automatically.

Click “Next” to continue.

Default PIN Code is empty, if you

have PIN Code, you must enter it.

For example “0000”. If no, just Click

“Next” to continue.

Step 6-2.

Or you can select “Manual” and

manually fill in the required 3G

service settings provided by

your ISP.

Click “Next” to continue.

Step 7.

Check the settings, and then click

the “Next” if the settings are correct.

Step 8.

The WiFi Mobile Router is rebooting

to make your entire configuration

activated.

Step 9.

Please reconnect to Router

before click “Next”.

Step 10-1.

Click “Next” to test the Internet

connection or you can skip test.

And then click “Next” to continue.

Step 10-2.

Test the Internet connection

Step 11.

Congratulations!

Setup is completed.

Now you have already connect

to Internet successfully.

Table des matières

Autres manuels Digitus Routeur réseau

Digitus

Digitus DN-50011 Manuel utilisateur

Digitus

Digitus DS-23200 Manuel utilisateur

Digitus

Digitus WHITE WEASEL MOBILITY Manuel utilisateur

Digitus

Digitus DN-60021-2 Manuel utilisateur

Digitus

Digitus 15019-2 Manuel utilisateur

Digitus

Digitus DN-95330 Manuel utilisateur

Digitus

Digitus DN-8006C1 Manuel utilisateur

Digitus

Digitus DN-95346 Manuel utilisateur

Digitus

Digitus DN-60012 Manuel utilisateur

Digitus

Digitus DN-11004-O Manuel utilisateur

Digitus

Digitus DN-95312 Manuel utilisateur

Digitus

Digitus DN-15017 Manuel utilisateur

Digitus

Digitus DN-8007C1 Manuel utilisateur

Digitus

Digitus BR-6478AC Manuel utilisateur

Digitus

Digitus DN-11009 Manuel utilisateur

Digitus

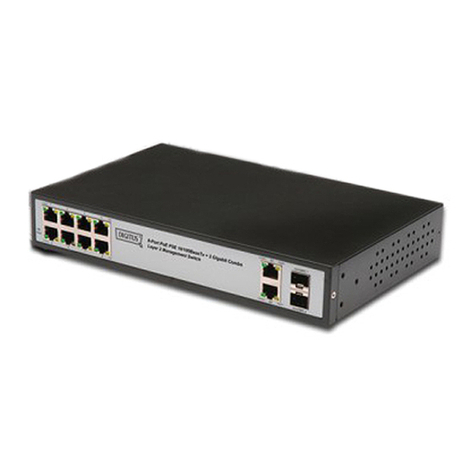

Digitus DN-95301 Manuel utilisateur
