USER MANUAL
DS-40130
Table of Contents
1.0 Introduction............................................................. 2
2.0 Specifications.......................................................... 2
3.0 Package Contents ................................................... 3
4.0 Panel Descriptions.................................................. 4
5.0 Connection and Operation...................................... 4
2

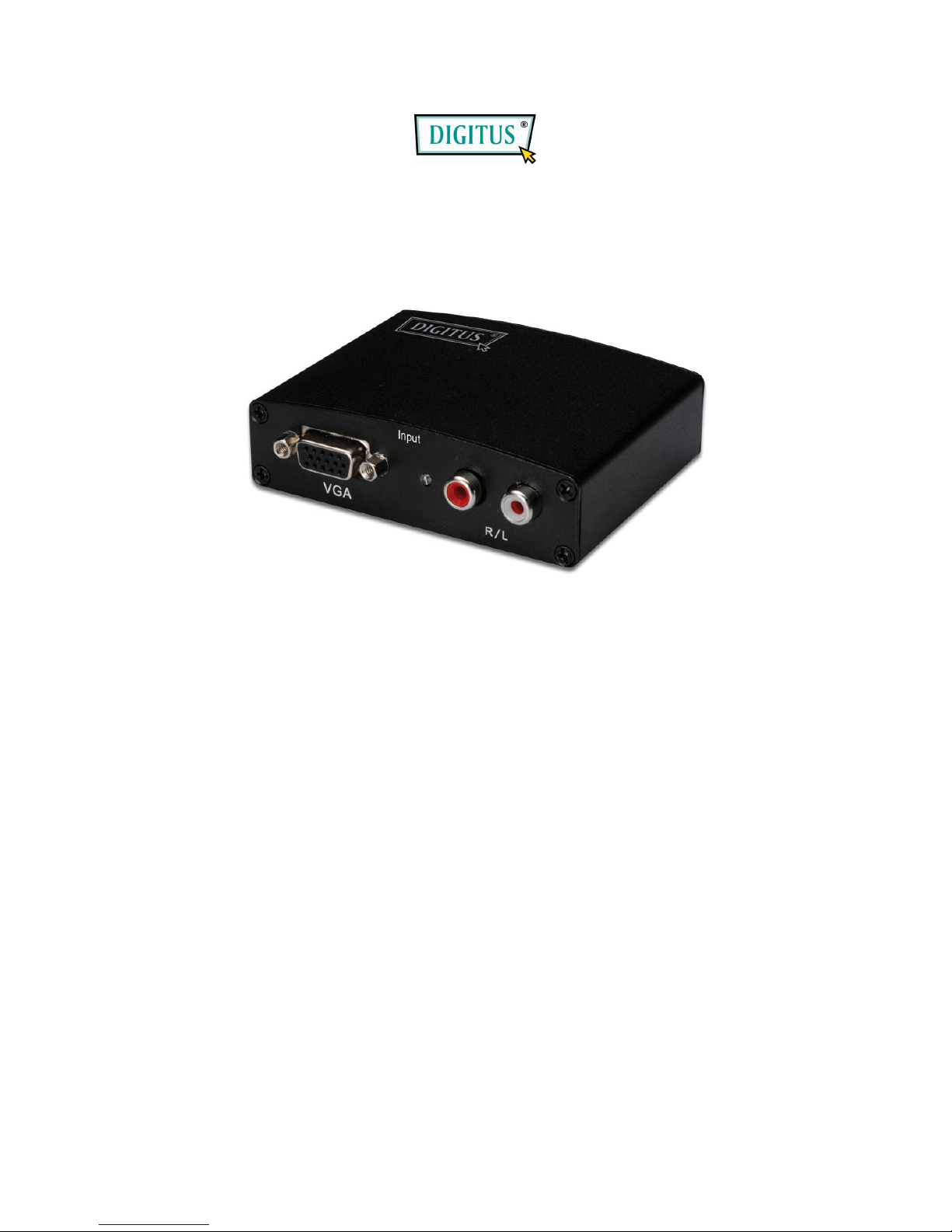

HDMI Converter (VGA-HDMI), DS-40130
Dear customer
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or
adjusting this product. Please keep this manual for future reference.
1.0 INTRODUCTION
This kind of the Converter is a VGA video converter. It converts VGA input into
HDMI and allows PC users to enjoy their larger image on TV. The conversion is
along with the R/L audio.
It offers solutions for digital entertainment center, HDTV retail and show site,
HDTV, STB, DVD and Projector factory, noise space and security concerns,
data center control, information distribution, conference room presentation,
school and corporate training environments.
1.1 FEATURES
This HDMI converter has many features that enable it to perform in a superior
manner. Among those features you will find:
lEasy to Use: Install in seconds, no need of setting.
lConversion: It could convert PC’s VGA video and R/L audio into complete
HDMI.
lSupport highest video resolution 1280x1024.
lSupport 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth.
lSupport 8bit per channel (24bit all channel) deep color.
2.0 SPECIFICATIONS
Signal Inputs/Output
Input Video Signal 0.5-1.0 volts p-p
Input DDC Signal 5 volts p-p (TTL)
Output Video HDMI 1.2a
3
VGA Resolution 640x480 60Hz 75Hz
800x600 60Hz 75Hz
1024x768 60Hz 75Hz
1280x720 60Hz 75Hz
1280x768 60Hz 75Hz
1280x960 60Hz 75Hz
1280x1024 60Hz 75Hz
Operating Frequency
Vertical Frequency Range 50/60Hz
Video Amplifier Bandwidth 1.65Gpbs/165MHz
Mechanical
Size(W-H-D) 88mmW x 25.5mmH x 68mmD
Weight(Net) 0.68kgs
Warranty
Limited Warranty 1 Year Parts and Labor
Environmental
Operating Temperature 0 ℃to +70℃
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10℃to +80℃
Storage Humidity 5% to 95 % RH (no condensation)
Power Requirement
External Power Supply 5V DC@2A
Power consumption (Max) 5W
Regulatory Approvals
Converter Unit FCC,CE,
Power Supply CE,FCC
Accessories Adapter
AC Power Adapter US standard, UK standard and so
on
User Manual English, German
Note: Specifications are subject to change without notice.
3.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure
the following items are contained in the shipping carton:
lMain unit.
l5V DC Power Supply
lUser's Manual
4

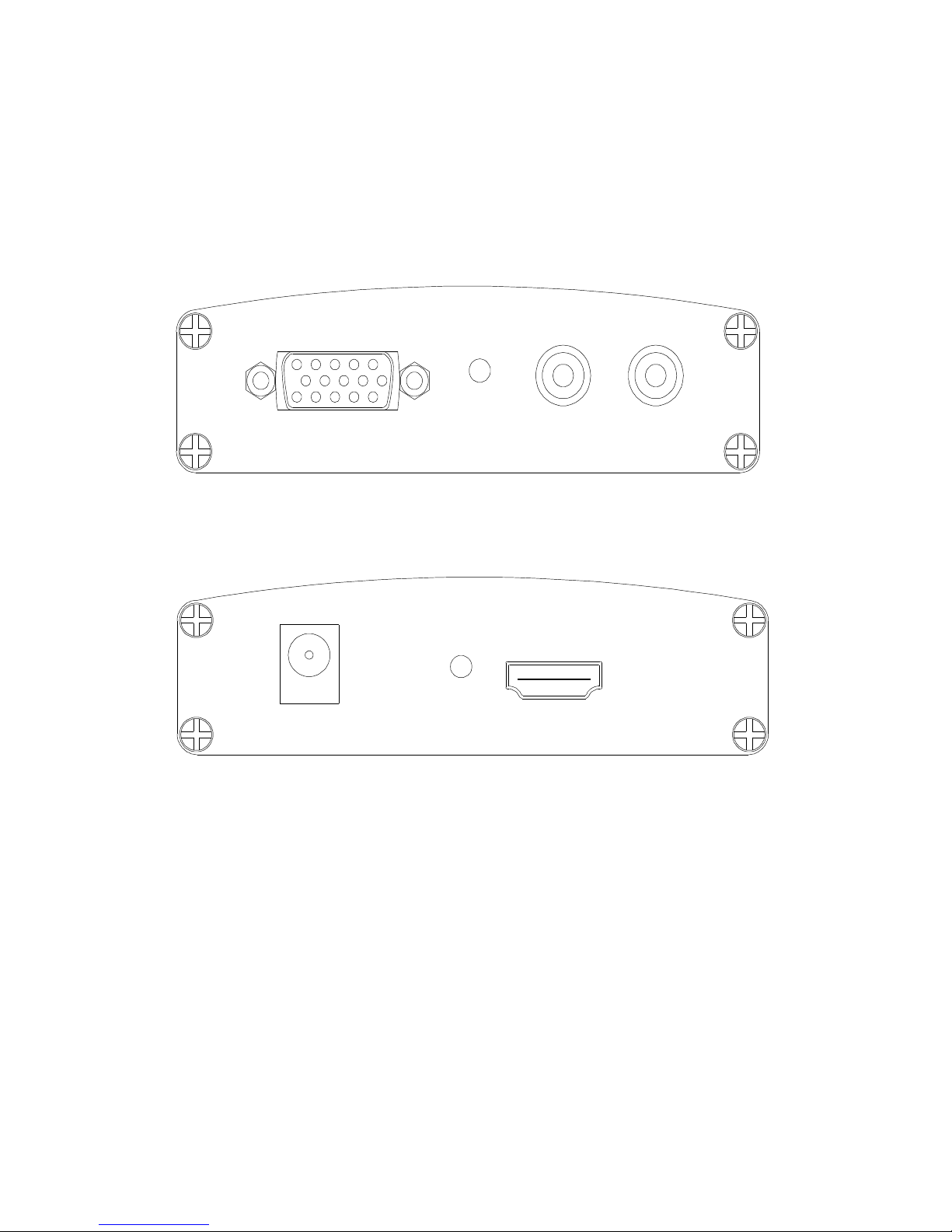

4.0 PANEL DESCRIPTIONS
Please study the panel drawings below and become familiar with the signal
input(s), output(s) and power requirements.
INPUT
R/L
VGA
OUTPUT
DC/5V HDMI
5.0 CONNECTION AND OPERATION
Before installation, please make sure all devices you wish to connect have
been turned off.
1) Connect the VGA video and R/L audio from computer to this product.
(Input cables are optional)
2) Connect the HDMI output from this product to the TV which has HDMI
input.
3) Connect the VGA and R/L audio output of this product to the
computer’s monitor and speaker if necessary.
4) Insert the DC side of 5v power supply into this product and then connect
the AC side of the power supply into the wall outlet.
5) Power on the computer and TV, choose the input of TV to its HDMI
channel.
5
6) The image does not need to be adjusted. This Converter will
position it automatically.
Attention: Insert / Extract cable gently.

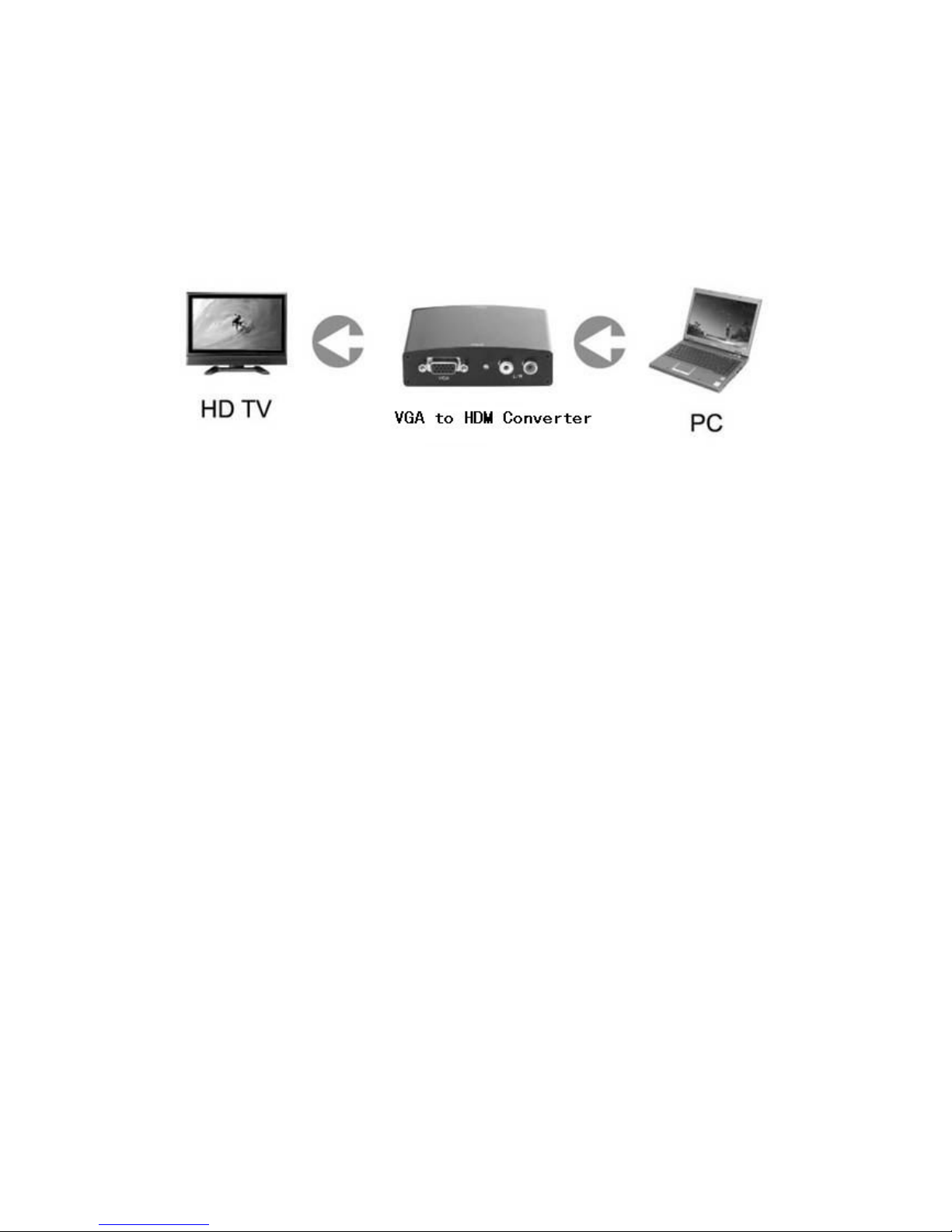

5.1 CONNECTION DIAGRAM
