Digitus DA-70848 Manuel utilisateur

USB Type-C™ MultiPort 4in1 A/V

Cable Converter

Manual

DA-70848

Introduction:

This multiport A/V cable adapter is ideal for use while traveling. Take the

adapter along with you to connect virtually any display. Instead of

having four (4) different adapters at hand, this USB Type-C™ adapter

provides HDMI®, DP, DVI and VGA outputs, so you can use the USB

Type-C™ output to connect your laptop/portable computer to any

modern display in conference, training or meeting rooms.

Specification:

Supports DisplayPort Alternate Mode for USB Type-C™standard

Output compliant with HDMI 2.0 specification, video resolution up

to 4k2k@60Hz

Output Compliant with VGA specification, video resolution up to

1080P@60Hz

Output Compliant with DP 1.2 specification, video resolution up to

4k2k@60Hz

Output Compliant with DVI specification, video resolution up to

1080P@60Hz.

Key Features:

Type-C™to HDMI/VGA/DVI/DP converter can be used with

MacBook, MacBook Pro, iMac, MacBook Air, Mac Mini or other

devices that come with Type-C (thunderbolt compatible) port. (Note:

the DVI output of this adapter is DVI-D Standard)

4-in-1 Type-C™to HDMI/VGA/DVI/DP converter let you connect

your Type-C™equipped devices to a high definition monitor,

projector, or LCD which with HDMI/VGA/DVI/DP connector.

All four output ports (HDMI/VGA/DVI/DP) cannot work at the same

time, the output ports is designed to use separately, and an extra

HDMI/VGA/DVI/DP extend cable is required.

Automatic detect the display by plugging and unplugging it,

powered from Type-C™source.

Supported Operating Systems:

Windows

Mac

Chrome

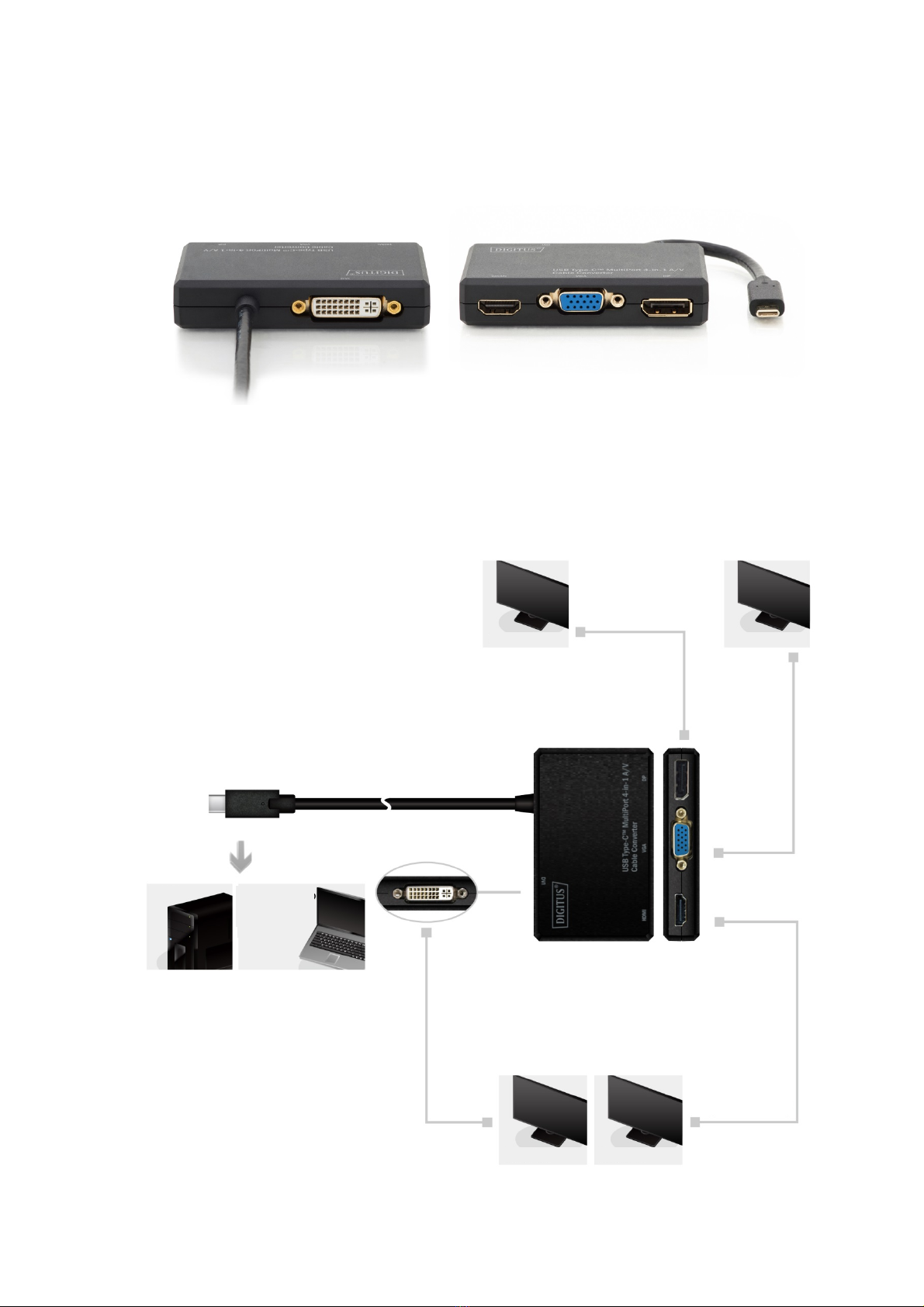

Detail View:

Connection Instructions:

HDMI

(4K@60Hz)

Mon

tor Mon

tor

DVI Cable

(1080P)

VGA

(1080P)

DP (4K@60Hz)

Mon

tor Mon

tor

TYPE-C™

PC Macbook Pro

Macbook

Notebook

Package Contents:

Main unit: 4-in-1 Type-C™to HDMI/VGA/DVI/DP converter x 1

Manual x 1

Product Overview:

Dimension: L87.00, W52.30, H17 mm

Weight: 0.05 Kg

Cable length: 150 mm (SR to plug)

Note:

Can only convert signal from Type-C™ to HDMI/VGA/DP/DVI. This is

not a bi-directional adapter.

It doesn't support more than one output working simultaneously.

Please make sure the source is 4K x 2K, and TV or Display device

supports 4K x 2K resolution, then you can get the 4K x 2K image, or

you will only get standard image (not 4K result).

Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is

part of the shipping content. If the Declaration of Conformity is missing, you can

request it by post under the below mentioned manufacturer address.

www.assmann.com

Assmann Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany
