DIGITALas MDVR-4F3AHD mini Manuel technique

MDVR-4F3AHD mini (LAN/WiFi/GPS)

MDVR-4F3AHD mini

Instructions for the use of vehicle

video recorders

车载录像机使用说明书

Thank you for using this product. The appearance or function is different

from this manual due to the differences between different models or product

upgrades. Please refer to the physical object or contact the manufacturer.

The contents of this manual will be updated irregularly. Without prior notice!

MDVR-4F3AHD mini (LAN/WiFi/GPS)

Declarations

This manual is suitable for 4/8 road high definition series DVR products, may not be accurate in some technical details, if

you have physical objects in use with this manual inconsistent. The contents of this manual will be updated without prior notice.

One Warning

1、installation environment

In order to extend the service life of the equipment, please install the equipment in the parts where the vibration of the

vehicle is weaker as far as possible;；

In order to ensure the normal heat dissipation of the equipment, it is necessary to avoid the poorly ventilated position (such as

the trunk of the vehicle) and keep a distance of about 15cm from other objects in the same plane of the equipment.；

This machine should be installed horizontally. When installing the equipment, please pay attention to waterproof, damp proof

and lightning protection, and keep the equipment still to prevent the falling and damage of the equipment

To ensure safe use of the equipment, this machine, camera, wire and other accessories should be placed in places where passengers

and drivers are not in contact.

2、Avoid electric shocks and fires

This machine uses 8V-36V DC power supply, please pay attention to the positive and negative electrode when wiring, avoid

short circuit；

When connecting to other peripherals, turn off the local power supply；

Remember not to touch power and equipment with wet hands；

Do not splash liquid on the equipment so as not to cause short circuit or fire inside the machine ；

Do not place other equipment directly on the top of the camera；

Non-professional personnel do not take apart the case to avoid damage and electric shock；

3、Transportation and handling

In order to ensure that the equipment is not accidentally damaged in the course of transportation, when handling or

transporting equipment, please pay attention to light handling, preferably using the original packaging materials and cartons;

It is strictly forbidden to move the machine or replace the component, otherwise the equipment will be damaged.；

MDVR-4F3AHD mini (LAN/WiFi/GPS)

- 1 -

Introduction

1.Product Overview

The VCR is a dedicated HDD VCR that supports 4/8 channels 1080P / 960P / 720P / D1 mode audio and

video recording and playback at the same time. The product adopts ARM DSPS dual-core high-speed processor,

embedded Linux embedded operating system, and combines with the most advanced H.264 video coding and

decoding in IT field. 3G / 4G network GPS positioning WiFi technology, including power failure protection

technology, hard disk shock absorption technology, hard disk heating technology, car wide voltage design in one,

can be widely used in buses, logistics vehicles. School bus, police car, Kim. Transport vehicles, fuel trucks and

other vehicle monitoring.。

product features ：

Support H.264 Image Compression coding 4: 120 FPS @ 1080P pal 8: 15fps1080P PAL

Can support 4/8 channels 1080P / 960P / 720P / D1 mode audio and video simultaneously video and

playback. Maximum support 4 / 8 1080P AHD/720P AHD / 960H channel analog audio and video

simultaneous recording

The aviation head video interface is adopted, the reliability is high and the seismic effect is strong.

Built-in 3G / 4G network / GPS / WiFi module (optional 5.8GHz dual-antenna WiFix for high-definition

video download, fast)

Using UPS patent protection technology, it can still work 3 ~ 8 seconds when the external power supply is

cut, to prevent the video file from accidental damage (customization).

SD card machine support 2 built-in SD card, maximum support 128G capacity。

Hard drive machine can be built in 2.5 inches hard disk, the maximum support for 2 terabytes of

professional hard disk。

Good expansibility, with 1 RS485 interface (optional, 1 RS232 interface)

8V-36V wide voltage DC power supply, supporting 12V output power supply

Support hard disk heating technology, can work at -40 ℃ -70 ℃

MDVR-4F3AHD mini (LAN/WiFi/GPS)

- 2 -

2.Products Specifications

project

parameter

SD truck loader

ＨＤＤ truck loader

system

language

Chinese / English / traditional (default voice), other customizable

interface

Graphical menu operation interface

pin security

User password, administrator password two-level management (default password:

111111)

video

video in

A:Support 4 road

CIF/HD1/D1/960H/

720P AHD/1080P AHD camera

simultaneously recording and

playback

A:Support 4 / 8Simultaneous recording and

playback of IF/HD1/D1/960H/720P/1080P

AHD camera

video out

3-channel video output (1 φ 3.5 Phone Jack, 1 VGA high-definition output in

30PIN connection head)

video display

Support 1 / 4 screen display (self

selected preview mode)

Support 1 / 9 screen display (self-selected

preview mode）

AVS

PAL system、NTSC system


compression

H.264 Main profile, PAL:120 frame

1080P/ sec, NTSC:120 frame

1080P/ sec

H.264 Main profile, PAL:120 frame 1080P/

sec, NTSC:120 frame 1080P/ sec

audio

AUDIO IN

4 AUDIO IN

4/8 AUDIO IN

audio out

1 channel audio output (1 of which 3.5 Phone Jack,)

Open Reel

Simultaneous recording of sound and video


storage

Image Format

CIF/HD1/D1/960H/720P/1080P

optional

CIF/HD1/D1/960H/720P/1080P optional

Video stream

standard

ISO14496-10

Video

K／bps

CIF: 1536Kbps ~ 128Kbps

HD1/D1: 2048Kbps ~ 400Kbps

960H: 2048Kbps ~ 400Kbps

720P: 4096Kbps ~ 400Kbps

1080P:2048Kbps ~ 8192Kbps

8 grade painting is optional, 1 is the highest quality, and the 8 is the lowest.

audioK／bps

40Kbps

memory

Maximum 128G Capacity SD card

Maximum support for 2T hard disk /SSD

alarm

alarm IN

4 alarm input can be configured below 1V low level alarm or above 5V high level

alarm

Alarm out

1 alarm output, output high level 12V

RS485

Support 1 RS485 interfaces

RS232

Support 1 RS232 interfaces

RJ45

1 can be connected to the wired network

USB

USB for software upgrading and video

MDVR-4F3AHD mini (LAN/WiFi/GPS)

- 3 -

wireless

Built-in 3G communication module

(HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA) optional

Built-in 4G communication module (FDD-LTE/TDD-LTE) optional

WiFi

Built in WiFi module (optional 2.4/5.8GHz)

GPS

Support built-in GPS module, geographic coordinates, speed and so on can be written code stream,

and can be wireless Uploaded

sensor

Built-in acceleration sensor G-Sensor (selection)

bundled

software

PC playback

Replay video files at the PC side and analyze the vehicle information in the file

CMS management

The functions of video preview, GPS uploading, alarm uploading, central

command dispatch, parameter configuration and so on are realized through

wireless network

upgrade

This machine supports the SD card /USB

interface and the remote CMS platform upgrade

This machine supports the SD card /USB

interface and the remote CMS platform upgrade

Electrical parameters of product：

Power input

+8～+36V

8V ~ 36V before use, please make sure the car battery power supply

voltage; over 36V for a long time, will burn the machine

Power out

12V

12V（+/-0.2V），Maximum current:2A

ACC detection

≤5V

Shutdown

≥5V

Boot

Video input

impedance

75Ω

Each video input impedance：75Ω

Video output

voltage

2Vp-p

2VP-P CVBS outputs analog signals, and the display device input

requires 75 Omega impedance to adapt to it。

I / O

Low level alarm

High level alarm

working

temperature

-40℃～60℃

In a well ventilated environment

Whole machine

size

147*147*41mm

147*167*59mm

3.Host introduction

Hard disk status indicator

SD Card status indicator

MDVR-4F3AHD mini (LAN/WiFi/GPS)

- 4 -

3.1 SD card and hard disk LED indicator light and state description

【PWR】The power input status indicator. The light indicates that the power supply of the system is

working normally.；

【SD】SD card working light. The light often shows that the SD card works well. The SD card slot is

used to record video data, configuration files update and upgrade.。

【ALM】A warning light, when the system has an alarm, the light is bright and the light is out when

there is no alarm.

【VLOSS】When there is any way of video loss, this light is on

【GPS】The light is lit when the GPS signal is located, and the light is destroyed when the location is

not located or the location fails.；

【REC】Video work indicator. The LED light indicates that the current is being videotaped。

【LOCK】Control device switch machine, boot the lock and SD card or hard disk, anti plug；

【SIM】3G/4G phone card slot;

【USB】Is used to copy videos or upgrade.。

【AV 】Pre video output port;；

【IR】Remote control input for receiving a remote control signal。

3.2 The definition of the rear panel

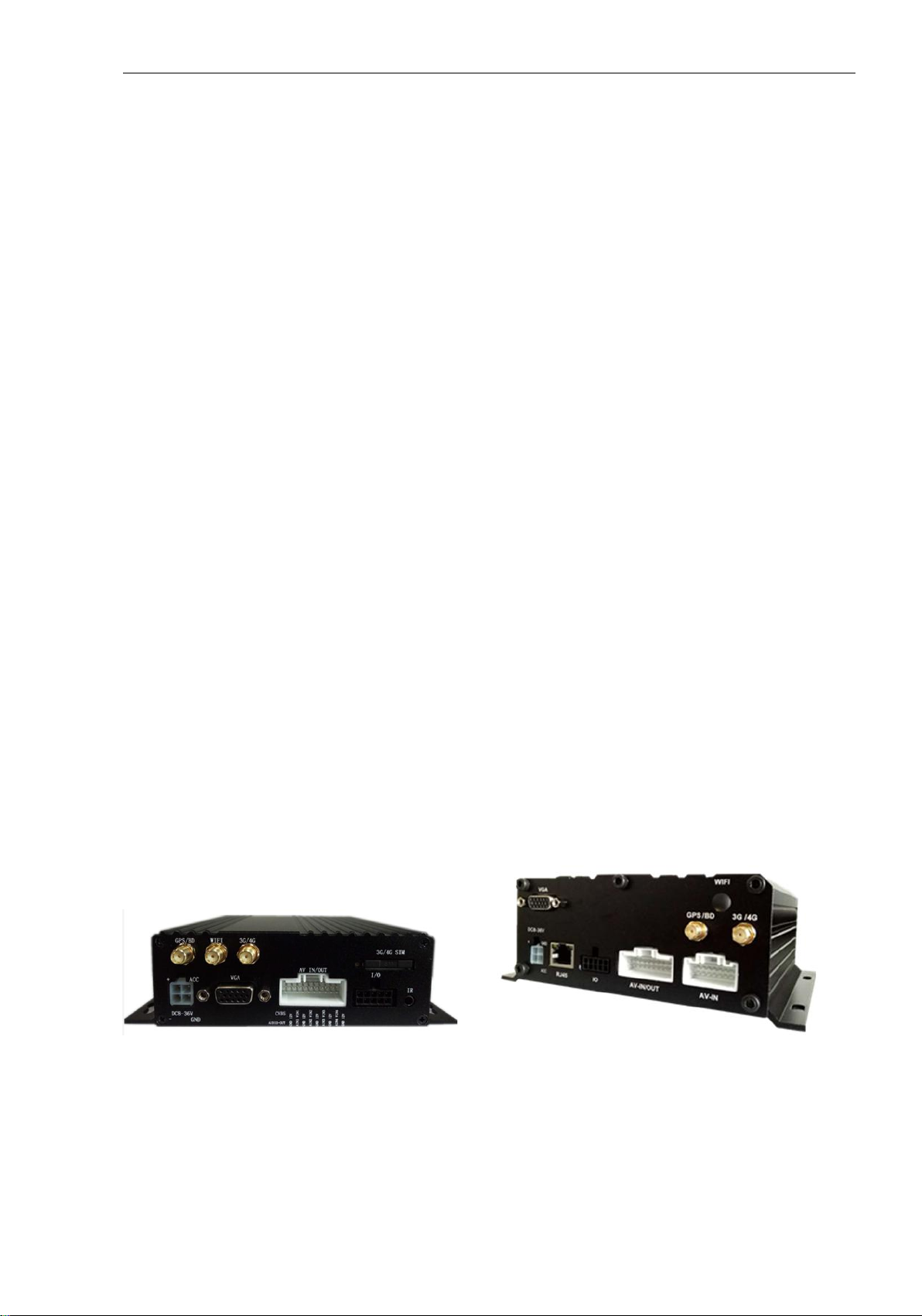

SD card and hard disk backboard state Back plate state of 8 way hard disk

【DC8-36V】The power interface, the red line is connected to the power source of the vehicle; the

black line is connected with the negative pole of the power supply and the yellow line is the ACC

MDVR-4F3AHD mini (LAN/WiFi/GPS)

- 5 -

signal line. When you need to set a timing video or a ignition video, the ACC line is connected to the

car

【NET】RJ45 network interface;

【I/O】10PIN interface: contains 4 way alarm input, 1 road output, 1 road GND, 1 road RS232 (TX,

RX), 1 road RS485.

【AV IN 1~4/5-8】Four channel audio and video input interface；

【3G/4G】3G/4G Antenna interface；

【WIFI】WIFI Antenna interface；

【GPS】GPS Antenna interface。

【IR】3.5MM infrared telecontrol extension line；

3.3 Audio and video interface

Definition of host aircraft head interface：

Definition of the aerial head interface of the camera:：

MDVR-4F3AHD mini (LAN/WiFi/GPS)

- 6 -

3.4Main keys of remote control

Equipment and installation

Step1 ：GPS, 3G/4G and WiFi antennas are installed. The GPS, 3G/4G and WiFi antennas shown below are

connected to the corresponding positions of the rear panel of the MDVR, and a reasonable wiring is made, so

that the signal is not subject to external interference.。

MDVR-4F3AHD mini (LAN/WiFi/GPS)

- 7 -

GPS 3G/4G WIFI

Step2：Power line

A:Switch mode is set to "ignition" power connection mode：

When the system management, power management, boot mode, the switch is set to "fire", the white 6PIN

plug connection to the rear panel of the MDVR 6PIN power input interface cable, red and black is directly

connected to the car battery or level out after received total electric insurance after the red line connected to the

positive and negative black ground. The yellow line is connected to the ACC switch of vehicle ignition line, that

is, the gear switch before starting the motor. When the key is opened, the device will start automatically, and if

the vehicle key is closed, it will shut automatically.

B: switch mode is set to "timing" or product test, power connection mode。

When the system management, power management, boot mode, the switch is set to "time" or when the

device is used in non vehicular environment (such as bus stations, logistics station monitoring system) or

product testing, the red and yellow line twist into a power supply cathode, black separate grounding negative。

This end connects the

MDVR rear panel power

interface -557 connector

Prior to connection, the voltage is confirmed

to be 8V-36V, and if it exceeds this range, it

may cause damage to the equipment

MDVR-4F3AHD mini (LAN/WiFi/GPS)

- 8 -

The MDVR power line suggests direct connection to the positive and negative pole

of the vehicle battery, or the battery is connected to the positive and negative

pole after the safety box is connected. No connection to the metal conductor inside

the car as the ground, otherwise it will produce negative pulse interference normal

operation of the host, the positive and negative power supply wire diameter must

be more than 1.5mm. The installation host installed the equipment level to the

suitable position in the car according to the size of the hole position.

Step3：Alarm input and output line

A：Overspeed alarm connection

A:If the vehicle chooses the speed of GPS acquisition and requires the GPS signal to be normal, only the

relevant settings in the system menu, alarm settings and speed settings can realize the alarm function。

B:If the speed is chosen from the vehicle, the speed pulse sensor must be connected to the speed alarm. The

pulse sensor receives two lines of SPEED-A and SPEED-B on the port of our device. The connection schematic

diagram is as follows：

B：Alarm output connection

This machine provides 1 way alarm output, and uses the level output 200MA current to drive the external

alarm equipment. If you want to drive a more powerful device, you must connect the external relay, and refer to

the diagram as follows。

24V

MDVR Alarm out

Table des matières

Autres manuels DIGITALas Caméra embarquée

DIGITALas

DIGITALas MDVR-4F1AHD Manuel utilisateur

Manuels Caméra embarquée populaires d'autres marques

Cansonic

Cansonic UltraDuo Z2 Manuel utilisateur

Gazer

Gazer F720 Manuel utilisateur

HP f500g Manuel utilisateur

Xblitz

Xblitz TANGO 4K Manuel utilisateur

Rexing

Rexing M1 Manuel utilisateur

Maka Technologies

Maka Technologies Marbella MXPro Manuel utilisateur

NESA

NESA NRC-80DLM Instructions d'installation et d'utilisation

Kaiser Baas

Kaiser Baas R20 Manuel utilisateur

Boyo

Boyo VTM43TC Manuel utilisateur

Minolta

Minolta MNCD37 Manuel utilisateur

Thinkware

Thinkware FA10 Manuel utilisateur

Momento

Momento MD-5200 Manuel utilisateur

BlackVue

BlackVue DR590X-1CH Manuel utilisateur

HP F300 Manuel utilisateur

CammSys

CammSys BlackSys BH-300 Manuel utilisateur

Snooper

Snooper DVR-2HD Manuel utilisateur

Lukas

Lukas Q900 Manuel utilisateur

RVS

RVS 450C Manuel utilisateur
