Digital Watchdog Star-Light DWC-MC253WTIR Manuel utilisateur

Quick Start Guide Quick Start Guide

1. The mounting surface must withstand ﬁve times the weight of

your camera.

2. Pay attention to the cables. They can easily become caught and

damaged. Any damage may cause a short or ﬁre.

3. Detach the camera’s dome cover by removing the security screw from

the decorative ring.

4. Unscrew the decorative ring from the camera module by rotating it

counter-clockwise.

STEP 1 – PREPARING TO MOUNT THE CAMERA

Pass the wires through the mount bracket and make all necessary

connections. Connect the BNC cable and power cables to the

camera.

STEP 2 – CABLING THE CAMERA TO

EXTERNAL DEVICES

Power requirements Power consumption

12VDC ON LY !

CAUTION! The camera supports

DC power supply only

DC12V (LED o): 1.92W

DC12V (LED on): 3.12W

Tel: +1 (866) 446-3595 / (813) 888-9555

Technical Support Hours:

9:00AM – 8:00PM EST, Monday thru Friday

digital-watchdog.com

WHAT’S IN THE BOX

Black and

white

decorative

rings

1Hex Allen

wrench 1

Test video

cable 1Mounting

template 1

Screws and

plastic

anchors-4pcs

1 Set Quick set up

guide 1

External OSD

and signal

controller

Protective sheet

Attention: This document is intended to serve as a quick reference for initial

set up. It is recommended that the user read the entire instruction manual for

complete and proper installation and usage.

NOTE: Download all your support materials and tools in one place.

1. Go to: http://www.digital-watchdog.com/resources

2. Search your product by entering the part number in

the ‘Search by Product’ search bar. Results for

applicable part numbers will populate automatically

based on the part number you enter.

3. Click ‘Search’. All supported materials, including manuals

and quick start guide (QSGs) will appear in the results.

DW® Universal HD over Coax®

micro dome cameras

DWC-MC253WTIR DWC-MC253W-28

External OSD and

signal controller

Quick Start Guide

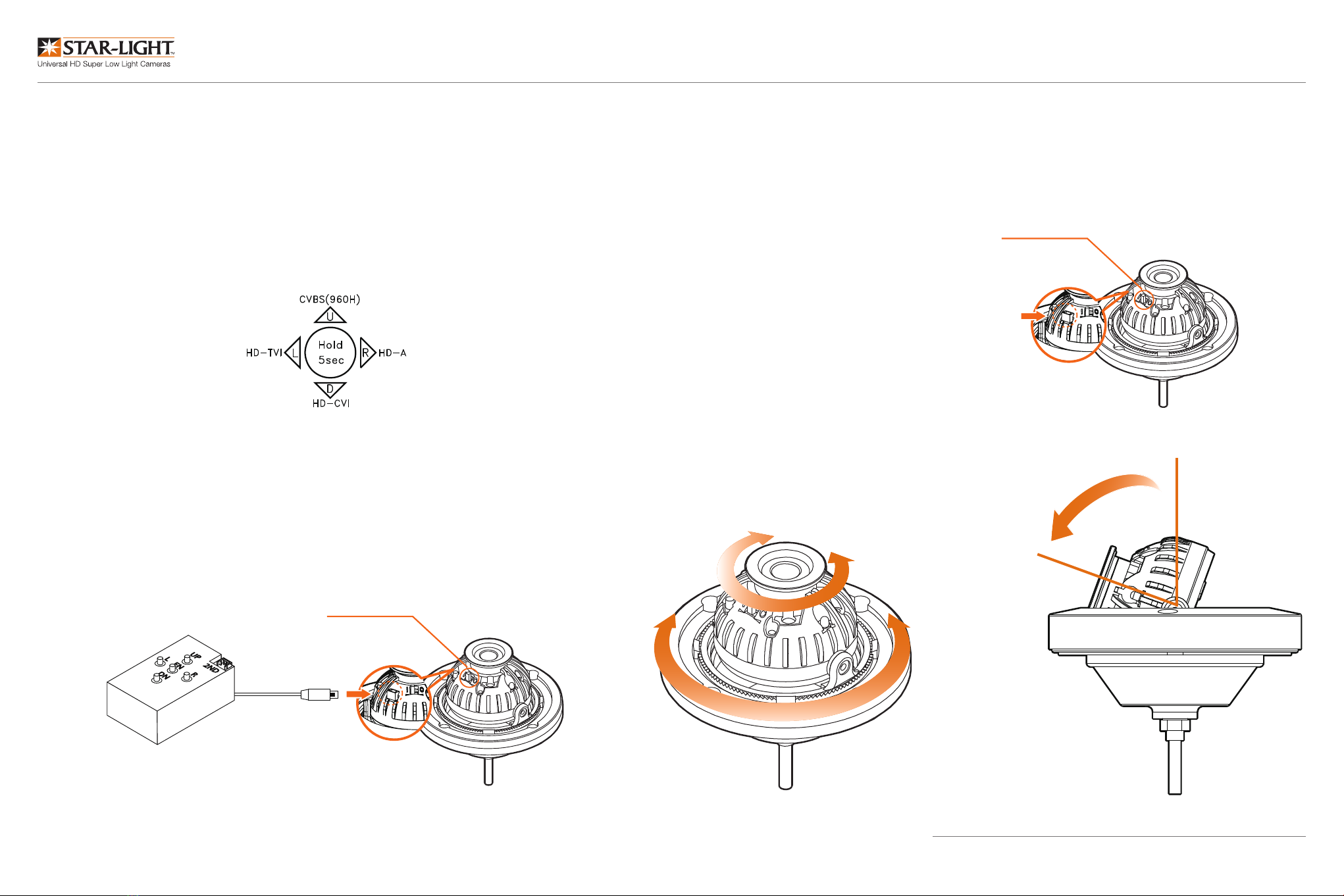

1. The camera supports HD-Analog, HD-CVI and HD-TVI signals. To

switch between the signals:

a. Remove the camera’s dome and connect the external controller to

the base of the camera. See the image below for more information.

b. Use the OSD Switch to switch the camera’s signal.

1. Once all cables have been connected, use the screws included with the camera to properly mount and secure the camera to the mounting surface.

2. Adjust the camera’s pan, tilt and position to achieve the desired view. The cameras’ max angles are:

Pan: 0° ~ 360°

Tilt: 0° ~ 70°

Rotation: 0° ~ 360°

3. Once the installation is complete, remove the protective ﬁlm from the camera’s dome cover.

4. For DWC-MC253WTIR models, the camera has a manual IR switch,

located under the camera’s lens. You can use this switch to manually

turn the IR LED board on or o according to the installation needs.

STEP 4 – INSTALLING THE CAMERASTEP 3 – CHANGING THE SIGNAL IN

THE CAMERA

Rev Date: 09/19

Speciﬁcations and pricing are subject to change without notice.

Rotation 360°

Titling 70°

Panning 360°

OSD board

- To switch the camera to

HD-TVI mode, press OSD

joystick to the left

for 5 seconds.

- To switch the camera to

HD-Analog mode, press OSD

joystick to the right

for 5 seconds.

- To switch the camera to CVBS

mode, press OSD joystick up

for 5 seconds.

- To switch the camera to

HD- CVI mode, press OSD

joystick down for 5 seconds.

External OSD and

signal controller

IR Switch

ON/OFF
