Digital Watchdog PIXIM DWC-V365 Manuel utilisateur

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

07132012

PIXIM Vandal Dome Camera

DWC-V365

DWC-V365TIR

User Manual

PRECAUTIONS

FCC COMPLIANCE

WARNING : Changes or modifications are not expressly approved by the manufacturer.

Do not open or modify.

Do not open the case except during maintenence and installation,

for it may be dangerous and can cause damages.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera.

It can cause fire, short-circuits, or other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect from humidity and dust.

Protect from high temperature.

Be careful when installing near the ceiling of kitchen or a boiler room,

as the temperature may rise to high levels.

Cleaning :

To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.

Mounting Surface :

The material of the mounting surface must be strong enough to support the camera.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC rules. These limits are designed to

Provide reasonable protection against harmful interference. when the equipment is

operated in a residential environment. This equipment generates, uses, and radiates

radio frequency energy; and if it is not installed and used in accordance with the

instruction manual, it may cause harmful interference to radio communications.

TABLE OF CONTENTS

Introduction

Installation

Module OSD Menu

Troubleshooting

Warranty Information

Specifications

Features

Parts and Descriptions

Dimensions

Inside the Box

Easy Installation

Connecting to Monitors

Adjusting the Camera Lens

12-26

28-29

30-31

Adjusting the 3-Axis Gimbal 11

FEATURES*

DWC-V365 / DWC-V365TIR

1/3” PIXIM Nightwolf CMOS Sensor

690 Horizontal TV Lines

3.3~12mm Varifocal Auto Iris Lens

85ft IR Distance with Smart IR [V365TIR Only]

TDN (True Day and Night / IR Cut Filter)

3D DNR (Digital Noise Reduction)

Powerful Wide Dynamic Range

Star-Light (Super Low Light Technology)

8X Digital Zoom

Ultra Low Light Sensitivity

Smear Cancelation

Low Power Consumption

Programmable Privacy Zones (6) & Motion Detection

AGC/ BLC/ AWB

OSD Menu with Built-In Joystick

IP66 Certified

Auto Sensing 12VDC or 24VAC with Line Lock

Secondary Video-BNC Output

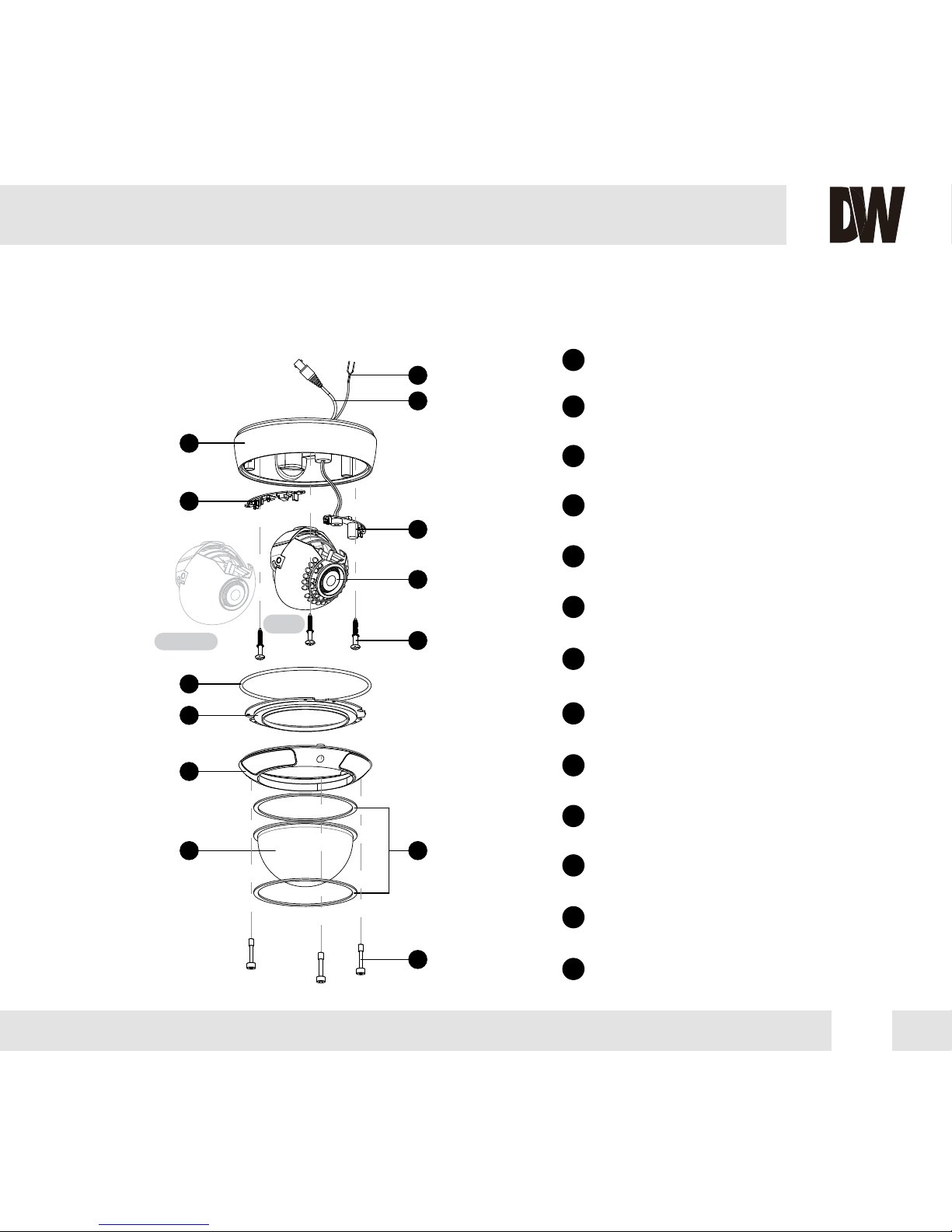

PART & DESCRIPTIONS*

1Lens

4Upper Case

5Bubble

2Power Input Connctor

12VDC/24VAC Dual Voltage

3Video Output Connector - BNC

6Bubble Rubber

7Mounting Plate

Assemby Screws

Bottom Case

Control Board

Power Board

Mounting Screws

Upper Ring

NO IR

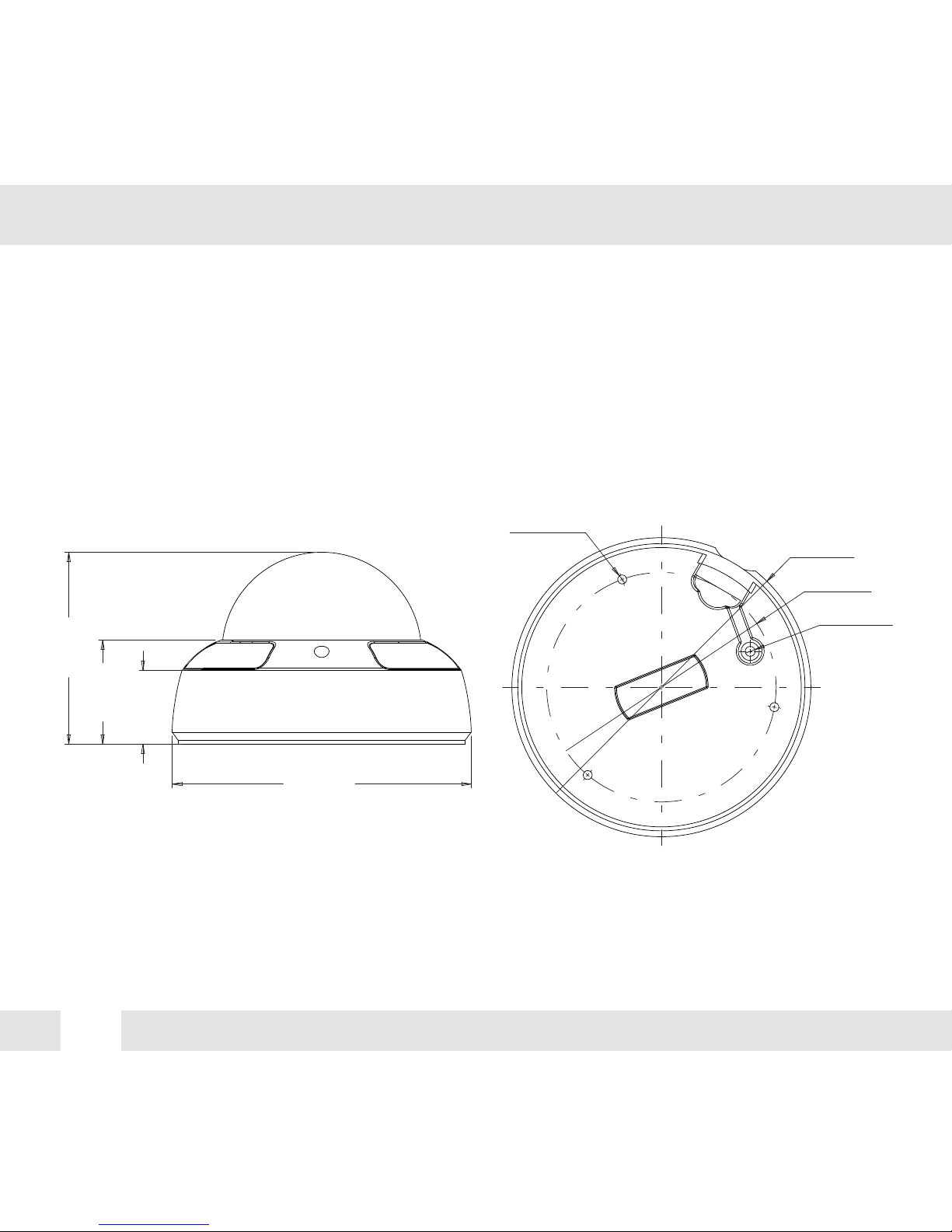

DIMENSIONS IN MILLIMETERS (IN)*

See the diagrams below for the exact dimensions for the Surface Mount Housing.

52.2

(2.05”)

96.2

(3.79”)

Ø149.9

(Ø 5.9”)

37.0

(1.46”)

Ø149.9

(Ø 5.9”)

Ø115.0

(Ø 4.53”)

Ø5.0

(Ø 0.2”)

3- Ø4.5

(3- Ø0.18”)

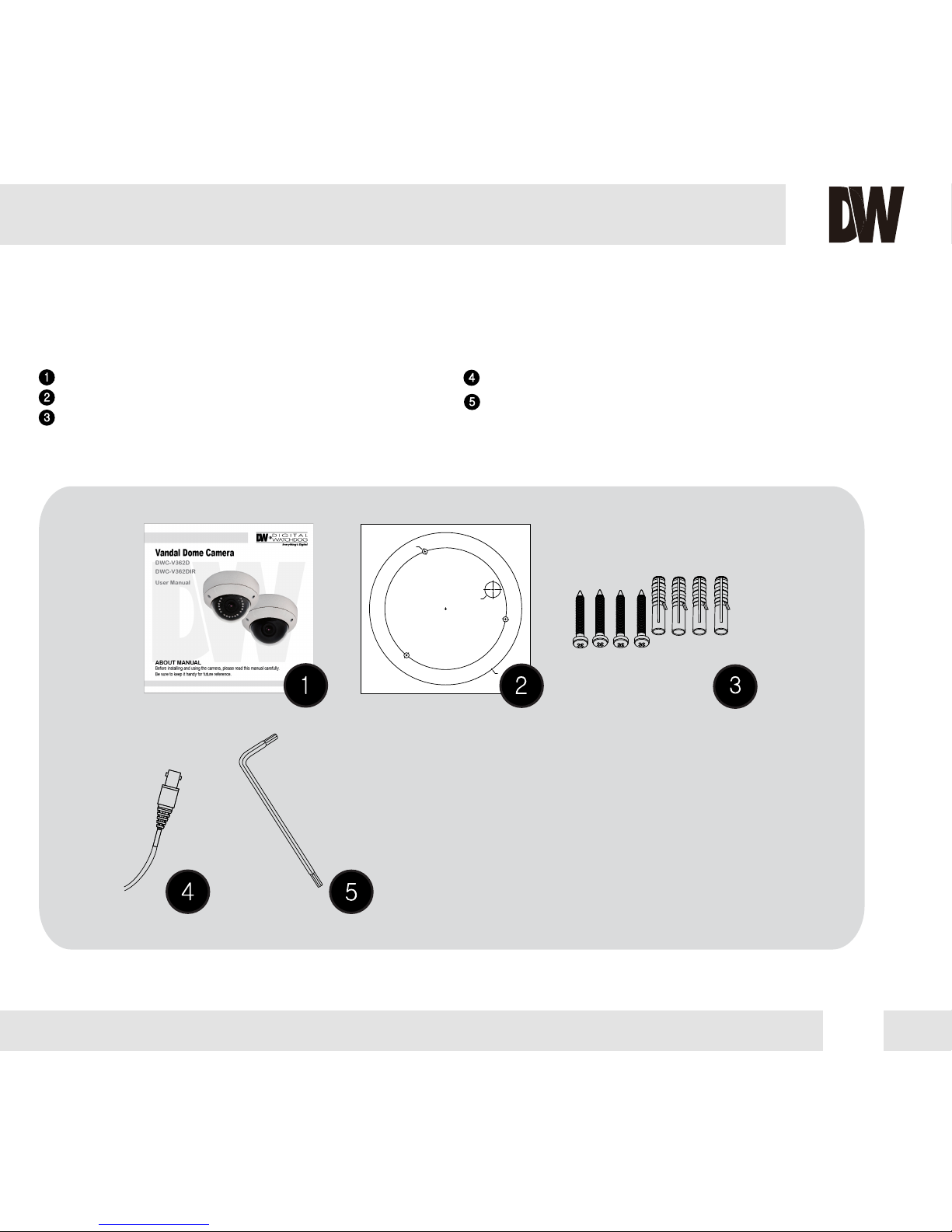

INSIDE THE BOX*

Included with Snapit Vandal Dome Camera

User Manual

Mounting Template

4 Machine Screws and 4 Dry Wall Anchors

Secondary Video-BNC Cable

L-Wrench

Ø144.0

Ø5.0

Mounting template

VD101

Ø15.0

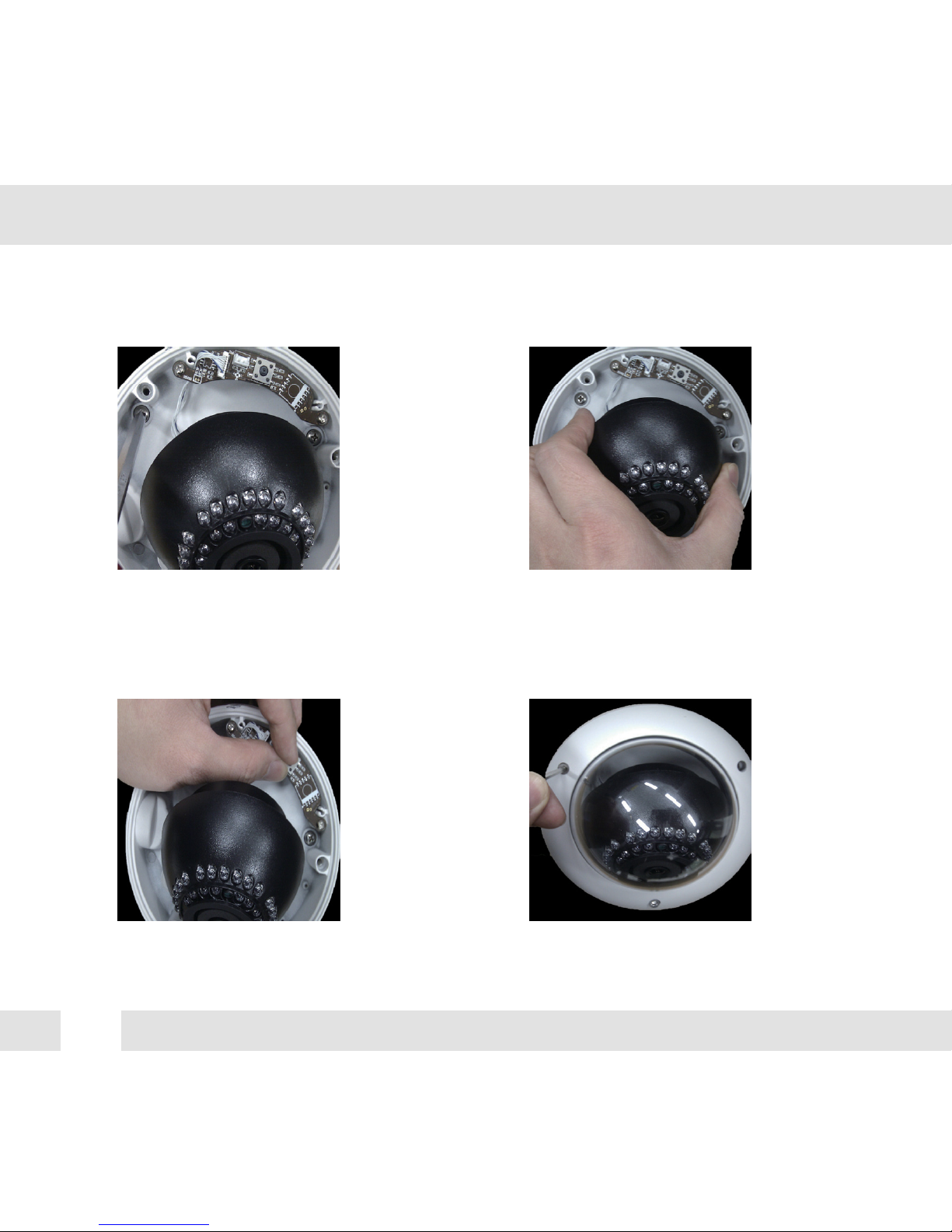

BASE INSTALLATION*

1. Pull wires through and make connections.

Refer to page 10. Use mounting template to

mount camera with dry wall mounts and wood

screws.

3. Use the joystick to adjust the OSD menu.

See page 13~16 for details.

2. Adjust the camera’s pan,tilt and zoom.

See page 12 for details.

4. Attach the camera housing to the

junction box using the assembly screws.

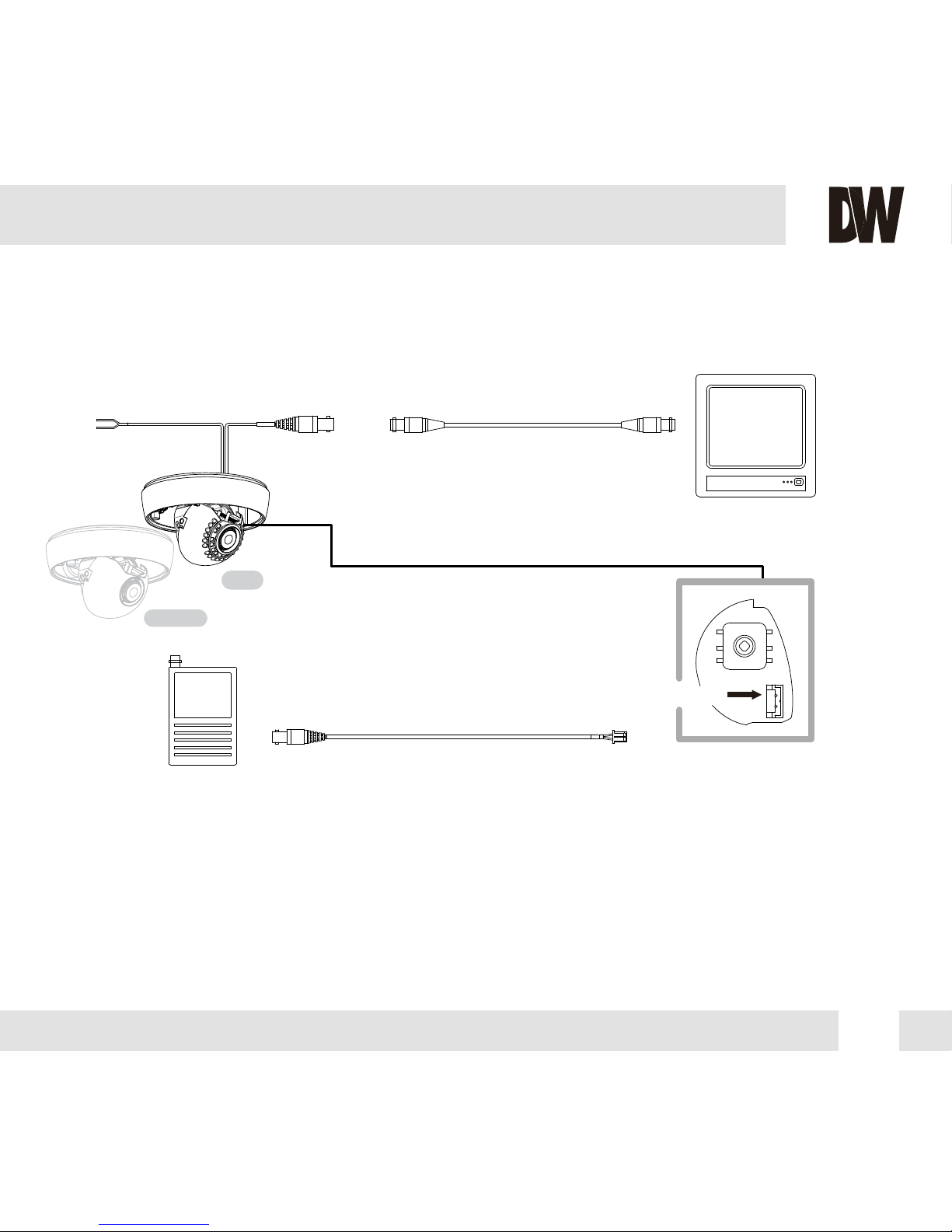

CONNECTING TO MONITORS*

Power Connection: 12VDC & 24VDC Dual Voltage (Auto Polarity Detection and Protection)

All cameras are equipped with a second video output for on-site configuration.

Use the diagram below to connect to a Monitor or CRT Monitor properly.

DC 12V / AC 24V

CCTV Monitor

Monitor

300.0mm(11.8”)

Second Video Output

NO IR

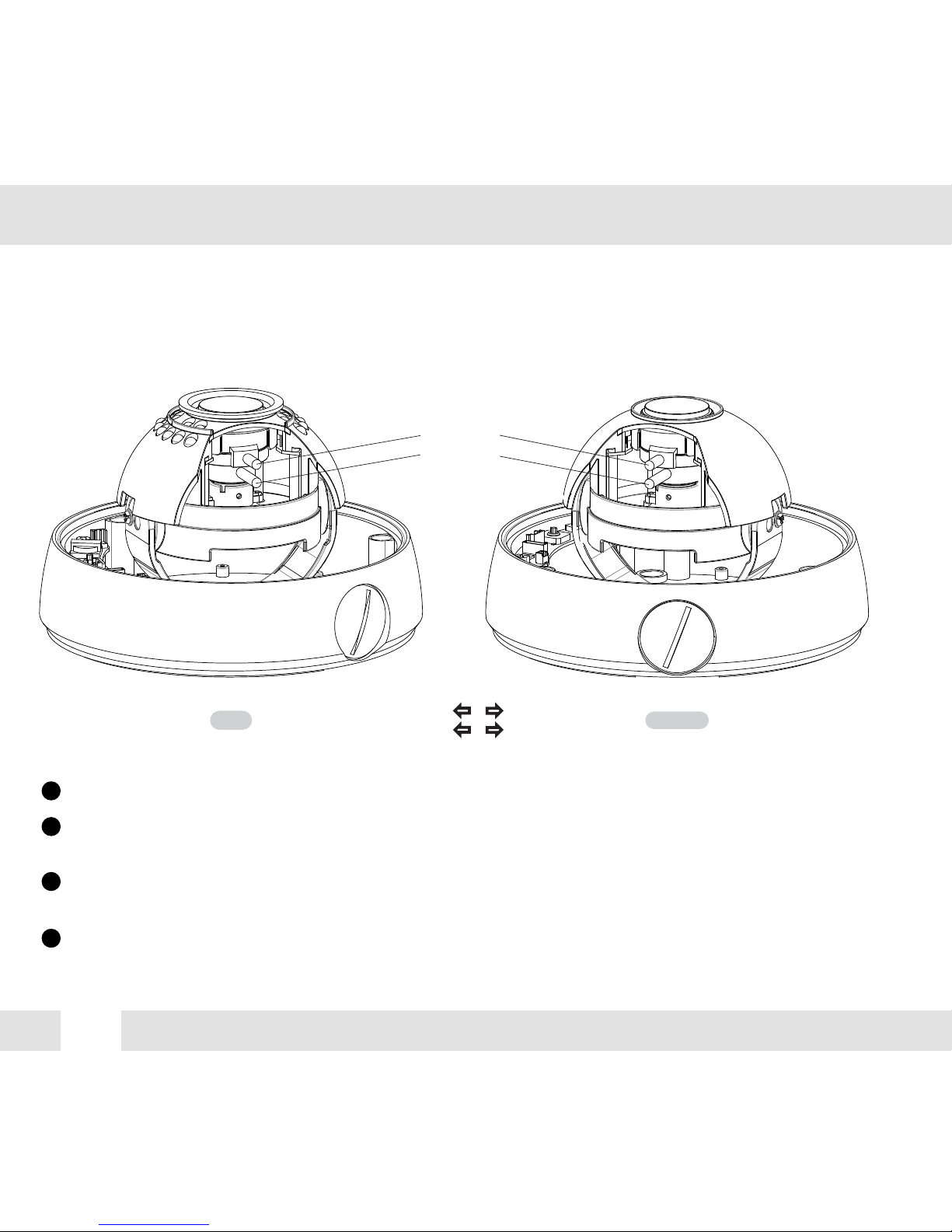

ADJUSTING THE CAMERA*

ZOOM

FOCUS

NO IRIR Zoom:

Focus:

Tele - Wide

Far - Near

Loosen the Zoom & Focus Handles by rotating them counter-clockwise.

Adjust the Field of view by moving the handle to the RIGHT(Tele) to zoom in, or to the

LEFT(Wide) to zoom out.

Adjust the Focus the same way as described above AFTER the desires Zoom position

is estabilished.

Once the desired adjustments have been made, please tighten the handles back by

turning them clockwise.
