DWC-EXTIR100

100ft IR Illuminator for MEGApix®PANO™and STAR-LIGHT™

HD over Coax™Panoramic Bullet Camera

Quick Start Guide

WHAT’S IN THE BOX

QSG Manual 1 Set Screw 1 Set

Attention: This document is intended to serve as a quick reference for initial set-up.

It is recommended that the user read the entire instruction manual for complete and proper installation and usage.

NOTE Download All Your Support Materials and Tools in One Place

1. Go to: http://www.digital-watchdog.com/support-download/

2. Search your product by entering the part number in the ‘Search by Product’ search bar. Results for applicable part numbers will

populate automatically based on the part number you enter.

3. Click ‘Search’. All supported materials, including manuals, Quick Start Guides (QSG), software and rmware will appear in the results.

Tel: +1 (866) 446-3595 / (813) 888-9555

Technical Support Hours: 9:00AM – 8:00PM EST, Monday thru Friday

digital-watchdog.com

NOTE To check if your camera supports the new Infra Red Extrernal Illuminator, check to see if it has an additional cables lebeled EX-LED in

the bullet’s cables.

LED

EX-LED

EX-LED

DC12V

Power

INSTALLING THE MOUNTING ACCESSORY

Rev Date: 07/17

Copyright © Digital Watchdog. All rights reserved.

Specications and pricing are subject to change without notice.

INSTALLATION ON AN IP CAMERA INSTALLATION ON AN ANALOG CAMERA

Quick Start Guide

1. Connect the EXT-LED cable from the illuminator to the camera’s cable labeled “EX-LED”

2. Connect the power cable to an adequate power supply.

• Power requirements: DC12V/AC24V Dual Voltage

• Power consumption: DC12V : Max 11.0W, AC24V : Max 11.0W

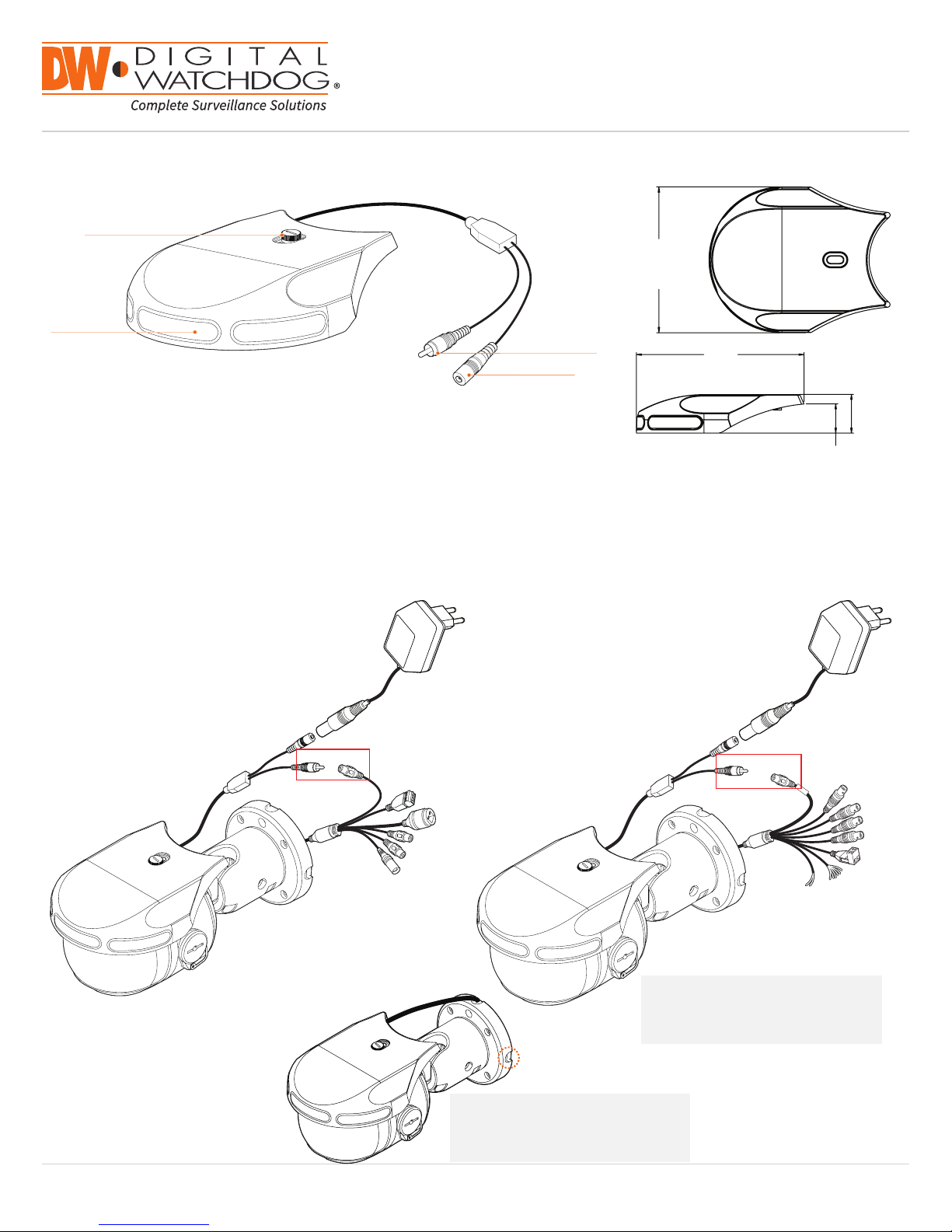

PARTS & DIMENSIONS

5.06”

(128.6mm)

6.28”

(159.6mm)

1.09”

(27.9mm)

1.45”

(37mm)

NOTE: Please check your

hardware to see if it supports the IR

illuminator connection.

NOTE: The illuminator’s cables can

be placed in any of the four holes in

the camera’s mounting bracket.

IR LEDs

Screw

DC12V / AC24V Cable

EX-LED Cable

12VDC / 24V AC 12VDC / 24V AC

LED

EX-LED

DC12V

Power
