Digital Projection TheaterScope System Manuel utilisateur

2/5/2007 To contact Technical Support please call 770-420-1350 1

TheaterScope System

DPI Part # 106-480 HD) or 106-487 1080p)

Installation Manual

READ ALL INSTRUCTIONS BEFORE BEGINNING INSTALLATION

2/5/2007 To contact Technical Support please call 770-420-1350 2

Physical Dimensions

TheaterScope System shown mounted inverted to dVision projector.

2/5/2007 To contact Technical Support please call 770-420-1350 3

Operatin the TheaterScope

Safety Note

Be sure to keep hands & fingers and any loose clothing away from any moving parts

Automatic mode

The TheaterScope powers-up in automatic mode. On power-up the LED flashes green multiple

times, and then turns a solid color when the unit is ready for operation.

Depending on the position of the TheaterScope, the led will be different colors.

Solid Green = Home position.

Solid Red = other limit of travel.

Solid Amber = in between limits.

The Led will blink with the Amber color while the TheaterScope is moving.

Control

You may use any of the following means to control the TheaterScope:

•Infrared Control

•RS-232 Serial / Computer Control

•Single Latching Relay

Pro rammin the TheaterScope

To enter Pro rammin mode:

1. Hold down buttons 1, 2, and 3 while powering up the TheaterScope. The LED will flash

green, and then turn red to indicate that you have entered programming mode. Release all

buttons when the LED turns a solid red.

2. Test the unit by pressing buttons 2 or 3. It should move only when the button is depressed.

The TheaterScope will stop when the button is released. In manual mode the led colors are

the same as they are in automatic mode.

3. The TheaterScope has a default setting of operating on a LENS-CENTERED projector i.e.

Mercury, Titan). Only if your projector is LENS-LEFT (i.e. dVision), make the

followin pro rammin chan e:

•While in programming mode, hold button 1 for 10 seconds until the led flashes, then

release button 1. This will reverse the direction of the TheaterScope to function

properly with your LENS-LEFT projector.

Programming

Buttons

2/5/2007 To contact Technical Support please call 770-420-1350 4

Set the SHOW position.

1. Send the TheaterScope to its Home position by using button 3. The Home position will be

indicated by the green LED. If the LED turns red, the TheaterScope is at the wrong end. Move

the TheaterScope to its Home position.

2. Move the TheaterScope to the Show position by using button 2. If you go past the desired

show position use button 3 to go back.

3. To program the SHOW position, press and hold button 1 then press button 2. Release

button 2, and then release button 1.

4. To return to automatic mode, cycle power to the TheaterScope.

Note: The 3 buttons are only used to program the TheaterScope. They have no functionality

in automatic mode.

In Automatic mode:

5. Use your desired means of control to send the TheaterScope to its home position.

6. Test the operation of the TheaterScope to verify it has accepted your program.

7. Press the SHOW button. The TheaterScope should move to the desired show position. If the

TheaterScope does not travel to the desired position, repeat this programming process.

If using the switch method of control. On power-up, the TheaterScope may first go to the show

limit, but it will then move to the home position. After traveling to the home position, the

TheaterScope will travel to the desired show position. If it does not travel to the desired show

position, repeat this process.

Infrared Control

The Position 1 button sends the TheaterScope to its HOME position

The Position 2 button sends the TheaterScope to the desired SHOW position

POS

2/5/2007 To contact Technical Support please call 770-420-1350 5

Wirin Connections

Note: The 9 pin D-Sub connector is used for wiring either Single Latching Relay or RS-232.

Serial Control

Transmit Commands Serial Responses

A Goto Home R Received Command

B Goto Show X Bad Command

C Stop M Moving

Q Query D At Home

E At Show

F Stopped between Home and Show

Controller/DB9 Female ALS / DB9 Male

Function Pin # Pin # Function

Receive 2 2 Transmit

Transmit 3 3 Receive

Ground 5 5 Ground

Sin le Latchin Relay

Note: Be sure to program the show position for the lens before connecting the single latching

relay. The TheaterScope uses pins 5, 6 & 7 of the DB9 connector for Single Latching Relay and

will not function under RS232 or Infrared Control.

Note: The enable must be closed for the switch to operate.

The switch sends the unit to its HOME position if closed.

The switch sends the unit to its SHOW position if open.

Controller/DB9 Female ALS / DB9 Male

Function Pin # Pin # Function

Ground 5 5 Ground

Contact Enable 6 6 Contact Enable

Switch 7 7 Switch

Pins 1, 4, 8 & 9 are non-functional

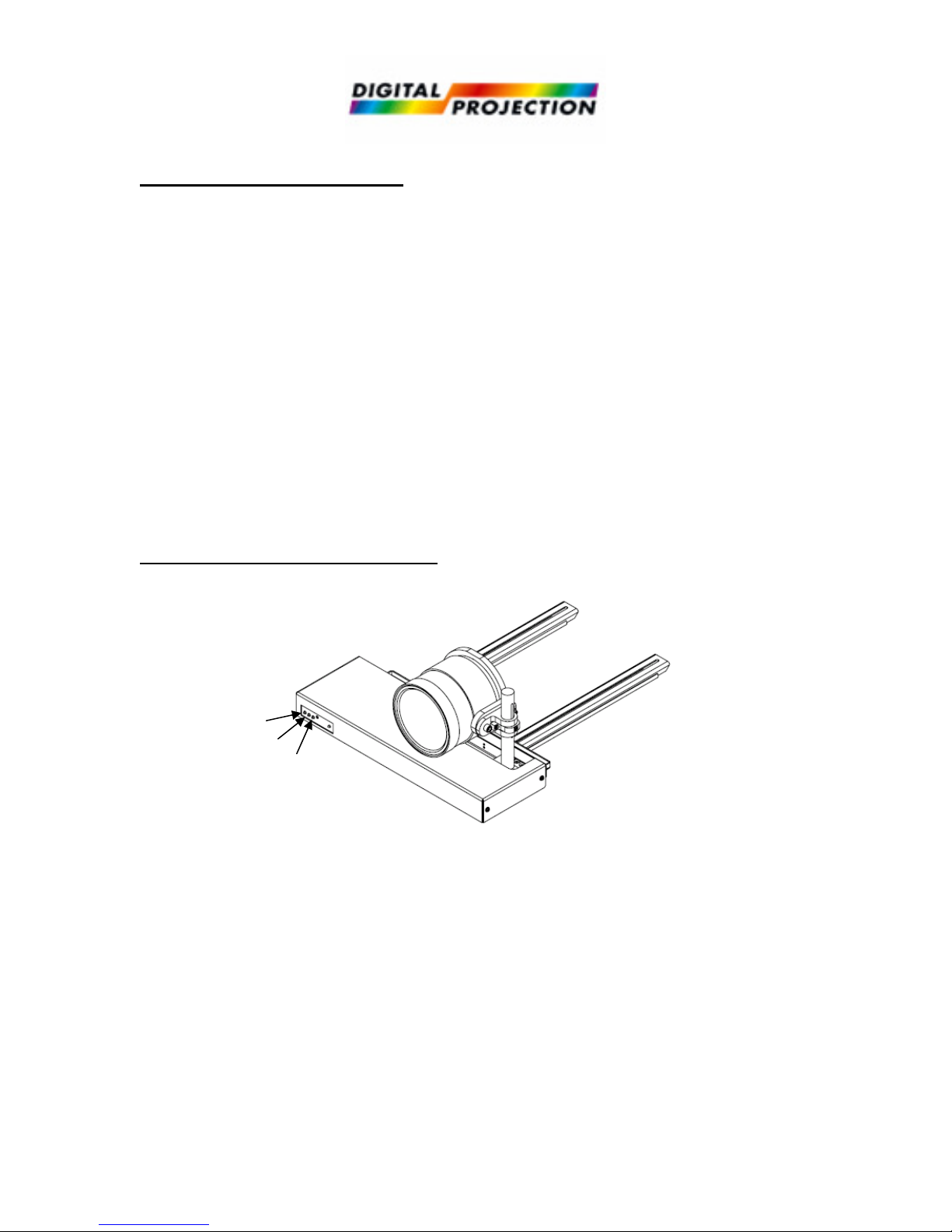

Power

Switch

Power

Cord

Programming

Buttons

LED

Direction of travel

Mounting

Rails

Receiver

D-Sub 9

Connector
