Digital Projection Insight Laser 4K Manuel utilisateur

User Manual

INSIGHT LASER 4K

Document part number: 116-355

Revision A, January 2015

Page 1of 65

INSIGHT 4K LASER User Manual

Important Information

Symbols used in the User Manual

LASER WARNING: this symbol indicates that there is a potential hazard of eye exposure to laser radiation unless the

instructions are closely followed.

ELECTRICAL WARNING: this symbol indicates that there is a danger of electrical shock unless the instructions are

closely followed.

WARNING: this symbol indicates that there is a danger of physical injury to yourself and/or damage to the equipment

unless the instructions are closely followed.

NOTE: this symbol indicates that there is some important information that you should read.

Specifications are subject to change without notice.

Electrical and physical specifications

Mains Voltage 200-240 VAC

50-60 Hz (single phase)

Operating Temperature 0°C to 35°C

Storage Temperature -20°C to 60°C

Operating Humidity 20% to 90% non-condensing

Weight 63 kg (138.9 lb) without lens

Power Consumption 1608 W

Thermal Dissipation 5027 BTU/hr

Non-accessible laser parameters

Wavelength

435 - 462 nm

Laser Power for classification < 330 mW

Total internal power < 35 W

Apparent Source Size < 10 mm at aperture

Divergence ≤ ± 7.3 - 28°, lens dependent

Mode of operation CW

Modulation, due to frame rate 23 - 192 Hz

Page 2of 65

INSIGHT 4K LASER User Manual

Labels

Product Label

Within the Product Label:

Other labels

Aperture Label with Hazard Warning Symbol

Protective Housing Label (optionally interlocked)

Due to the product having no customer service access, the Protective Housing Label is not present on the exterior of the product. Protective

Housing Labels are only used on the interior of the product. The label is located under the top cover.

See Label locations for information on label locations, including protective housing label.

Manufacturer’s Identification

Manufacturer’s name, address and projector model name

Serial Number

Certification Statement

Complies with FDA performance standards for laser products

except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007

Explanatory Label

Laser light - avoid direct eye exposure

Class 3R laser product 455-470 nm ˂ 330 mW

Classified IEC/EN 60825-1 2007

Hazard Warning Symbol

CAUTION

CLASS 4 LASER LIGHT WHEN OPEN

AVOID EYE OR SKIN EXPOSURE TO

DIRECT OR SCATTERED LIGHT

Page 3of 65

INSIGHT 4K LASER User Manual

Label locations

Product

Label

Protective

Housing Label (under the top

cover

and

only visible to service personnel)

Aperture

Label with Hazard Warning Symbol

Location of laser aperture

ser aperture

Page 4of 65

INSIGHT 4K LASER User Manual

Interlock switches

Five interlock switches installed at the main frame, inside the cover, will power-off the system

individually when activated.

Location

Will be activated when the top cover is removed.

Will be activated when the l

ens is removed.

Will be activated when the side cover is removed.

x2. Will be activated when the front cover is removed.

Will be activated when the lens access cover is removed.

Interlock switch control block diagram

POWE

DC-DC

Laser

DC-DC

Micro-

Interloc

Page 5of 65

INSIGHT 4K LASER User Manual

Important safeguards

These safety instructions are to ensure the long life of your projector and to prevent fire, shock, damage and injury. Please read them carefully

and heed all warnings.

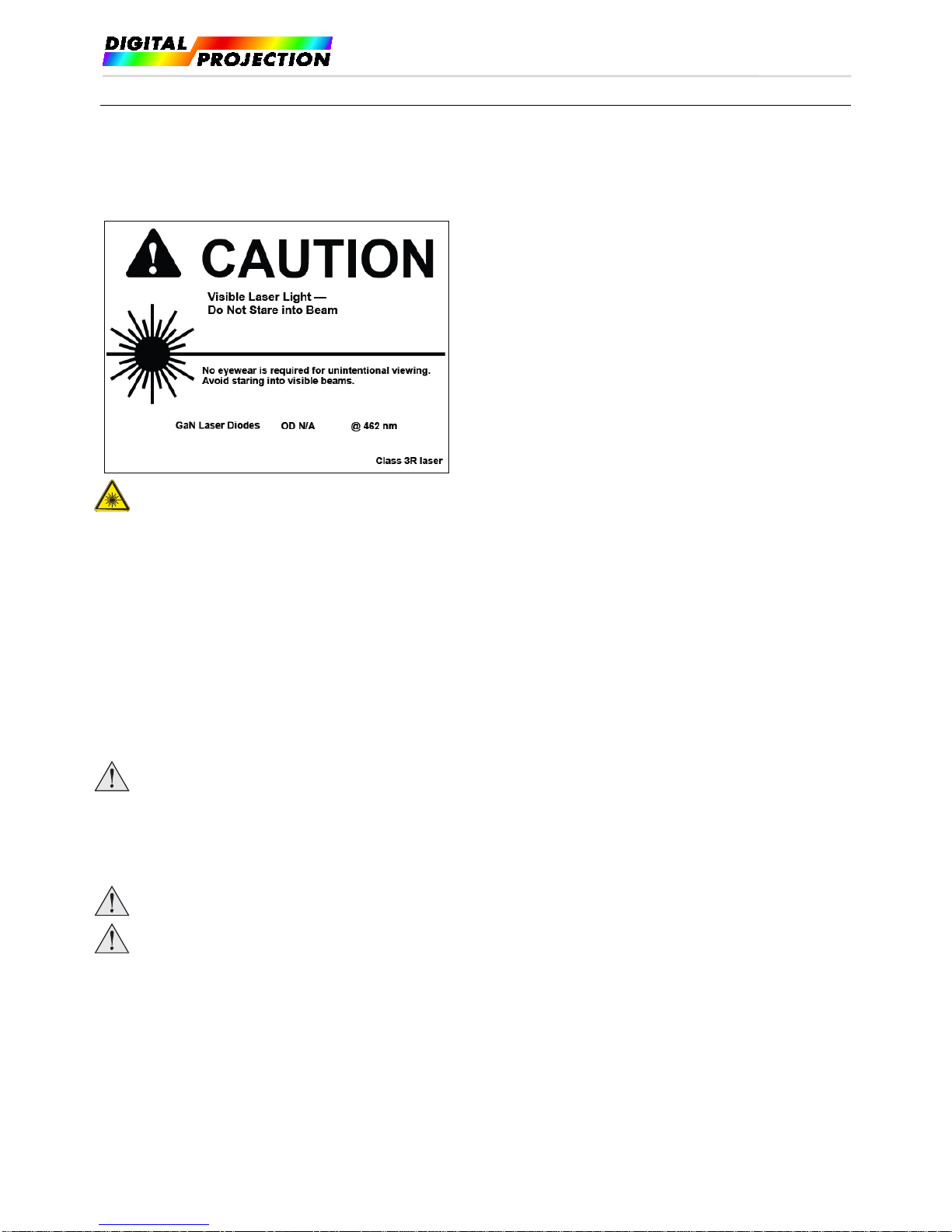

Laser precautions

This product is classified as Class 3R of IEC60825-1 and 21 CFR Part 1040.10 Safety Standards.

CLASS 3R LASER PRODUCT

This Laser Product is designated as Class 3R during all procedures of operation. LASER LIGHT - AVOID DIRECT EYE

EXPOSURE.

Do not point laser or allow laser light to be directed or reflected toward other people or reflective objects.

Direct or scattered light can be hazardous to eyes and skin.

There is a potential hazard of eye exposure to laser radiation if the included instructions are not followed.

Caution – use of controls or adjustments or performance of procedures other than

those specified herein may result in hazardous radiation exposure.

Class 2 range. Class 3R laser product, per IEC 60825-1, has limited risk of laser hazard and is safe for non-intrabeam

viewing. It is recommended to keep the audience 100 cm away from the exit plane of the lens hood and reduce the laser

hazard to a much safer class 2.

Non-laser emission. There remains non-laser emission from the projection lens. This portion of emission has been

tested per IEC/EN 62471 to be Risk Group 1 (Low Risk).

General precautions

This is a Class A product. It has been tested and found to comply with the limits for a Class A digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when

the equipment is operated in a commercial environment.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be

required to correct the interference at his own expense.

In order to reduce any interference with radio and television reception, use a signal cable with ferrite core attached. Use

of signal cables without a ferrite core attached may cause interference with radio and television reception.

The unit is never to be operated if the unit is defective or the cover or seal is damaged.

The end user is not allowed to open or modify the product. No maintenance allowed by end user.

Do not open the cabinet. There are no user serviceable parts inside.

No service is allowed except by authorized personnel.

Page 6of 65

INSIGHT 4K LASER User Manual

Installation and handling

The projector must be installed only by suitably qualified personnel, in accordance with local building codes.

Consult your dealer for information about transporting and installing the projector. Do not attempt to transport and

install the projector yourself. The projector must be installed by qualified technicians in order to ensure proper

operation and reduce the risk of bodily injury.

Do not point the projection beam toward other people or reflective objects.

The projector should be installed as close to the power outlet as possible.

The power connection should be easily accessible, so that it can be disconnected in an emergency.

Place the projector on a flat, level surface in a dry area away from dust and moisture. Tilting the front of the projector up

or down from level could reduce laser life. Do not put the projector on its side when the laser is on. Doing so may cause

damage to the projector.

Do not place the projector in direct sunlight, near heaters or heat radiating appliances. Exposure to direct sunlight,

smoke or steam could harm internal components.

Do not expose the projector to rain or moisture, and do not place any liquids on top of the projector.

Do not expose the projector to dust.

Handle your projector carefully. Dropping or jarring your projector could damage internal components.

A minimum of four persons are required in order to carry the projector.

Do not hold the projector by the lens. Otherwise the projector may tumble or drop, causing personal injury.

Before installation, make sure that the surface, ceiling or rigging that is to support the projector is capable of supporting

the combined weight of the projector and lens.

Do not place heavy objects on top of the projector.

Turn off the projector and disconnect the power cable before moving the projector.

CAUTION ON CARRYING THE PROJECTOR / HANDLING THE OPTIONAL LENS

When shipping the projector with the lens, remove the lens before shipping the projector. Always attach the dust cap to

the lens whenever it is not mounted on the projector. The lens and the lens shift mechanism may encounter damage

caused by improper handling during transportation.

The cooling fan settings need to be configured when using the projector in a location at an altitude of approximately

5500 feet/1600 meters or higher. Consult your dealer in advance.

If you wish to have the projector installed on the ceiling:

•

Do not attempt to install the projector yourself.

•

The projector must be installed by qualified technicians in order to ensure proper operation and reduce the

risk of bodily injury.

•

In addition, the ceiling must be strong enough to support the projector and the installation must be in

accordance with any local building codes.

•

Backup safety chains or wires should always be used with ceiling mount installations.

Consult your dealer for more information.

Do not cover the lens with the supplied lens cap or equivalent while the projector is on. Doing so can lead to distorting

or melting of the cap and burning your hands due to the heat emitted from the light output.

Do not place any objects which are easily affected by heat, in front of the projector lens. Doing so could lead to the

object melting from the heat that is emitted from the light output.

Page 7of 65

INSIGHT 4K LASER User Manual

The projector can be operated in numerous positions. The only non-workable angles are:

•

Portrait mode with inputs facing downward.

•

Upright mode with lens pointing upwards.

The diagram below illustrates both positions showing non-workable angles (1) and workable angles (2).

When stacking projectors, the stack MUST be vertical, to ensure that the stresses are distributed to all four chassis

corners.

Power supply

The projector is so designed that it operates with the power supply voltage described below.

•

AC200–240V 8.2 A 50/60Hz Single-phase

Ensure that your power supply fits this requirement before attempting to use your projector.

Use only the power cable provided.

Use a power cable that meets the standards and power supply voltage of the country where you are using the projector.

Refer to user’s manual for details on connecting the power cable.

Ensure that the power outlet includes a Ground connection, as this equipment MUST be earthed.

Handle the power cable carefully. A damaged or frayed power cable can cause electric shock or fire.

•

Do not bend or tug the power cable excessively.

•

Do not place the power cable under the projector, or any heavy object.

•

Do not cover the power cable with other soft materials such as rugs.

•

Do not heat the power cable.

Placing the power cable and the signal cable closely to each other can cause beat noise. If this happens, keep the two

separated so that beat noise is not generated. Beat noise is corruption of the picture often seen as a rolling band

moving through the image.

Do not touch the projector or the power plug during a thunder storm. Doing so can cause electrical shock or fire.

When installed on the ceiling, install the breaker in a location that is easy to reach by hand.

Do not unplug the power cable from the wall outlet or projector when the projector is powered on. Doing so can damage

the projector. Do not unplug in the following circumstances:

•

While projecting images

•

While cooling after the projector has been turned off. (The POWER button LED blinks in green while the fan is

rotating, and “cooling...” is displayed on the LCD screen. The cooling fan continues to work for 90 seconds.)

Do not turn of the AC power for 90 seconds after the laser is turned on and while the POWER indicator is blinking green.

Doing so could cause premature laser failure.

Use of a wall outlet with a 20 A or more circuit breaker is recommended.

Page 8of 65

INSIGHT 4K LASER User Manual

Fire and shock precautions

Ensure that there is sufficient ventilation and that vents are unobstructed to prevent potentially dangerous

concentrations of ozone and the build-up of heat inside your projector. Allow at least 12 inches (30cm) of space between

your projector and a wall. In particular, clear a space of 27.6 inches (70 cm) or more in front of the air outlet on the rear

surface and 19.8 inches (50 cm) or more in front of the air outlet on the Laser side.

Do not install the projector close to anything that might be affected by its operational heat, for instance, polystyrene

ceiling tiles, curtains etc.

Prevent foreign objects such as paper clips and bits of paper from falling into your projector. Do not attempt to retrieve

any objects that might fall into your projector.

Do not insert any metal objects such as a wire or screwdriver into your projector. If something should fall into your

projector, disconnect it immediately and have the object removed by a qualified service person.

Turn off the projector, unplug the power cable and have the projector serviced by a qualified service personnel under

the following conditions:

•

When the power cable or plug is damaged or frayed.

•

If liquid has been spilled into the projector, or if it has been exposed to rain or water.

•

If the projector does not operate normally when you follow the instructions described in the user manual.

•

If the projector has been dropped or the cabinet has been damaged.

•

If the projector exhibits a distinct change in performance, indicating a need for service.

Keep any items such as magnifying glass out of the light path of the projector. The light being projected from the lens is

extensive, therefore any kind of abnormal objects that can redirect light coming out of the lens, can cause unpredictable

outcome such as fire or injury to the eyes.

When using a LAN cable, for safety, do not connect to the connector for peripheral device wiring that might have

excessive voltage.

Connect the LAN cable only to a computer LAN connection. Other similar connectors may have a dangerously high

voltage source.

Do not look into the lens while the projector is on. Serious damage to your eyes could result.

Do not try to touch the air outlets on the projector during normal projector operation as it is hot.

Cleaning

Turn off the projector and unplug the power cable before cleaning the cabinet or replacing the laser.

Do not touch the projector or the power plug with wet hands. Doing so can cause electric shock or fire.

Clean the cabinet periodically using a damp, not wet, cloth. If heavily soiled, use a mild detergent. Never use strong

detergents or solvents such as alcohol or thinner.

Use a blower or lens paper to clean the lens, and be careful not to scratch or mar the lens.

Light module

A light module containing multiple laser diodes is included in the product as the light source. These laser diodes are

sealed in the light module. No maintenance or service is required for the performance of the light module.

End user is not allowed to replace the light module.

Contact a qualified distributor for light module replacement and further information.

Page 9of 65

INSIGHT 4K LASER User Manual

Networking configuration

Do not make changes to the networking configuration unless you understand what you are doing, or have taken advice

from your Network Manager. If you make a mistake, it is possible that you will lose contact with the projector. Always

double-check your settings before applying any changes to your networking configuration. Always keep a written note

of the original settings, and any changes you have made.

Software updates should NOT be carried out except by, or with the supervision of, Digital Projection Service personnel.

Page 10 of 65

Table des matières

Autres manuels Digital Projection Projecteur

Digital Projection

Digital Projection LIGHTNING 35HD Manuel utilisateur

Digital Projection

Digital Projection Titan 1080p-500 Manuel utilisateur

Digital Projection

Digital Projection HIGHlite 660 Series Manuel utilisateur

Digital Projection

Digital Projection HIGHlite Series Manuel utilisateur

Digital Projection

Digital Projection E-Vision Laser 5900 Series Manuel d'utilisation

Digital Projection

Digital Projection E-Vision 6900 Series Manuel utilisateur

Digital Projection

Digital Projection M-Vision Cine 320 3D series Manuel utilisateur

Digital Projection

Digital Projection Titan Super Quad Manuel utilisateur

Digital Projection

Digital Projection HIGHlite 730 Series Manuel utilisateur

Digital Projection

Digital Projection dVision 1080p Manuel utilisateur

Digital Projection

Digital Projection TITAN WUXGA Quad 3D Manuel utilisateur

Digital Projection

Digital Projection E-Vision 8000 Series Manuel utilisateur

Digital Projection

Digital Projection MERCURY 5000HD Manuel utilisateur

Digital Projection

Digital Projection 35HD-T Manuel utilisateur

Digital Projection

Digital Projection INSIGHT 4K Dual LED Series Manuel utilisateur

Digital Projection

Digital Projection 119-712B Manuel utilisateur

Digital Projection

Digital Projection HIGHlite 6000 Manuel utilisateur

Digital Projection

Digital Projection Titan series Instructions d'installation et d'utilisation

Digital Projection

Digital Projection SHOWlite 6000gv Manuel utilisateur

Digital Projection

Digital Projection E-Vision Laser 4K Series Manuel utilisateur

Digital Projection

Digital Projection HIGHlite Cine 260 HB Manuel utilisateur

Digital Projection

Digital Projection E-Vision Laser 5000 XGA Manuel utilisateur

Digital Projection

Digital Projection M-Vision Cine LED Manuel utilisateur

Digital Projection

Digital Projection LIGHTNING 30-1080p Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
