Digital Projection E-Vision 8000 Series Manuel utilisateur

Rev A April 2012

USER GUIDES

INSTALLATION AND QUICK-START GUIDE

CONNECTION GUIDE

OPERATING GUIDE

REMOTE COMMUNICATIONS GUIDE

112-796A

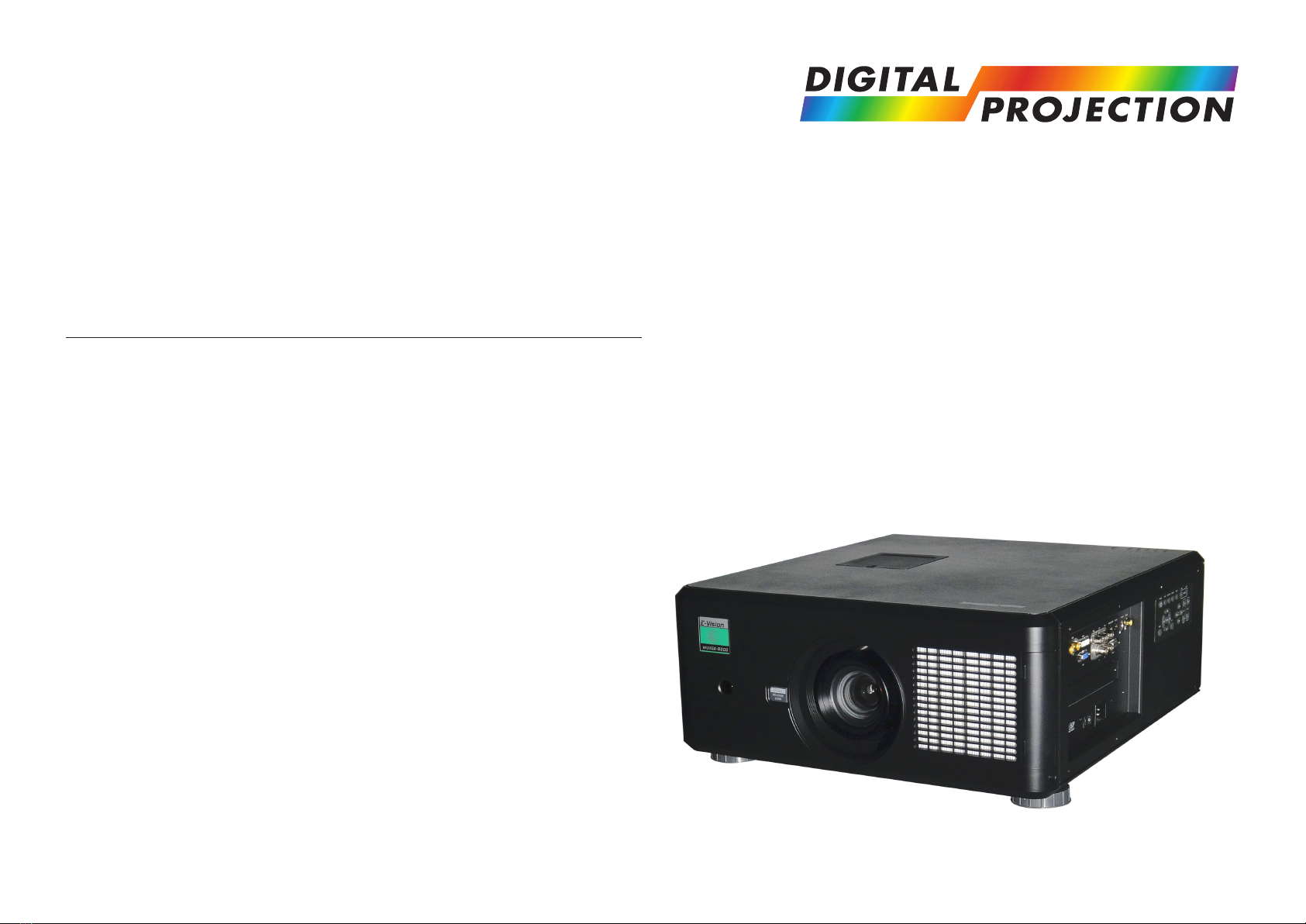

E-Vision 8000 Series

High Brightness Digital Video Projector

BOOK CONTENTS

About these Guides

Symbols used in these guides

Warnings

Notes

Product revision

Digital Projection E-Vision series

Rev A April 2012

About these Guides

Please read this guide carefully before using the projector, and keep it handy for future reference.

A serial number is located on the back of the projector. Record it here:

Symbols used in these guides

Warnings

ELECTRICAL WARNING: this symbol indicates that there is a danger of electrical shock unless the instructions are closely

followed.

WARNING: this symbol indicates that there is a danger of physical injury to yourself and/or damage to the equipment unless

the instructions are closely followed.

Notes

NOTE: this symbol indicates that there is some important information that you should read.

Product revision

Because we at Digital Projection continually strive to improve our products, we may change specications and designs, and add new features

without prior notice. Projectors built prior to this revision of the Operating Guide may therefore not include all the features described.

Rev A April 2012

E-Vision 8000 Series

High Brightness Digital Video Projector

INSTALLATION AND QUICK-START GUIDE

BOOK CONTENTS

INSTALLATION AND QUICK-START GUIDE

What’s in the Box?

Getting to Know the Projector

Front and rear views

Digital Projection E-Vision 8000 series CONTENTS Installation and Quick-Start Guide

Rev A April 2012

CONTENTS

What’s in the Box?...............................................................................Inst_1

Getting to Know the Projector....................................................Inst_2

Front and rear views .............................................................................Inst_2

Remote control......................................................................................Inst_2

Control panel .........................................................................................Inst_3

Indicators ...............................................................................................Inst_3

Changing the lens, lamps, lters and colour wheel ....Inst_4

Removing the lens ................................................................................Inst_4

Fitting the lens.......................................................................................Inst_4

Changing a lamp ...................................................................................Inst_5

Changing the lters...............................................................................Inst_5

Changing the colour wheel ..................................................................Inst_6

Positioning the Screen and Projector....................................Inst_7

Operating the Projector...................................................................Inst_8

Switching the Projector On ..................................................................Inst_8

Selecting an Input Signal or Test Pattern ...........................................Inst_8

Input signal....................................................................................Inst_8

Test pattern ...................................................................................Inst_8

Adjusting the Lens................................................................................Inst_9

Zoom.............................................................................................Inst_9

Focus ............................................................................................Inst_9

Shift...............................................................................................Inst_9

Adjusting the Image..............................................................................Inst_9

Orientation.....................................................................................Inst_9

Aspect Ratio..................................................................................Inst_9

Picture...........................................................................................Inst_9

Switching the Projector Off................................................................Inst_10

Digital Projection E-Vision 8000 series WHAT'S IN THE BOX? Installation and Quick-Start Guide

Page Inst_1Rev A April 2012

What’s in the Box? Notes

Make sure your box contains

everything listed. If any pieces are

missing, contact your dealer.

You should save the original box

and packing materials, in case you

ever need to ship your Projector.

Only one power cable - dependent

on the destination territory - will be

supplied with the projector.

Remote control

(112-532)

2x AAA batteries

User Guides on CD

(112-456) Important Information

(112-797)

Projector

Lens cap

Power cable,

China

(112-817)

Power cable,

United Kingdom

(112-814)

Power cable,

Europe

(112-816)

Power cable,

North America

(112-815)

Digital Projection E-Vision 8000 series GETTING TO KNOW THE PROJECTOR Installation and Quick-Start Guide

Page Inst_2Rev A April 2012

Getting to Know the Projector

Front and rear views

Notes

The projector can use an infra-red or

a wired remote control.

Some of the controls are duplicated

on the projector control panel, as

shown on the next page.

For full details of how to use the

controls and the menu system, see

the Operating Guide.

 Theairltersshouldbecleanedor

changed regularly, depending on the

installation environment.

 Theltersshouldbechangedatthe

same time as the lamp is changed.

The projector lens is shipped

separately.

Lens Connection

panel

Mains

input

Control

panel

Adjustable

feet

Front

infra-red

window

Rear

infra-red

window

Remote control

Infra-red

reception

40°

Air

inlet

Air

inlet

Air

outlets

Colour wheel

cover

Air lter

cover

Air lter

cover

Lamp

covers

Indicator

panel

Digital Projection E-Vision 8000 series GETTING TO KNOW THE PROJECTOR Installation and Quick-Start Guide

Page Inst_3Rev A April 2012

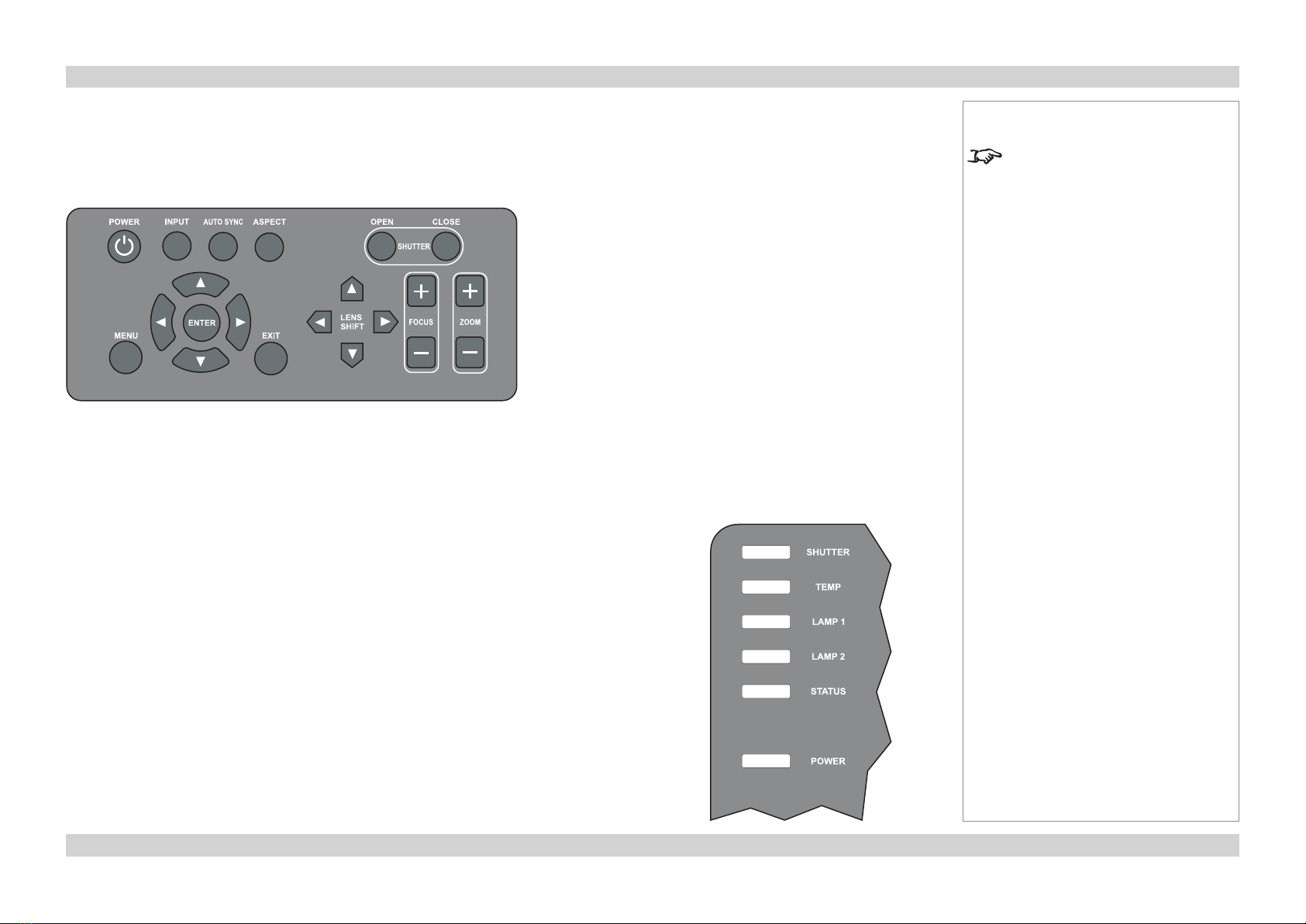

Control panel

Some of the controls from the remote control are duplicated on the projector control panel, as

shown below.

The EXIT button has the same function as the RETURN button on the remote control.

Notes

For full details of how to use the

controls and the menu system, see

the Operating Guide.

Indicators

SHUTTER off = OPEN green = CLOSED

TEMP off = NO ERROR ashing red = ERROR (temperature)

LAMPS 1,2 off = OFF

ashing red = LAMP ERROR red = END OF LIFE

ashing green = LAMP WARM-UP green = ON

STATUS off = NO ERROR

ashing red (1 ash) = COVER OPEN ashing red (4 ashes) = FAN ERROR

red = SYSTEM ERROR

POWER off = NO POWER

green = normal RUNNING mode red = STANDBY mode

ashing green = PROJECTOR WARM UP

ashing amber = PROJECTOR COOL DOWN

Digital Projection E-Vision 8000 series CHANGING THE LENS, LAMPS, FILTERS AND COLOUR WHEEL Installation and Quick-Start Guide

Page Inst_4Rev A April 2012

Changing the lens, lamps, lters and colour wheel

Removing the lens

• Push in the lens release lever, and turn the lens anti-clockwise.

• Remove the lens.

Fitting the lens

• Remove the lens cap.

• Position the lens so that the labels are at the top, and gently insert it all the way into the

lens mount.

• Push the lens in rmly, and turn it clockwise until it clicks into place.

Notes

Always allow the lamp to cool for

5 minutes before:

- disconnecting the power

- moving the projector

- changing the lamp

The projector lens is shipped

separately.

Digital Projection E-Vision 8000 series CHANGING THE LENS, LAMPS, FILTERS AND COLOUR WHEEL Installation and Quick-Start Guide

Page Inst_5Rev A April 2012

Changing a lamp

• Unscrew the two captive screws securing the cover for the lamp that needs changing.

• Open the lamp compartment.

• Unscrew the three captive screws securing the lamp module.

• Pull rmly on the handle to remove the lamp module.

• Insert a new lamp module and fasten the screws.

• Replace the lamp compartment cover and fasten the screws.

Notes

Always allow the lamp to cool for

5 minutes before:

- disconnecting the power

- moving the projector

- changing the lamp

The lamp and colour wheel must

be changed only by suitably

qualied personnel.

Note that the projector will shut

down if any of the covers is opened

whilst in operation.

 Theltersshouldbechangedatthe

same time as the lamp is changed.

Lamp 1 Lamp 2

Cover

screws

Lamp compartment

Lamp module

screws

Lamp 1 Lamp 2

Handle

Changing the lters

• Unscrew the captive screws securing the cover for the

side air inlet.

• Replace the lter, making sure that the arrow showing

the air ow direction is pointed inwards.

• Replace the cover and fasten the screws.

• Remove the cover for the side air inlet by pushing it

rmly to the right, as shown.

• Replace the lter, making sure that the arrow showing

the air ow direction is pointed inwards.

• Replace the cover.

Front air inlet

lter

Side air inlet

lter

Digital Projection E-Vision 8000 series CHANGING THE LENS, LAMPS, FILTERS AND COLOUR WHEEL Installation and Quick-Start Guide

Page Inst_6Rev A April 2012

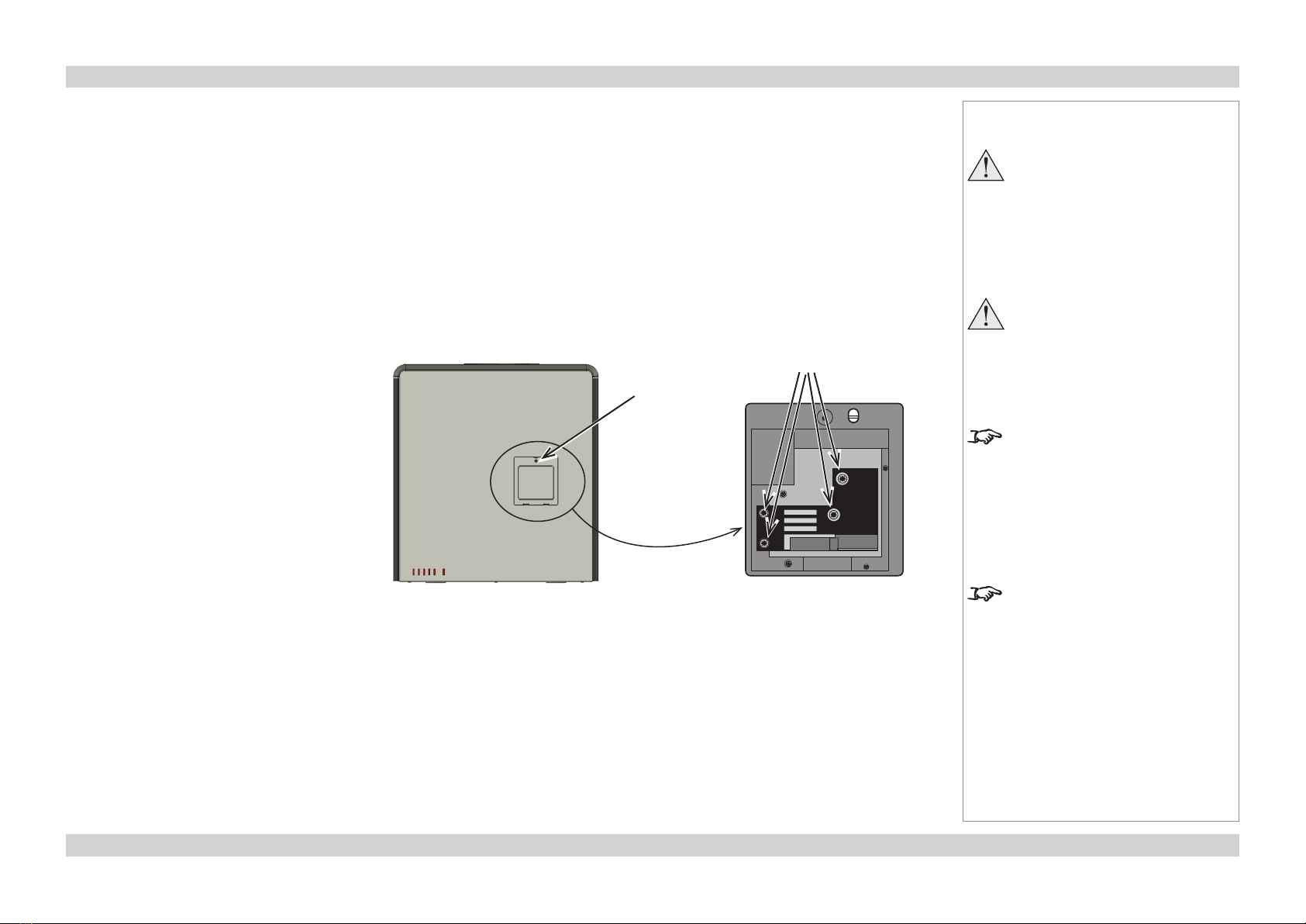

Changing the colour wheel

• Unscrew the captive screw securing the

colour wheel compartment cover.

• Open the colour wheel compartment.

• Unscrew the four captive screws securing

the colour wheel.

• Remove the colour wheel.

• Insert a new colour wheel and fasten the

screws.

• Replace the cover and fasten the screw.

Cover

screw

Colour wheel

compartment

Colour

wheel

screws

Notes

Always allow the lamp to cool for

5 minutes before:

- disconnecting the power

- moving the projector

- changing the lamp

The lamp and colour wheel must

be changed only by suitably

qualied personnel.

 Theprojectorrmwareiscolour

wheelspecic,andsowillneedto

be changed at the same time as the

wheel.

For assistance, contact your dealer.

Note that the projector will shut

down if any of the covers is opened

whilst in operation.

Autres manuels pour E-Vision 8000 Series

Table des matières

Autres manuels Digital Projection Projecteur

Digital Projection

Digital Projection TITAN WUXGA Quad 3D Manuel utilisateur

Digital Projection

Digital Projection M-Vision 1080p-260 series Manuel utilisateur

Digital Projection

Digital Projection 7000 Series Manuel utilisateur

Digital Projection

Digital Projection 4500 WUXGA Manuel utilisateur

Digital Projection

Digital Projection INSIGHT 4K Dual LED Series Manuel d'utilisation

Digital Projection

Digital Projection Highlite Cine 260 Manuel utilisateur

Digital Projection

Digital Projection HIGHlite 660 3D Series Manuel d'utilisation

Digital Projection

Digital Projection HIGHlite 4100gv Manuel utilisateur

Digital Projection

Digital Projection iVision50-series Manuel utilisateur

Digital Projection

Digital Projection TheaterScope System Manuel utilisateur

Digital Projection

Digital Projection M-Vision Cine 230 Manuel utilisateur

Digital Projection

Digital Projection INSIGHT 4K Quad Series Manuel utilisateur

Digital Projection

Digital Projection E-Vision 7500 Series Manuel utilisateur

Digital Projection

Digital Projection TITAN sx+-330-3D L or P Manuel utilisateur

Digital Projection

Digital Projection TITAN WUXGA 3D Manuel utilisateur

Digital Projection

Digital Projection INSIGHT 4K Dual LED Series Manuel utilisateur

Digital Projection

Digital Projection M-Vision Manuel utilisateur

Digital Projection

Digital Projection E-Vision 6800 3D Series Manuel utilisateur

Digital Projection

Digital Projection HIGHlite 660 Series Manuel utilisateur

Digital Projection

Digital Projection E-Vision 6000 Series Manuel utilisateur

Digital Projection

Digital Projection M-Vision Laser 21000 WU Manuel d'utilisation

Digital Projection

Digital Projection LIGHTNING 30-1080p Manuel utilisateur

Digital Projection

Digital Projection HIGHlite Laser 3D Series Manuel utilisateur

Digital Projection

Digital Projection M-Vision LED 1000 1080p Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
