INSTALLATION GUIDE

for Professional Installers

v03r02-090408

Basic

audioShare®

System

audioShare Installation Guide v03r02-090408.wpd 2

Important Safety Information

WARNING: To prevent fire or shock hazard, do not expose this equipment to rain or

moisture.

FEDERAL COMMUNICATIONS COMMISSION (FCC) WARNING:

Unauthorized modifications to this equipment not only void the warranty, but also void the

user’s authority to operate it.

WARNING:TherearenouserorinstallerserviceablepartsinanyaudioShare®devices.

Donotdisassembleanydevicesorattempttorepairorreplacecomponents. Doingsomay

damage the device or cause it to cease functioning properly. The user warranty will also

be voided.

WARNING: Even though Cat. 5 wiring and RJ45 connections are used to interconnect

devices, the audioShare®system uses a proprietary networking scheme and is NOT

COMPATIBLE with Ethernet devices. Connecting any audioShare®compatible device

(wall stations, door stations, hubs, power injector modules or computer interface modules)

to Ethernet compatible devices will result in damage to the audioShare®device, the

Ethernet device, or both. Resulting damage is not covered under the warranties of either

type of device.

WARNING: audioShare®devices contain complex electronic circuitry that is highly

sensitive to electrostatic discharge (ESD). audioShare®wall stations have been designed

to shunt electrostatic discharge away from these sensitive circuits. In order for this

protection to be fully effective, the system power supply must be connected directly to

an electrical/earth ground. Failure to properly ground the audioShare®power supply will

void the warranty and is in violation of the National Electrical Code (NEC).

WARNING: Use only the certified audioShare®power supply provided with the system.

Useofunauthorizedpowersuppliesmaycauseerraticordiminishedoperationandwillvoid

the warranty.

WARNING: It is common practice to acid wash exterior brick or stone walls or to power

wash homes with siding or stucco exteriors. Doing this with an audioShare®door station

installed will damage the unit. Resulting damage is not covered under the warranty.

Always be sure to remove the unit and protect the Cat 5 wires and the RJ45 connectors

before performing these washes.

CAUTION: TheaudioShare®system powersupplyoperatesat50VDC,whichispresent

on all system wiring and at each device connected to the system. Use caution when

installing, uninstalling or troubleshooting equipment. Disconnect system power supply

before installing, interconnecting, replacing or removing any audioShare®equipment. It is

possible for 50 VDC to still be present on audioShare®devices for several minutes after

power has been disconnected.

audioShare Installation Guide v03r02-090408.wpd 3

NOTE: All audioShare®devices are protected from short circuits and overloads by Poly-

Resettable Fuses. These fuses reset only after removing power for several seconds.

Refer to section on Power Reset under Troubleshooting on page 29).

Table of Contents

ImportantSafety Information....................................................................................................2

Introduction...................................................................................................................................5

Quick Start Checklist..................................................................................................................7

Chapter1SystemPlanning.........................................................................................................8

StationPlacement............................................................................................................8

StationAddresses................................................................................................................8

Chapter 2 Mechanical Installation..........................................................................................9

Tools Required.................................................................................................................9

Rough-inBoxes................................................................................................................9

Mounting With a Rough-in Ring or Box.............................................................10

Mounting Without a Rough-in Ring or Box.......................................................10

AttachingtheFaceplate................................................................................................11

RCAConnectorAccess................................................................................................13

In-WallAmplifierMounting..........................................................................................13

DoorStationMounting..................................................................................................13

Power Supply Location and Mounting.....................................................................14

HubMounting..................................................................................................................14

PowerInjector/EthernetModuleMounting.................................................................14

Chapter 3Wiring Information.................................................................................................15

Termination.....................................................................................................................15

Hubs...................................................................................................................................15

PIMs&ePIMs........................................................................................................................16

In-Wall, In-Ceiling & Patio Speakers.........................................................................17

WiringTopologies..........................................................................................................18

Home-Run Wiring with Hub...............................................................................18

Daisy-Chain Wiring with Power Injector Module (PIM).................................19

Combination Home-Run and Daisy-Chain with Hub.......................................19

WallStationWiringDiagram........................................................................................20

In-Wall Speaker Wiring Diagram................................................................................21

RJ45ConnectorWiring..................................................................................................21

DoorStationButtonWiring..........................................................................................22

Maximum Number of Units..........................................................................................22

Chapter 4System Configuration...........................................................................................23

Wall Stations...................................................................................................................23

audioShare Installation Guide v03r02-090408.wpd 4

SoftwareConfiguration........................................................................................23

DefaultSettings.....................................................................................................24

DoorStations....................................................................................................................25

SwitchConfiguration............................................................................................25

SwitchSettings.......................................................................................................26

DoorChimeEnable...............................................................................................27

DoorChimeSelect.................................................................................................27

Available Door chime Sounds..............................................................................27

Chapter5Troubleshooting.....................................................................................................29

Understanding the audioShare Network.................................................................29

HubOnlySystems.................................................................................................31

Hub Systems with Daisy Chains..........................................................................32

Daisy Chain Only Systems...................................................................................32

PowerReset.....................................................................................................................32

FeedbackProtection......................................................................................................33

DiagnosticSoftware......................................................................................................33

TechSupport...................................................................................................................43

Warranty – See User Guide

Appendix A - Glossary of Terms...........................................................................................34

AppendixB-DoorStationDiagnosticCodes......................................................................37

Error Codes.....................................................................................................................37

Appendix C - Location Worksheet........................................................................................38

Appendix D- Specifications...................................................................................................39

Contact Information................................................................................................................42

audioShare Installation Guide v03r02-090408.wpd 5

Introduction

Welcometo theworldofall-digitalmedianetworking. Ifyou’realreadyfamiliarwithaudioShare®

installation, go to the Quick Start Checklist to remind you of the installation steps. If not, we

recommend that you read through this entire manual before attempting to install an audioShare®

system.

audioShare®isthefirsttrulynetworked,direct-dialall-masteraudio(voiceandmusic)networkand

home automation control system. As such, it is probably unfamiliar to most installers so a brief

tutorial is in order.

Power, data and media buses are distributed to all units via Cat. 5 (or better) wiring. Although

standardEthernetwiringandRJ45connectorsareused,audioShare®usesaproprietarynetworking

scheme that is NOTCOMPATIBLEwith Ethernet. However, there is an Ethernet adapter which

will be described later. Power (50 VDC) is supplied between pins 4 and 5 of all RJ45 connectors.

Design precautions have been taken to prevent damage in case of mis-wiring. For example, the 50

VDC power is protected against accidental reverse wiring of pins 4 and 5. Additionally, data and

media buses are similarly protected. If the RJ45 wiring is backwards to standard, the worst that can

happen is the offending unit will not work properly. However, if wiring is completely wrong,

serious damage can occur. Please follow the wiring diagram carefully (see RJ45 Wiring on page

21) and test each run with a standard Ethernet cable tester before applying power to the system.

The system is further protected against Electrostatic Discharge (ESD) at each station by several

semiconductor devices which are grounded via pin 4 (blue wire) of the Cat 5 back to the system

power supply. Therefore, it is absolutely essential to ensure that the system power supply is

properly grounded to the electrical system as called out in the National Electrical Code (NEC).

However,in ordertopreventground loopswhichcreate humin anyaudiosystemitisalso necessary

to make sure that no other grounding occurs in the system other than at the system power supply.

A completely digital system has many advantages, not only for the end user, but for the installer as

well. System software is updated as new features are added. This can be done by either the user or

the installer and is accomplished quickly and easily, by way of a laptop computer, on all wall

stations or on all door stations simultaneously within a matter of minutes (see System

Configuration on page 23). With the Ethernet adapter, this can even be done from anywhere in

the world where an Internet connection is available (assuming the home owner also has access to

theInternet). Also,diagnosticsoftware is provided toaidintroubleshooting. Thissoftwareenables

factory technical support personnel to help in locating problems if necessary (contact Tech

Support).

Becauseeverywall station in an audioShare®systemisa master,itismuchthe same as a telephone

system in that each station has its own unique number or “address”. This allows for station-to-

station (point-to-point), multiple station or all-station calling without having to go through a

audioShare Installation Guide v03r02-090408.wpd 6

centrally located “master” unit. It also allows for remote control of any station from any other

station. This means that the users don’t even have to be in the same room as the station on which

they want to change the settings.

For a complete list of audioShare®features, please refer to the User Guide. The latest version of

the User Guide can be downloaded in pdf format from our website at www.audioshare.net under

the Support tab.

audioShare Installation Guide v03r02-090408.wpd 7

Quick Start Checklist

ForthosealreadyfamiliarwithaudioShare®installation,usethisquickstartchecklistasareminder

and installation guide. Make additional photo copies as needed.

NEW CONSTRUCTION

Pre-Wiring/Rough-in

Plan the system (page 8 and Appendix C)

Install rough-in boxes (page 9).

Install low voltage boxes for PIM/ePIMs, in-wall amplifiers, and RCA wall plates where

needed (pages 15-17).

____ Install central wiring cabinet (if used) or locate a place for the hub(s) or PIM and system and

in-wall amplifier power supplies (pages 15-17).

____ Run Ethernet (Cat 5) cable for Ethernet Adapter if applicable (see page 16).

Run network wiring (see Wiring Topologies, page 18).

Run RCA and speaker wiring (see Wiring Topologies, pages 20-21).

____ Run power supply wiring for in-wall amplifiers (page 17).

Run electrical wiring from mains to central wiring cabinet or location (page 14).

Check power supply wiring for polarity and integrity (page 14).

Final Installation/Configuration

Install RJ45 connectors (page 21).

Test network wiring integrity with Ethernet tester.

Mount Hub(s) or PIM or ePIM.

Install wall stations (page 10).

Install faceplates & remove LCD protective film (page 12).

Install in-wall amplifiers (page 21).

Install RCA extension cables to wall plate jacks and in-wall amplifiers (page 20).

Set address switches on door stations (page 25).

Set chime enable switches on door stations (page 27).

Install door stations (page 13).

Install terminators (page 15).

Install hub(s) or PIM or ePIM.

Install power supply(s) - do not connect to mains yet (page 14).

Check power supply extension wiring for correct polarity (page 14).

Connect power supply(s) to mains.

System Reprogramming/Reconfiguration:

Change station numbers on individual wall stations if necessary (page 23).

audioShare Installation Guide v03r02-090408.wpd 8

SYSTEM PLANNING

Before installation begins, in fact, before the wiring phase of construction even begins, we

recommend that you plan where each type of unit will be installed. This will greatly simplify the

system configuration after installation. Appendix C is a Location Worksheet that will help

identify where each unit is placed in the home along withother pertinent information needed during

the configuration process. Make additional photo copies as needed. A complete list of units is

found in the audioShare®User Guide.

Station Placement

Refer to Wiring Informationon pages 18-20 to become familiar with the many wiring topologies

allowed in an audioShare®system. Work with the home owner (if applicable) and decide where

best to locate each unit. Keep in mind the industry’s “ten-foot” rule, i.e., do not locate any two wall

stations within 10 feet of each other when mounting on opposite sides of the same wall. We also

recommend that wall stations be separated as much as possible in areas where there are no sound

barrier walls between them. We recommend that stations be mounted between 51 and 53 inches

abovefloorlevel,justbelowaverageeye-levelformostusers. Takeintoaccountpossibleplacement

of furniture and fixtures. RCA wall plates should be placed near where night tables will most likely

be used so that portable music sources (iPods and other MP3 players, etc.) can be connected with

minimal cord length.

Forinstallationindamporsteamybathroom,shower,laundry,indoorpoolorJacuzzirooms,choose

locations with minimum exposure to moisture. Never install in saunas or rooms where the

temperature can exceed 95OF.

Station Addresses

Use a logical station (address) numbering system, one that will be easy for the users to remember.

Since there are up to 200 addresses available, you can assign stations on the first floor of the home,

for example, to numbers from 10 through 19, the second floor from 20 through 29, etc. Or break

the home up into zones such as all bedrooms in one zone, livingroom, dining room and kitchen in

another zone, den and office in another zone, etc.; whatever works best for the users.

Doorstations useDIPswitches todeterminetheiraddressesfrom240through 247. Thedoorstation

locationsare basedontheiraddress. Thedoorstation location will be displayed on all wall stations’

LCD screens whenever the door chime is activated. Of course, each door station can also have its

own unique chime sound, but since the user may choose not to have a different sound, the LCD

screen on each wall station will allow them to identify the door in question. See Door Stations

on pages 25-27 for details.

audioShare Installation Guide v03r02-090408.wpd 9

ASWSB ASWSR

Mechanical Installation

Tools Required

The following tools are required for the installation of various audioShare®devices:

• Phillips Screwdriver - 1/8" diameter shaft, at least 2" long.

• Wire Stripping Tool for Cat. 5 wire preparation.

• Crimping Tool for RJ45 connector installation.

• Ethernet Cable Tester for checking Cat. 5 cable and RJ45 connector integrity.

• Various pliers, wire cutters and screwdrivers.

• Multi-Meter (DMM or mechanical movement) with DC Volts, Resistance and Continuity

functions.

Rough-in Boxes

audioShare®wallstations aredesigned tofitintoASWSBandASWSRboxes andplasterrings(see

below). Theyarealso designed to be mountedusingtheirownmountingbracketwithouta rough-in

box.

CAUTION:BeforeinstallinganyaudioShare®unitsoraccessorymodules,makesurethe

power supply is disconnected to prevent accidental damage to the units and to prevent the

possibility of electrical shock.

audioShare Installation Guide v03r02-090408.wpd 10

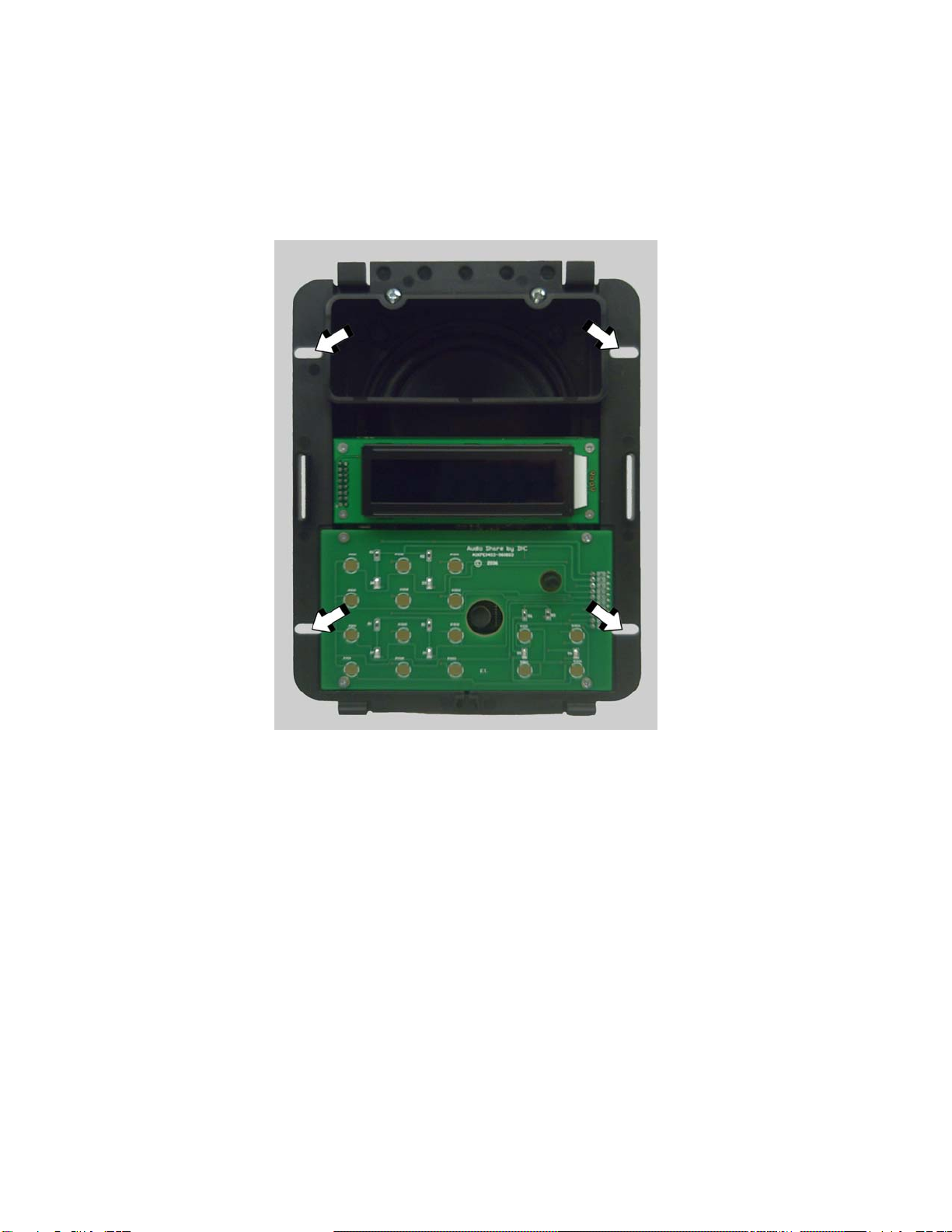

Screw hole locations for mounting with a rough-in

ring or box.

Mounting with a Rough-in Ring or Box

For mounting in a pre-installed rough-in ring or box, use the mounting holes as shown at the arrows

below.

Mounting Without a Rough-in Ring or Box

For installations where no rough-in box has been pre-installed, audioShare®wall stations can be

mountedusingtheirownmountingbrackets. Thewall shouldbeprepared bycuttinga holebetween

studs that is 4-7/8" wide and 7-1/4" high. Be sure there is at least 5" between the studs using a stud

finder or other suitable method.

After making all necessary cable and terminator (if applicable) connections, the mounting bracket

may then be secured to the wall using the tension clips in the bottom of the bracket and the wing

clamps at the top. Insert the optional tension clips into the slots located at the bottom of the back

of the mounting bracket (see below).

Table des matières

Manuels Système de contrôle populaires d'autres marques

Pentair Pool Products

Pentair Pool Products Compool Manuel utilisateur

ComfortNET

ComfortNET CTK04 Manuel utilisateur

Fireye

Fireye InSight II 95DSS3 Manuel utilisateur

CAME

CAME G3000 Manuel utilisateur

Idemia

Idemia MorphoAccess VP MD Manuel utilisateur

Axis

Axis P1445-LE-3 Manuel utilisateur

HEIDENHAIN

HEIDENHAIN TNC 150 B Manuel utilisateur

CNC-Step

CNC-Step High-Z T-Series Manuel utilisateur

Doosan

Doosan DVF Series Manuel utilisateur

Honeywell

Honeywell KAP 140 Manuel utilisateur

Honeywell

Honeywell vk41 series Manuel utilisateur

AirBench

AirBench FPW Guide d'installation

Cypress

Cypress HHR-3160 Manuel utilisateur

CAME

CAME GLT40AOS Manuel utilisateur

Zonex

Zonex GEN II -VVT Guide de l'utilisateur

Altronics

Altronics K 9650 Manuel utilisateur

micro-trak

micro-trak RoadMaster Manuel utilisateur

micro-trak

micro-trak Calc-An-Acre II Manuel utilisateur
