DIGITAL FORECAST Bridge RS16x16 Manuel utilisateur

Digital Forecast

Bridge”RS 16*16

HD/SD/3G SDI Matrix Router

Instruction Manual

www.dfcast.co.kr

Contents

Caution.............................................................................................................4

1. Feature..........................................................................................................6

2. Name and function.........................................................................................7

3. Way of use....................................................................................................8

4. Signal characteristic........................................................................................9

5. Specification.................................................................................................11

6. Attach..........................................................................................................12

www.dfcast.co.kr

that the contents of this manual in whole or part without the prior written consent.

Warranty

The product is warranted by DIGITAL FORECAST INC. against product defects for a limited

warranty period of one (1) year as the date of supplied.

DIGITAL FORECAST INC. will repair or replacement any part proves to be defective at no

charge, as stipulated herein, during the warranty period specified above.

For such misuse, modification, or careless handling of the user of the product, Non-

standard product is not responsible for warranty.

DIGITAL FORECAST INC. does not warrant uninterrupted or error-free operation and

misuse, neglect, misapplication, product alteration or modification; improper or unauthorized

repair.

To request service, the purchaser must contact DIGITAL FORECAST INC. for problem

determination and service procedures.

DIGITAL FORECAST INC. at :

16-4, SK techno-bulding N.303, Seongsu1-ga1-dong,

Seongdong-gu, Seoul, Korea

TEL. 02-861-1353 FAX. 02-861-1355

E-mail : [email protected] Web Site : www.dfcast.co.kr

all previous releases. Printed in Korea.

Please be sure to read the following instructions before using the product.

Designed and tested in accordance with the standards of this product.

Safety

Please be sure to read the following instructions before using the product.

Designed and tested in accordance with the standards of this product.

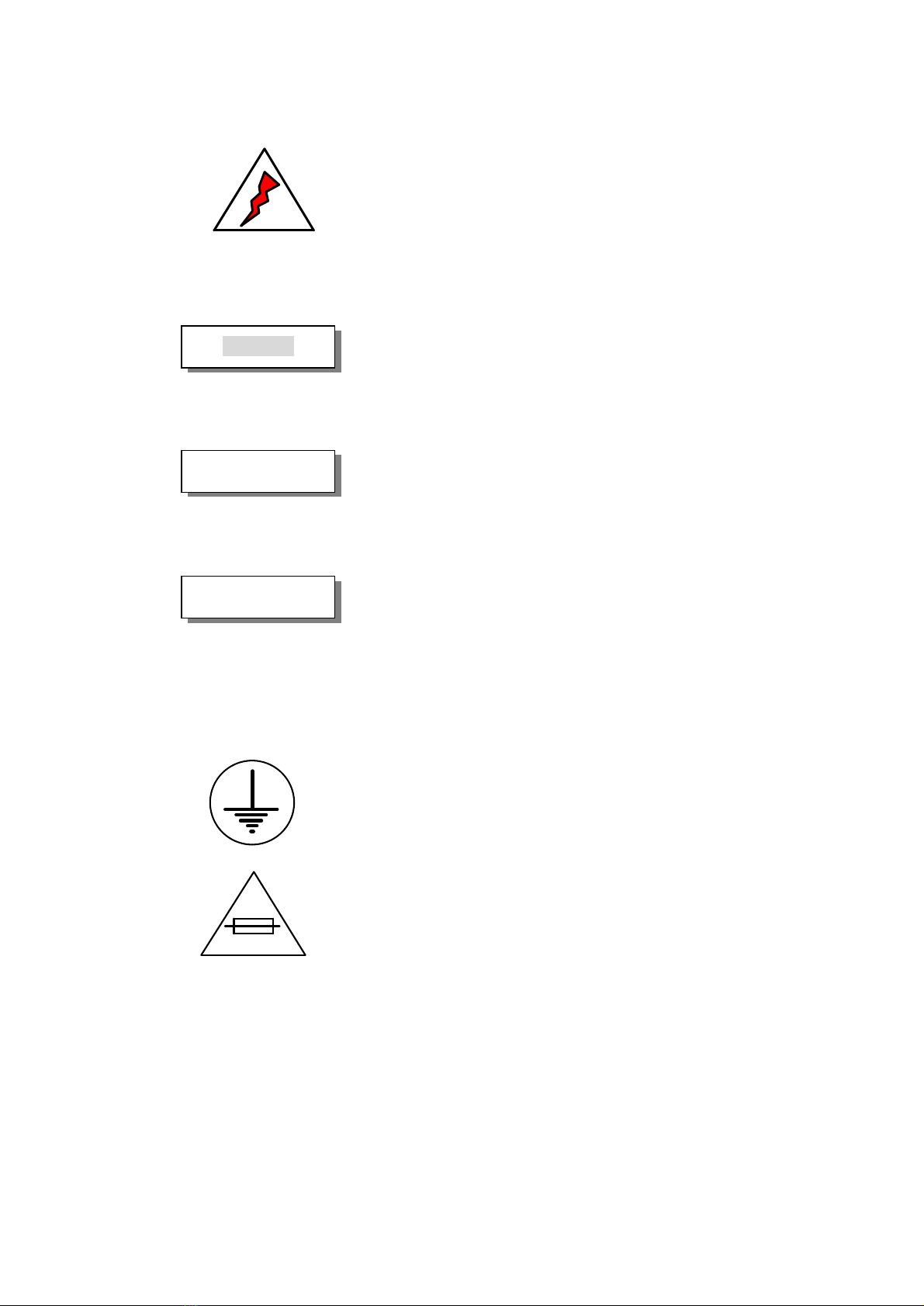

Safety Mark

www.dfcast.co.kr

symbol indicates a danger. product have high voltage that

can cause concern to body electrical shock.

DANGER symbol indicates a danger.

If do not attention to handling, concerns of personal injury

can result.

Do not ignore the DANGER mark and treat them.

WARNING symbol indicates a warning.

If you deal products negligence or abuse it cause

adversely. Do not ignore the WARNING mark and treat

them.

CAUTION symbol indicates a. caution.

If treats products negligence or abuse it cause damaged.

Do not ignore the CAUTION mark and treat them.

Before operating

1. Check indicated voltage before you turn on product.

※ Use to Earth Ground for safety.

2. Use to rated Fuse.

3. Qualified person could be limited to maintenance, repair and

replace of product.

SERVICE

Bridge series order to satisfy technical requirements and compact size, it could be limit

to repair of SMT(Surface-Mount Technical) and program on site, immediately.

Please request to repair if products have a problem

CAUTION

WARNING

DANGER

www.dfcast.co.kr

Bridge RS 16x16

Bridge RS 16x16 is supporting 8x8 SDI input/output of video as "Routing Switcher".

A this model recognizes SD,HD and 3Gb/s SDI signal automatically change, It has the dual power

supply and Reclocking function built-in.

And input state display. APC function(Control by RS422 communication of PC), button Lock function

for the convenience of the user.

1. Feature

2. Support SMPTE 292M, SMPTE 344M, SMPTE 259M, SMPTE 424M

3. Re-clocking

4. Multi-Rate SDI (143M, 177M, 270M, 340M, 540M, 1.485G, 1.485/1.001G, 2.97G)

5. 3G/HD/SD-SDI 16 in x 16 out

6. Auto equalizing (HD grade : compensate for up to 100m, SD : up to 300m of Belden 1694

Cable )

7. RS-422 deck control ports (RJ45,)

8. DC12V 3.33A Power supply included

9. TCP/IP Network control ports (RJ45)

www.dfcast.co.kr

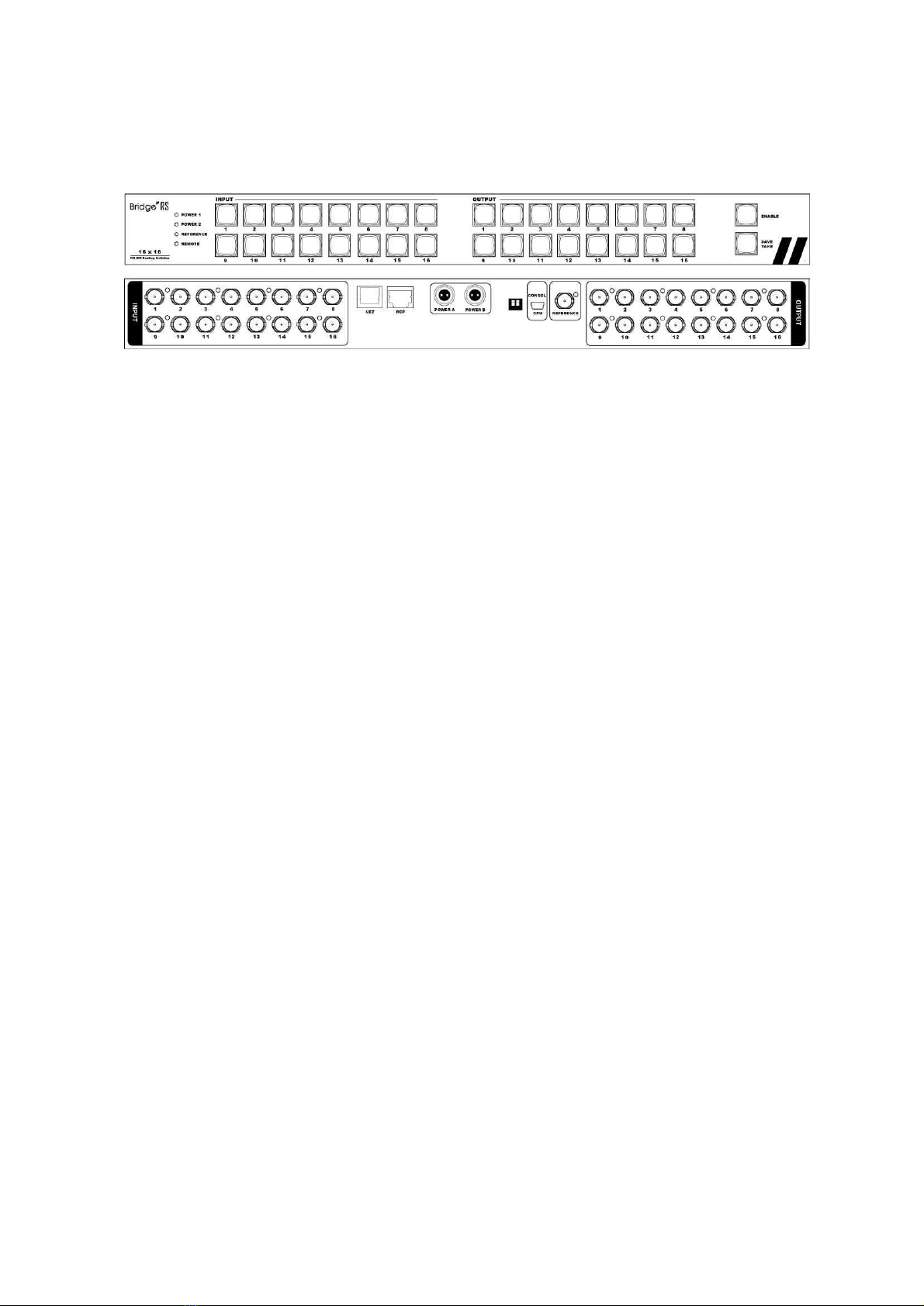

2. Name and function

그림

2-1

전면부

1. LED : POWER1, POWER 2, REFERENCE, REMOTE

a. POWER1 : : Power supply input status of Power1 is shown.

b. POWER2 : Power supply input status of Power2 is shown. .

c. REFERENCE : Reference input status is shown. (B.B , Tri-Level)

d. REMOTE : When controlling by communication, it's switched on and off.

2. INPUT : An input signal presence is shown by an LED by 16 of input select button.

(Complete connection : LED ON, No connection : LED flicker)

3. OUTPUT : 16 of output select button

4. ENABLE : When it's pushed for more than 1 second, LED On.

When lighting up, it's possible to control the item number 2,3

When pushing it again, it's turned off.

5. FUNCTION : In Out setting is preserved or, when import, it's used.

그림

2-2

후면부

6. INPUT : 16 of Input BNC

7. NET : Support to TCP/IP NETWORK

8. RCP : Support to RCP by RS-422 Communication(A protocol is in an attachment ..)

9. POWER : 2 of 12V adapter power supply input (can be spare)

10. CPU : CPU CONSOL MINI USB TYPE

11. OUTPUT : 16 of output BNC

12. REFERENCE : Tri-level or 1 of Black Burst input

1. LED

2. INPUT

3. OUTPUT

4. ENABLE

5. FUNCTION

6. INPUT

7. NET

9. POWER

8. RCP

11. OUTPUT

12. REFERENCE

10. CPU

www.dfcast.co.kr

3. Way of use

1. Input / Output Setting

To connect the Video source to the INPUT BNC.

To connect the OUTPUT BNC to the input of the equipment that I want try to send the display

equipment and source .

The ON cases the ENABLE button, press the ENABLE button for more than 1 second .

Select the same OUTPUT button and OUTPUT BNC number which is connected to the

equipment that I want try to send the display equipment and source.

Screen output or by pressing the same button as the other INPUT BNC and concatenate

number and transmitted to the appropriate equipment . If all of the settings are completed , ON

causes the ENABLE button press again the ENABLE button.※ equipment seen has to be

selected after selecting the input button the output button first in such a way as above because

it is designed as an output reference .

2. FUNCTION KEY Operating

As the ENABLE button state is on, and press the FUNCTION KEY, It means that four right

buttons and four left buttons are ON.

(However, should a state of being turned ON ENABLE button.)

The left side is a save button, the right side data load button. Save and load data is possible up

to four each. If select the left button to become saved in the appropriate number.

Press the right button to become loaded the value of the corresponding number, it changed into

the initial state. (The input port is to the first port of loading values reveal.)

3. Notices

This device button after selecting the first output in the same way as above because it is

designed to be output should be selected based on the input buttons . Additionally, If the

ENABLE button is ON , it does not communicate.

www.dfcast.co.kr

4. Signal Characterisitic

1. HD-SDI Properties

HD-SDI Serial Digital Video

Connector

75Ω BNC

Signal level

800mV ± 10%

DC offset

0V ± 0.5V

Rise and fall time

< 270ps (20% to 80% amplitude)

Overshoot

<10% of amplitude

Timing Jitter

<1 UI

Alignment Jitter

<0.2UI

www.dfcast.co.kr

2. SD-SDI Properties

SD-SDI Serial Digital Video

Connector

75Ω BNC

Signal level

800mV ± 10%

DC offset

0V ± 0.5V

Rise and fall time

400~800ps(20% to 80% amplitude)

Overshoot

<10% of amplitude

Timing Jitter

<0.2 UI

Alignment Jitter

<0.2UI

www.dfcast.co.kr

5. Specification

Connections

SDI Video Input

SD/HD-SDI, 3Gb/s SDI and ASI. X16 (BNC)

SDI Video Output

SD/HD-SDI, 3Gb/s SDI and ASI with SDI re-clocking. X16 (BNC)

Remote Control

RS-422 (RJ45)

Reference Input

B.B , TRI x1 (BNC)

NET

TCP/IP (RJ45)

Electrical

Voltage

90 ~ 240V AC 50/60Hz

Power

Dissipation

< 28W(12V DC, 3.33A)

Temperature

0 ~ 40˚C

Physical

Size

481mm x 43mm x 133mm(W x H x D)

Weight

1.85Kg

Standards

SD Format

Support

625/25 PAL and 525/29.97 NTSC.

HD Format

Support

1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25,

1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080i50, 1080i59.94,

1080i60, 1080p50, 1080p59.94, 1080p60, 720p23.98, 720p24, 720p25,

720p29.97, 720p30, 720p50, 720p59.94, 720p60.

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A,

SMPTE 425M-B

SDI Video

Sampling

4:2:2 and 4:4:4.

SDI Video Rates

SDI video connections are switchable between standard definition, high

definition and 2K. SDI switches between 270 Mb/s standard definition SDI, 1.5

Gb/s HD-SDI and 3 Gb/s HD SDI.

SDI Auto

Switching

Automatically selects between SD-SDI, HD-SDI, 3 Gb/s SDI and DVB-ASI on

each input so that each input can be running a different television standard.
