Digital-Ally FirstVu HD One Manuel utilisateur

Operation Guide

FirstVu HD

duced, stored in a retrieval system, or transmitted in whole or part in any form or by any

means electronic, mechanical, recording, photocopying, or in any other manner without

the prior written approval of Digital Ally, Inc.

860-00177-00 Rev J

Table of Contents

Section 1

Introduction ................................................................................................................. 1-1

1.1 Overview....................................................................................................................1-1

1.2 FirstVu HD Features & Controls..............................................................................1-1

1.3 Parts Included in Kit.................................................................................................1-2

1.4 Optional Accessories................................................................................................1-3

Section 2

Getting Started.............................................................................................................. 2-1

2.1 Battery Charging Information ................................................................................2-1

Charging Using the Battery Charger........................................................................................2-1

Charging from a Computer........................................................................................................2-1

Charging in a Docking Station ...................................................................................................2-1

Charging In a Vehicle ...................................................................................................................2-1

Charging Using an AC Power Outlet........................................................................................2-1

FirstVu HD Battery Charging Indicators..................................................................................2-2

Charging with unit powered ON ........................................................................................... 2-2

Charging with unit powered OFF .......................................................................................... 2-2

2.2 Software Updates.....................................................................................................2-2

2.3 Connecting the Camera...........................................................................................2-2

2.4 Setting the Date and Time.......................................................................................2-2

Setting the date and time automatically.................................................................................2-2

Setting the date and time manually.........................................................................................2-3

Section 3

Device Conguration using VuVault........................................................................... 3-1

3.1 Default Conguration ..............................................................................................3-1

3.2 VuVault®Software ...................................................................................................3-2

3.3 FirstVu HD Settings ..................................................................................................3-3

Location ..........................................................................................................................................3-3

Time Zone................................................................................................................................ 3-3

Date Format............................................................................................................................. 3-3

Daylight Saving........................................................................................................................ 3-3

Time Format ............................................................................................................................ 3-3

Settings ...........................................................................................................................................3-4

Record LED (Covert Mode)..................................................................................................... 3-4

Pre-Event Time........................................................................................................................ 3-4

Record Quality......................................................................................................................... 3-4

Record Size .............................................................................................................................. 3-4

Rotate Video ............................................................................................................................ 3-4

Mute Switch............................................................................................................................. 3-4

Audio Mode ............................................................................................................................. 3-5

Frames Per Second................................................................................................................. 3-5

Vibrate Record......................................................................................................................... 3-5

VuLink®Setting..............................................................................................................................3-5

Set VuLink ................................................................................................................................ 3-5

VuVault GO®Setting.....................................................................................................................3-5

Set VuVault GO........................................................................................................................ 3-5

Data Transfer.................................................................................................................................3-5

Secure USB Port...................................................................................................................... 3-5

3.4 Activating your FirstVu HD ......................................................................................3-6

Assigning a User to your FirstVu HD........................................................................................3-6

Activating your FirstVu HD within VuVault..............................................................................3-6

Section 4

Device Conguration using Mini Conguration Manager ....................................... 4-1

4.1 Default Conguration ..............................................................................................4-1

4.2 Mini Conguration Manager PC Software.............................................................4-1

4.3 FirstVu HD Settings ..................................................................................................4-2

Load Conguration File...............................................................................................................4-2

Device Conguration ...................................................................................................................4-2

Location ..........................................................................................................................................4-2

Time Zone................................................................................................................................ 4-2

Date Format............................................................................................................................. 4-3

Daylight Saving........................................................................................................................ 4-3

Time Format ............................................................................................................................ 4-3

Settings ...........................................................................................................................................4-3

Record LED (Covert Mode)..................................................................................................... 4-3

Pre-Event Time........................................................................................................................ 4-3

Record Quality......................................................................................................................... 4-3

Record Size .............................................................................................................................. 4-3

Audio Mode ............................................................................................................................. 4-4

Frames Per Second................................................................................................................. 4-4

Vibrate Record......................................................................................................................... 4-4

4.4 Save Conguration File............................................................................................4-4

Section 5

FirstVu HD Operation ................................................................................................... 5-1

5.1 Powering On/O.......................................................................................................5-1

5.2 Recording a Video.....................................................................................................5-1

Start Recording .............................................................................................................................5-1

End Recording...............................................................................................................................5-1

5.3 Marking Events .........................................................................................................5-1

5.4 Audio Recording .......................................................................................................5-1

5.5 Uploading Files .........................................................................................................5-2

Uploading directly to a computer ............................................................................................5-2

Uploading Files using VuVault ...................................................................................................5-2

Non-Secure USB Port Method............................................................................................... 5-2

Secure USB Port Method ....................................................................................................... 5-4

Using the FirstVu HD Docking Station.....................................................................................5-6

Attaching devices to the Docking Station ............................................................................ 5-6

Standard Battery Docking Station ........................................................................................ 5-6

Extended Battery Docking Station........................................................................................ 5-6

Upload Process ....................................................................................................................... 5-6

FirstVu HD Status Indicators.................................................................................................. 5-6

Section 6

Video Playback and Management .............................................................................. 6-1

6.1 Using VuVault ...........................................................................................................6-1

6.2 Using the Digital Ally Viewer...................................................................................6-1

Toolbar Controls...........................................................................................................................6-2

Playback Controls.........................................................................................................................6-2

Playback Slider Bar.......................................................................................................................6-2

6.3 View Selection and Options ....................................................................................6-3

Additional Controls ......................................................................................................................6-3

Section 7

Status Indicators........................................................................................................... 7-1

7.1 Normal Mode............................................................................................................7-1

7.2 Covert Mode..............................................................................................................7-2

7.3 Memory & Battery Alerts.........................................................................................7-2

Section 8

Specications ............................................................................................................... 8-1

Section 9

Warranty Information.................................................................................................. 9-1

Section 10

Regulatory ................................................................................................................... 10-1

Section 11

Contact Information................................................................................................... 11-1

Digital Ally, Inc. |Introduction 1-1

FirstVu HD Operation Guide |860-00177-00 Rev J

Go Back To Table of Contents

1.1 Overview

• Easy to Operate – One button start/stop record

• Small and Lightweight

• Easily and securely mounts almost anywhere

• High Quality 720p Video – H.264 codec – 1280 x 720 resolution, 30 frames per

second (congurable for lower settings)

• Wide 130° Field of View

• Encoded videos may easily be viewed on standard PC video player software or

by using Digital Ally software to take full advantage of extensive Metadata

• Saves Metadata along with Video

• Up to 60 Seconds Pre-Event Record (when congured) – Capture the action

before activating a recorded event

• 0.08 Lux Low light sensitivity for night time operation

• Instant Record ON while in Stand-by Mode

• User can insert ‘Marks’ during a recording which records to Metadata

• Covert Mode – Vibratory notications

• Secure 32GB of event record memory with easy download thru USB port

• Software Upgradeable via USB

• Up to 4.5 hours of continuous recording on a single charge with standard

battery or 8 hours with the extended battery

• Integrates with VuLink®wireless in-car video link

1Camera Port

2Status LED’s

3Record Start/Mark/Record Stop

4USB Port

5Power On/O

6Battery Cover

7Microphone On/O

Section 1

Introduction

The FirstVu HD is a Professional, Evidentiary, Wearable, Mountable, and Weather-

Resistant Digital Video System.

Record video, audio, and evidence wherever the job requires, day or night while also

collecting useful information such as a date/time stamp, and marks (video bookmarks).

This Operation Guide is designed to get you up and running quickly with its basic

features. For integration within the VuVault® back oce software, please refer to

Section 3. For integration with Digital Ally’s VuLink®in-car wireless link, please consult

the “Vulink®Operation and Installation Guide.”

1.2 FirstVu HD Features & Controls

Digital Ally, Inc. |Introduction 1-2

FirstVu HD Operation Guide |860-00177-00 Rev J

Go Back To Table of Contents

1.3 Parts Included in Kit

Part Number Qty Details

050-10253-00

050-10252-00

FirstVu HD DVR

Standard Battery Version

Extended Battery Version

001-00079-11

001-00079-48

FirstVu HD Camera

11 inch cable

48 inch cable

002-05209 1

Camera Cable Clamp

(Only compatible with newer FirstVu HD

DVR’s)

135-00398-00

135-00407-00

Standard Battery

Extended Battery

009-00008-01 1 Battery Charger

009-00010-00 1 AC Outlet Adapter for Battery Charger

009-00011-00 1 DC Car Adapter for Battery Charger

008-0100 2 Cable, USB 2.0 Type A to Mini-B

050-10090-00 1 Standard Fabric Clip Mount

050-10101-00 1 Velcro Mount

050-10096-00 1 Button Mount

002-05160-00 1 Wedge Kit

860-00269-00 1 Quick Reference User Guide

Digital Ally, Inc. |Introduction 1-3

FirstVu HD Operation Guide |860-00177-00 Rev J

Go Back To Table of Contents

Camera Mounting Options

Adjustable Mount

Kit

002-05162-00

Spring Visor Clip

050-10145-00

Motorcycle Mount

Kit

001-05143-00

Car Mount Kit

002-05117-00

Head Mount Kit

002-05127-00

KlickFast Mount

Adapter Kit

050-10239-00

Belt Mount Kit

002-05126-00

Belt Loop Holster

w/Extension Cable

002-05131-00

Nylon Pouch w/

Extension Cable

002-05132-00

Optional Accessories

VuLink®Wireless

In-Car Video Link

Automatically start

recordings on your

FirstVu HD using

the same triggers

as vehicle video

systems, regardless

of whether the unit

is mounted or worn.

FirstVu HD Docking

Station

Provides automated,

simultaneous

uploading and

battery charging for

up to 12 FirstVu HD

devices.

Camera Extension,

Cable, 3ft.

1.4 Optional Accessories

Digital Ally, Inc. |Getting Started 2-1

FirstVu HD Operation Guide |860-00177-00 Rev J

Go Back To Table of Contents

2.1 Battery Charging Information

Your battery may be charged either in the FirstVu HD module, in the supplied Battery

Charger, or in the optional Docking Station. Typically, the external Battery Charger

would be used for charging a second battery to be available to swap for one that is

about to reach the end of its charge cycle.

The battery should be fully charged before initial use by using one of the methods listed

below. With the unit powered o, charge the battery initially for 8~10 hours.

Subsequent charges should take approximately 4 hours.

If the battery is fully depleted, it cannot be charged within the FirstVu HD. In

this case, remove the battery and use the external battery charger.

Charging Using the Battery Charger

Remove your battery from the FirstVu HD and insert it into the supplied Battery Charger.

Connect the Battery Charger to a USB port on your computer or one of the adapters

illustrated below using the supplied USB cable. A status LED on the charger indicates

the charging mode of the battery. The LED is red while the battery is charging. When the

LED is green, your battery is charged and ready for use.

Charging from a Computer

With the battery installed in the FirstVu HD, plug the USB cable into a computer USB

port. Insert the other end of the cable into the FirstVu HD USB port.

Charging in a Docking Station

The FirstVu HD battery will charge while connected to the optional Docking Station.

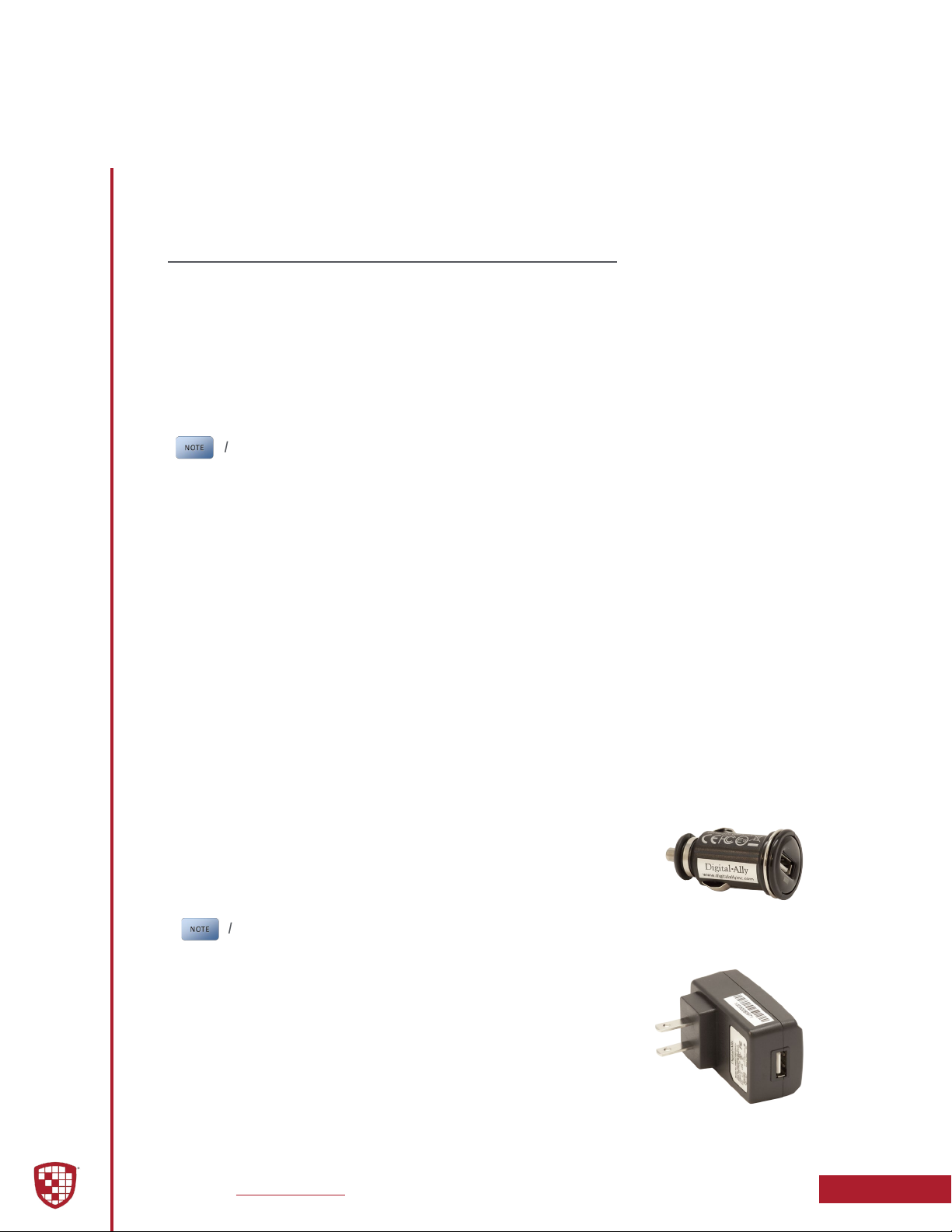

Charging In a Vehicle

Plug the DC Car Adapter into the vehicle’s 12VDC receptacle and

connect to the FirstVu HD using the supplied USB cable.

Alternatively, a spare battery may be charged by connecting the

external Battery Charger to the DC Car Adapter.

In some vehicles, the 12VDC receptacle may be controlled

by the position of the ignition switch. In such cases, the

FirstVu HD will only charge when the ignition switch is in

the “On” position.

Charging Using an AC Power Outlet

Plug the AC Outlet Adapter into an appropriate power outlet and

the USB connector into the FirstVu HD USB port or the external

Battery Charger.

Section 2

Getting Started

Digital Ally, Inc. |Getting Started 2-2

FirstVu HD Operation Guide |860-00177-00 Rev J

Go Back To Table of Contents

FirstVu HD Battery Charging Indicators

Charging with unit powered ON

• Charging in progress is shown with a ashing blue status indicator.

• When charging is complete the blue status indicator is illuminated.

Charging with unit powered OFF

• The unit may be charged via USB cable with the power switch in the

OFF position. However, no LED indicators will be active while it is

charging.

2.2 Software Updates

Log on to http://www.digitalallyinc.com/login.cfm and register for an account to be an

authorized user. By registering you will be able to download all the latest rmware/

software updates and will be notied of future upgrades.

2.3 Connecting the Camera

Connect your camera to the Camera Port on top of the DVR

as shown to the right. The camera port must only be used

with an approved Digital Ally camera. Never plug any other

device or cable into the camera port. Doing so may cause

permanent internal damage to your FirstVu HD.

To fully secure the connection, slide the provided cable clamp

down over the camera connector and snap it closed.

Cable Clamp is only compatible with the newer FirstVu HD DVR’s.

2.4 Setting the Date and Time

Setting the date and time automatically

The date and time is set by the factory prior to shipment. However, you must also

enter the correct UTC oset when conguring the device so that the time zone can be

set properly. For example, USA Central Standard Time =UTC -6. If using VuVault, the

date & time are automatically synced to your computer during activation. For more

information, consult the Device Conguration sections of this manual. USA time zones

are listed below for reference.

PST = Pacic Standard Time (UTC - 8 hours)

MST = Mountain Standard Time (UTC - 7 hours)

CST = Central Standard Time (UTC - 6 hours)

EST = Eastern Standard Time (UTC - 5 hours)

AST = Atlantic Standard Time (UTC - 4 hours)

ALST = Alaskan Standard Time (UTC - 9 hours)

HST = Hawaiian Standard Time (UTC - 10 hours)

Snap

Closed

Digital Ally, Inc. |Getting Started 2-3

FirstVu HD Operation Guide |860-00177-00 Rev J

Go Back To Table of Contents

Setting the date and time manually

The date and time is set by the factory prior to shipment and should not need manual

adjustment. However, date and time can still be set manually if needed. Follow the

procedure below to manually set the date and time.

1. Open Notepad from your computer.

2. In Notepad, type in the year, month, day, hour, and seconds you

wish to program into the FirstVu HD. Use the following format

(YYYYMMDDHHMMSS) using 24 hour UTC time. You must also apply

your time zone oset. For example, If you live in the CST zone and

the current date & time is 5/23/2017 10:47:50pm, you would enter

20170524044750. Since CST is UTC-6, you have to add 6 hours to the

current time to reect the UTC time.

3. Go to File > Save As and name the le “DATE.txt”

4. Connect your FirstVu HD via the supplied USB cable and transfer the

DATE.txt le to the root drive.

5. Cycle the power on your FirstVu HD. The unit will apply the system

date/time during boot up. When completed, the FirstVu HD will erase

the .txt le.

Digital Ally, Inc. | Device Conguration using VuVault 3-1

FirstVu HD Operation Guide |860-00177-00 Rev J

Go Back To Table of Contents

The FirstVU HD contains a default conguration and can be used immediately. It may

be recongured by activating the device using Digital Ally’s optional VuVault®back-

oce software (recommended), or the Mini Conguration Manager application which is

supplied on the internal drive of the FirstVu HD.

If you are using VuVault®, follow the instructions in this section to congure and activate

your FirstVu HD.

If you are not using VuVault®, skip to Section 4 to congure your device in the Mini

Conguration Manager.

3.1 Default Conguration

If the unit has never been activated, it will use the following default settings preset from

the factory.

• Central Standard Time (UTC-6)

• Daylight Saving: On

• Date format: mm/dd/yy

• Time format: 12 hour

• Record LED: On during record

• Pre-Event: Disabled

• Record Quality: High

• Record Size: 720p (1280 x 720)

• Rotate Video: No

• Mute Switch: Enabled

• Audio Mode: Enabled for Event and Pre-Event recording

• Frames per Second: 30

• Vibrate Record: 1 Vibrate pulse every 10 seconds while recording

• Secure USB Port: Disabled

Section 3

Device Conguration using VuVault

Autres manuels pour FirstVu HD One

Table des matières

Autres manuels Digital-Ally Appareil photo numérique

Digital-Ally

Digital-Ally VuLink Guide de démarrage rapide

Manuels Appareil photo numérique populaires d'autres marques

Mercury

Mercury 350K Manuel utilisateur

Pentax

Pentax Optio LS 465 Manuel utilisateur

Sanyo

Sanyo VPC-S1085 Manuel utilisateur

GE SMART A1255 Manuel utilisateur

Point Grey

Point Grey Gazelle Manuel utilisateur

Nikon

Nikon COOLPIX A Manuel utilisateur

Pentax

Pentax P-5 Manuel utilisateur

BlazeVideo

BlazeVideo A280 Manuel utilisateur

Sony

Sony MCA-20 Manuel utilisateur

Sony

Sony Alpha DSLR-A290 Manuel utilisateur

ATIK Cameras

ATIK Cameras One Manuel utilisateur

CohuHD Costar

CohuHD Costar 3930 Series Manuel utilisateur

Leica

Leica M10-R Manuel utilisateur

FujiFilm

FujiFilm FinePix A700 Manuel utilisateur

Lorex

Lorex LNZ81P25 Series Manuel utilisateur

GE J1470S Manuel utilisateur

Sony

Sony A6700 Guide de l'utilisateur

Canon

Canon EOS ELAN7 Manuel utilisateur
