Digisol DG-BR4000NG Manuel utilisateur
V1.2
2011-12-15
RANGER SERIES
150Mbps Wireless
Green Broadband Router
DG-BR4000NG
N
150 Mbps
Copyright © 2011. All rights reserved.
Company has an on-going policy of upgrading its products and it may
be possible that information in this document is not up-to-date.
Please check with your local distributors for the latest information.
No part of this document can be copied or reproduced in any form
without written consent from the company.
Trademarks:
TM
DIGISOL is a trademark of Smartlink Network Systems Ltd. All other
trademarks are the property of the respective manufacturers.
This equipment has been tested and found to comply with the limits for
a class B digital device, pursuant to Part 15 of the FCC Rules. These
limitations are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into a different outlet from that to which the
receiver is connected.
Consult your local distributors or an experienced radio/TV technician
for help.
Shielded interface cables must be used in order to comply with
emission limits.
Changes or modifications to the equipment, which are not approved by
the party responsible for compliance could affect the user's authority to
operate the equipment.
•
•
•
•
FCC warning:
Package Contents
Thank you for purchasing DG-BR4000NG 150Mbps 802.11n Wireless
Green Broadband Router! DG-BR4000NG is an energy-efficient router
which helps to save more power by using an embedded power
amplifier. DG-BR4000NG is a power efficient router which saves host
power by off-loading CPU when WLAN is idle. The Smart Tx Power
Control mechanism in DG-BR4000NG transmits optimum power
depending upon the distance of wireless clients from the router. DG-
BR4000NG is the best choice for Small office / Home office users, all
computers and network devices can share a single xDSL / cable
modem internet connection at high speed. Easy install procedures
allow computer users to setup a network environment in very short
time - within minutes, even inexperienced users. When the number of
your computers and network-enabled devices grow, you can also
expand the number of network slots by simply connecting a hub or
switch, to extend the scope of your network.
The following items should be present in your package:
DG-BR4000NG Wireless Broadband Router
Switching power adapter (5V DC, 1A)
Rubber feet (4 Nos.)
Quick Installation Guide
Installation Guide CD (includes User Manual, Utility & Firmware)
Patch chord (1 No.)
Make sure that the package contains above items. If any of the listed
items is damaged or missing, please contact your retailer immediately.
Product Overview
Product Features
High Internet Access throughput
Allows multiple users to share a single Internet line
Share a single Cable or xDSL internet connection
Access private LAN servers from the internet
Four wired LAN ports (10/100M) and one WAN port (10/100M)
Works with IEEE 802.11b/g/n wireless LAN devices
Supports DHCP (Server/Client) for easy IP-address setup
Supports multiple wireless modes like: AP, Station-Infrastructure,
Wireless Bridge and Universal Repeater.
Supports WISP mode for accessing Internet through wireless network
Advanced network and security features like: Special Applications, QoS,
DMZ,Virtual Servers, Access Control, Firewall.
Allows you to monitor the router’s status like: DHCP Client Log, System
Log, Security Log and Device/Connection Status
Easy to use Web-based GUI for network configuration and management
purposes
Remote management function allows configuration and upgrades from
a remote computer (over the Internet)
Provides Auto MDI / MDI-X function for all wired Ethernet ports.
Supports Green WLAN for smart Tx power saving, Implicit Rx power
saving and CPU offload.
Notebook or desktop computer with network adapter
(wired/wireless)
Internet connection, provided by xDSL or cable modem with a RJ-45
Ethernet port.
Web browser (Microsoft Internet Explorer 4.0 or above, Netscape
Navigator 4.7 or above, Opera web browser, or Safari web browser).
An available AC power socket (100 – 240V, 50/60Hz)
System Requirements
The following system requirements are recommended
Front View
Below shown is the product front view.
Users can verify router status from the LED indicators on the front
panel. Below given is the LED description.
Rear View
Below shown is the product Rear View.
LED Name LED Color Light Status Description
P (Power) Green On Router is switched on and correctly powered.
On Wireless WPS function is enabled.
Off Wireless network is switched off.
Flashing Wireless LAN activity (transferring or receiving data).
On WAN port is connected.
Off WAN port is not connected.
Flashing WAN activity (transferring or receiving data).
On LAN port is connected.
Off LAN port is not connected.
Flashing LAN activity (transferring or receiving data).
LAN (1~4) Green
WLAN Amber
WAN Green
Below given is the router interface description.
Interfaces Description
Antenna It is a 3dBi dipole antenna.
Radio ON/OFF
Switch the button to activate or deactivate the wireless functions.
After switching the button, the router will be reset automatically for
enabling the new setting.
Reset / WPS
Reset the router to factory default settings (clear all settings) or
start WPS function. Press this button and hold for 10 seconds to
restore all settings to factory defaults, and press this button for less
than 5 seconds to start WPS function.
LAN (1 – 4) Local Area Network (LAN) ports 1 to 4.
WAN Wide Area Network (WAN / Internet) port.
Power Power connector, connects to A/C power adapter.

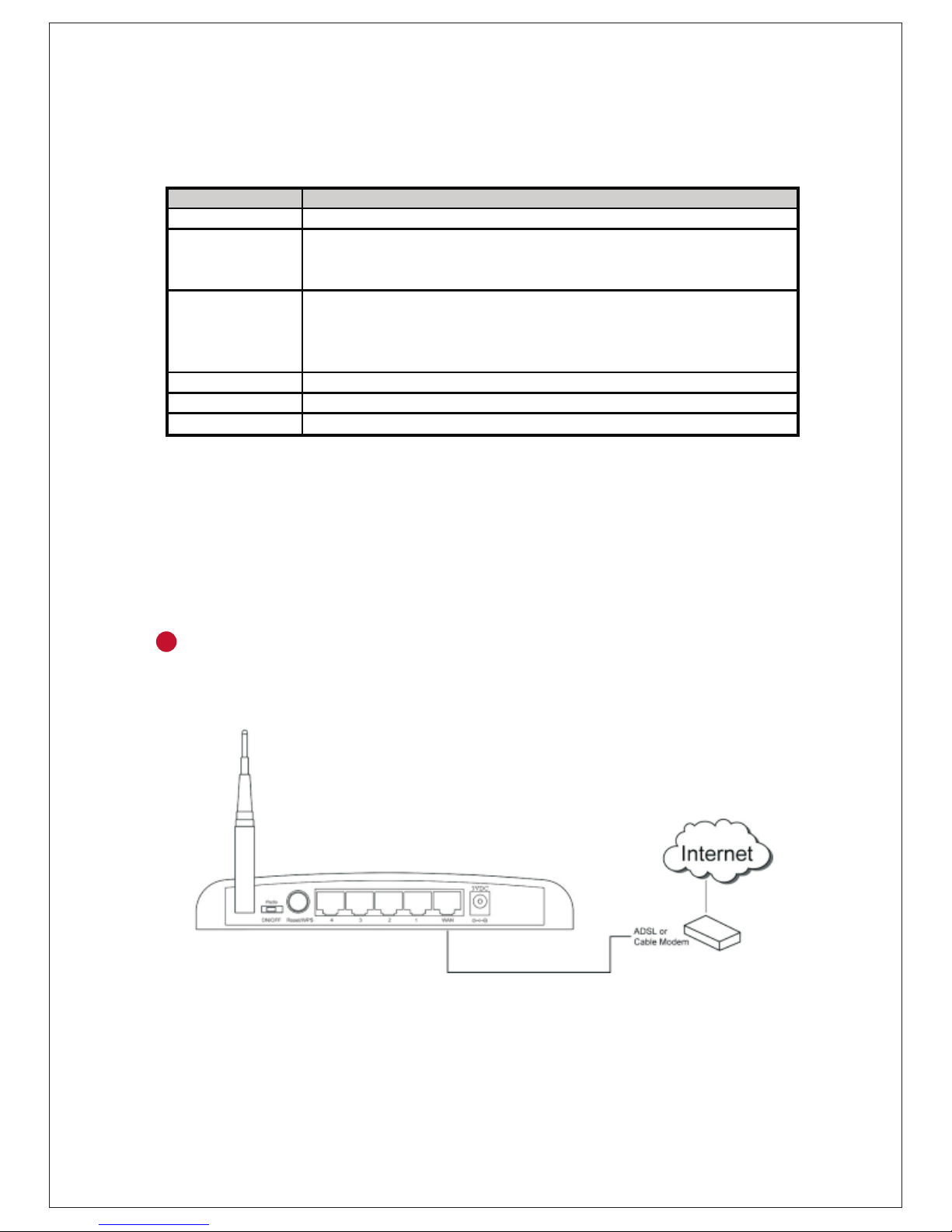

Hardware Installation
Connect your xDSL / cable modem to the WAN port of the router by
an Ethernet cable.
1
Please follow the below mentioned instructions to build the network
connection between your new WIRELESS router and your computers,
network devices:
Connect all your computers, network devices (switch / hub) to the
LAN port of the router.
2
Connect the power adapter (5V DC / 1A) to the wall socket, and then
connect it to the 'Power' socket of the router.
2
3
Please check all LEDs on the front panel. Power LED 'P' should be
steadily ON, WAN and LAN LEDs should be ON. Check if the
computer / network device connected to the respective port of the
router is powered ON and correctly connected.
4
Insert the Setup CD into your CD-ROM drive of notebook/desktop
computer.
1
Explore the CD and execute the “EZWizard.exe” file. Below given
screen will appear. Click 'Next' to Continue.
2
Software Installation
Connect one end of a network cable to the WAN port of the router
and the other end to the DSL/Cable modem. Click 'Next' to continue.
3
Connect one end of the provided network cable to one of the LAN
ports (1~4) of the router and the other end to your computer. Click
'Next' to continue with the installation.
4
Power on the Router. It will take approximately 30 seconds for router
to boot up completely. Ensure that all the LED's on the router are ON.
If not, try the above steps again else click 'Next' to continue.
5
Enter the Router's password to log in to the Router. The default
password is “1234”. It is recommended to change the router's
password to protect it from being accessed by other users. If you do
not wish to change the current password, you can leave “New
Password” and “Confirm New Password” fields blank. Click 'Log in'
to continue.
6
